BJT TRANSISTOR TESTER

In this project we will learn to measure BJT transistors and we will know if they are in a good or bad state.

gerberPCB:

https://mega.nz/file/Wd5FySpK#WVRsIypXKMlHum_P_ZTnGXQ7kxmhzpDaI-9a9s3gG2o

For this project we will use only resistors and 2 led diodes that will indicate us according to the polarity of the base of the transistor N or P that will indicate if the transistor is good or bad.

How do we know if a transistor is bad inside a damaged electronic card? This project will allow us to know what state it is in, it can be short-circuited and open, for which we will have a button for each transistor model in NPN or PNP and know the correct measurement, we will no longer use the multimeter because for many people it is makes the measurement difficult so we will do it through this PCB.

·        2 resistors 1/4w 1kohm

·        2 resistors 1/4w 10kohm

·        2 resistors 1/4w 560ohm

·        2 push buttons

·        2 led diodes 5mm

·        1 2-pin sprat

·        1 9VDC battery

·        1pcb

·        VIN 9VDC

·        I MAX 20mA

·        PRECISE MEASUREMENT

·        CHECKING THE TRANSISTOR IN GOOD OR BAD CONDITION

·        SHORT CIRCUIT DETECTION

·        DETECTION OF THE TRANSISTOR IF IT IS OPEN

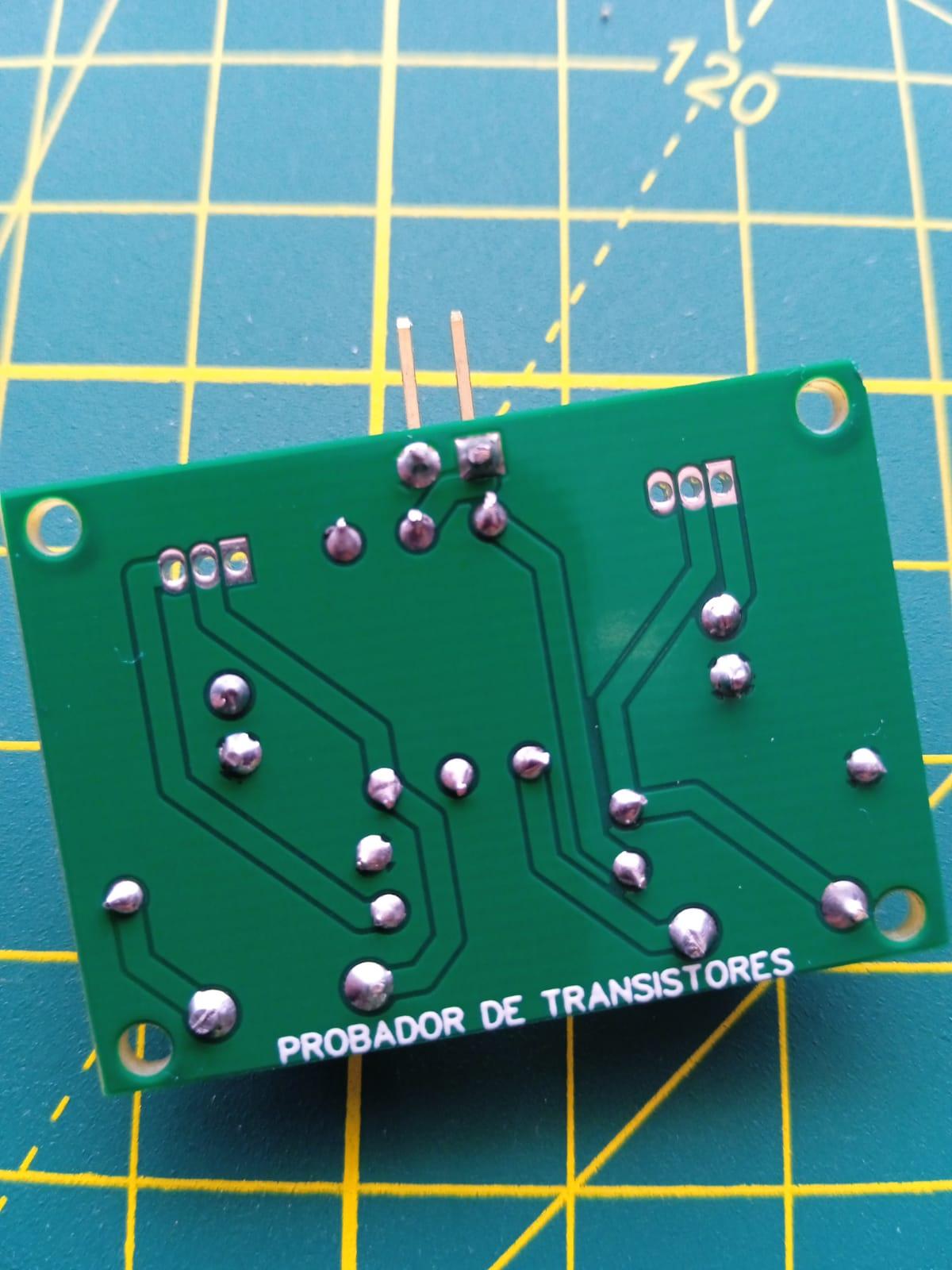

We will design the pcb in easyeda software and see the schematic diagram, tracks and 3D design

10pcbs at $5 order them here www.pcbway.com

We thank PCBWAY for the professional pcb they provide us for this project.
