BEHERIT PCB Necklace

How are you all? The BEHERIT Astable Vibrator Circuit, which is built on a 555 Timer IC and a few other components, is an intriguing project that is intended to exactly resemble BEHERIT, also known as EGG of King from the Berserk series.

The BEHERIT in "Berserk" is a mystical artifact that triggers a dark and tragic event, known as the Eclipse, and grants immense power to those who activate it by offering a significant sacrifice. It is a symbol of despair, fate, and the destructive forces present within the world of "Berserk."

This PCB badge/necklace is entirely driven by a straightforward 555 timer IC, and this Instructables will describe how the circuit, including the PCB design and assembly, was put together. Let's get started with the construction.

following are the things required in this built-

• 555 timer IC
• Custom PCB
• 10K Resistor
• Coin cell holder
• CR2032 Coin cell
• 22uf Capacitor
• Slide Switch
• RED 3mm LED

All began with a drawing of BEHERIT that I discovered online, created by an unknown artist. It looks really cool, so I had to turn it into a PCB.

In order to load the image into the PCB Design, we first had to convert it from JPG to monochromatic BMP.

My PCB CAD software finds this step tedious because it only supports importing BMP images, but other programs like Altium or KiCad support importing PNG or even JPEG images.

We only need to import the image as a silkscreen top or bottom layer; the import steps remain the same.

The 555 timer IC's astable multivibrator mode is also known as the free running or self-triggering mode. In contrast to monostable multivibrator mode, it only has two quasi-stable states (HIGH and LOW).

In astable mode, a rectangular waveform is produced without the need for external triggering because it automatically switches between its two states at regular intervals. The external resistors (R1 and R2) and a capacitor have determined this HIGH and LOW output time period (C1).

In our example, R1 and R2 are both set to 10K, while C1 is set to 22uF, which causes the LED to blink more quickly.

A Coin Cell Holder (CR2032) with a sliding switch in series between VCC and the positive of the cell and a connection between GND and the negative of the Cell Holder is added to the PCB design.

An extra component, which we can add if we don't want to use a CR2032 Cell to power the entire setup, consists of an additional Micro USB with a diode in series with the VCC of the timer IC.

After the schematic is complete, we translate it into a PCB design and begin arranging the components on the board.

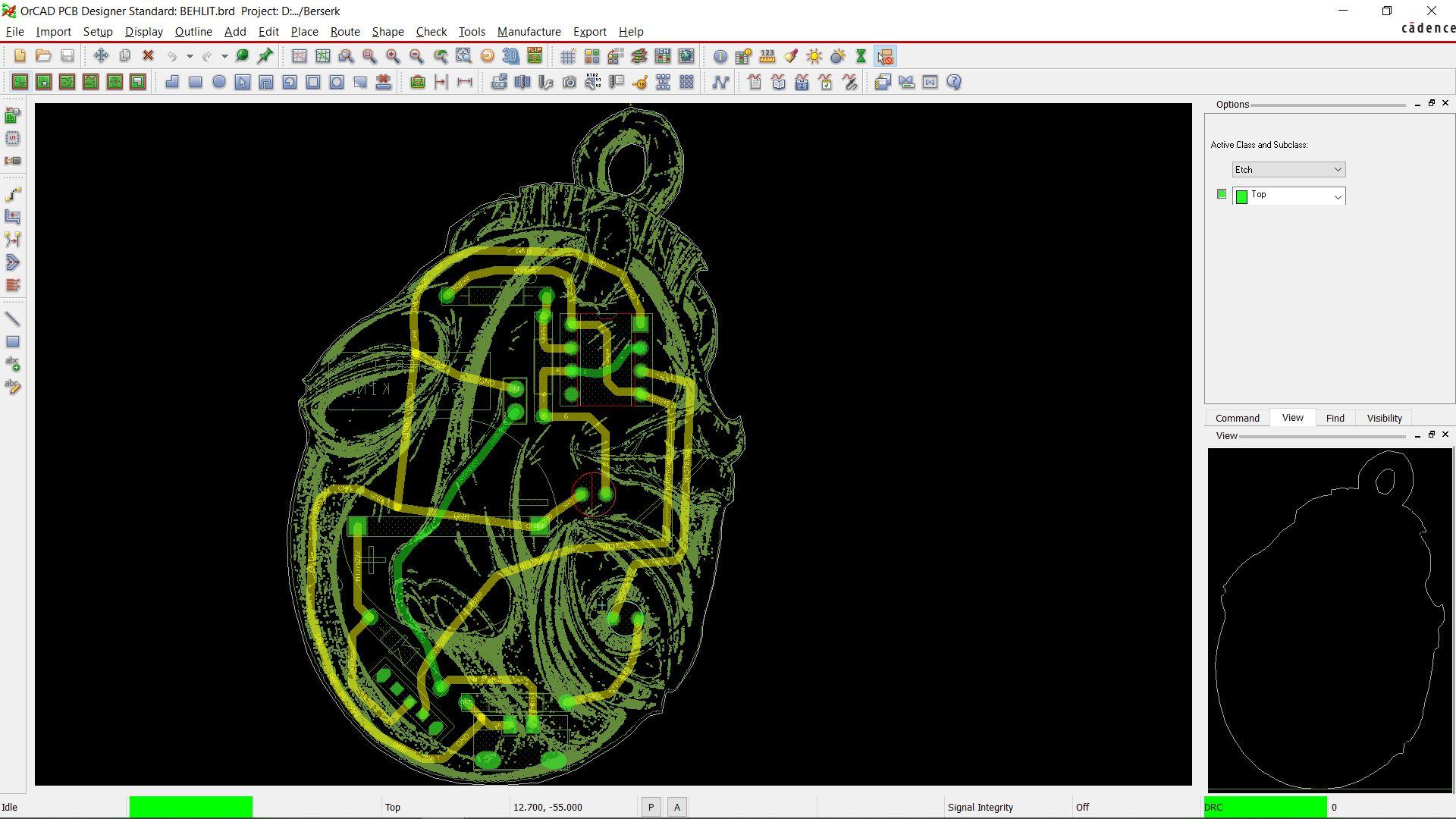

The board outline is created using the BEHERIT silkscreen outer lines, and all the components are then placed inside the BEHERIT shape.

Only the LED is added from the TOP side of the board because it is located in the design's eye region, while the rest of the components are placed on the bottom side of the board.

We finish the design process by connecting the tracks and carefully wiring the connectors on the board.

After placing everything and finalizing the board, I send its Gerber data to PCBWAY for samples.

I used PCBWAY PCB Service for this project. I uploaded the Gerber file for this project on PCBWAY's quote page. For this board, I went with red Soldermask and white silkscreen.

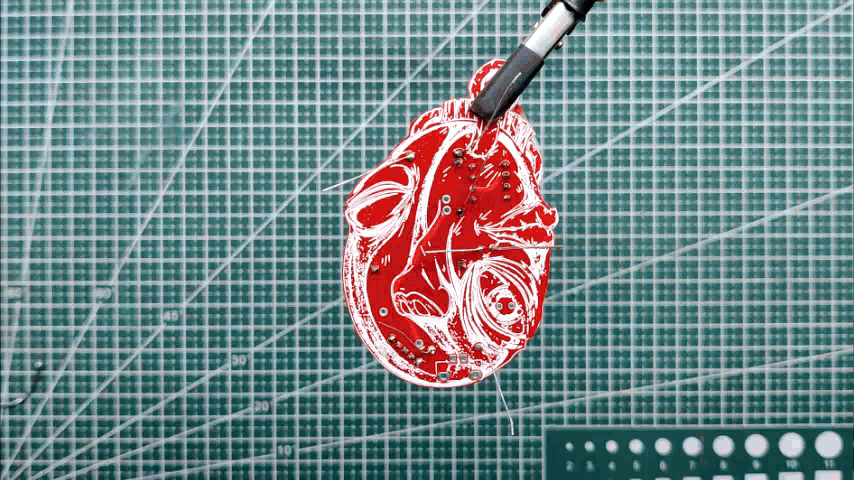

After placing the order, I received the PCBs within a week, and the PCB quality was pretty great. The silkscreen I used is completely random and asymmetrical, so it's pretty hard to make, but they did an awesome job of making this PCB with no errors whatsoever.

You guys can check out PCBWAY if you want great PCB service at an affordable rate.

• Prior to beginning the PCB assembly procedure, we gather all of the THT components and arrange them in accordance with the schematic.
• Next, we solder their pads using a soldering iron.
• After soldering all the components, we trim their leads using a wire trimmer.
• We then place the LED in its place from the top side of the board and soder its pads from bottom side.

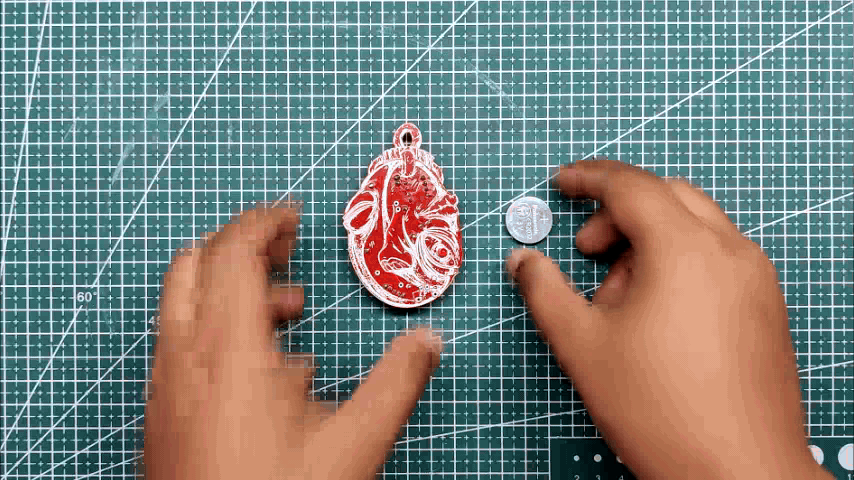

• Once a CR2032 coin cell is inserted into the cell holder and the slide switch is activated, the board is now complete.

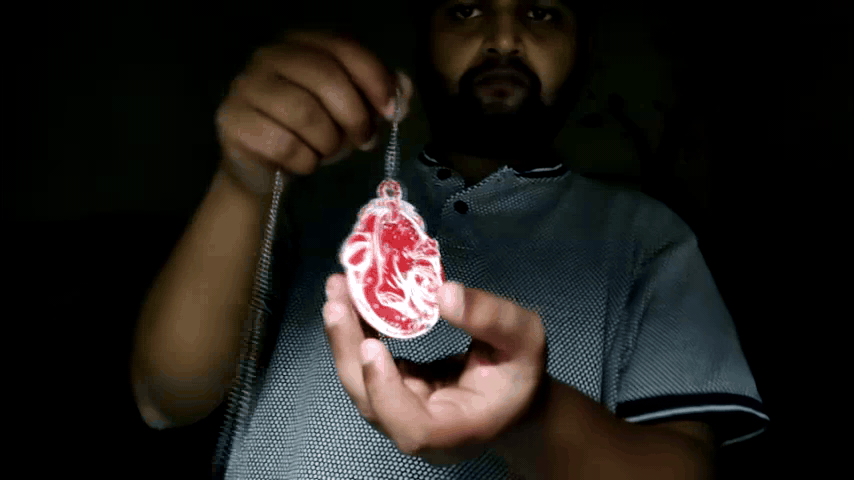

BEHERIT from Berserk is the result of this tiny build.

Although BEHELIT is a necklace, we must add a chain to it in order to complete the project, which makes the construction procedure more difficult.

The 555 timer IC circuit is simple, and the blink rate of the LED may be altered by adjusting the values of R1, R2, and C1.

As for the rationale behind utilizing a timer IC, it's just to keep things simple. Well, we could have used an 8 bit MCU with low memory to drive more LEDs here, but that would have resulted in a significant increase in battery consumption. Without writing any code, it is simple to order the PCB, add the necessary components, and solder the component pads together to create this low-power arrangement.

We'll have to wait and see whether there is a version of this project that has been overengineered in the future.

If you made it this far, thanks a bunch!

I hope this article was useful, if yes, then leave a comment.

Special thanks to PCBWAY for supporting this project; do check them out for great PCB service at a lower cost.

Thanks again, and I will be back with a new project soon.
