BC 557 HEAT SENSOR


HI, THIS IS A SIMPLE HEAT SENSOR USING BC557
Downloads
Supplies

SOLDERING IRON
IMM SOLID COPPER WIRE
WODDEN BASE
MAKING BASE

I MADE THE BASE BY CUTTING A SMALL PIECE OF WOOD AND BURNT IT USING GAS LIGHTER AND DRILLED SMALL HOLES SO THAT I COULD FIX SOME SOLID COPPER WIRE TO SOLDER THE COMPONENTS
CIRCUIT

THIS IS A SMALL CIRCUIT DIAGRAM WHICH USES A PNP TRANSISTOR BC557 AND A DIODE 1N4148 AND A 5MM LED AND A CURRENT LIMITTING RESISTOR (150OHM)

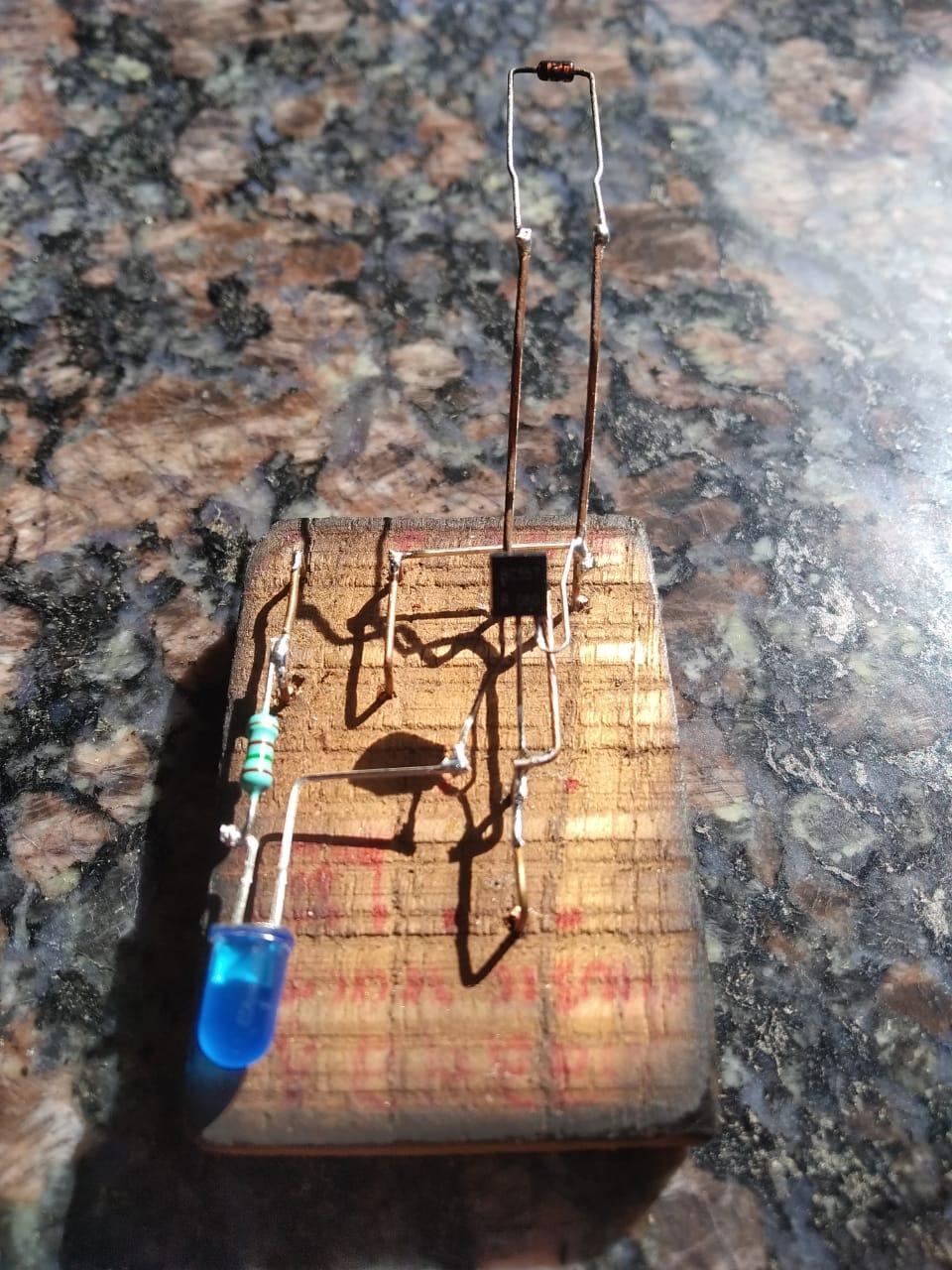

AFTER SOLDERING

AFTER SOLDERING
WATCH THE VEDIO
