Hii Friend,

This blog will be awesome bacause in this blog I will make an amazing LED effect circuit using Old Wall clock.

Let's get started,

Materials Required


Materials name are given below that we will need to make this circuit.

(1.)Wall Clock Machine x1

(2.)Battery - 9V x1 (Here I am using 9V Battery with 220 ohm resistor but we can also use 3.7V Battery without resistor)

(3.)Battery Clipper

(4.) Resistor - 220 ohm x1 (When we will connect 3.7V Battery then we don't need to use any resistor)

(5.) LED - 3V x2 (Red and Green)

That's all components

Open This Wall Clock Machine


Hey gues we will not be required all components of this machine, Only we need it's internal circuit.Hence Open this machine.

Remove This Part


We have to remove this part of this machine.

Dissolder the Coil Wire


Here in this circuit we need only kit.So dissolder the coil wire and remove the kit.

We Need This Kit


This is the kit that we will need in this project.

Connect Green LED


Connect Green LED to this kit at the place of coil wire that was soldered.

Solder +ve leg of green LED to one point of coil and

Solder -ve leg of green LED to another point of coil of the kit as you can see in the picture.

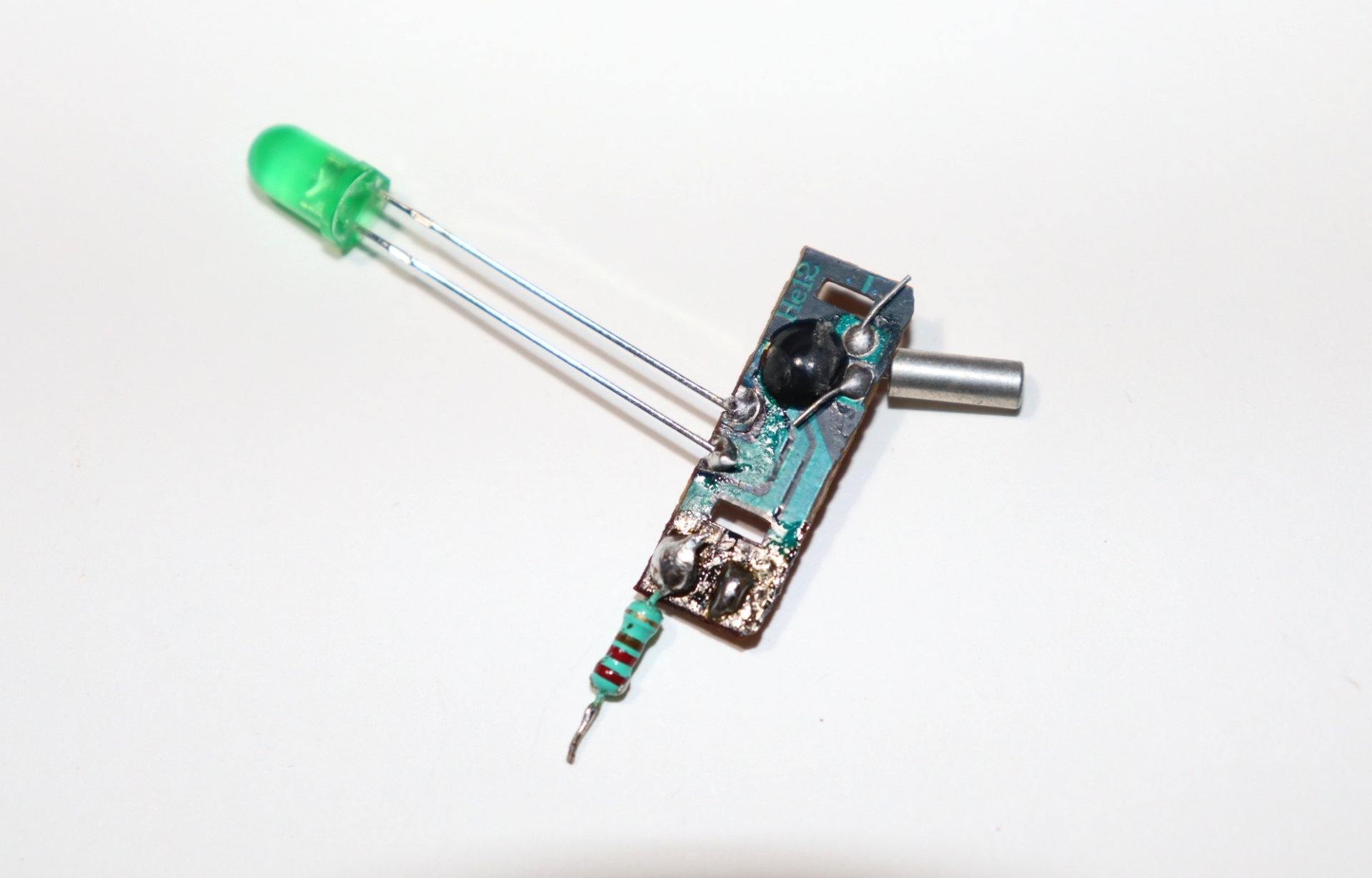

Connect 220 Ohm Resistor


Solder 220 ohm resistor to this kit at the place of battery as solder in the picture.

NOTE : If you are using 9V Battery then connect 220 ohm resistor otherwise if you are using 3.7V battery then we don't need to solder 220 ohm resistor.

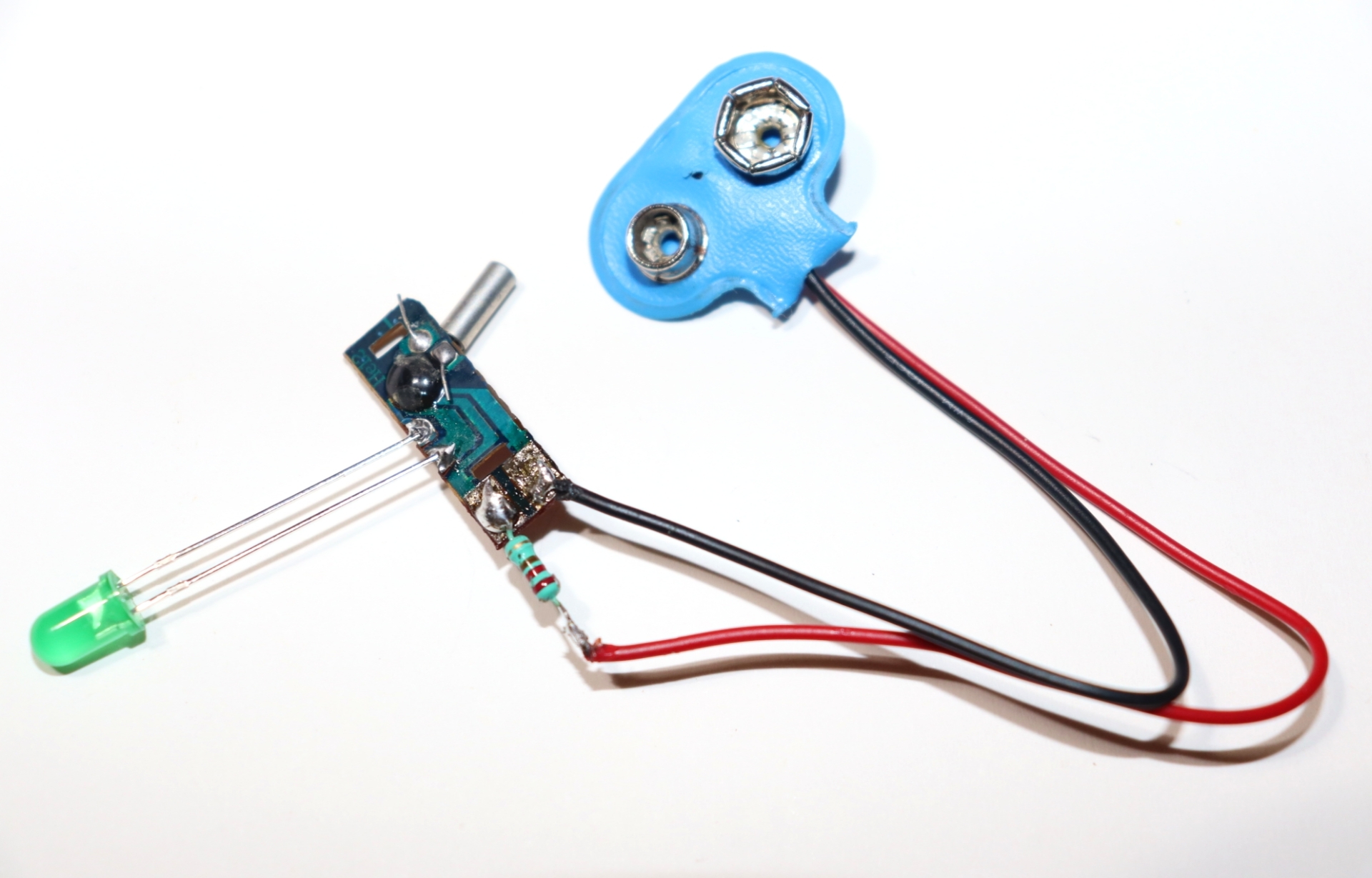

Connect Battery Clipper Wire


Now we have to connect battery clipper wire to this kit.

Solder +ve wire of battery clipper to 220 ohm resistor and

Solder -ve wire of Battery clipper to other point of battery as you can see in the picture.

Now Connect Battery


Now our circuit is ready so connect battery to battery clipper and see LED will blinking like as ambulance light.

Connect Red LED


Connect Red LED to the kit just opposite legs with Green LED as shown the polarity of LEDs in the picture.

Now Connect Battery


Now connect battery to battery clipper and see the effect of LED Blinking.

Both LEDs will blink alternate.
