Autonomous Smart Suitcase Pixy Camera!

• Definition

ASS is an autonomous smart suitcase that will follow the user wherever he goes. Apart from this it also has additional features such as lost mode, bag fall detection and an LCD to display the user information. The bag will mainly be used by commuters, handicapped people and others in indoor facilities.

We all know the hassle of pushing along our baggage in the airport. It is a tedious process that aggravates our tiredness and difficulty during the journey. The aim of our project “autonomous smart suitcase” is to eliminate the issue of pushing the suitcase around. Not only this I will also be adding additional functionality to the suitcase that will make my suitcase more easy to use and convenient.

• Applications

ASS has applications in the following areas:

· Airports as luggage

· Universities

· Hospitals

· Offices

· Other indoor facilities

List of Components:

_Hardware_

Children electric motor gear box,DC12V

Suitcase as you like.

Arduino Mega ADK Or Mega 2560.

Adafruit Ultimate GPS Breakout with External Antenna.

Arduino GSM Shield.

L298N Motor Drive Controller.

HC-06 Wireless Bluetooth Serial Transceiver.

10000 MAH Lipo Battery Or Any Capacity you want.

16x2 Character LCD Display.

Sim Card.

Android Device. "Any mobile phone or tablet"

Ultrasonic Module HC-SR04 Distance Measuring.

Pixy2 CMUcam5 Smart Vision Sensor.

3 Axis Accelerometer Gyroscope.

buzzer.

arduino uno.

_ Software_

• Arduino IDE.

• Pixymon v2 Windows version

• Specification

•Max weight of luggage: 7 Kg.

•Speed: 5 km/h.

•Operating Time on full charge: 3 Hours.

•Wireless: Bluetooth, GPRS, and GPS.

•Image recognition: 2 m Max distance, 20 cm stop

• Objectives

1.Simulates the latest advanced technology of the actual autonomously following.

2.Reduces the need for the human control interference.

3.Acquires capability to develop the artificial intelligence systems.

4.Acquiring the ability to integrate theoretical knowledge and practical skills by designing a real-world application based on specification requirements

Pixy2 CMUcam5 Smart Vision Sensor.

Pixy2 is smaller, faster and more capable than the original Pixy. Like its predecessor, Pixy2 can learn to detect objects that you teach it, just by pressing a button. Additionally, Pixy2 has new algorithms that detect and track lines for use with line-following robots. The new algorithms can detect intersections and “road signs” as well. The road signs can tell your robot what to do, such as turn left, turn right, slow down, etc. And Pixy2 does all of this at 60 frames-per-second, so your robot can be fast, too. Find More HERE|

L298N Motor Drive Controller.

L-298 has two enable input to control any device by enabling or disabling it. L 298 IC is most commonly used to make motor drivers or motor controllers. These motor controllers can be controlled by any micro controller e.g Arduino, PIC, Raspberry Pi etc. They receives input from micro controllers and operate the load attached to their output terminals correspondingly. L-298 motor driver (H-Bridge) is able to control two different DC motors simultaneously. While it can control a single stepper motor as well. L 298 has two Pulse Width Modulation (PWM) pins. PWM pins are used to control the speed of the motor. By changing the voltage signal’s polarity at its input we can rotate the motor in either clockwise or counter clockwise direction. Find more HERE!

GPS breakout board

The breakout is built around the MTK3339 chipset, a no-nonsense, high-quality GPS module that can track up to 22 satellites on 66 channels, has an excellent high-sensitivity receiver (-165 dB tracking!), and a built in antenna. It can do up to 10 location updates a second for high speed, high sensitivity logging or tracking. Power usage is incredibly low, only 20 mA during navigation. Find more HERE!

Ultrasonic Module.

The HC-SR04 ultrasonic sensor uses sonar to determine distance to an object like bats do. It offers excellent non-contact range detection with high accuracy and stable readings in an easy-to-use package.
From 2cm to 400 cm or 1” to 13 feet. Its operation is not affected by sunlight or black material like sharp rangefinders are (although acoustically soft materials like cloth can be difficult to detect). It comes complete with ultrasonic transmitter and receiver module. Find more HERE!

Arduino GSM Shield

The Arduino GSM Shield V2 connects your Arduino to the internet using the GPRS wireless network. Just plug this module onto your Arduino board, plug in a SIM card from an operator offering GPRS coverage and follow a few simple instructions to start controlling your world through the internet. You can also make/receive voice calls using the on-board audio/mic jack and send/receive SMS messages. Find more HERE!

Subsystem 1: Wireless communication

Main functions:

GPRS Communication between bag and the user

GPS signal reception for the bag

Bluetooth connection between user and the bag

Hardware used:

GSM chip

GPS chip

HC 06 Bluetooth chip

Android device

Subsystem 2: User following autonomous mode

Main functions:

Follow the user autonomously

Detect of the bag falls down and make a notification

Receive image data using the camera

Detect the users legs

Move the bag according to the position of the user

Stop if he is very close to the user

Hardware used:

DC motor

DC motor controller

Ping transmitter

ping receivers

Camera and processor

Subsystem 3: Sensory sub system

Main functions:

Detect the orientation of the bag using an accelerometer

Play the buzzer in case the bag is lost

Display message in case the bag is lost

Hardware used:

Accelerometer

Buzzer

LCD

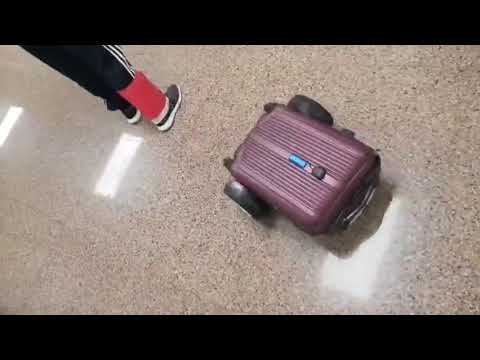

This video showing the ASS in the autonomous following mode

This video showing the ASS in the Manual Mode

This video showing the ASS in the Detect Mode

You Can download for the Google store HERE!

GPS

#include

SoftwareSerial GPRS(7, 8); //7 = TX, 8 = RX

unsigned char buffer[64]; port

int count=0;

int i = 1; //if i = 0, send SMS.

void setup(){

//delay(10000);

GPRS.begin(19200); // the GPRS baud rate

Serial.begin(19200); // the Serial port of Arduino baud rate.

Serial.print("I'm ready");

Serial.print("Hello?");

}

void loop(){

if (GPRS.available()){ // if date is comming from softwareserial port ==> data is comming from gprs shield

while(GPRS.available()){ // reading data into char array

buffer[count++]=GPRS.read(); // writing data into array

if(count == 64)break;

}

Serial.write(buffer,count); // if no data transmission ends, write buffer to hardware serial port

clearBufferArray(); // call clearBufferArray function to clear the storaged data from the array

count = 0; // set counter of while loop to zero

}

if (Serial.available()) // if data is available on hardwareserial port ==> data is comming from PC or notebook

GPRS.write(Serial.read()); // write it to the GPRS shield

if(i == 0){

GPRS.print("AT+CMGF=1\r"); //sending SMS in text mode

Serial.println("AT+CMGF=1\r");

delay(1000);

GPRS.print("AT+CMGS=\"+554988063979\"\r"); // phone number

Serial.println("AT+CMGS=\"+554988063979\"\r");

delay(1000);

GPRS.print("Test\r"); // message

Serial.println("Test\r");

delay(1000);

GPRS.write(0x1A); //send a Ctrl+Z(end of the message)

delay(1000);

Serial.println("SMS sent successfully");

i++;

}

}

void clearBufferArray(){ // function to clear buffer array

for (int i=0; i

buffer[i]=NULL; // clear all index of array with command NULL

}

}

Accelerometer

/*

ADXL3xx

Reads an Analog Devices ADXL3xx accelerometer and communicates the

acceleration to the computer. The pins used are designed to be easily

compatible with the breakout boards from SparkFun, available from:

http://www.sparkfun.com/commerce/categories.php?c...

The circuit:

- analog 0: accelerometer self test

- analog 1: z-axis

- analog 2: y-axis

- analog 3: x-axis

- analog 4: ground

- analog 5: vcc

created 2 Jul 2008

by David A. Mellis

modified 30 Aug 2011

by Tom Igoe

This example code is in the public domain.

http://www.arduino.cc/en/Tutorial/ADXL3xx

*/

// these constants describe the pins. They won't change:

const int groundpin = 18; // analog input pin 4 -- ground

const int powerpin = 19; // analog input pin 5 -- voltage

const int xpin = A3; // x-axis of the accelerometer

const int ypin = A2; // y-axis

const int zpin = A1; // z-axis (only on 3-axis models)

void setup() {

// initialize the serial communications:

Serial.begin(9600);

// Provide ground and power by using the analog inputs as normal digital pins.

// This makes it possible to directly connect the breakout board to the

// Arduino. If you use the normal 5V and GND pins on the Arduino,

// you can remove these lines.

pinMode(groundpin, OUTPUT);

pinMode(powerpin, OUTPUT);

digitalWrite(groundpin, LOW);

digitalWrite(powerpin, HIGH);

}

void loop() {

// print the sensor values:

Serial.print(analogRead(xpin));

// print a tab between values:

Serial.print("\t");

Serial.print(analogRead(ypin));

// print a tab between values:

Serial.print("\t");

Serial.print(analogRead(zpin));

Serial.println();

// delay before next reading:

delay(100);

}

1.2 Motor

const int pwm = 2 ; //initializing pin 2 as pwm

const int in_1 = 8 ;

const int in_2 = 9 ;

//For providing logic to L298 IC to choose the direction of the DC motor

void setup() {

pinMode(pwm,OUTPUT) ; //we have to set PWM pin as output

pinMode(in_1,OUTPUT) ; //Logic pins are also set as output

pinMode(in_2,OUTPUT) ;

}

void loop() {

//For Clock wise motion , in_1 = High , in_2 = Low

digitalWrite(in_1,HIGH) ;

digitalWrite(in_2,LOW) ;

analogWrite(pwm,255) ;

/* setting pwm of the motor to 255 we can change the speed of rotation

by changing pwm input but we are only using arduino so we are using highest

value to driver the motor */

//Clockwise for 3 secs

delay(3000) ;

//For brake

digitalWrite(in_1,HIGH) ;

digitalWrite(in_2,HIGH) ;

delay(1000) ;

//For Anti Clock-wise motion - IN_1 = LOW , IN_2 = HIGH

digitalWrite(in_1,LOW) ;

digitalWrite(in_2,HIGH) ;

delay(3000) ;

//For brake

digitalWrite(in_1,HIGH) ;

digitalWrite(in_2,HIGH) ;

delay(1000) ;

}

Bluetooth

/*

* Bluetooh Basic: LED ON OFF - Avishkar

* Coder - Mayoogh Girish

* Website - http://bit.do/Avishkar

* Download the App : https://github.com/Mayoogh/Arduino-Bluetooth-Basi...

* This program lets you to control a LED on pin 13 of arduino using a bluetooth module

*/

char data = 0; //Variable for storing received data

void setup()

{

Serial.begin(9600); //Sets the baud for serial data transmission

pinMode(13, OUTPUT); //Sets digital pin 13 as output pin

}

void loop()

{

if(Serial.available() > 0) // Send data only when you receive data:

{

data = Serial.read(); //Read the incoming data & store into data

Serial.print(data); //Print Value inside data in Serial monitor

Serial.print("\n");

if(data == '1') // Checks whether value of data is equal to 1

digitalWrite(13, HIGH); //If value is 1 then LED turns ON

else if(data == '0') // Checks whether value of data is equal to 0

digitalWrite(13, LOW); //If value is 0 then LED turns OFF

}

}
