The Automatic Mining Machine is made by Arduino Leonardo. Cryptocurrency became a rising trend in 2020. Many personal and firms started to join the industry. This caused the lack of GPU in the whole World. However, it is compatible to turn off the code of mining and start mining. It wastes a lot of time. Therefore, the Automatic Mining Machine allows helps the user to open the mining system with only one step, which makes it becomes more convenient.

The first button opens the mining code and starts mining.

The second button closes the mining code and stops mining.

Supplies:
Arduino Leonardo x 1

Arduino Breadboard x 1

Button x 2

Some jumper wires1k resistors x 2

USB to micro-USB B Cable x1

Computer x 1

Cardboard Box x 1

Tape x 1

Paper x1 (decoration)

Connect the Buttons

螢幕擷取畫面 2021-05-15 214649.png
螢幕擷取畫面 2021-05-15 214925.png
螢幕擷取畫面 2021-05-15 214847.png
  1. Take two Buttons and 8 jumper wires.

  2. Connect the GND with the positive charge line (first horizontal line).

  3. Connect the 5V with the negative charge line (second horizontal line).

  4. Take two wires jumpers and connect with the negative charge line with D horizontal line (three jack between the positive charge jumper wires)

  5. Take two jumper wires, and connect with pin 2 and 3 (plug by the positive charge jumper wires)

  6. Take two 1k resistors and connect the lines that connect with the pin and the lines connect with the negative charge line.

  7. Take two buttons and connect between the pin lines and negative charge lines.

Make the Case of Mining Machine

arduino 6.png
arduino 4.png
arduino 3.png
arduino 5.png
arduino 1.png
arduino 2.png

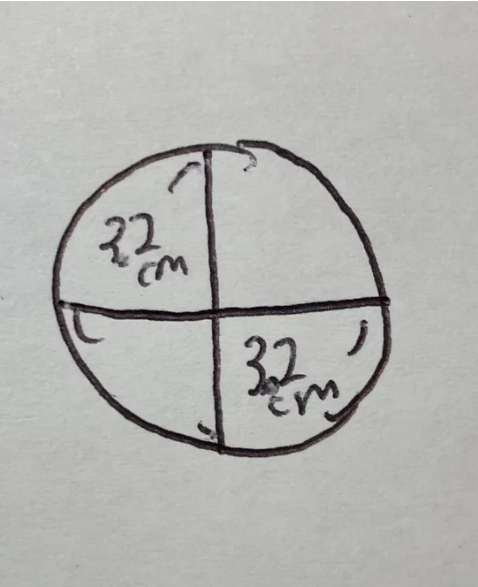

  1. Take a cardboard box and make two-length 3.2 cm and weight 3.2 circle holes on the top of the box.

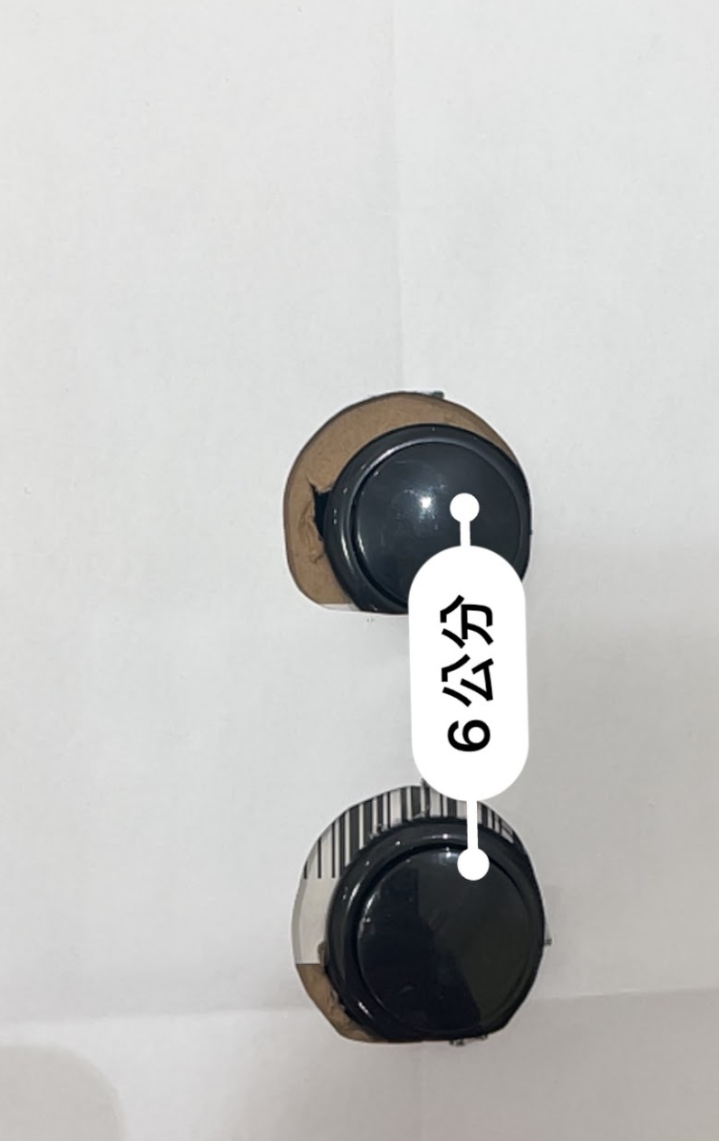

  2. The distance between the two buttons is 6 cm

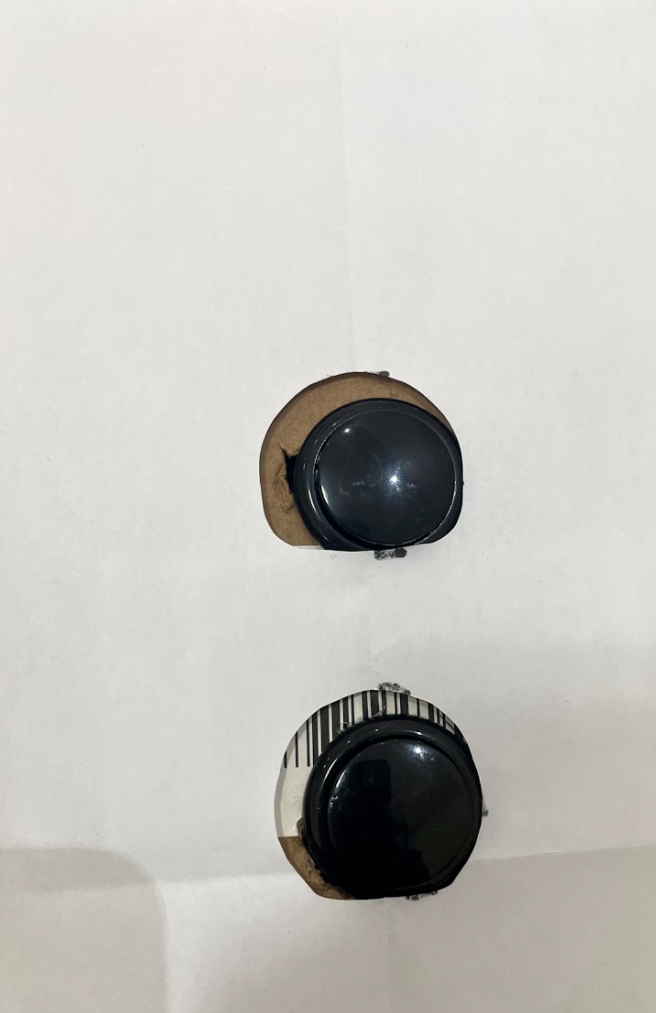

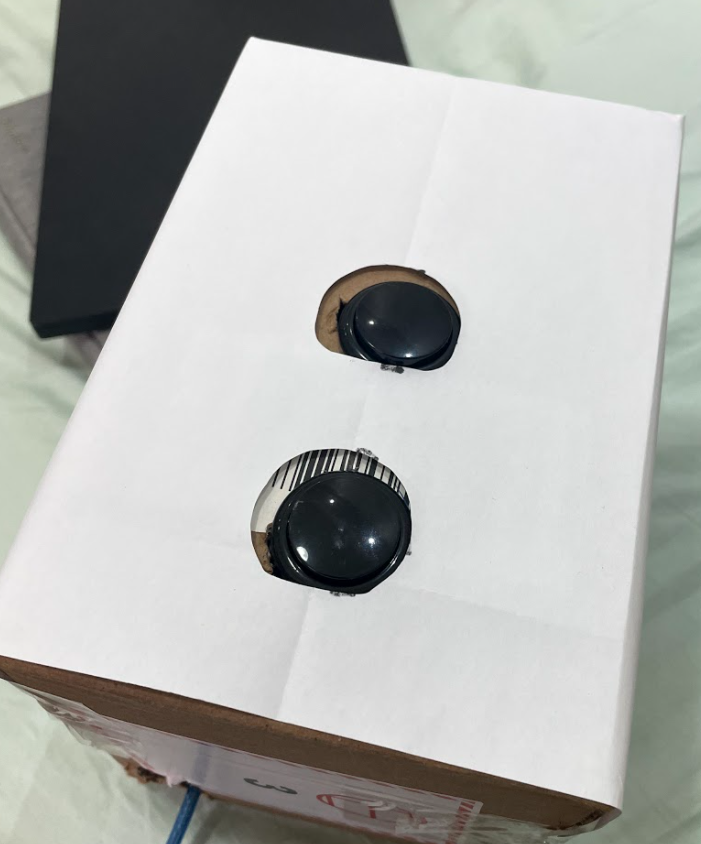

  3. Put two buttons in the two holes.

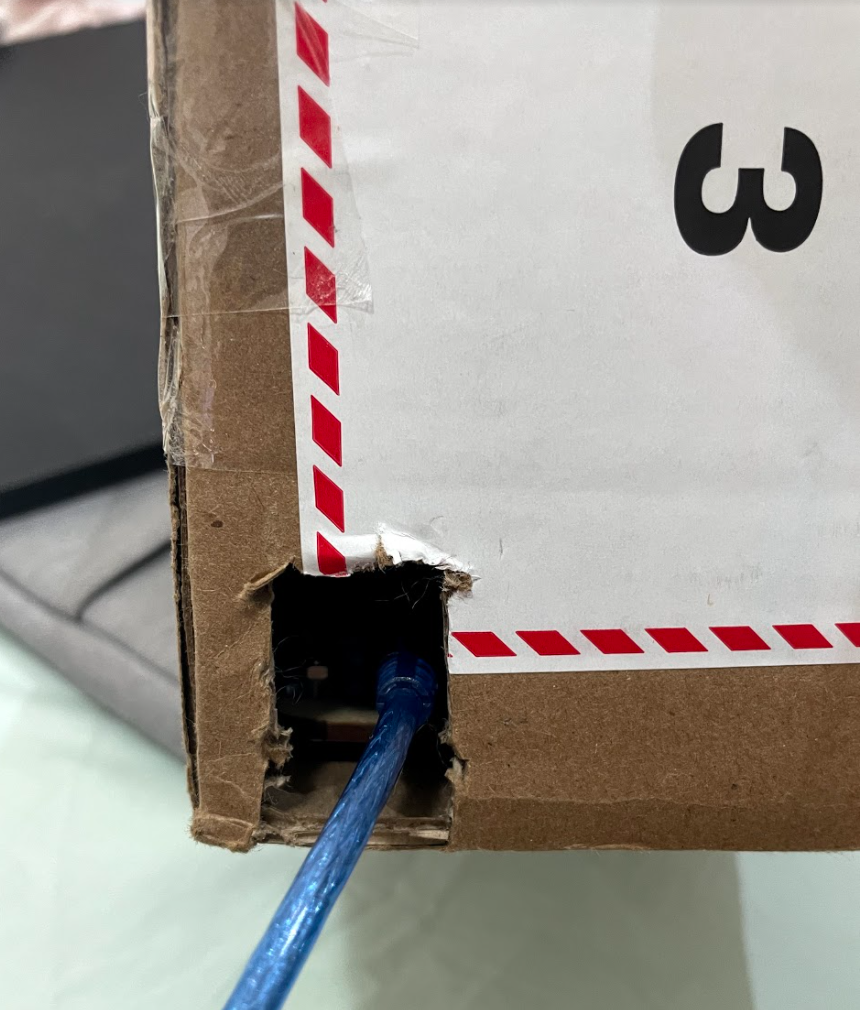

  4. Make another 4cm x 2cm square hole at the side of the box for the cable.

Suggestion

  • Remember to pick a shorter cardboard box, so the line length of the jumper wires can be shorter.

Coding

The code of the Automatic Mining Machine (with explaination).

link: https://create.arduino.cc/editor/j07158/6b8a79d0-c...

Thing to Do Before You Use the Automatic Mining Machine(Get the Dogecoin Wallet & Download the Mining System)

dogecoinexplain 1.png
dogecoinexplain 2.png
dogecoinexplain 3.png
dogecoinexplain 4.png
  1. Go to the dogecoin website to get the address of your Dogecoin wallet
  2. Pick a mining pool you want (search by yourself)
  3. Click the Dogecoin icon
  4. Download the lolMiner system to your desktop (depend on your system to choose the window and ios version)

Final Result

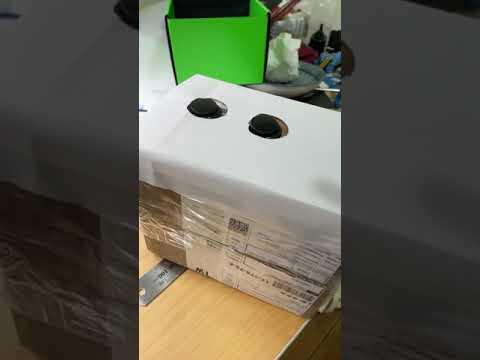

Automatic Mining Machine

Automatic Mining Machine is useless that allowed the miner to open the mining system easier, so they mine easier.

Try to make it !!! Make sure to take care of your GPU!!!
