Automatic Laptop Battery Charging

by rajshaswat in Circuits > Arduino

2035 Views, 10 Favorites, 0 Comments

Automatic Laptop Battery Charging


I keep my laptop in charging condition most of the time and because of that have to loose battery very frequently.

Continuously charging of battery leads to deteriorate battery backup until it get almost dead.

we have lot of software to give alarm but anyhow you have to unplug the charging manually .

I thought to utilize the Arduino to Automate the charging and discharging of laptop.

Hardware Requirement

1. Arduino Uno

2. Relay Board

3. Jumper Wires

4.Laptop Charger

Wiring Details


Wiring is very simple

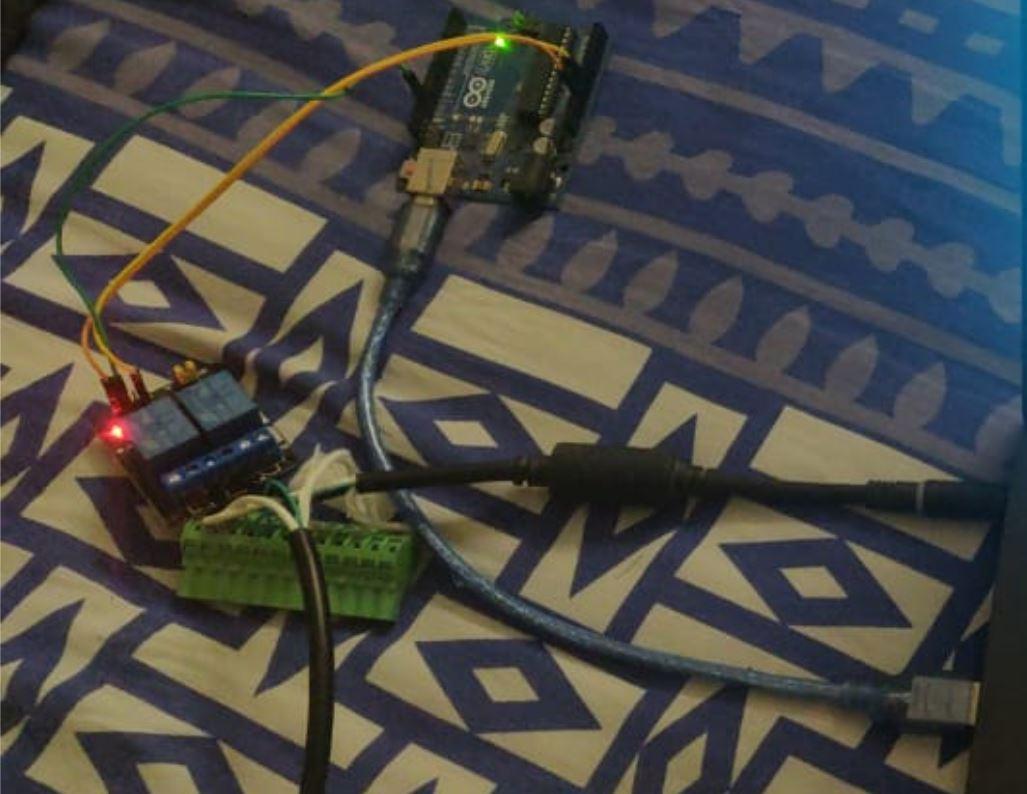

Connect the Relay board from Arduino using Jumper wires at PIN

1. 5v to 5v VCC of Relay board

2. GND to GND of Relay Board

3. PIN 13 (used in Project) to IN1 of relay Board ( we can use any GPIO to connect )

4. Negative wire of Charger we have to route using relay

Wiring Schematics


Main Source Wiring Schematic


Always check for country specific wiring color coding

https://www.graphicproducts.com/articles/wire-colo...

Programming in Arduino

Serial Program needs to be written in Arduino

Downloads

.Net Program to Read the Battery Status and Provide on Off Command to Arduino

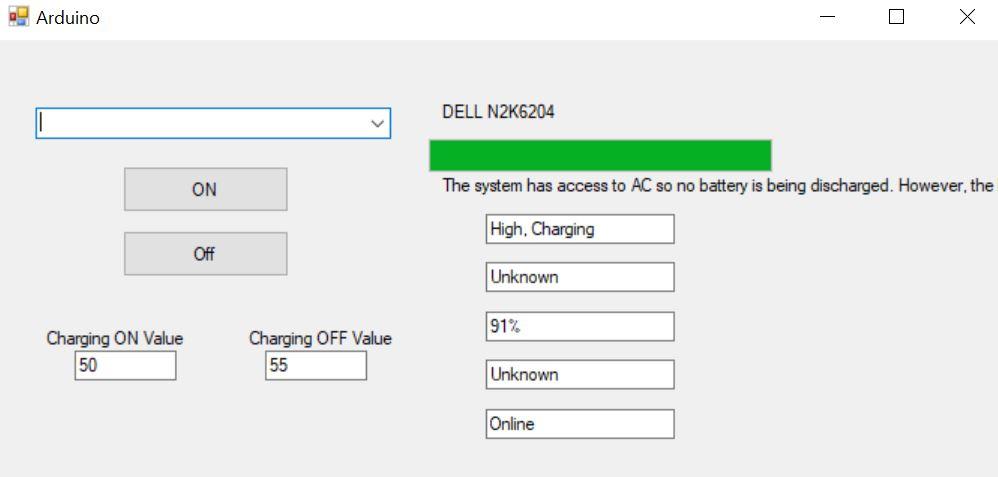

Charging On Value in UI we can provide required threshold from where battery should start charging

Charging Off value in UI we need to provide at what percentage laptop should stop charging

Battery status file contains code for C#

SerialPortCommand file contains code for serial port communication in c#

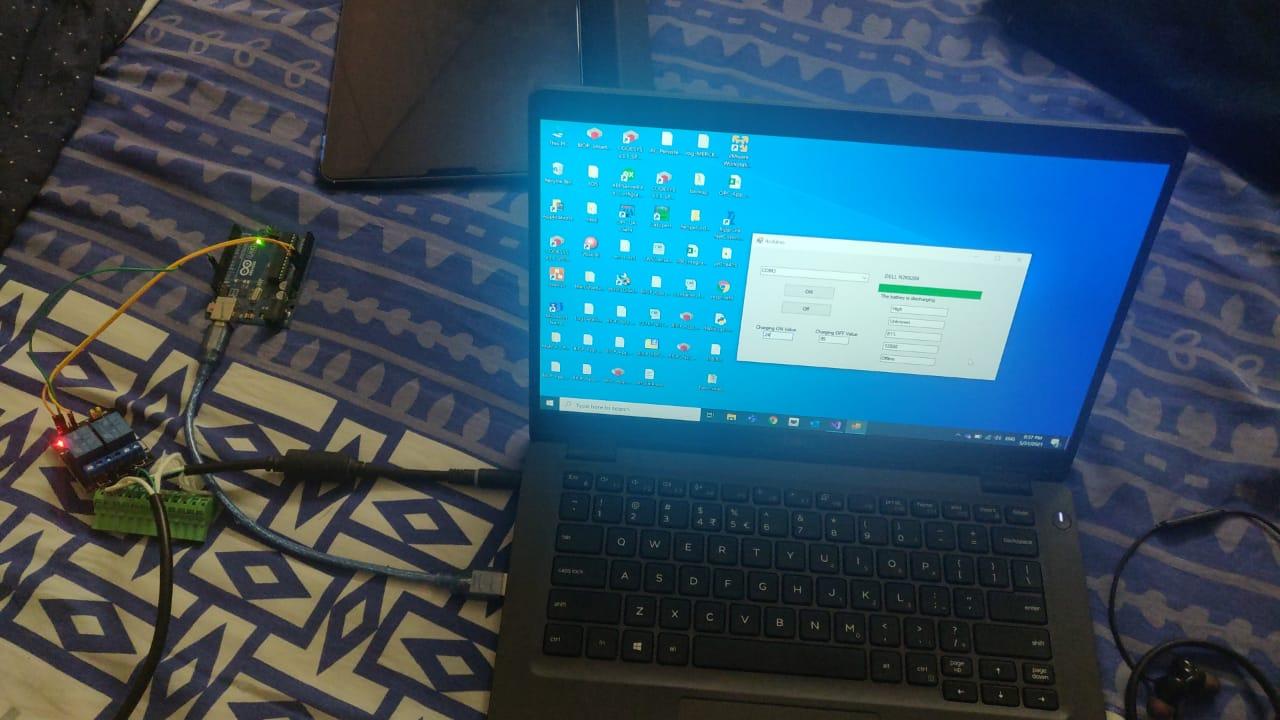

Working Model Video
