Automatic Hand Sanitizer Using 3d Printer
by Ajay Singh in Circuits > Sensors
848 Views, 3 Favorites, 0 Comments
Automatic Hand Sanitizer Using 3d Printer
![IMG_20200521_220820.jpg](/proxy/?url=https://content.instructables.com/FHG/8K8Y/KAI7VSPI/FHG8K8YKAI7VSPI.jpg&filename=IMG_20200521_220820.jpg)
![IMG_20200521_220737.jpg](/proxy/?url=https://content.instructables.com/FJE/ROXN/KAI7VSPN/FJEROXNKAI7VSPN.jpg&filename=IMG_20200521_220737.jpg)
![IMG_20200521_220750.jpg](/proxy/?url=https://content.instructables.com/F09/AW2H/KAI7VSPO/F09AW2HKAI7VSPO.jpg&filename=IMG_20200521_220750.jpg)
![IMG_20200521_220734.jpg](/proxy/?url=https://content.instructables.com/FVK/5UZQ/KAI7VSPK/FVK5UZQKAI7VSPK.jpg&filename=IMG_20200521_220734.jpg)
Dear all ,
This is a very simple automatic hand sanitizer and by using 3d printing i am making the cover and nozzle which gives it a professional look.
This is the smallest DIY for hand sanitizer.
Supplies
- Ir sensor
- tip31c
- waterpump
- usb wire
- pipe

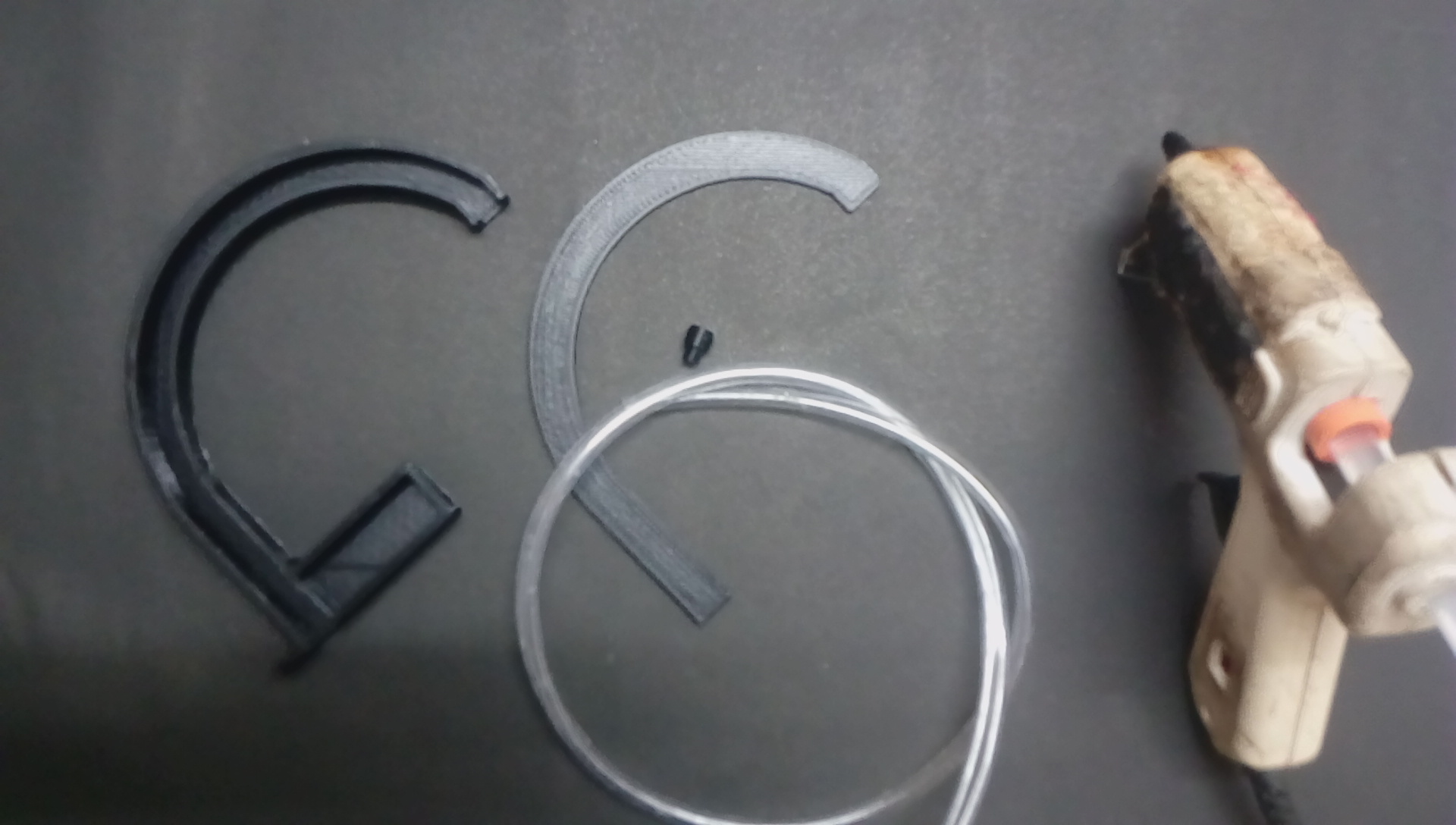

- 3d printed case and nozzle.
Circuit Diagram and Assembly
![IMG_20200521_135808.jpg](/proxy/?url=https://content.instructables.com/FXP/7XK0/KAI7VT02/FXP7XK0KAI7VT02.jpg&filename=IMG_20200521_135808.jpg)
We just need to connect the circuit as per the diagram .
3d printed files are added ,just download and print it.
if you have any suggestion please let me know in the comment box.
