Automatic Fan

by Manan Thareja in Circuits > Raspberry Pi

690 Views, 4 Favorites, 0 Comments

Automatic Fan

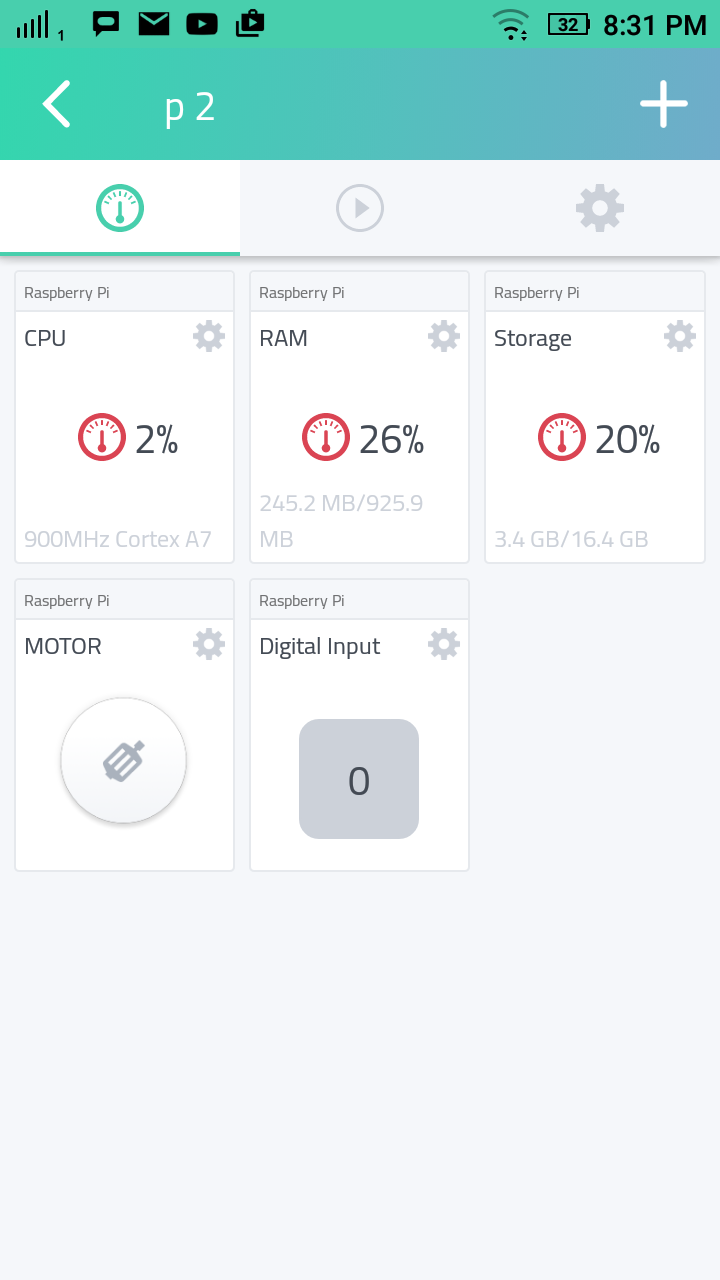

Screenshot (6).png

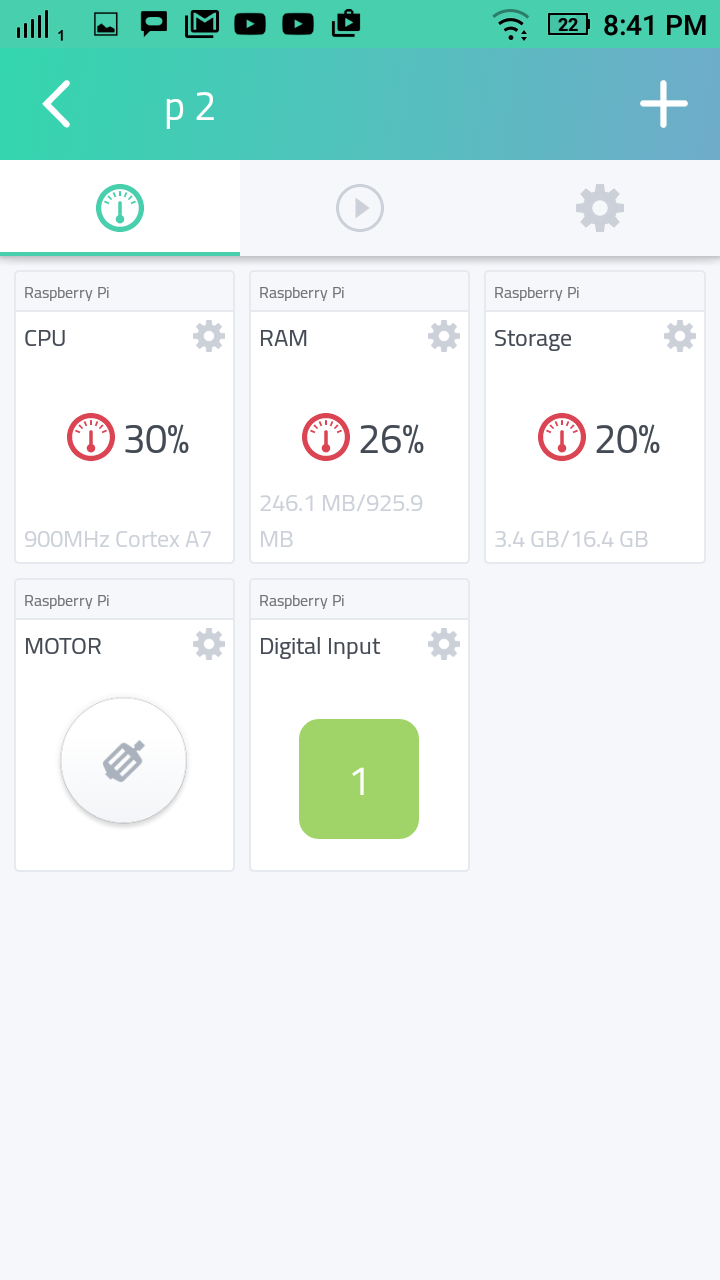

Screenshot (7).png

About This Project

This would turn on the table fan(or a dc fan in my case) if some one enters the room and also notify me via email.The pi will get a digital input from the IR sensor and turn the fan on

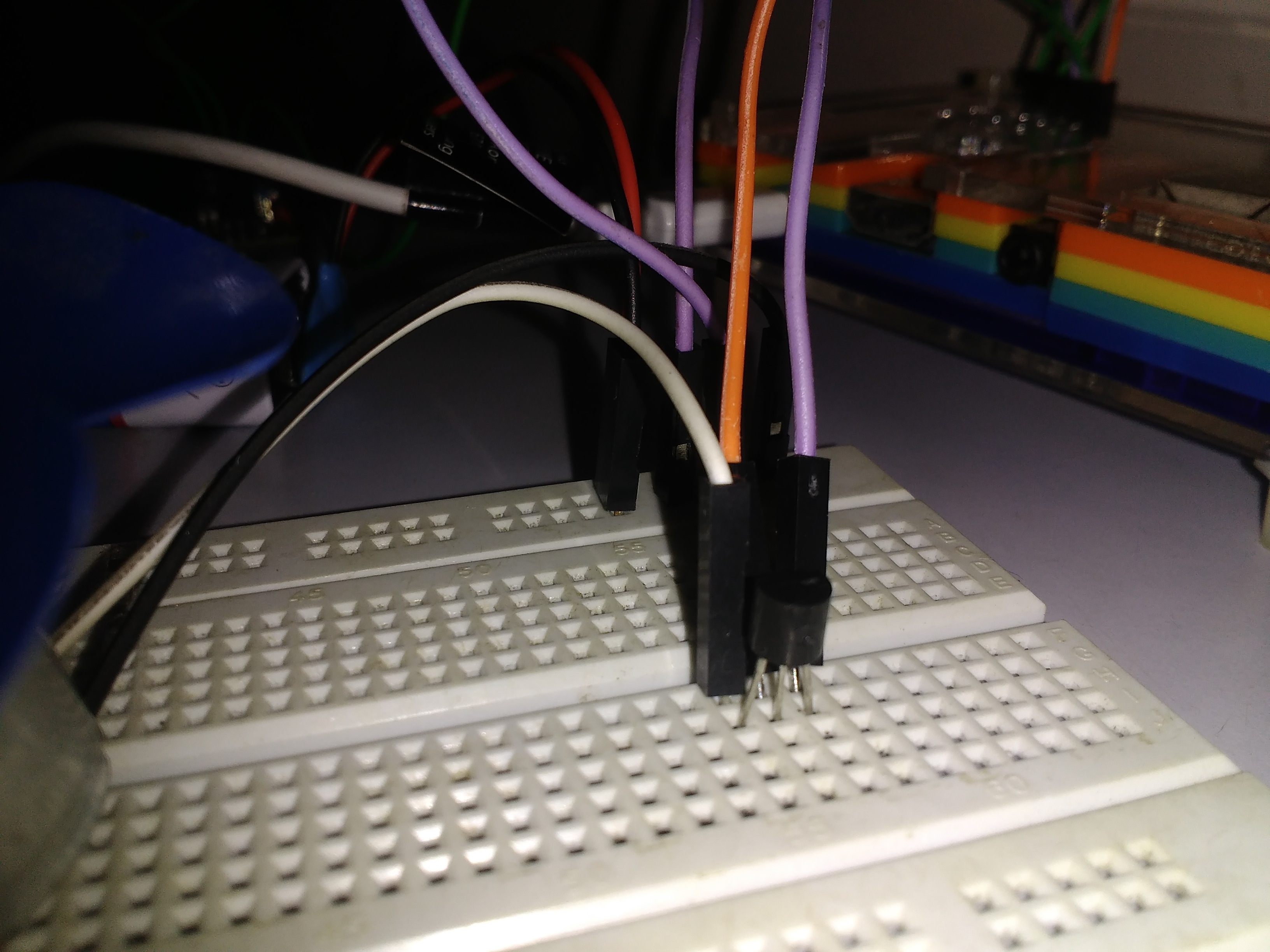

What's Connected

Raspberry pi 2 model b

Dc motor

BC547 transistor x 1

9v Battery

Battery clip

Some Jumpers

Triggers & Alerts

Used some triggers and alerts to turn on the fan and notify me about it

Scheduling

Used the scheduling feature to turn off the raspberry pi at 12:00 midnight.
