Automatic AC With Temperature Sensor

Dear Friends,

I have made a Automatic AC with temperature sensor, and this project I have made it if the temperature if is getting warmer the motor will turn on and it gives a indication of led that the place is warm or getting hot. And when the the place is getting cold and it gives a green light an turns off the motor.

• Arduino Uno 3
• Temperature Sensor (TMP36)
• DC motor
• 1k(ohms) Resistor x2
• Green and Red LED
• Breadboard

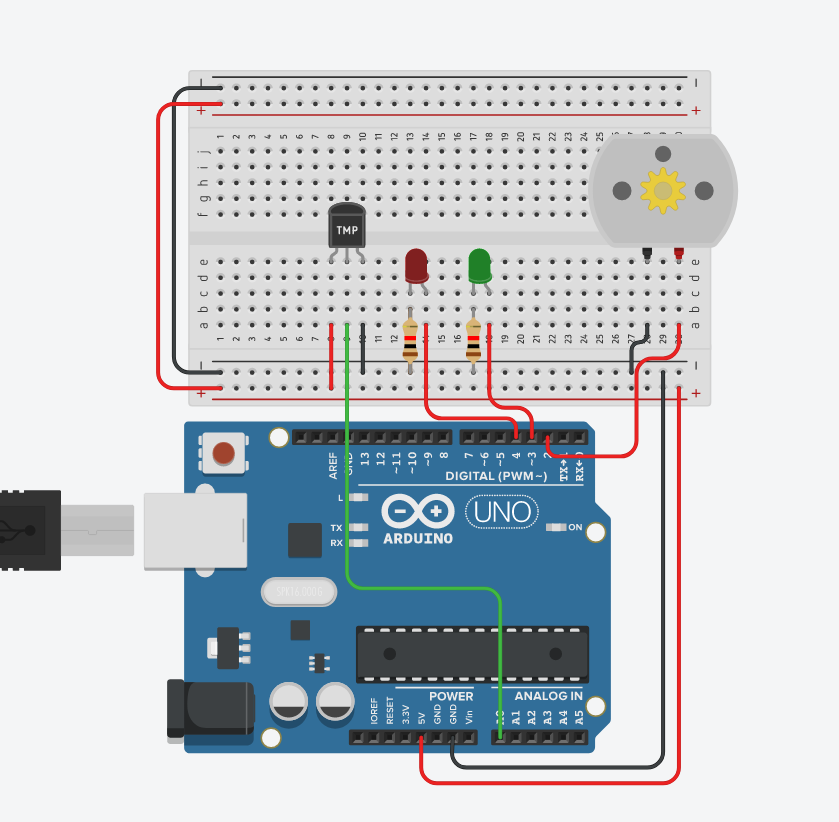

• I have used temperature sensor and connected it to the Arduino at GND, 5v and data pin using breadboard.
• I have also used LED's green and red and connected it to the resistors of 1k(ohms) to control the current of led.
• I have also added motor and connected it to Arduino using breadboard.

First in void setup i have wrote the pin no's of the electronics and i wrote serial no. In void loop i have written the code for temperature sensor and then wrote the motor and led.

Please find the below of my tinker card project............

https://www.tinkercad.com/things/lxa5UQsESbI-automatic-ac-with-temperature-sensor/editel
