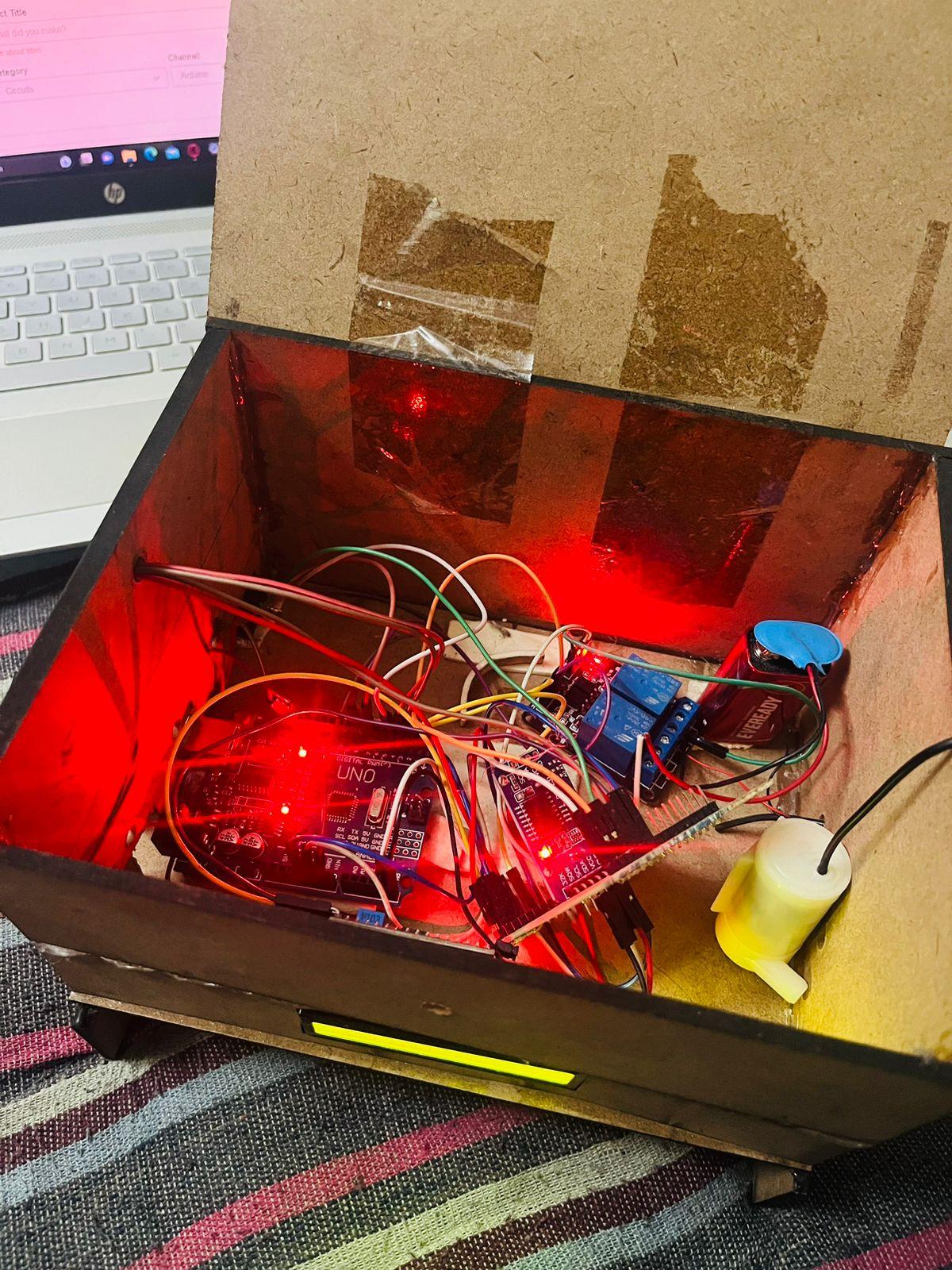

Automated Operating ON/OFF Switch With Displacement Input.

Automated operating ON/OFF switch with displacement input.

In this case we have used water pump as a load.

Automatic ON/OFF operating motor which resolves the problem of wastage of water from overhead tanks when tank is filled it automatically off the motor and on when required.

It works on the principle of ultrasonic waves sent and received by the ultrasonic sensor.

Laser cutting machine have used to cut the outer casing.

Different electronics components have used.

1.Arduino Uno R3

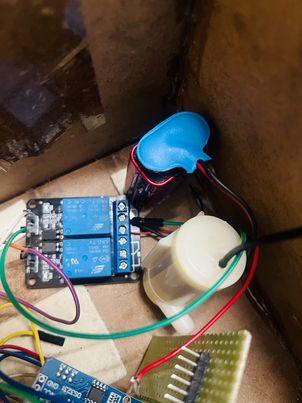

2.Relay Module

3.Ultrasonic Sensor

4.mini push button

5.on off switch

6.LCD and 12C module

7.Jumper wire

8.breadboard

9.mini-jet submersible water pump

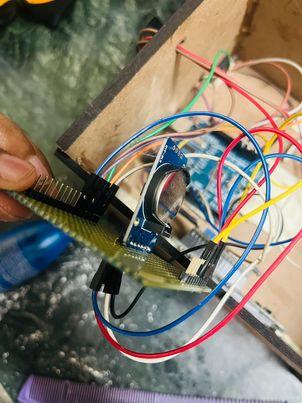

10. RTC module

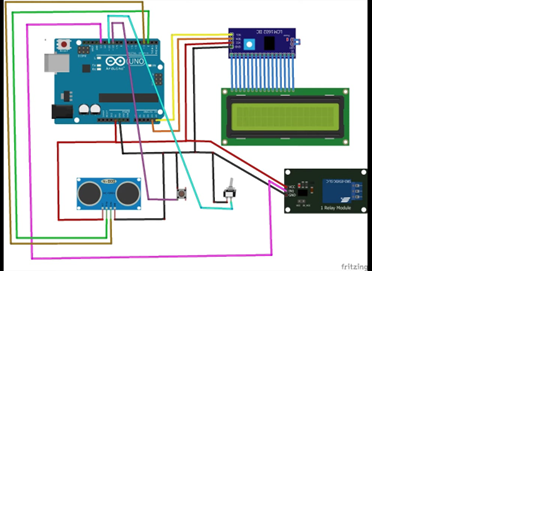

Connect All The Components As Shown In Schematic Diagram

 Write a Arduino code and upload it on Arduino.

Switch on the circuit and give water supply
