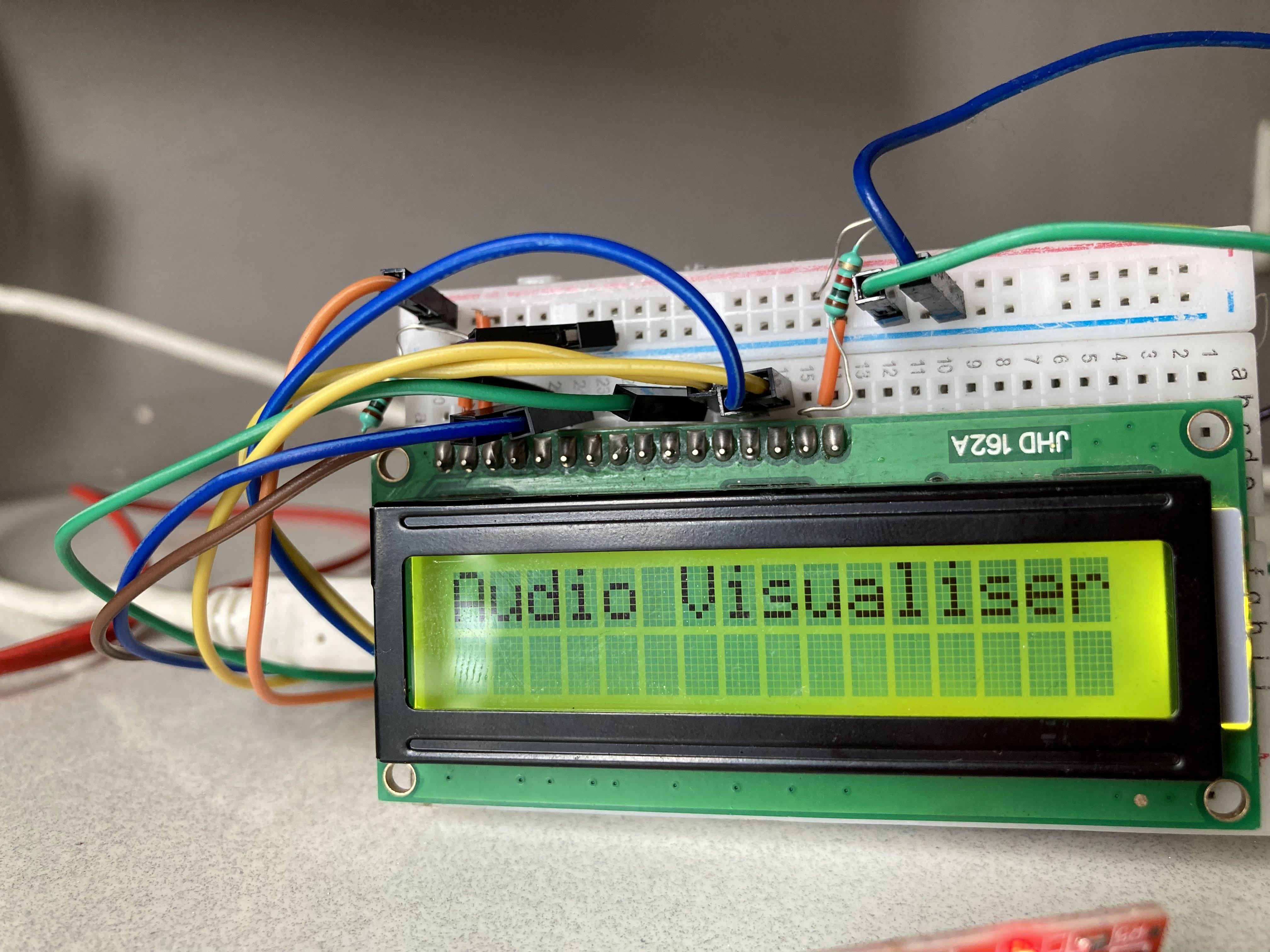

Audio Visualizer With an LCD Display


Welcome to my third Instructable.

People love listening to music. It is as they say, music reflects our mood. And it is a spectacle to see music become 'alive' right before our eyes. Well, that's what music visualization does.

According to Wikipedia, music visualization "generates animated imagery based on a piece of music. The imagery is generated and rendered in real time and is synchronized with the music we play."

Music visualization is greatly seen on EDM concerts, where artists team up with VJs (or video jockeys) to create visual spectacles, that can attract and mesmerize the audience. This can be done with video editing and effects software such as Davinci Resolve Fusion and Adobe After Effects. However, this can also be achieved using hardware.

In this Instructable we're gonna create a simple and easy-to-make audio visualizer using an Arduino UNO, a sound sensor or a microphone, and a 16x2 LCD display. So without further ado, let's get started 👉

Supplies

Here are the list of components required for creating this project

  • 16x2 LCD display
  • Arduino UNO (or Nano)
  • Two 1kΩ resistors
  • LM393 Sound Sensor Module
  • Jumper Cables and Breadboard
  • A computer for uploading the code

That's it. No other components are required.

All the items are easily available on Amazon or any other shopping app. Or you can just go to your nearest electronics dealer to get your components.

Connecting Each Component

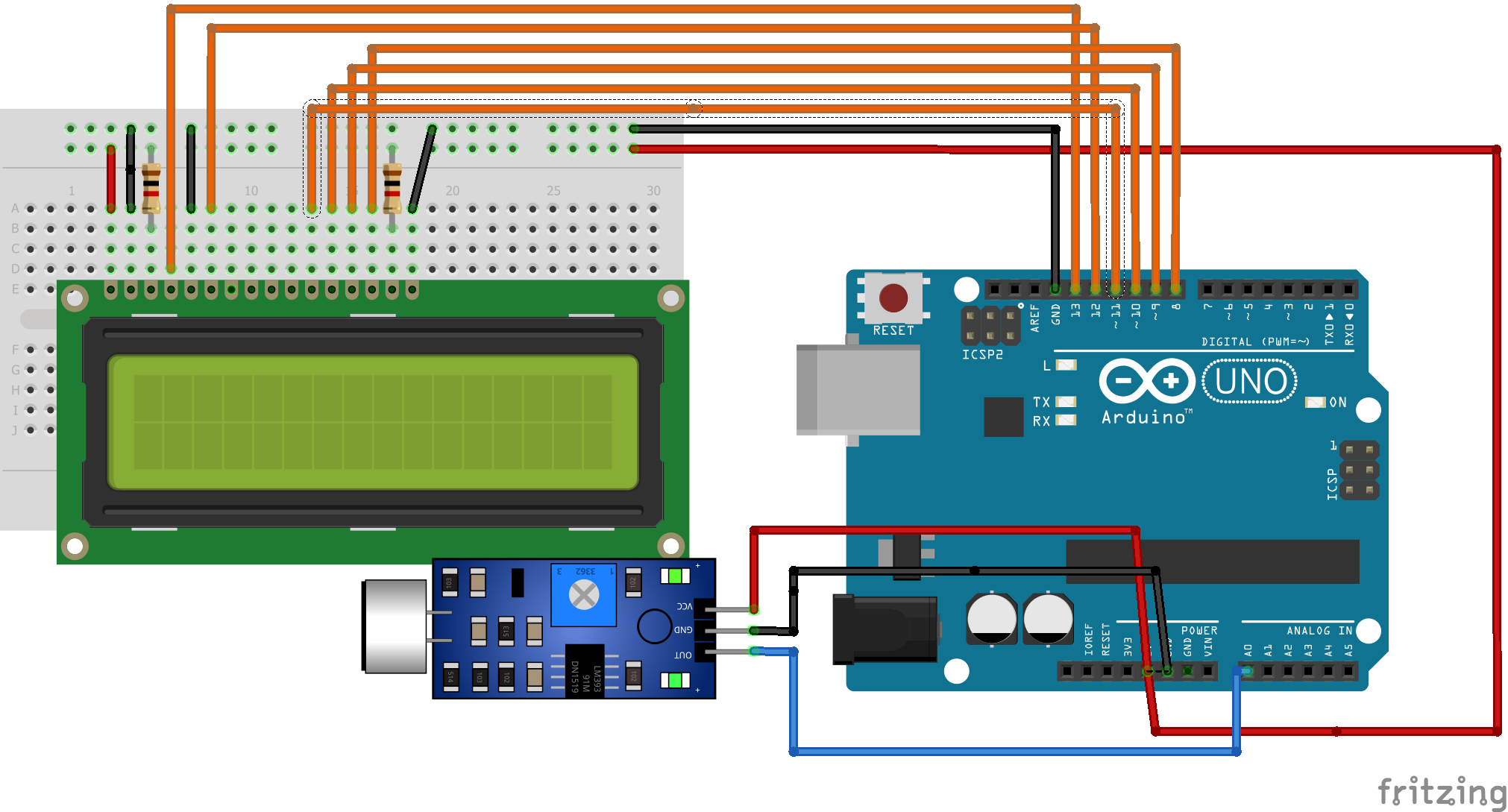

Here are the following connections for both LCD and Sound Sensor Module to the Arduino UNO. This breadboard diagram was made on a software called Fritzing.

I won't be going on too long with the technical details here, just where you need to connect and why.

LCD Connections

  1. VSS and VDD to 5V and GND respectively, to power the LCD.
  2. V0 connected to a 1k resistor and then to GND. We are not changing the contrast of the LCD here, so the LCD will show the characters clearly.
  3. RS (Register Select) to pin 13. It is configured to give value HIGH so that Data Register is selected (you don't need to know what a Data Register does, just that it helps in transferring data to the LCD)
  4. R/W (Read/Write) to GND. We configure the R/W pin to value LOW so that we can write data to the LCD.
  5. E (Enable) to pin 12. This is used to latch (keep all the data coming from the Arduino to the data pins.
  6. pins D4-D7 are connected to pins 11 to 8 respectively. They are the data pins which will transfer data from Arduino to the LCD display
  7. LED+ is connected to 1k resistor and then to 5V, and LED- to GND. This is for the LED backlight, which will cause the LCD display to glow.

Sound Sensor connections

The Sound Sensor Module detects the sound via a microphone and feeds into an op-amp (LM393-dual comparator). It has 4 pins

  • VCC - Powered by +5V
  • GND - Ground
  • Analog pin (AO) - Analog output connected to analog input of microcontroller
  • Digital pin (DO) - Digital output connected to digital input of microcontroller

The four pins are connected to Arduino UNO as follows

  1. VCC to 5V
  2. GND to GND
  3. AO to analog pin A0
  4. DO to nothing (here we are not using digital output)

After following the steps exactly as mentioned, you are good to upload the program.

Uploading the Program


The above image is the schematic of the circuit, also made on Fritzing.

I have created a program for the same circuit. If you have followed the exact steps for building the circuit, you can upload the code directly to the Arduino Board, or you need to change some parameters according to your connections.

Following is the code for my circuit.

#include <LiquidCrystal.h>
LiquidCrystal lcd(13,12,11,10,9,8);
int soundsensor = A0;


float t = 25;
float t1 = 5;


void setup() {
  // put your setup code here, to run once:
pinMode(soundsensor, INPUT);
Serial.begin(9600);
lcd.begin(16,2);
  lcd.setCursor(0,0);
  lcd.print("Audio Visualiser");
  delay(2000);
}


void loop() {
  // put your main code here, to run repeatedly:


long sum=0;
int sensorVal= analogRead(soundsensor);//Input from soundsensor
Serial.println(sensorVal);
for(int i=0;i<100;i++){
  sum+=sensorVal;
}
sum=sum/100;
/* here we are comparing the soundsensor values with the pre determined values (selected at random). If it goes above the pre dertermined value, the character will be displayed*/

if(sum>195){
  lcd.clear();
  lcd.setCursor(0,1);
  lcd.print("#");
  lcd.setCursor(0,0);
  lcd.print("##");
  delay(t);
  }
else{
    lcd.clear();
    lcd.setCursor(0,1);
  lcd.print(" ");
  lcd.setCursor(0,0);
  lcd.print("#");
delay(t1);
}


if(sum>200){
  lcd.clear();
  lcd.setCursor(0,1);
  lcd.print("##");
  lcd.setCursor(0,0);
  lcd.print("####");
  delay(t);
  }
else{
    lcd.clear();
    lcd.setCursor(0,1);
  lcd.print("#");
  lcd.setCursor(0,0);
  lcd.print("##");
delay(t1);
}


if(sum>205){
  lcd.clear();
  lcd.setCursor(0,1);
  lcd.print("###");
  lcd.setCursor(0,0);
  lcd.print("#####");
  delay(t);
  }
else{
    lcd.clear();
    lcd.setCursor(0,1);
  lcd.print("##");
delay(t1);
}


if(sum>210){
  lcd.clear();
  lcd.setCursor(0,1);
  lcd.print("####");
  lcd.setCursor(0,0);
  lcd.print("######");
  delay(t);
  }
else{
    lcd.clear();
    lcd.setCursor(0,1);
  lcd.print("##");
delay(t1);
}


if(sum>220){
  lcd.clear();
  lcd.setCursor(0,1);
  lcd.print("#####");
  lcd.setCursor(0,0);
  lcd.print("########");
  delay(t);
  }
else{
    lcd.clear();
    lcd.setCursor(0,1);
  lcd.print("###");
delay(t1);
}


if(sum>230){
  lcd.clear();
  lcd.setCursor(0,1);
  lcd.print("#######");
  lcd.setCursor(0,0);
  lcd.print("#########");
  delay(t);
  }
else{
    lcd.clear();
      lcd.setCursor(0,1);
  lcd.print("###");
delay(t1);
}


if(sum>240){
  lcd.clear();
  lcd.setCursor(0,1);
  lcd.print("########");
  lcd.setCursor(0,0);
  lcd.print("#########");
  delay(t);
  }
else{
    lcd.clear();
      lcd.setCursor(0,1);
  lcd.print("##");
delay(t1);
}


if(sum>260){
  lcd.clear();
  lcd.setCursor(0,1);
  lcd.print("############");
  lcd.setCursor(0,0);
  lcd.print("##########");
  delay(t);
  }
else{
    lcd.clear();
      lcd.setCursor(0,1);
  lcd.print("#");
delay(t1);
}


if(sum>280){
  lcd.clear();
  lcd.setCursor(0,1);
  lcd.print("##############");
  lcd.setCursor(0,0);
  lcd.print("############");
  delay(t);
  }
else{
  lcd.clear();
    lcd.setCursor(0,1);
  lcd.print(" ");
delay(t1);
}
Serial.println(sum);
}

You can also modify the code to obtain different results. Feel free to post your modifications in this Instructable

If you have any problems in uploading the code from the code box, I have also attached the code file, which contains the same program as in the code box.
