Audio Cassette Loop

by randofo in Circuits > Audio

179188 Views, 197 Favorites, 0 Comments

Audio Cassette Loop


Theoretically it sounds really easy; you can make a tape loop by taping the ends of a short piece of magnetic ribbon together and sticking it back inside the cassette tape. However, if you ever actually tried to do this, you will soon realize that it is a tad bit trickier than one would think. I spent an afternoon working out and refining this science. After many tries and many, throw-my-hands-in-the-air-and-promise-to-give-up sorts of moments, I think I have it down reasonably enough to write instructions for someone else to do it. Now you too can tape the ends of magnetic ribbon together, ?, and profit!

Go Get Stuff


You will need:

A cassette
A rubber washer
A craft knife
Double-sided tape
Clear packing tape
A screwdriver
Scissors
Mat board
A ruler
A cassette player

(Note that some of the links on this page are affiliate links. This does not change the cost of the item for you. I reinvest whatever proceeds I receive into making new projects. If you would like any suggestions for alternative suppliers, please let me know.)

Open the Case

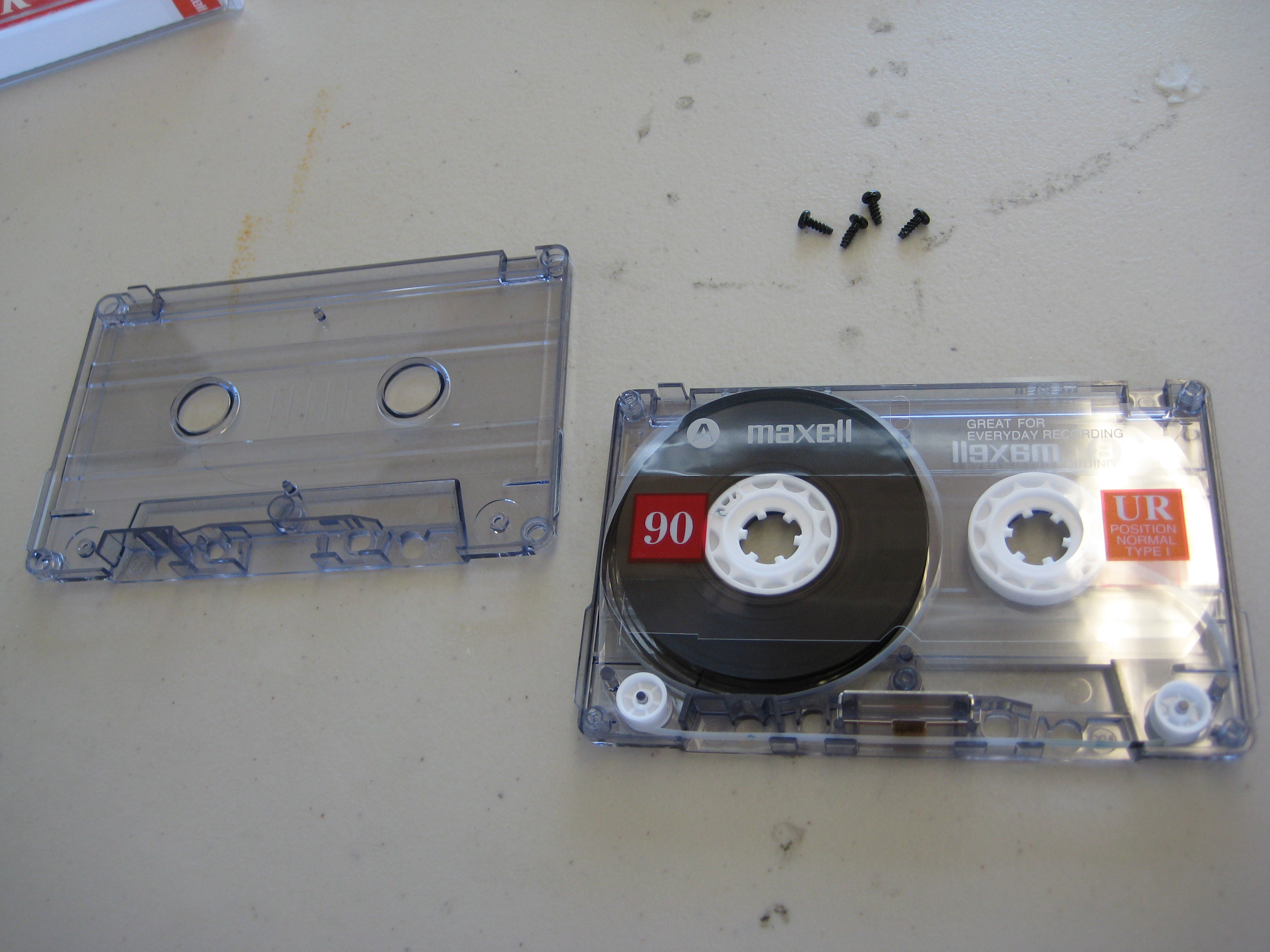

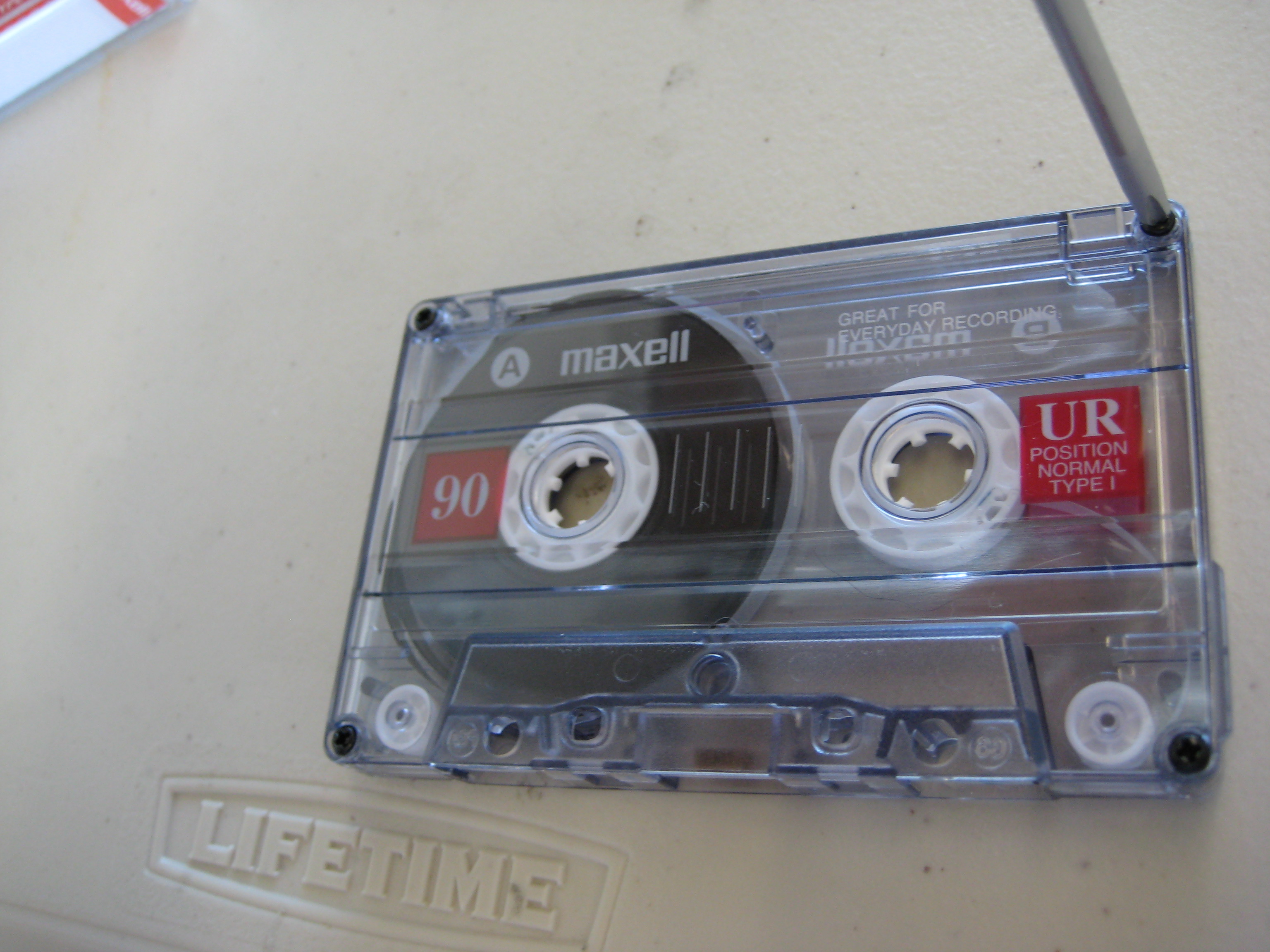

Open the cassette tape by removing the screws. Carefully set them aside for later reassembly.

Remove the Reels

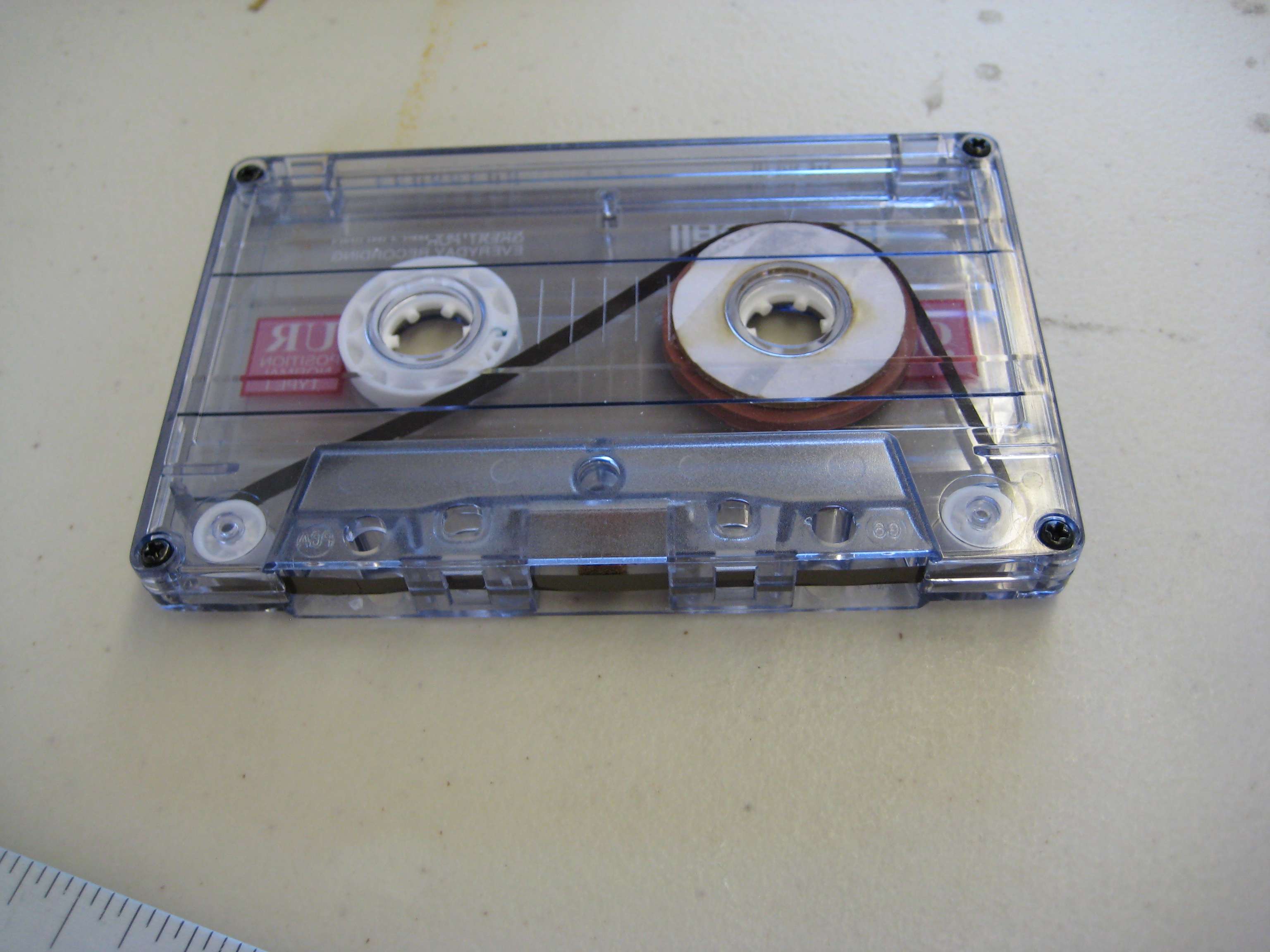

Remove the tape reels, but don't disturb any of the other mechanisms.

Prepare the Reels

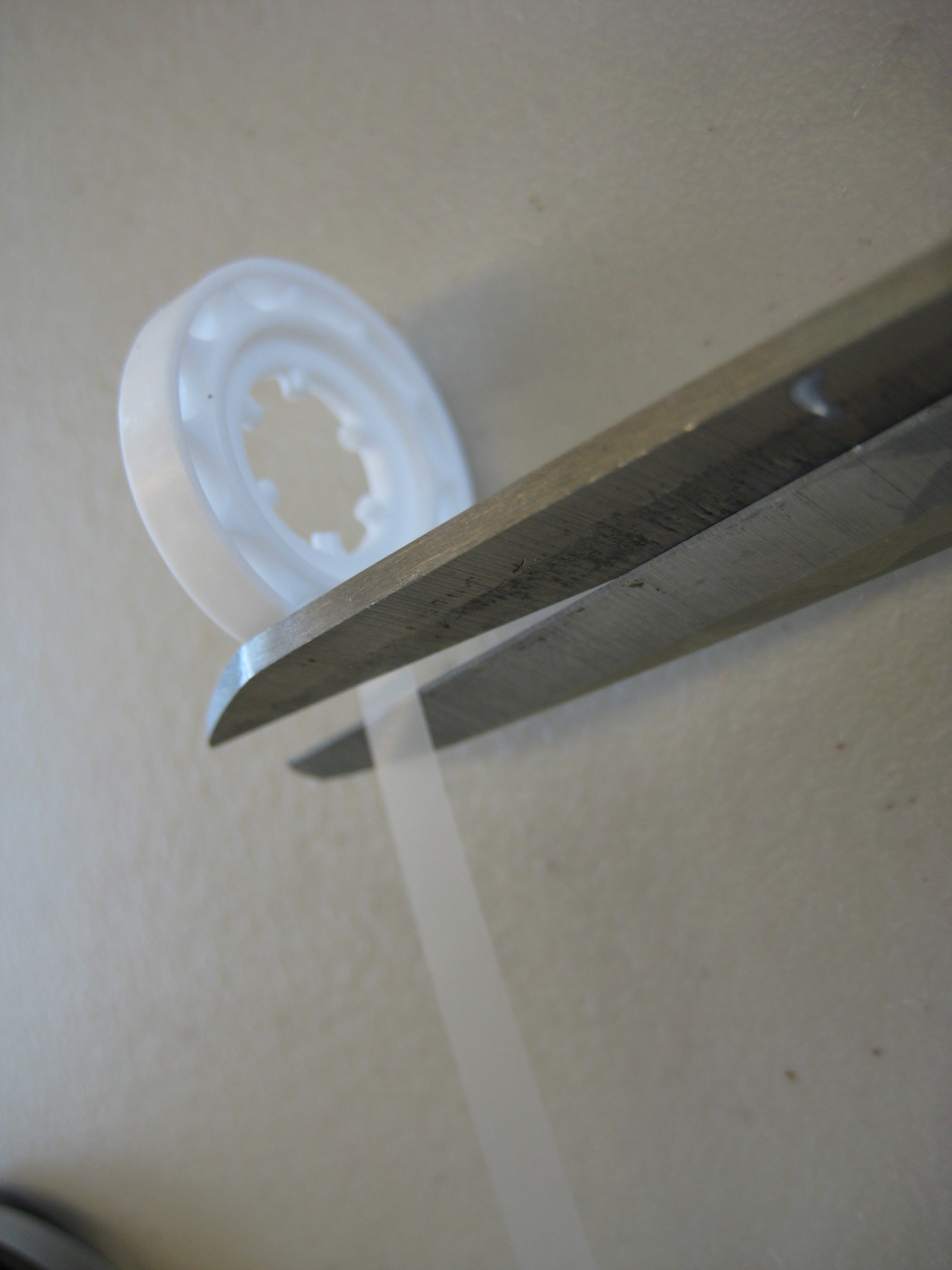

Cut both reels free from the magnetic tape.

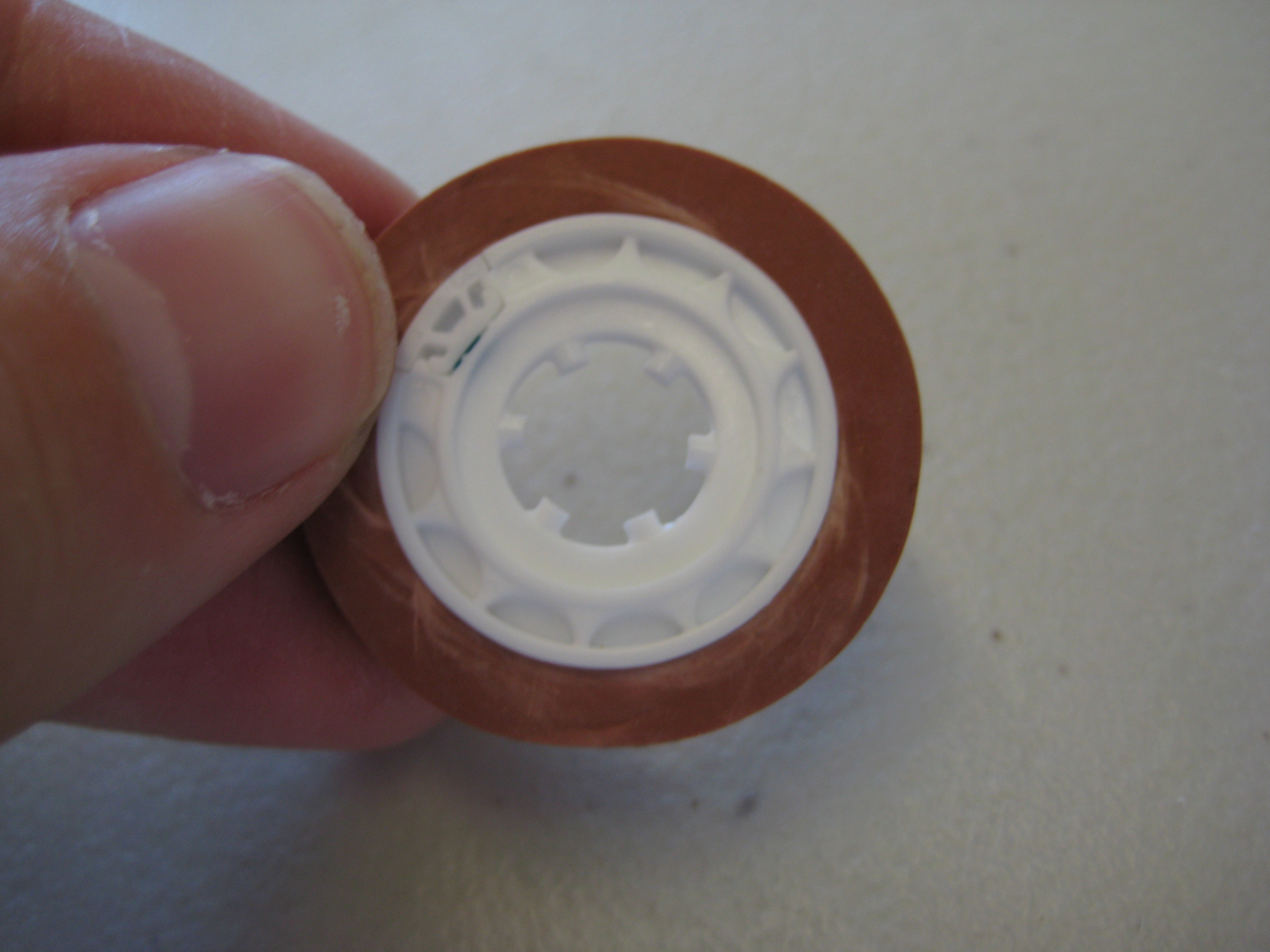

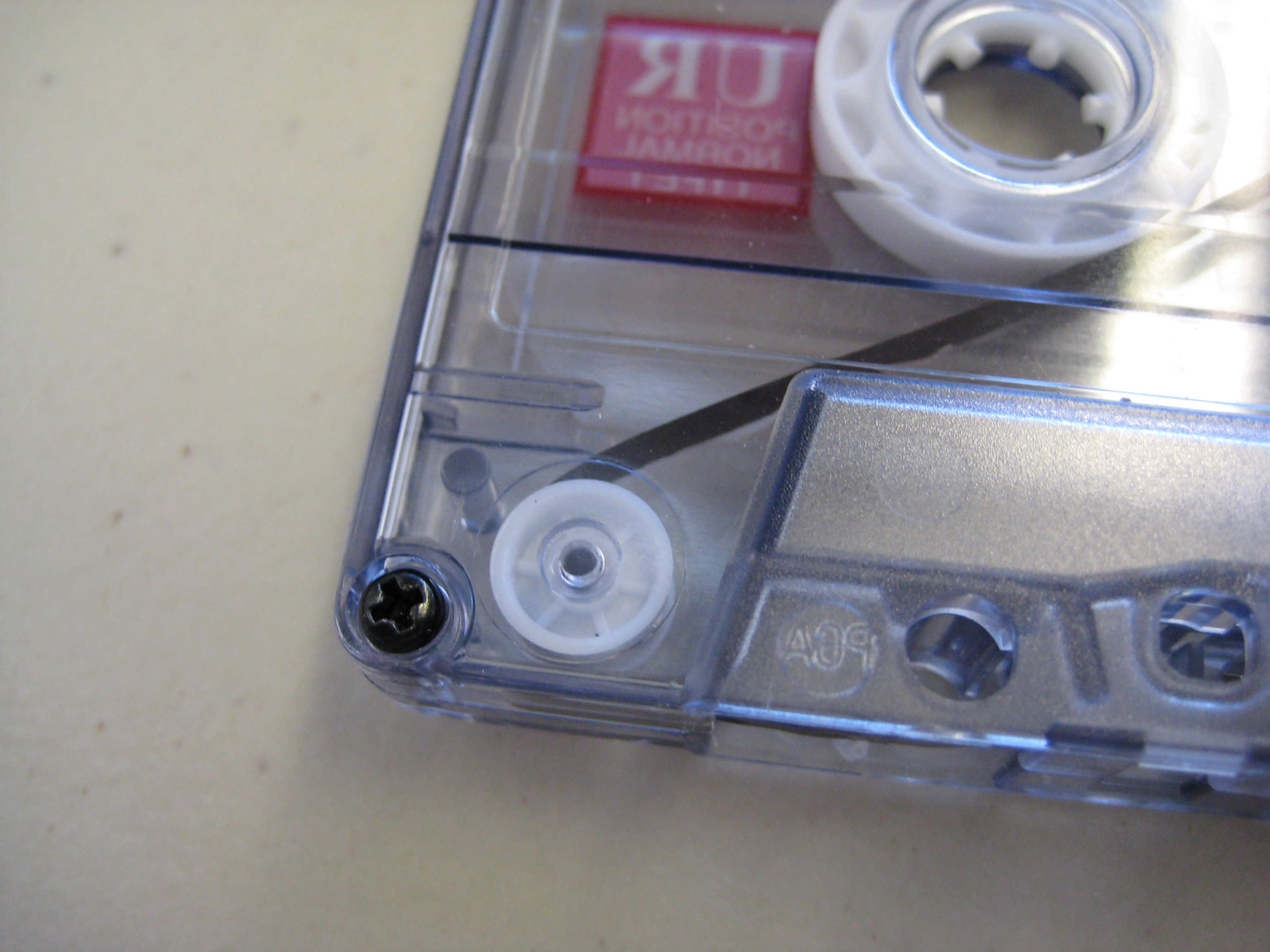

Put your rubber washer around one of them. This will be the wheel which will pull the tape.

Cut Some Magnetic Tape


Cut a section of magnetic tape roughly a foot long.

Thread

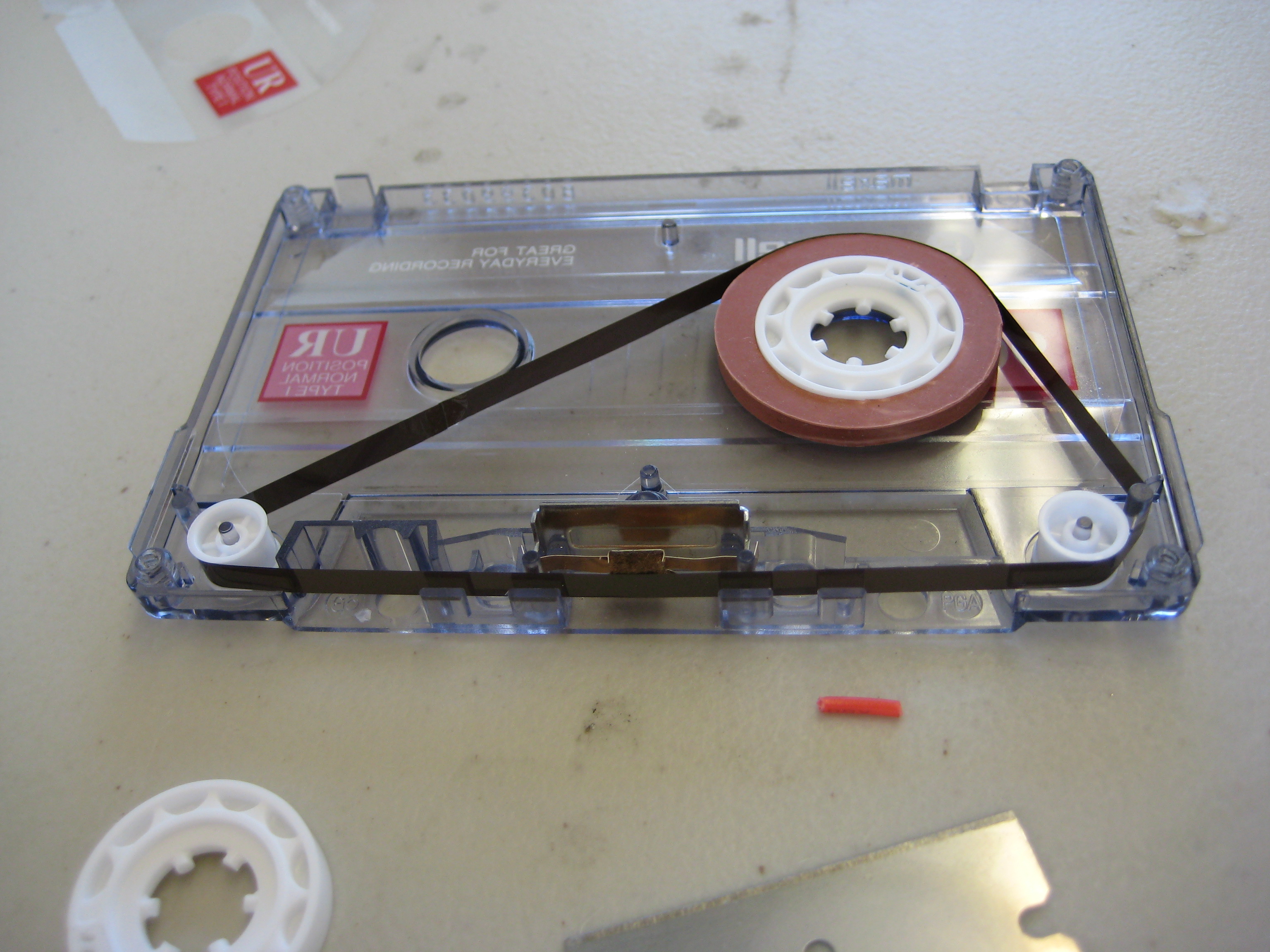

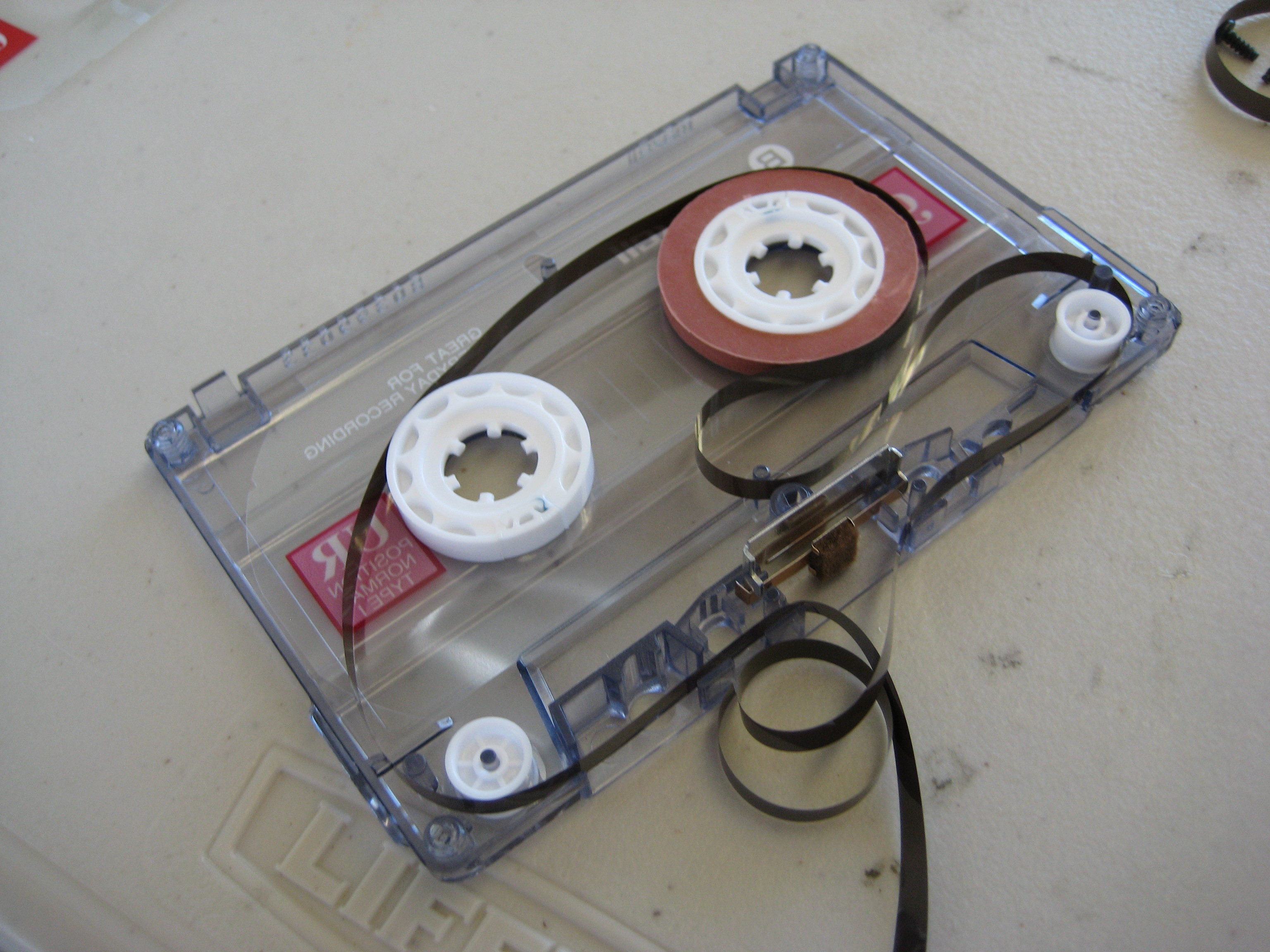

Position your wheels back inside the tape and thread the magnetic ribbon around the rubber wheel, under the unmodified wheel, around the pulley opposite the rubber wheel, through the channel at the bottom of the tape, around the other pulley and also to the right of the plastic peg (next to the pulley).

In other words, just look at the pictures.

Tape


Apply a small piece of double-sided tape on the inside of the magnetic ribbon, pull the loop tight and tape it evenly together.

If the magnetic ribbon is attached at an angle or any tape is sticking off the sides, your tape loop almost assuredly will not work.

Washer

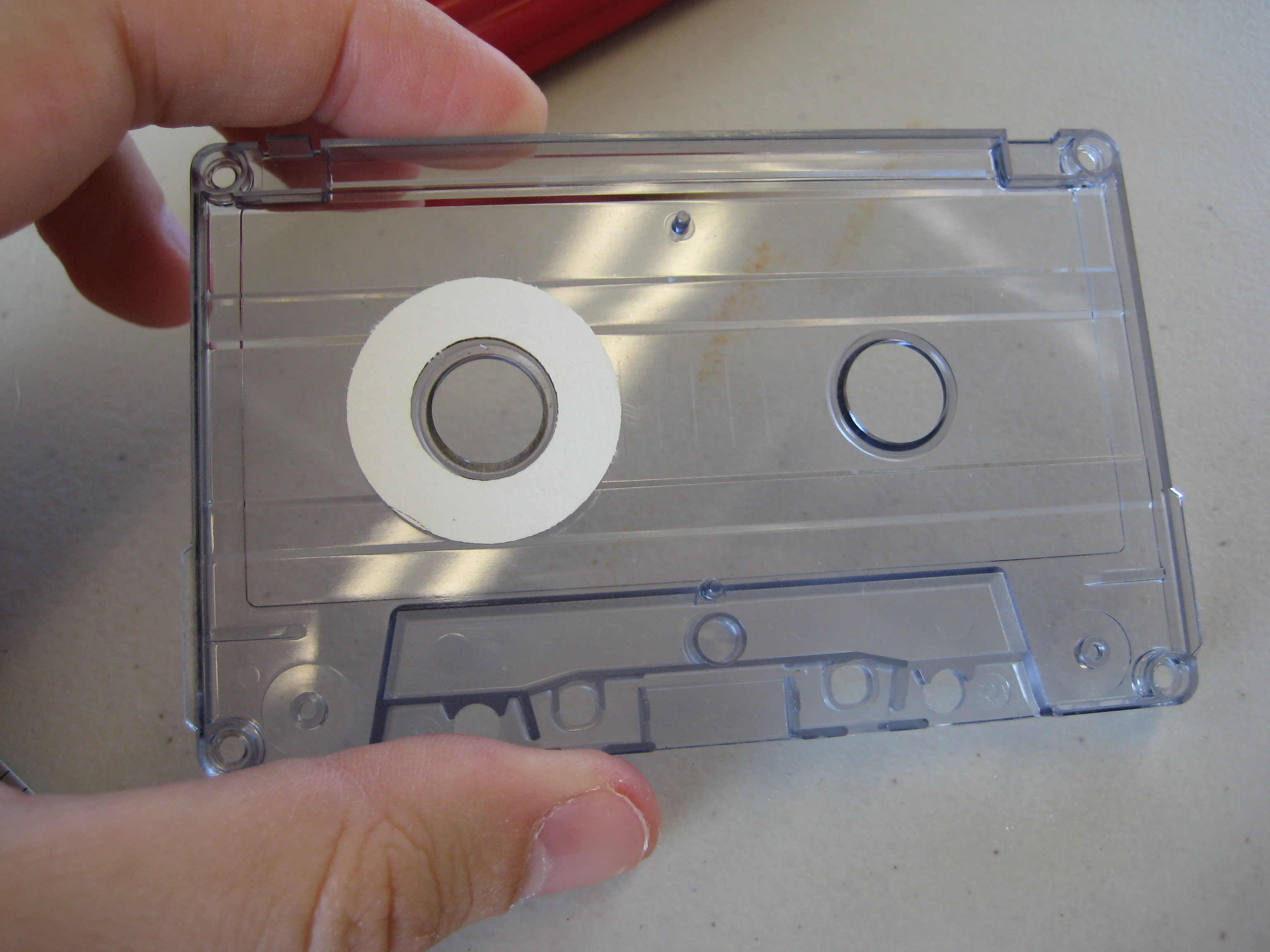

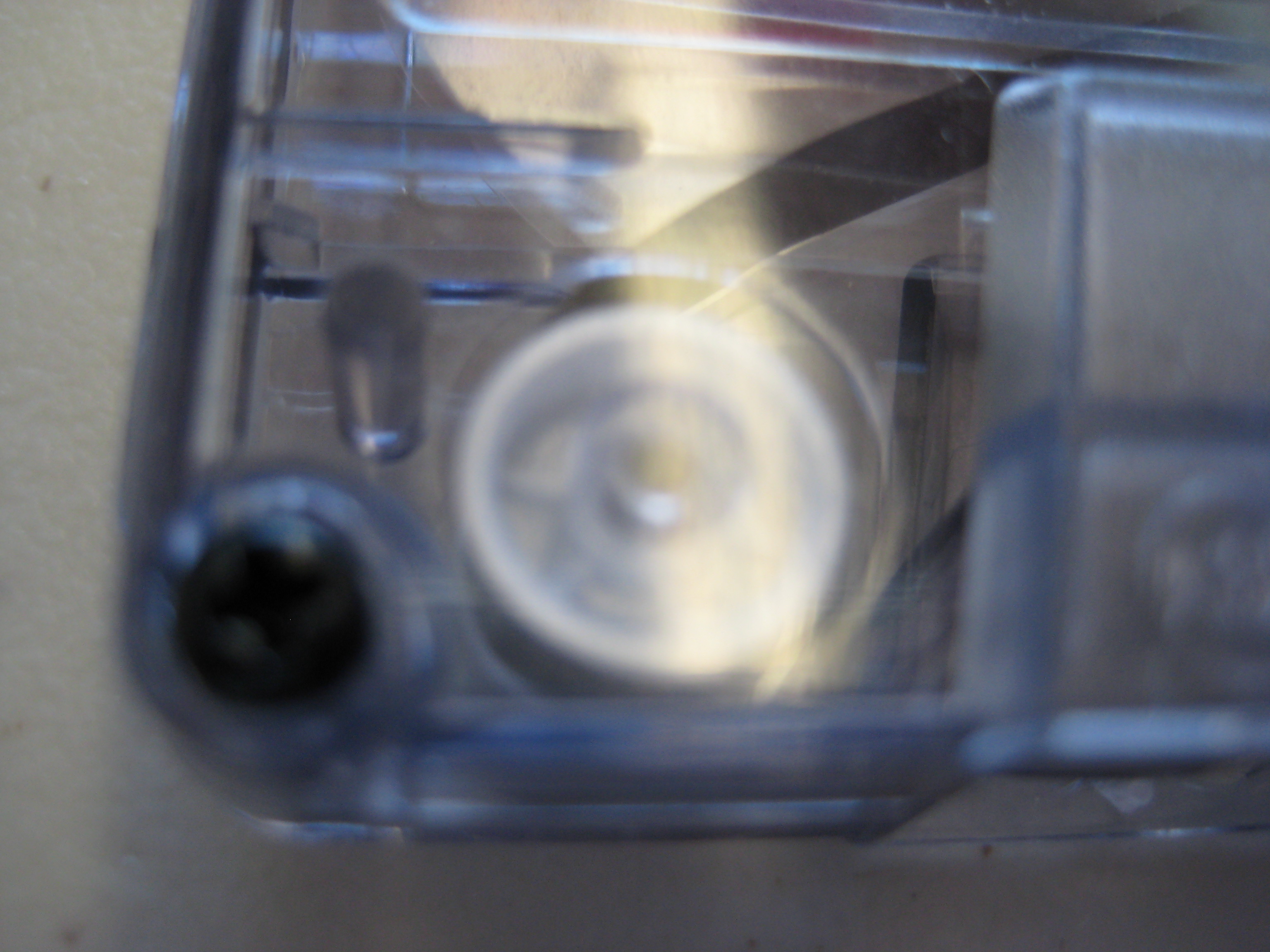

Cut a washer out of mat board and stick it on the inside of the case around the opening that lines up with the wheel with the rubber on it.

This provides more pressure on the sides of the wheel and ensures the wheel will spin. I found this to be necessary.

Close the Case

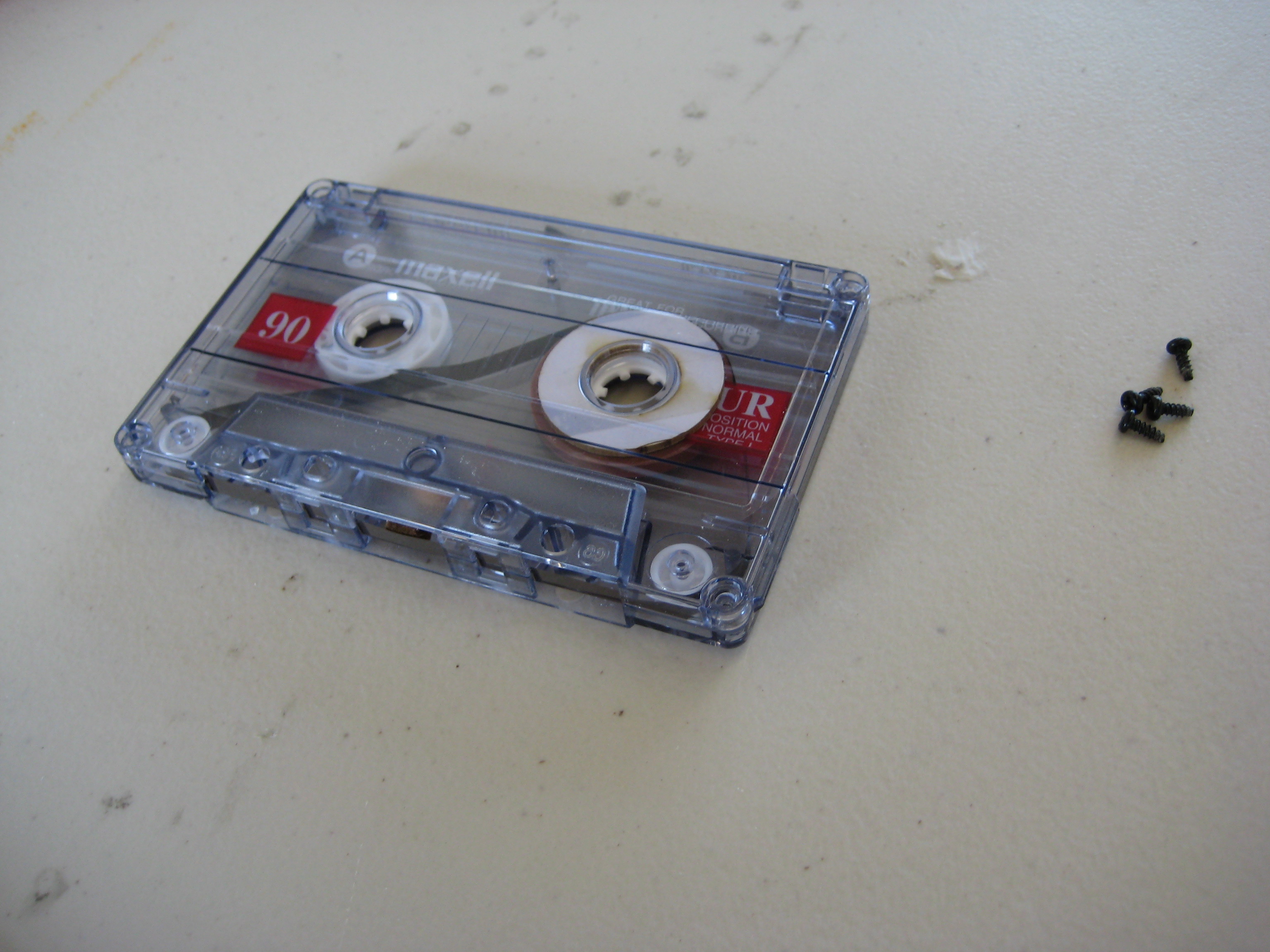

Trim away all excess magnet ribbon and close the cassette back up. When reinserting the screws, only tighten them about 80% on the side with the rubber wheel. Readjust tightness as necessary until it plays correctly in your cassette deck.

Now Make It Better


Perhaps that first loop you made was a little glitchy and you would like for it to work better.

There is an easy way to do this.

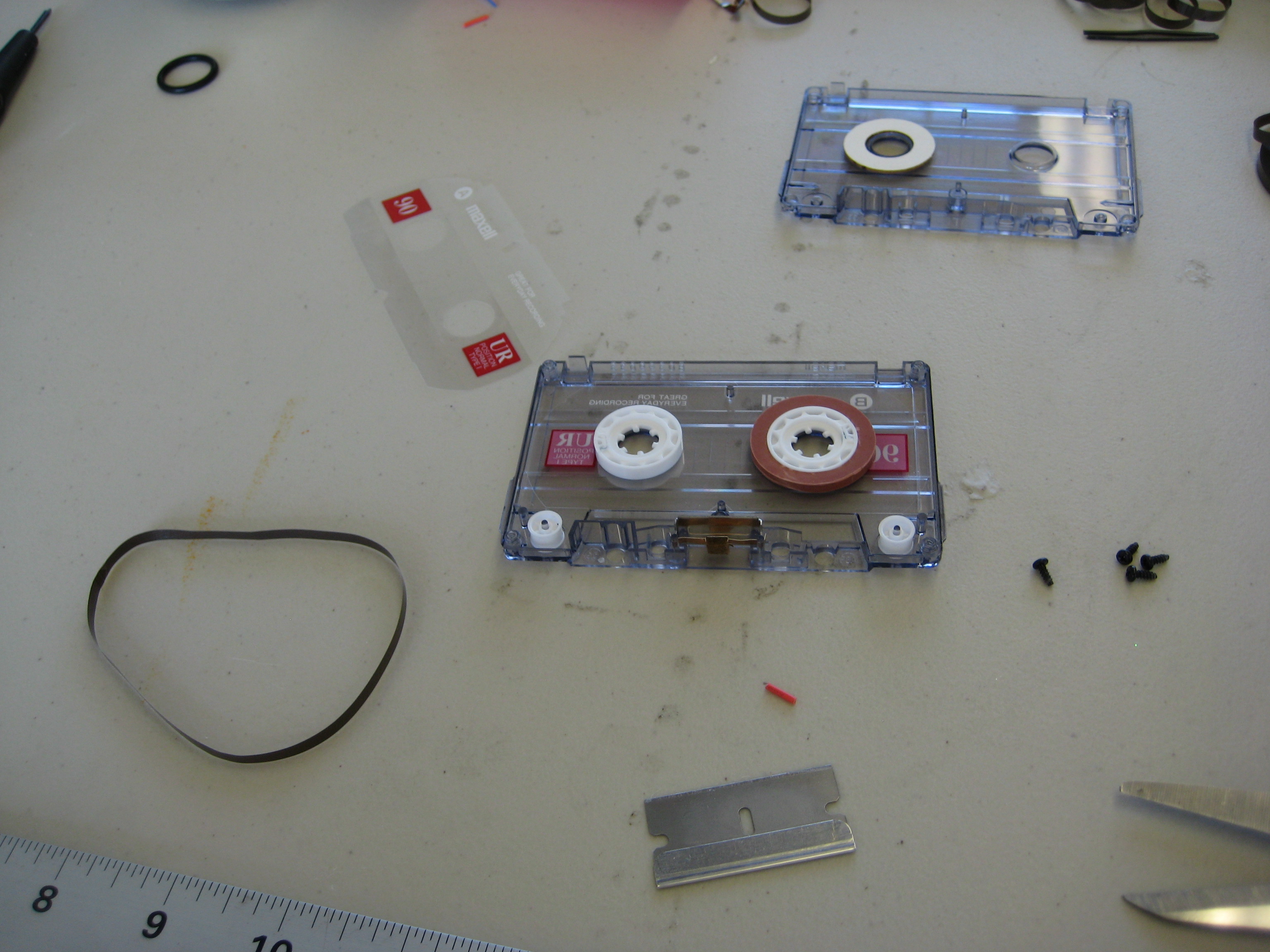

First, reopen the case, remove the magnetic ribbon loop and cut it in half anywhere along its length.

Make a New Piece


Carefully measure this piece of magnetic ribbon and then cut yet another piece of that exact length.

Splice


Take a small piece of packing tape and evenly splice together the two ends to form a solid band (without any twists in it... although, if you put one twist in it, it will double the length of the loop, but make it harder to reassemble).

Trim away any excess packing tape with your razor or craft knife.

Putting All Back Together Again

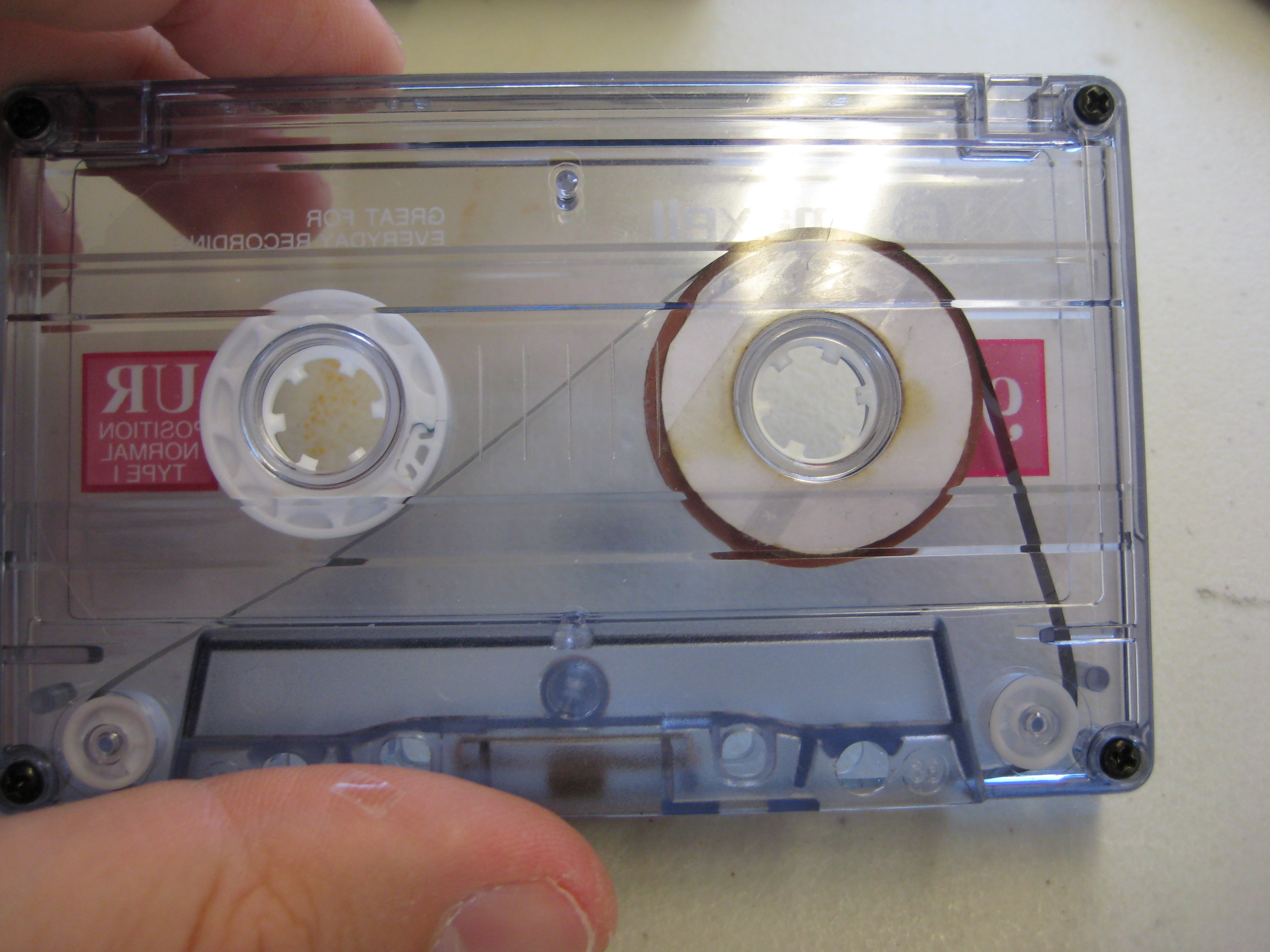

Install the new band of magnetic tape into the cassette deck.

Reassemble the whole unit once more and enjoy your cleaner sounding tape loop.

The trick:
I always assumed that the tape wheel was the mechanism feeding the tape through the player and because of this, I thought that the magnetic ribbon had to be highly tensioned and the wheel needed to be as loose as possible to spin freely. However, what I discovered is that what is really feeding the magnetic ribbon through the player is a little rubber wheel that comes up from the bottom when you hit play. Because of this, it is beneficial if the ribbon has a little slack (less tensioned) and the wheel is a little compressed with sides of the case. Figuring out the right ratio takes a little trial and error.
