Audio Amplifier Using TDA2050 32 Watt

Audio amplifier using TDA2050 IC max output of 32Watt

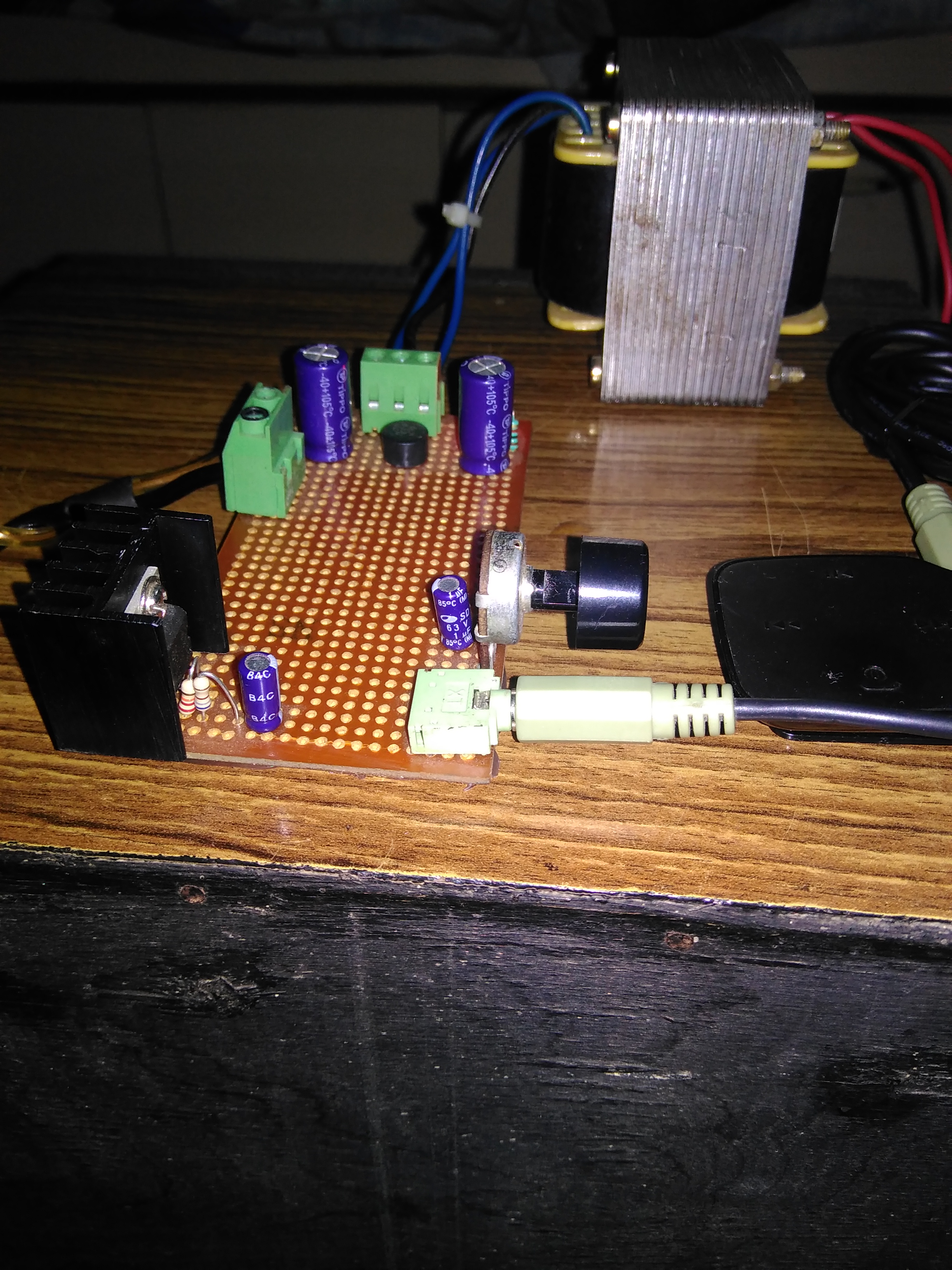

2xLed
2x1K Resistors
2x22k Resistors
2x1000uF Capacitor
1x2 Ohm Resistor
1x0.47uf Cap
1x20K Potentiometer
1xTDA2050
1xBridge Rectifier

The circuit uses a dual power supply to build the power supply use a 12V 5Amp transformer which gives a output of +12 And -12 Volt

The IC gives a maximum power of 32Watt at 4ohm use a heatsink for the IC it gets very hot while in opration

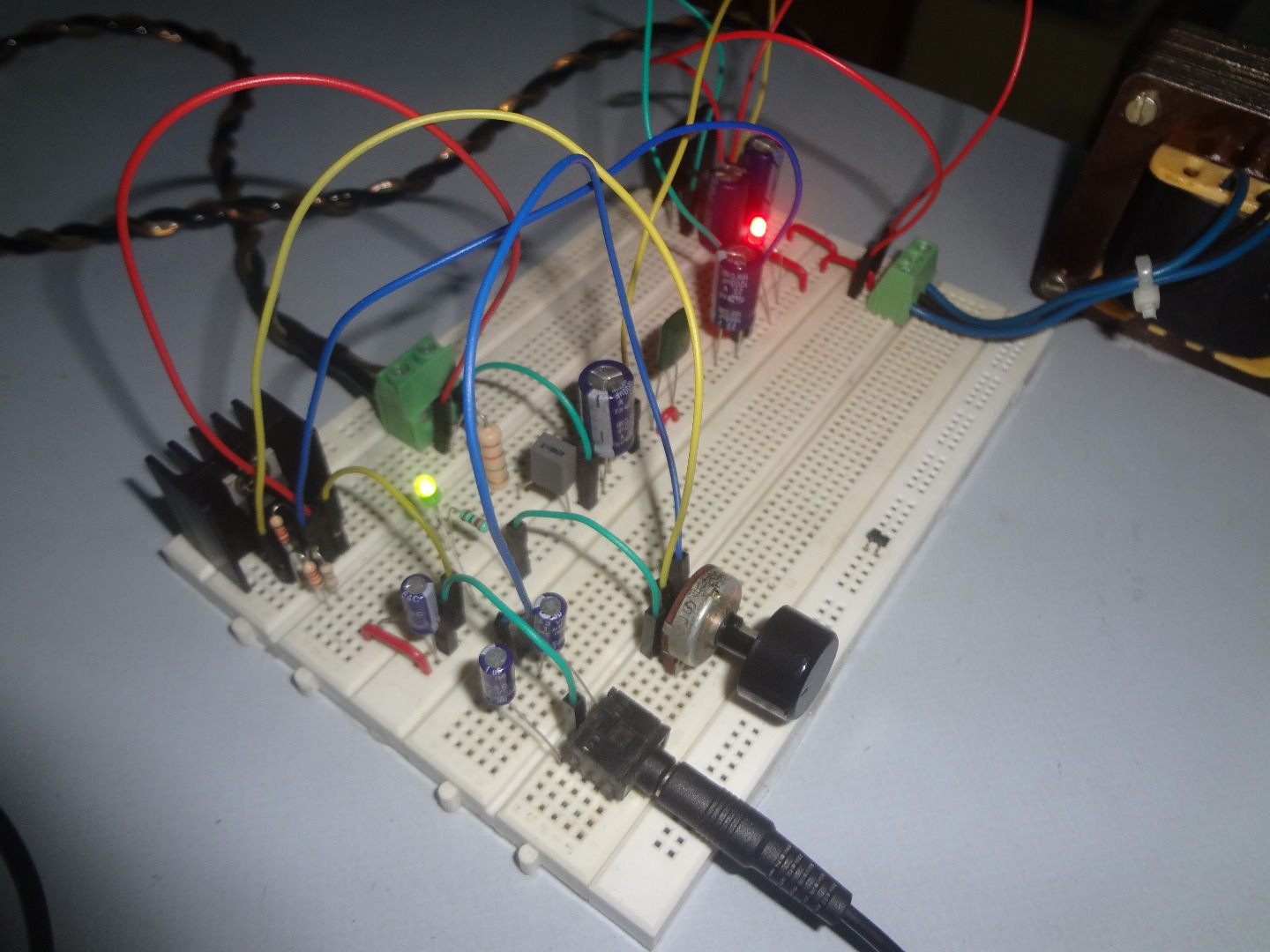

Use circuit diagram to build the circuit you can also build this circuit on breadboard

For stereo application you can build a same copy of this circuit for the other channel

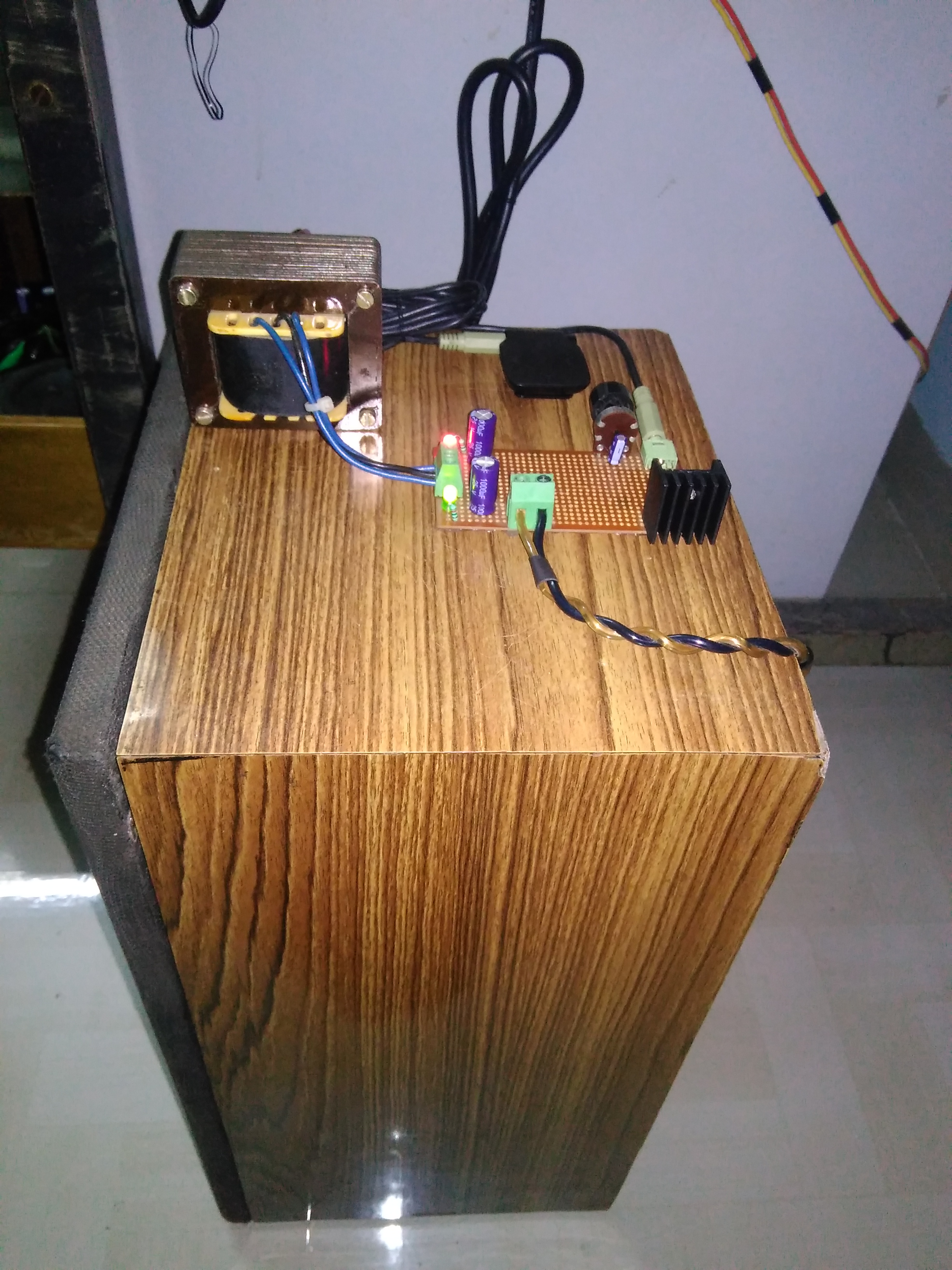

use a box enclosed speaker at output it gives a better bass output
