Audio Adapter

I built this audio adapter so I could couple my headphones that have a 1/4" plug, to the 1/8" jack of my computer. I have these super sweet headphones that cancel outside noise phenomenally, the problem was is that they require a 1/4" jack - and I just wanted to plug them into my computer so I could listen to sweet tunes.

I know I could have easily gone to the store and purchased an adapter, but we had the parts lying around the shop, and I knew it would take me less time to make one than it would to go to the store and back.

For this adapter I used the following items:

• 1/8" plug

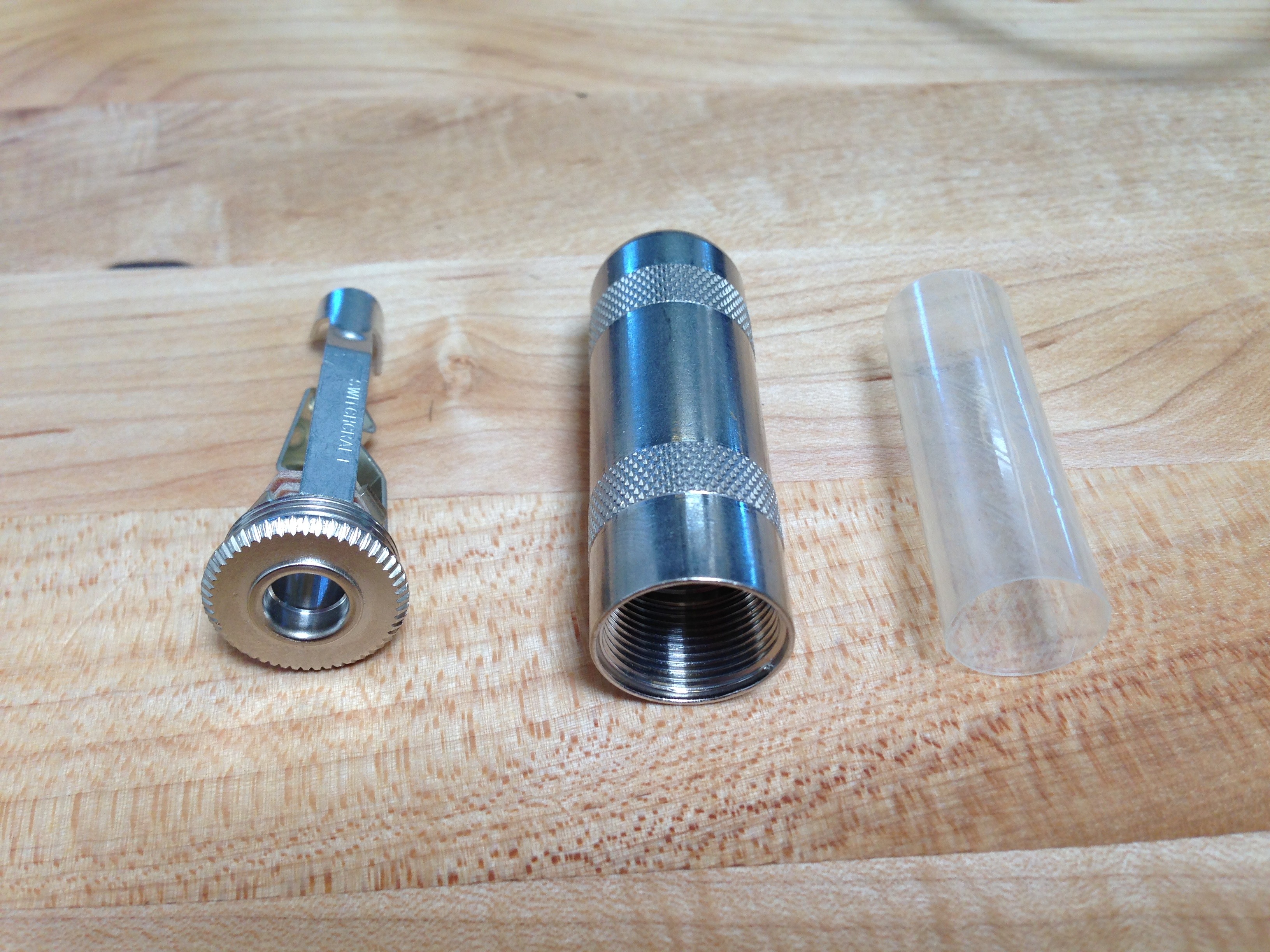

• 1/4" jack
• wire
• solder

You will need these tools to re-create this part:

• soldering station
• snips
• wire strippers
• handy hands (which is my favorite name for a tool, ever.)

After unscrewing the plug from the metal housing, I was able to solder three short lengths of wire to each terminal of the stereo plug. When all of the solder joints were cool, I made note of which wire was which, and snipped the excess off the through-hole terminals.

It's important to remember which terminal each wire is connected to when you are soldering the other end of the wires to the 1/4" jack.

I slipped the 1/4" jack casing over the 1/8" plug's housing. When the casing was nested over the plug, I took the jack and soldered each wire to the corresponding through-hole terminals on the jack. When the solder joints were cool, I trimmed the excess wire, and screwed down the 1/4" casing on to the threads of the jack.

BAM! Done. Now I could use my ridiculously oversized noise-canceling headphones with my computer, and dance it out while I work.
