Arduion Based Smart Timer Switch




In this instructable, I will show how I made this Smart Timer Switch.
I got the idea of a Smart timer switch when I face a problem with cellphone charging during bedtime. many cases I forget to turn OFF the switch and this same happened during laptop charging.
This timer switch solves all those problems.

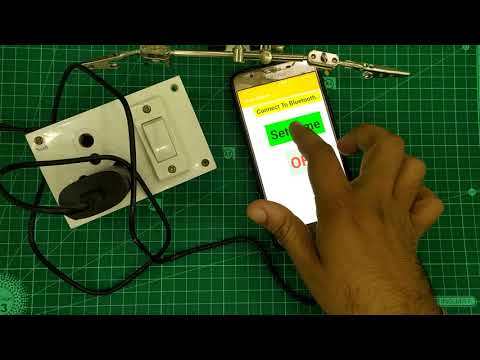

Set the timer with a smartphone and when time gets over power in the switch turned OFF.

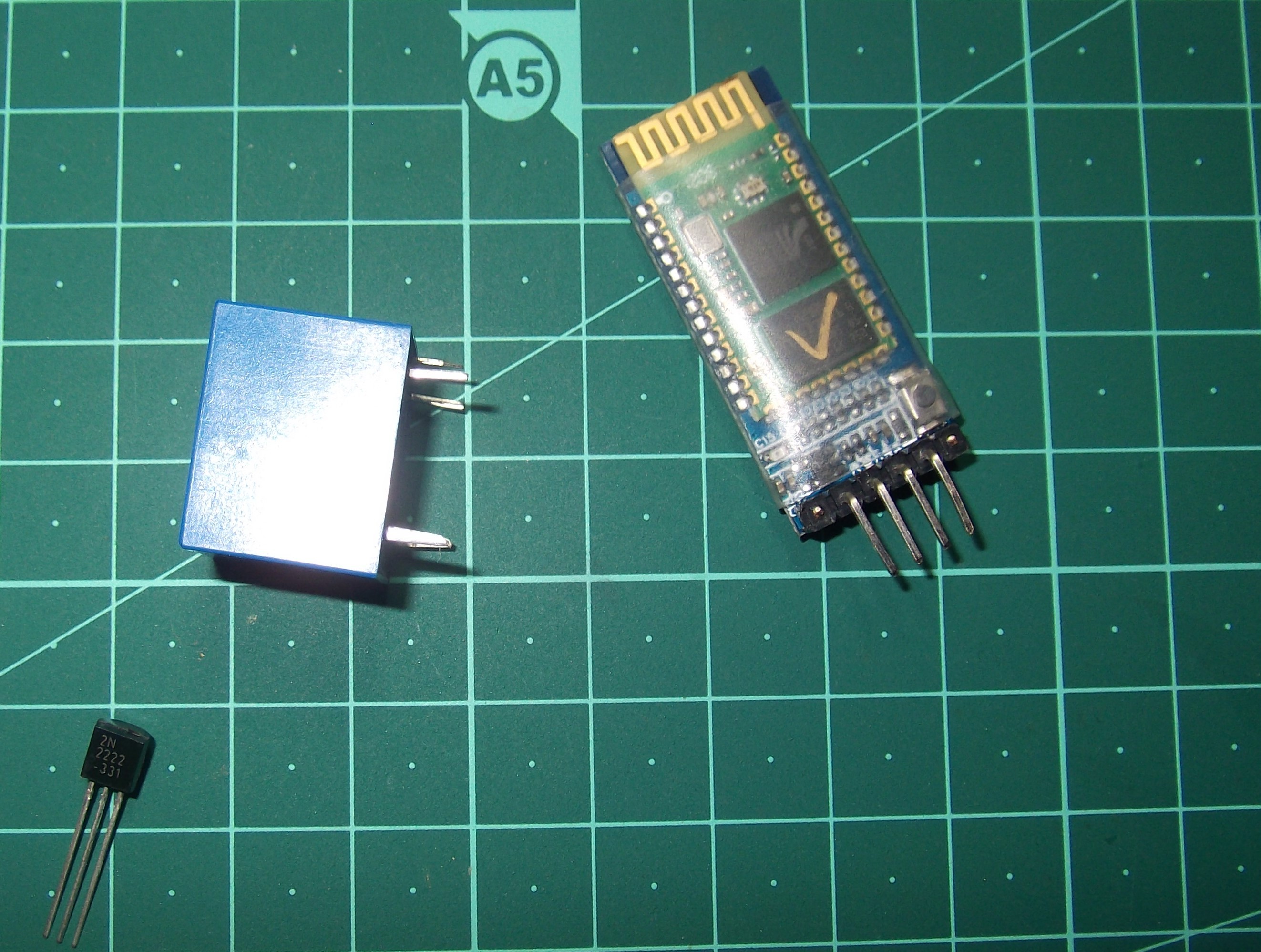

Supplies

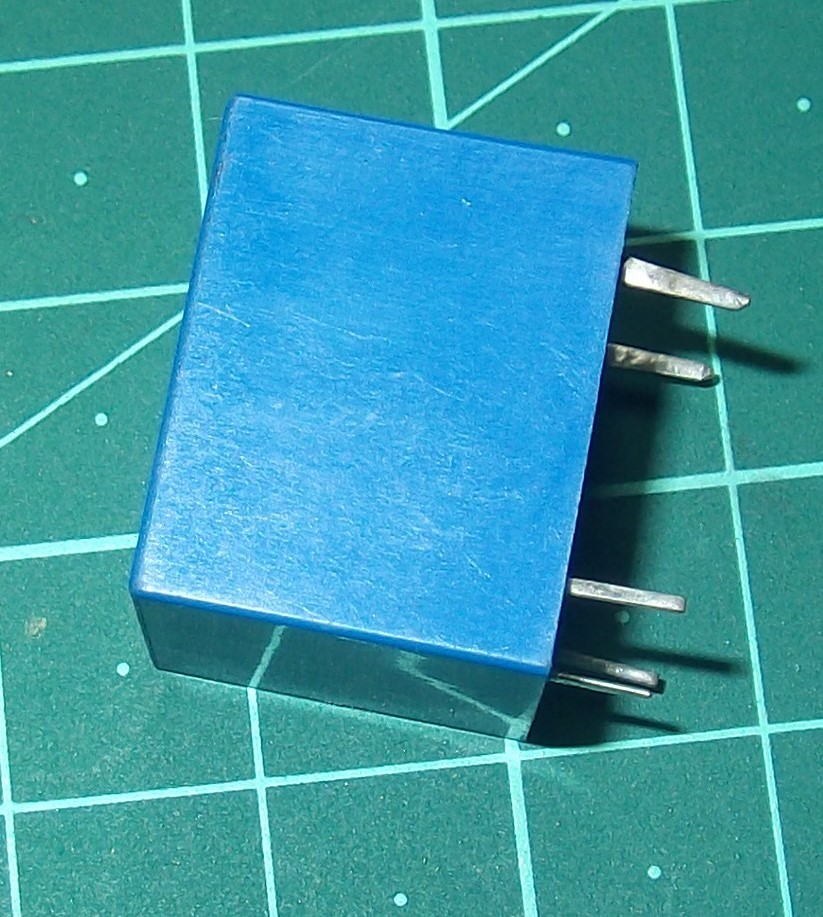

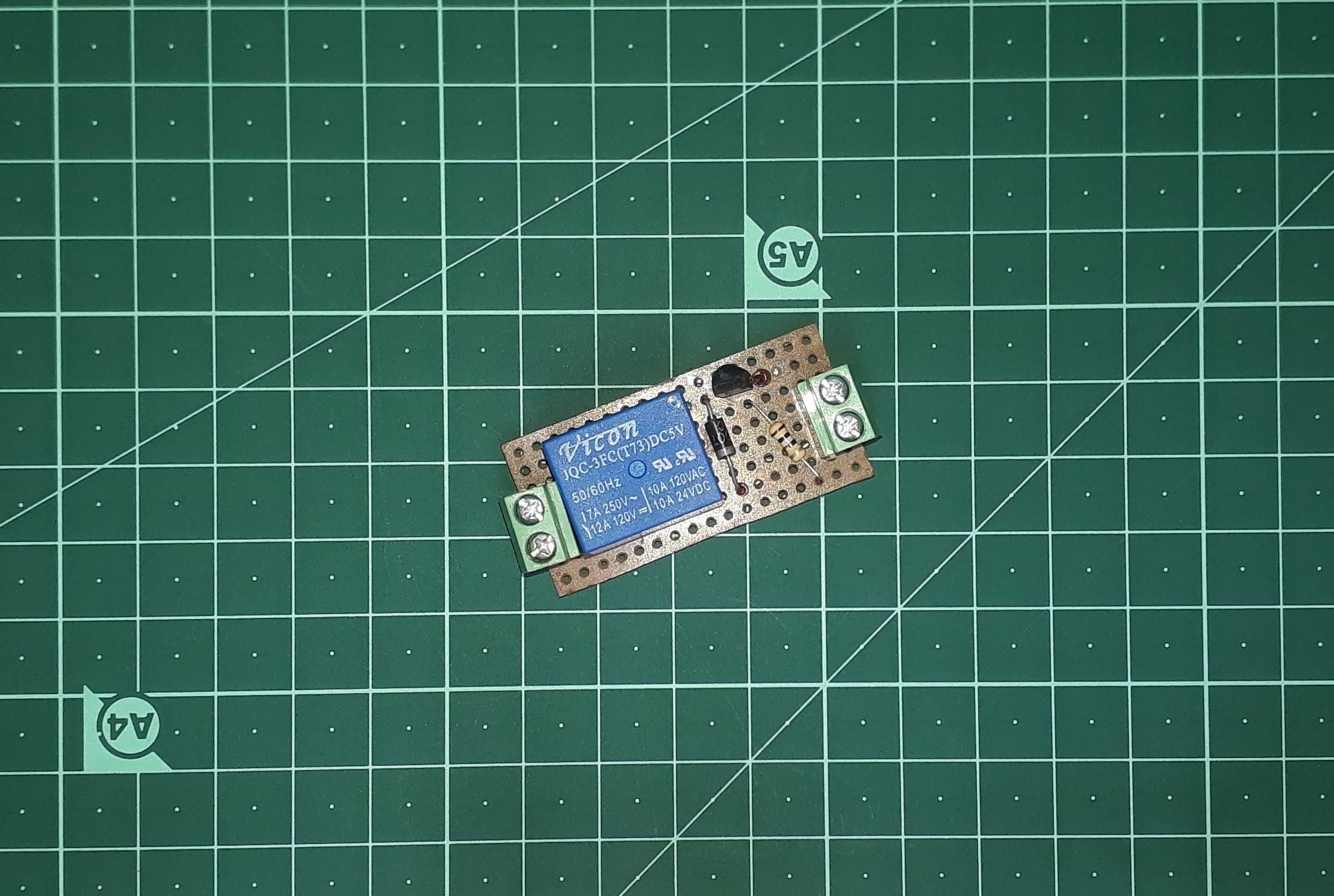

Creating Relay Module for Timer Switch

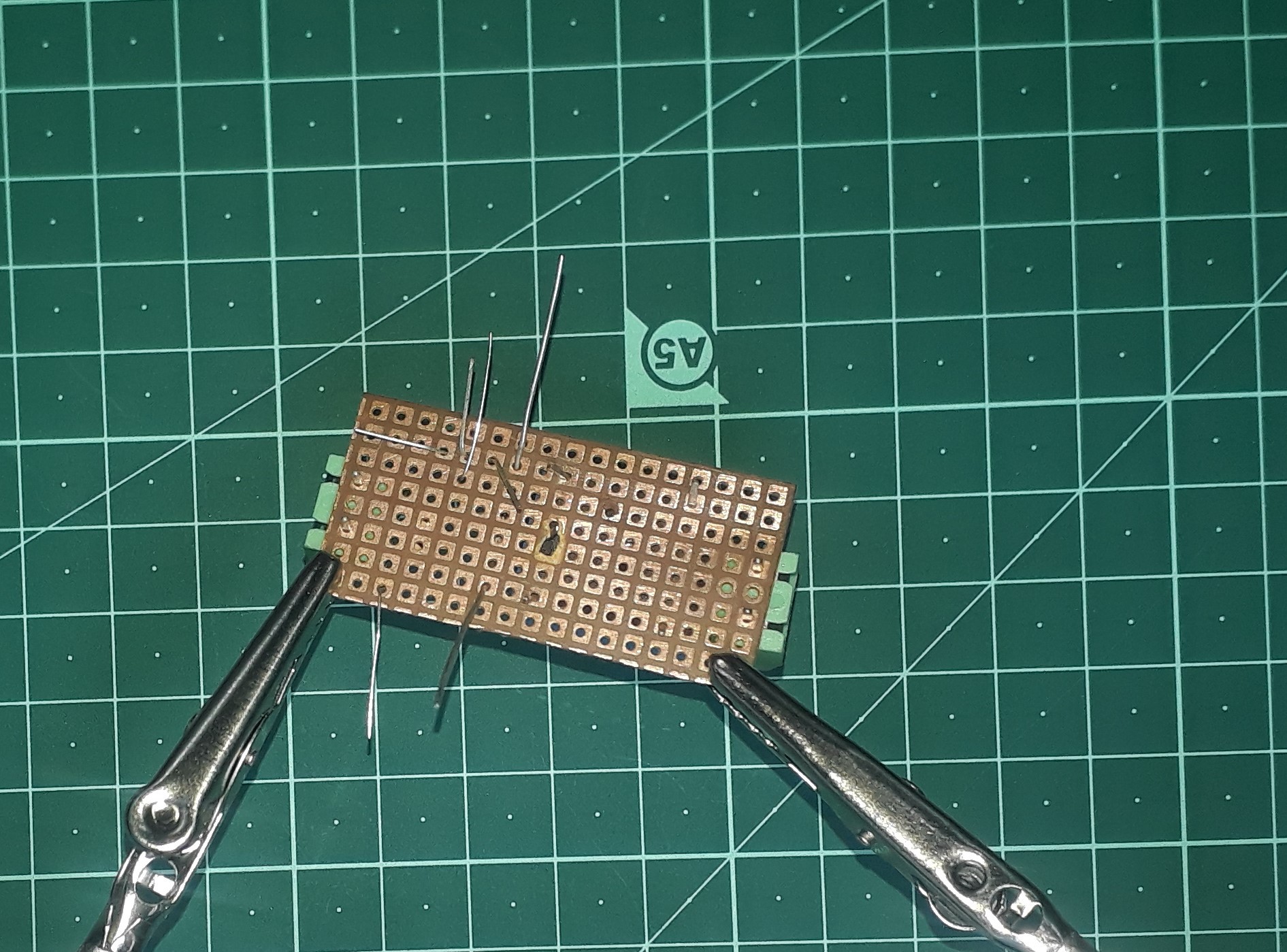

Collect the components and solder them according to Circuit.
Make sure that arrange components in such a manner that it can fit AC Power Socket.

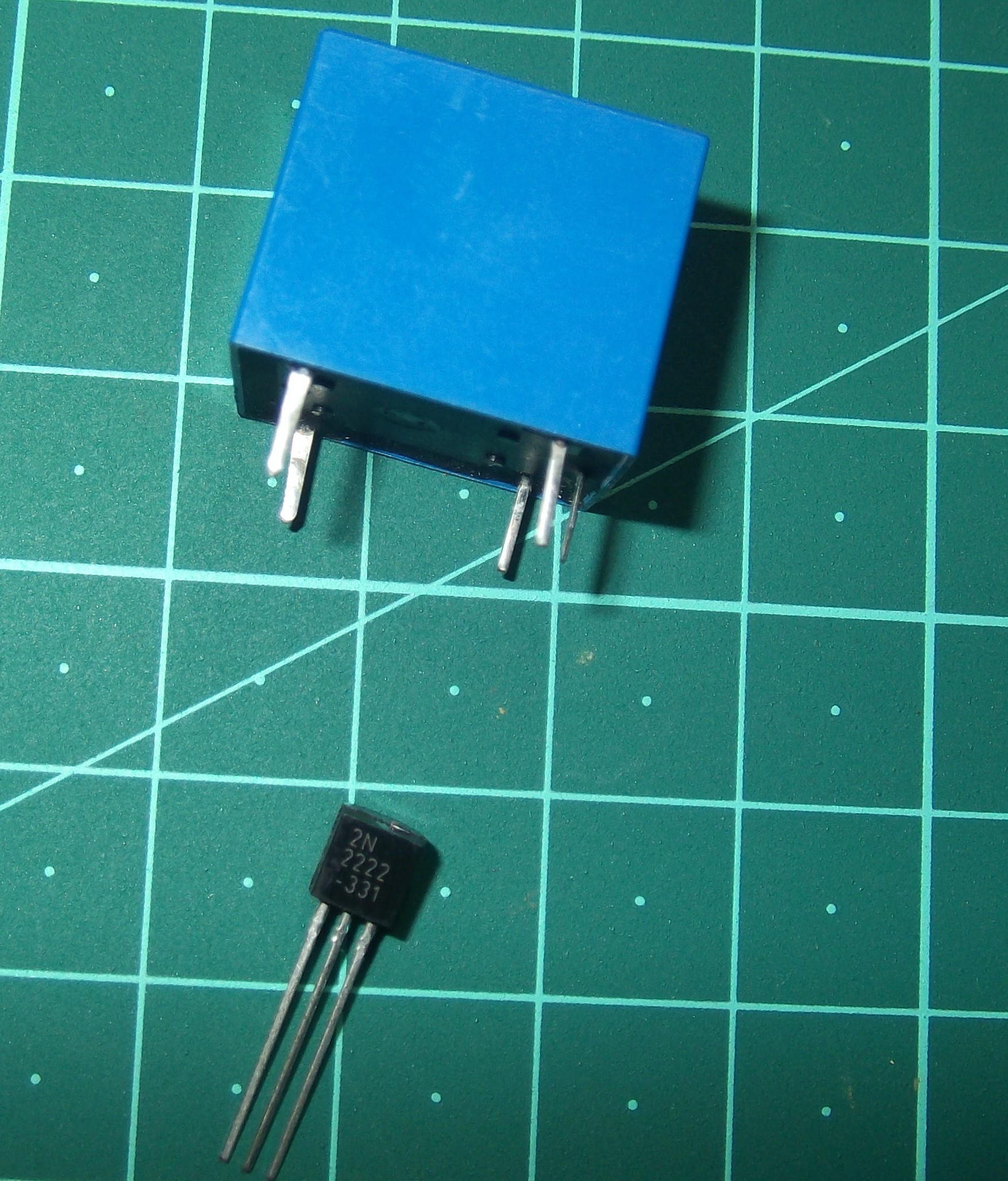

You can use BC547 Transistor if you are unable to find a 2N2222 transistor.
Downloads

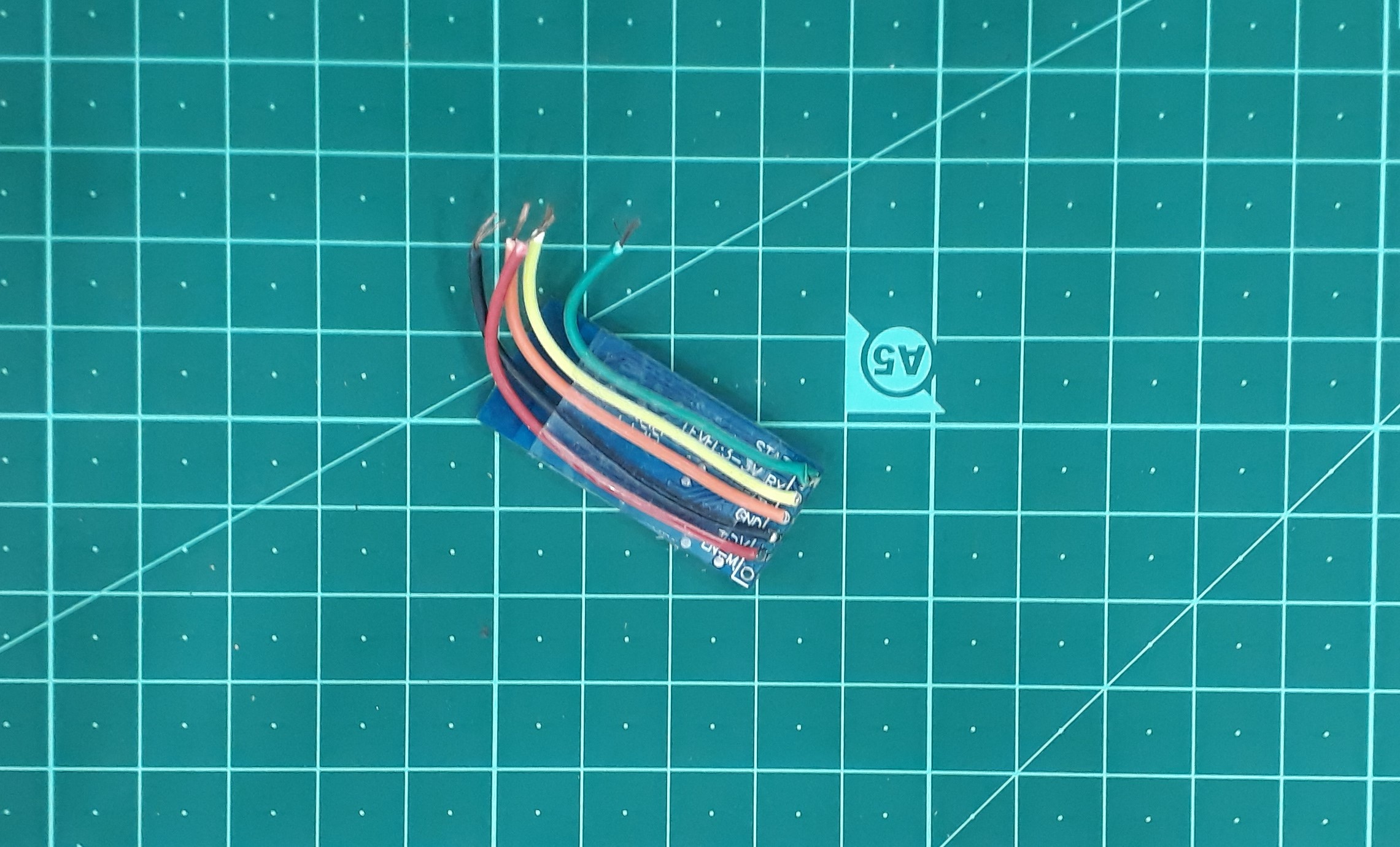

Connecting Arduino Nano With Relay Module , Bluetooth Module and Power Supply






Arduino nano Pin .................................................Relay Module
GND Pin------------------------------------------------------GND Pin
5V Pin---------------------------------------------------------Vcc Pin
Pin 5-----------------------------------------------------------Trigger Pin
Arduino Nano Pin..............................................HC05 Bluetooth Module
5V PIn-------------------------------------------------------5V Pin
GND---------------------------------------------------------GND
TX------------------------------------------------------------RX
RX------------------------------------------------------------TX
Arduino Nano Pin..................................................Power Supply
Vin---------------------------------------------------------------5V Output
GND-------------------------------------------------------------GND
All Connections are included in the previous step Circuit.pdf File
Now Combining Everything





In this Step, I am going to combine everything inside AC Power Plug.
make sure you have insulated everting with a paper tape or any insulating material and upload the code in Arduino board.
Now Hardware Part is completed.

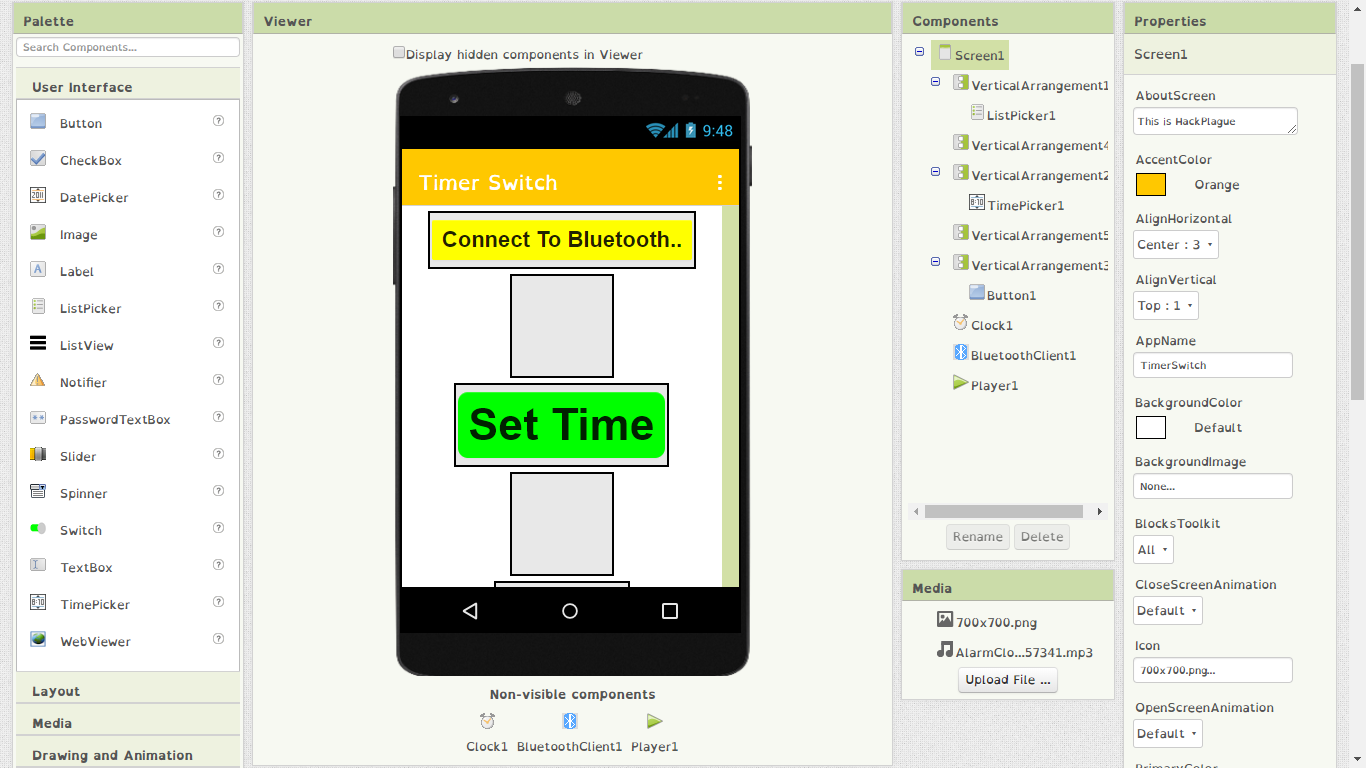

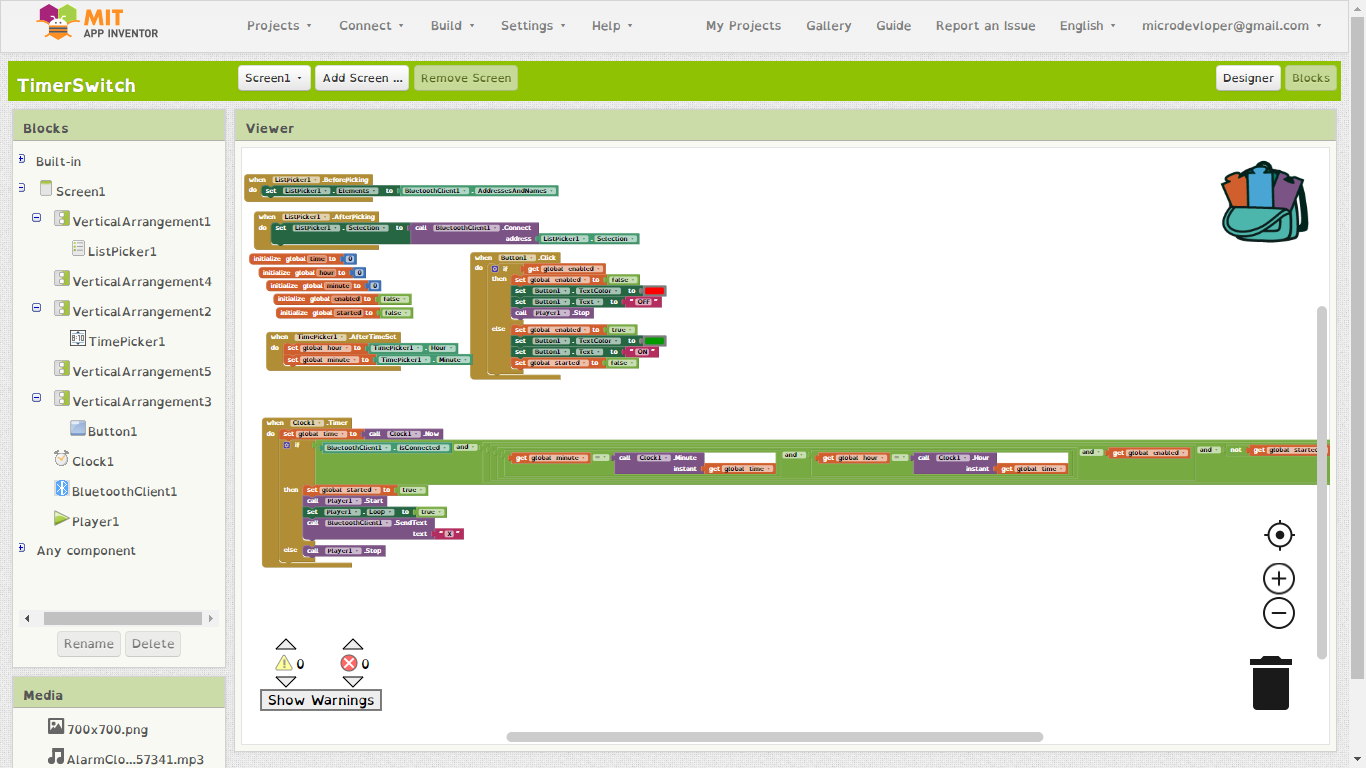

Creating Android App in MIT App Inventor and Programming Arduino Nano
.png)
.png)
.png)
.png)
In this Step, I am going to create an android app using MIT app inventor and Programming Arduino board.
The App I have made in-app inventor beeps a sound when time is triggered and send latter x to the HC05 Bluetooth Module.
I have included All Files in Zip folder you can download it from here.
