Arduino to Node Communication

This instructable is purely for just for a very basic demonstration of how to send and receive data via UART (Serial) between two Arduino compatible boards.

Arduino Uno

Node MCU/Arduino Uno/Nano or pretty much any other board with serial capabilities

We are using the Arduino Uno for this example, it will be transmitting the message, 0 and 1 are the serial ports for this board

In serial communication, The TX of one board goes into the RX of the other and vice versa.

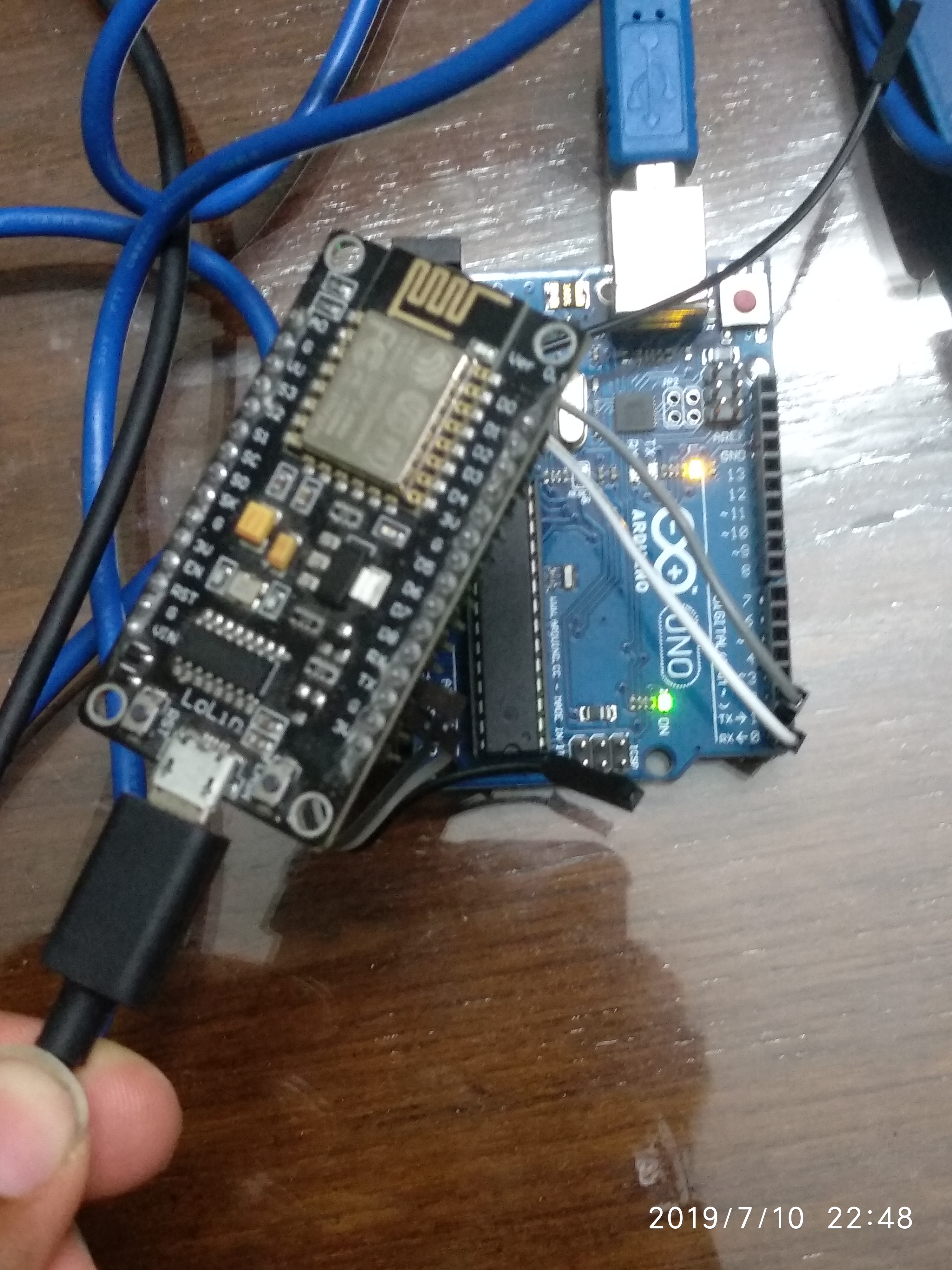

The connections are very trivial and can be seen in the picture

//arduino code

void setup() {   // put your setup code here, to run once:

Serial.begin(9600);
}
void loop() {   // put your main code here, to run repeatedly:

Serial.println("It is sending");

delay(1000); }

//node mcu code

void setup() {
  // put your setup code here, to run once:
  Serial.begin(9600);


}

void loop() {
  // put your main code here, to run repeatedly:
if(Serial.available())
{
  char a=Serial.read();
  Serial.print(a);
  if(a=='\n')//meaning it is the next line
  {
    Serial.println();
    }
  }
}
