Arduino Controlled Ping Pong Balls Launcher
by XicoMBD in Circuits > Robots
58778 Views, 72 Favorites, 0 Comments
Arduino Controlled Ping Pong Balls Launcher
Hi everyone!

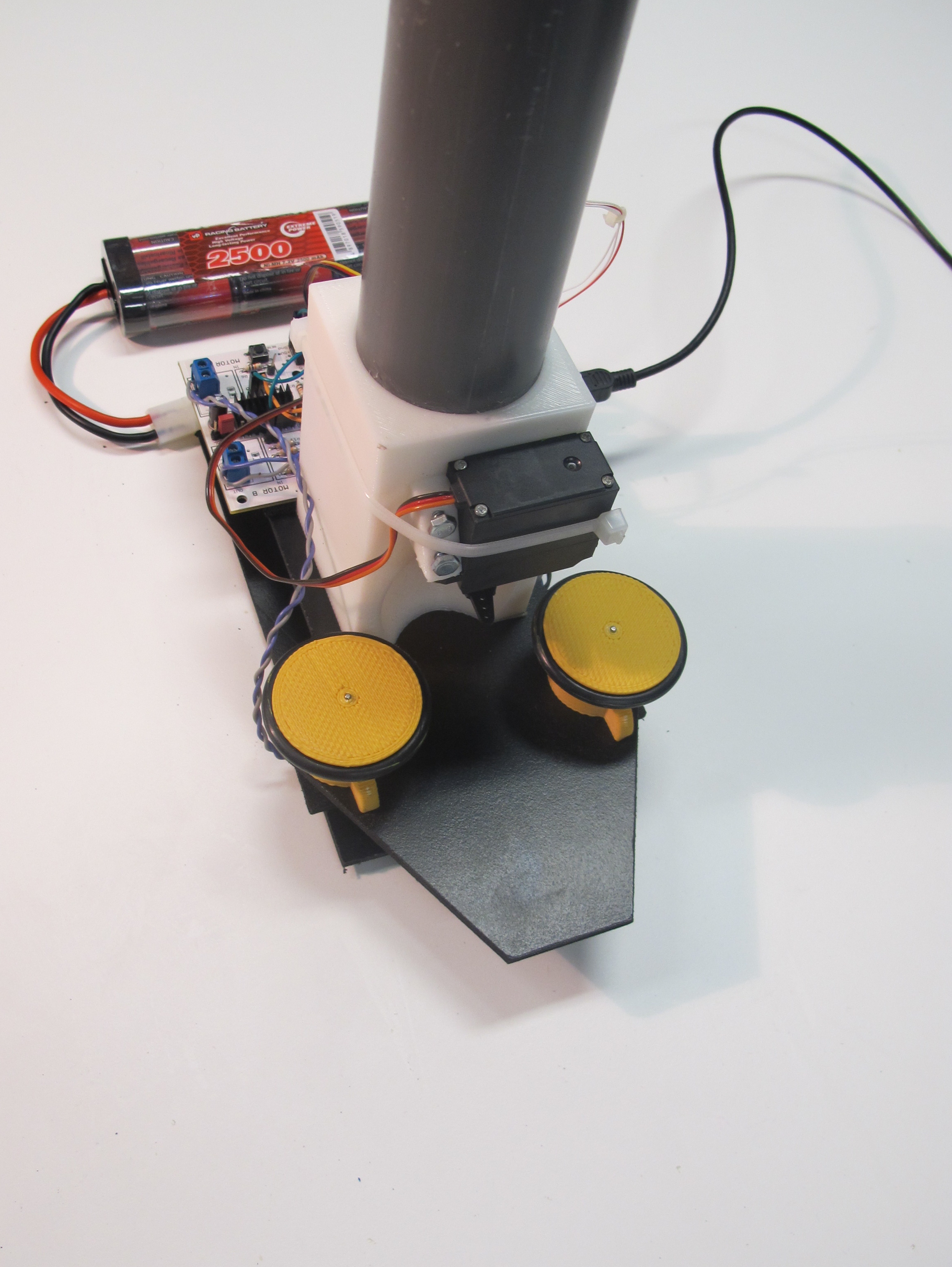

This is a ping pong balls launcher designed to be controlled by an arduino.
It uses a servo to dispense the balls and two motors with wheels to give speed and shoot them.
All the pieces can be printed using an 3D printed and the base can be done using a CNC or a laser cutter. You can find all the files attached or on its Thingiverse page: http://www.thingiverse.com/thing:29670
My parts and everything I needed to make this project were provided by Artica. Thanks guys!
Here you can see it mounted on a Magabot and shooting a Farrusco, being controlled through Skype using an hacked steering wheel:
On this second video you can see it being controlled using a kinect at the Let's Make Robots! table on Campus Party Europe in Berlin:
Gather the Pieces
I will divide the necessary parts in two groups: the ones that are 3D printed or cut and the othrs you have to buy.
Fabricated parts:
If you want to have a look and/or modify the model, you can have a look at the 123D project: http://www.123dapp.com/123D-3D-Model/Ping-Pong-Balls-Launcher/817345
Fabricated parts:
- Main Body
- Servo Support
- Two wheels
- Two motor supports
- PVC Base
- Servo
- Two motors
- Two o-rings
- Bolts
- Arduino and motor controller
- Ping Pong Balls!
If you want to have a look and/or modify the model, you can have a look at the 123D project: http://www.123dapp.com/123D-3D-Model/Ping-Pong-Balls-Launcher/817345
Mount the Servo Support

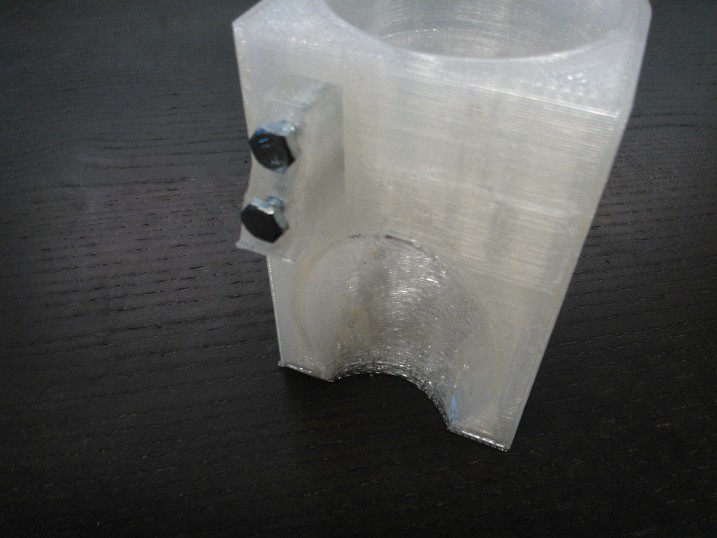

Just use the two bolts to attach it to the main body.
Add the Servo
Attach the servo to the support using two screws. If you want, a zip tie will reinforce it.
To dispense the balls correctly you may need to cut your servo horn as you can see on the picture.
To dispense the balls correctly you may need to cut your servo horn as you can see on the picture.
Attach the Motor Supports to the Base
Just screw them to the base and insert the motors on their place.
Tip: To keep your wires tide you can use a drill to twist them.
Tip: To keep your wires tide you can use a drill to twist them.
Mount the Wheels

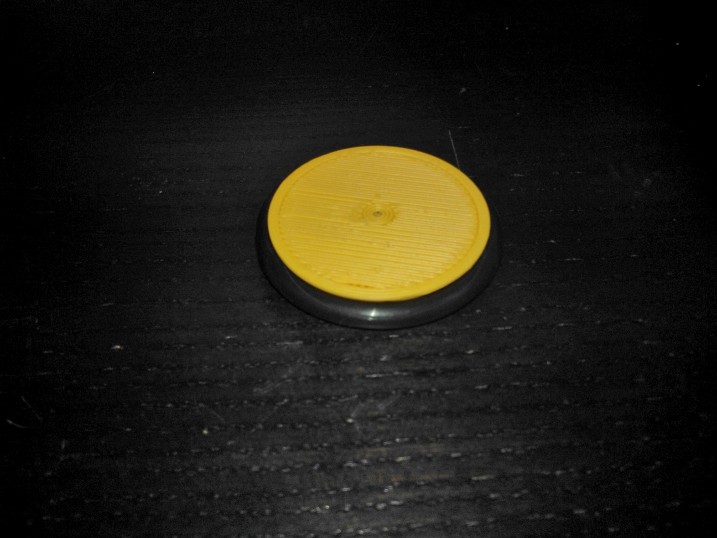

Simply place the o-rings on the two wheels.
Mount the Main Body on the Base and Attach the Wheels to the Motors
Force the wheels onto the motors' shafts and make sure they are well placed.
Use the four screws to mount the main body on the base.
Use the four screws to mount the main body on the base.
Add an PVC Pipe to Be Able to Store More Balls
If you want to be able to shoot more than two balls at a time you can add a PVC pipe on its top.
Second Part - Tilt Control
This second part is kind of optional but I recommend you to do it.
It lets you control the tilt of the cannon.
Gather the parts. As previously, I will divide the necessary parts in two groups again.
Fabricated parts:
It lets you control the tilt of the cannon.
Gather the parts. As previously, I will divide the necessary parts in two groups again.
Fabricated parts:
- Two Servo Supports
- Servo extender
- PVC Base
- Servo
- Two hinges
- Bolts and spacers
Add the Hinges and Supports
Just put them on its place ;)
Add the Servo
Use the screws to attach the supports and then mount the servo there.
In order to let the servo lift more the launcher you may use an extender as the one you can see on the photo.
In order to let the servo lift more the launcher you may use an extender as the one you can see on the photo.
Attach It to the Rest of the Launcher

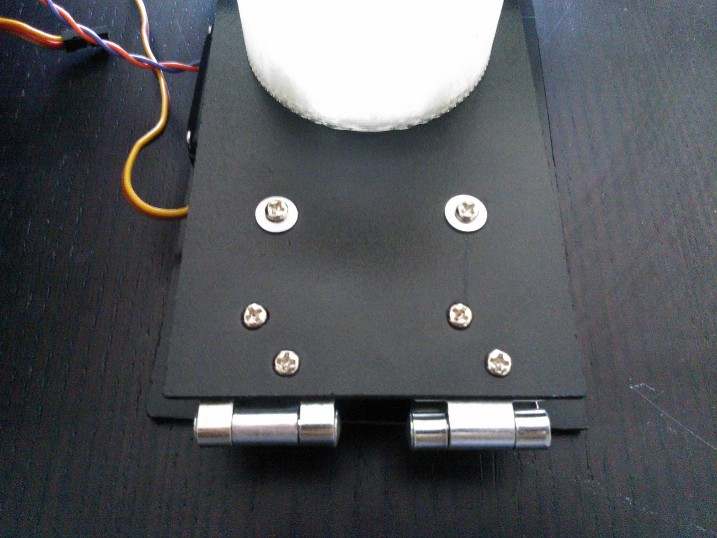

Use nuts and bolts to attach the launcher to the two hinges.
Connect It to an Arduino
To control this device using an arduino you need two digital ports for the servos and other two for the motors.
You can use 4 ports, 2 for each motor, but how it is only needed to have the motors spining in one direction I decided to simply connect the other two to ground.
On the picture you can see the schematics and the arduino code is attached, use any motor driver you want.
You can use 4 ports, 2 for each motor, but how it is only needed to have the motors spining in one direction I decided to simply connect the other two to ground.
On the picture you can see the schematics and the arduino code is attached, use any motor driver you want.
