Arduino-based Robotic Manipulator
by TheSteamer71 in Circuits > Arduino
14279 Views, 65 Favorites, 0 Comments
Arduino-based Robotic Manipulator
![bonne4.JPG](/proxy/?url=https://content.instructables.com/FZC/468H/HHS9CY77/FZC468HHHS9CY77.jpg&filename=bonne4.JPG)
![bonne3.JPG](/proxy/?url=https://content.instructables.com/F71/2SV9/HHS9S9OP/F712SV9HHS9S9OP.jpg&filename=bonne3.JPG)
![P5140007.JPG](/proxy/?url=https://content.instructables.com/FGM/7WCH/HH2VXSN6/FGM7WCHHH2VXSN6.jpg&filename=P5140007.JPG)
![P5280031.JPG](/proxy/?url=https://content.instructables.com/FSO/ZBYC/HHS9QTYQ/FSOZBYCHHS9QTYQ.jpg&filename=P5280031.JPG)
![bonne2.JPG](/proxy/?url=https://content.instructables.com/F9Y/HB8Z/HHS9QTTY/F9YHB8ZHHS9QTTY.jpg&filename=bonne2.JPG)
![bonne1.JPG](/proxy/?url=https://content.instructables.com/FKX/VDU6/HHS9CY7A/FKXVDU6HHS9CY7A.jpg&filename=bonne1.JPG)
![P5280028.JPG](/proxy/?url=https://content.instructables.com/FK4/R5MT/HHS9S9V5/FK4R5MTHHS9S9V5.jpg&filename=P5280028.JPG)

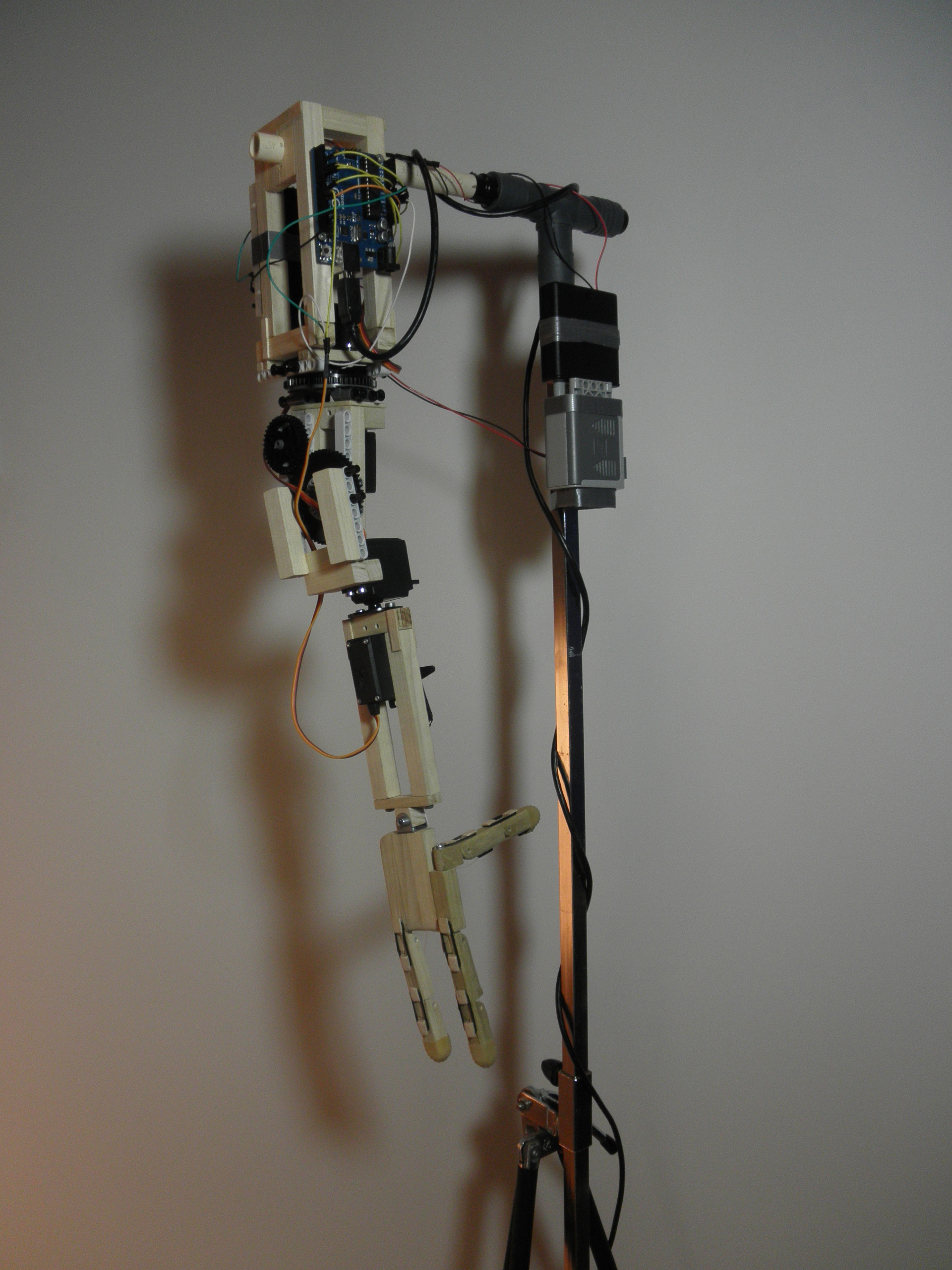

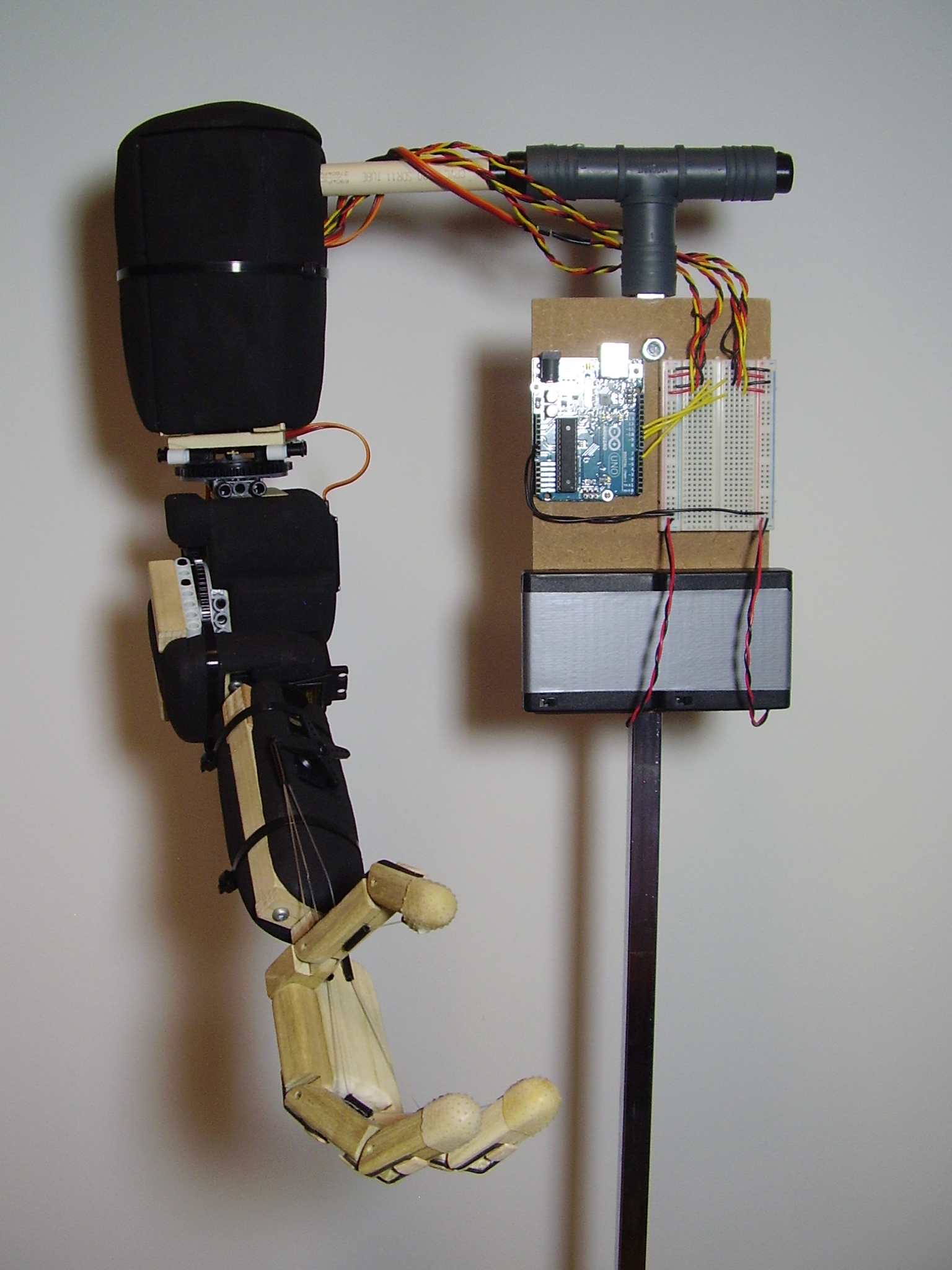

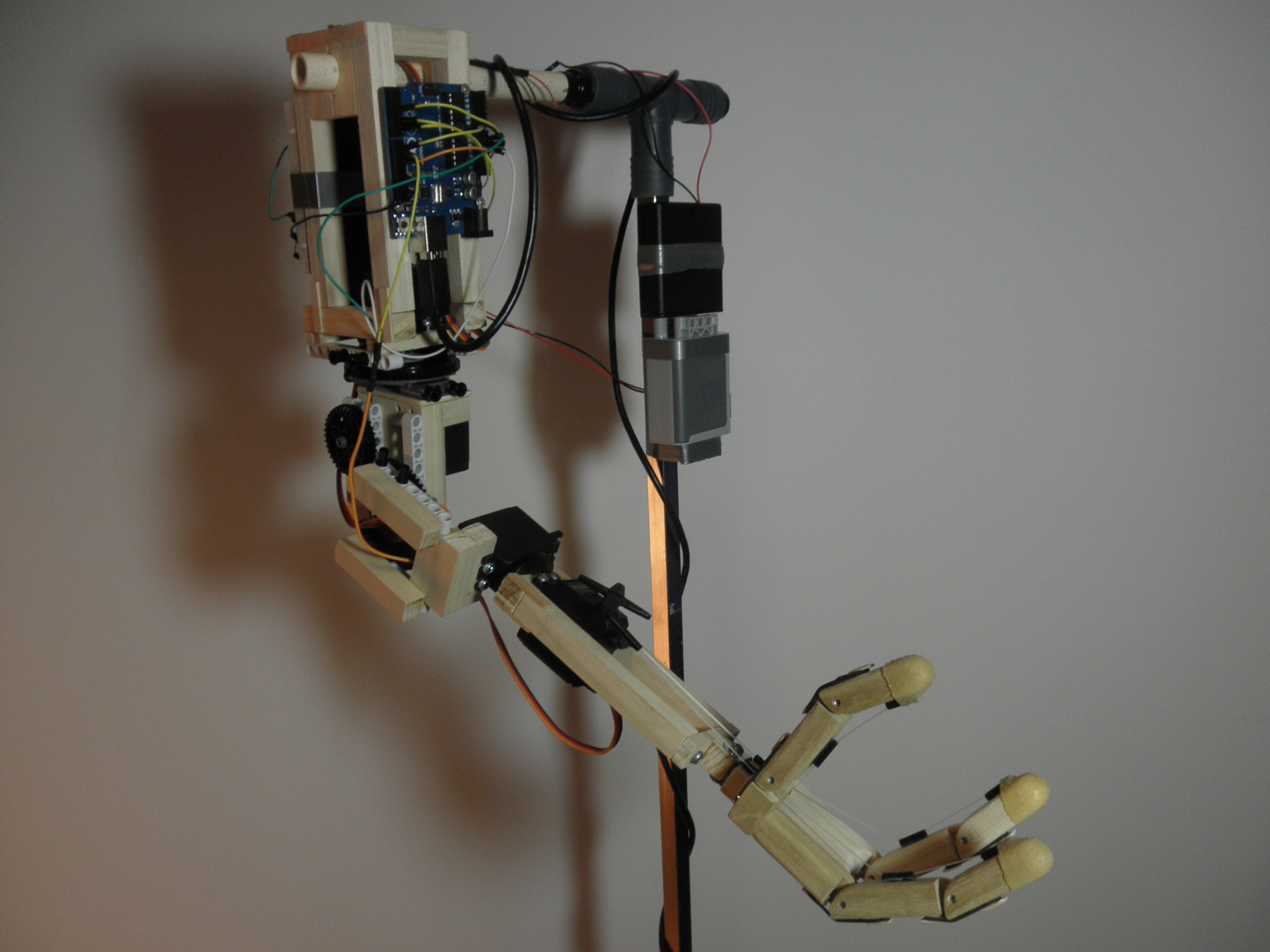

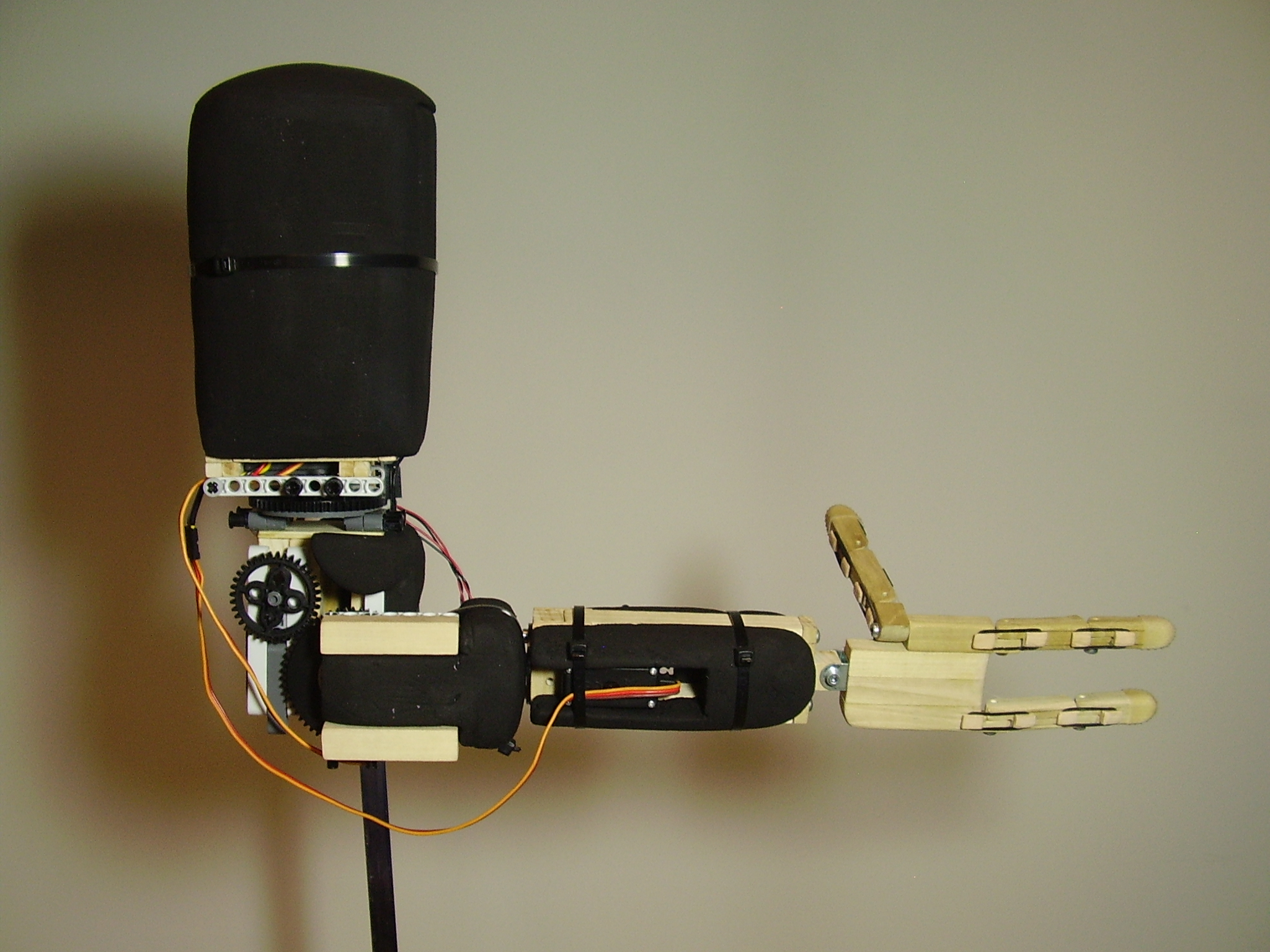

This is my first prototype of a robotic manipulator. Until now, I've really been focusing on the physic aspect of the arm so I haven't been working a lot on the program aspect. The current goal of this project is to create a solid platform to reproduce every-day actions and develop my programming aptitudes. The arm has 4 degrees of freedom: Bicep rotation, Elbow, Wrist and Gripper. I still haven't worked on the shoulder but it will come one day ! It's really basic but I'm surprised at what it can accomplish for the time I've spent on this project ! Btw, this is my first instructable ! Enjoy :D
Link to a demo of a basic sequence :
Link to a demo of a basic sequence :
http://www.youtube.com/watch?v=w2E5lZS_AvI
Thanks for your interest !
