Arduino Wireless Animatronic Hand

BTW!!!!! This instructable is awsomeeeeee


This is a very simple but at the same time a very hard project depending on your skill level. Lets get to building!

What this is, is a wireless animatronic hand that doesn't need a computer to operate. The user wears a control glove and can control the animatronic hand precisely. Bellow are some pictures of the final product:

Materials:
Arduino w/ ATMEGA 328
Xbee w/ Shield
5 Flex sensors
Glove
9v
Hook up wire
Custom PCB making tools
(5) 10k resistors







1. Power both of the Arduinos to make sure they operate correctly.
2. Assemble the Xbee radio shields.
3. Connect the Xbee shields to the Arduino by placing on top of the Arduino.
4. Connect the Xbee’s to the shields and connect them via USB.
5. Take the ATMEGA328 chip off the Arduino so there is a direct link between the computer and the Xbee radio.
6. Configure them in XCTU (default settings will work).
7. From here i built my own PCB (I'm not going to touch on how to do that, there are other very good tutorial out there)  I used the data sheet for the sensors from this site, this is also where i got these sensors:
http://www.sparkfun.com/products/8606

8.From here i put all the boards together and tested it out to see if everything worked (powered on).
9. I sewed the flex sensors onto the glove by poking a hole at top and running the string over and under the sensor so it can still freely move.
10. i built the arm band with some elastically and some STRONG double sided tape.

So for the glove i made a custom PCB to connect to the arduino. This PCB is for the 5 flex sensors for arduino inputs. This is my first PCB so it wasn't by any means complex nor professional. I made this in EAGLE CAD and used the Sharpie Method.

Materials:
electrical wire tubes (https://www.instructables.com/id/Simple-Animatronics-robotic-hand/)
fishing tackle
electrical tape
LEGOS
5 servos
xbee w/ shield
arduino ATMEGA 328
exact o knife

This took the longest to build...

1. I researched hands and found a diagram where the joints are.
2. I then cut the joints with the exacto knife
3. I put all the fingers together without the thumb.
4. i put the four fingers together and reinforced them with legos
5. i taped the securely and put the thumb over those so it would have human like flex.
6. i taped the servos together filling the spaces with Styrofoam
7. i added all 5 servos to the hand with legos and tape

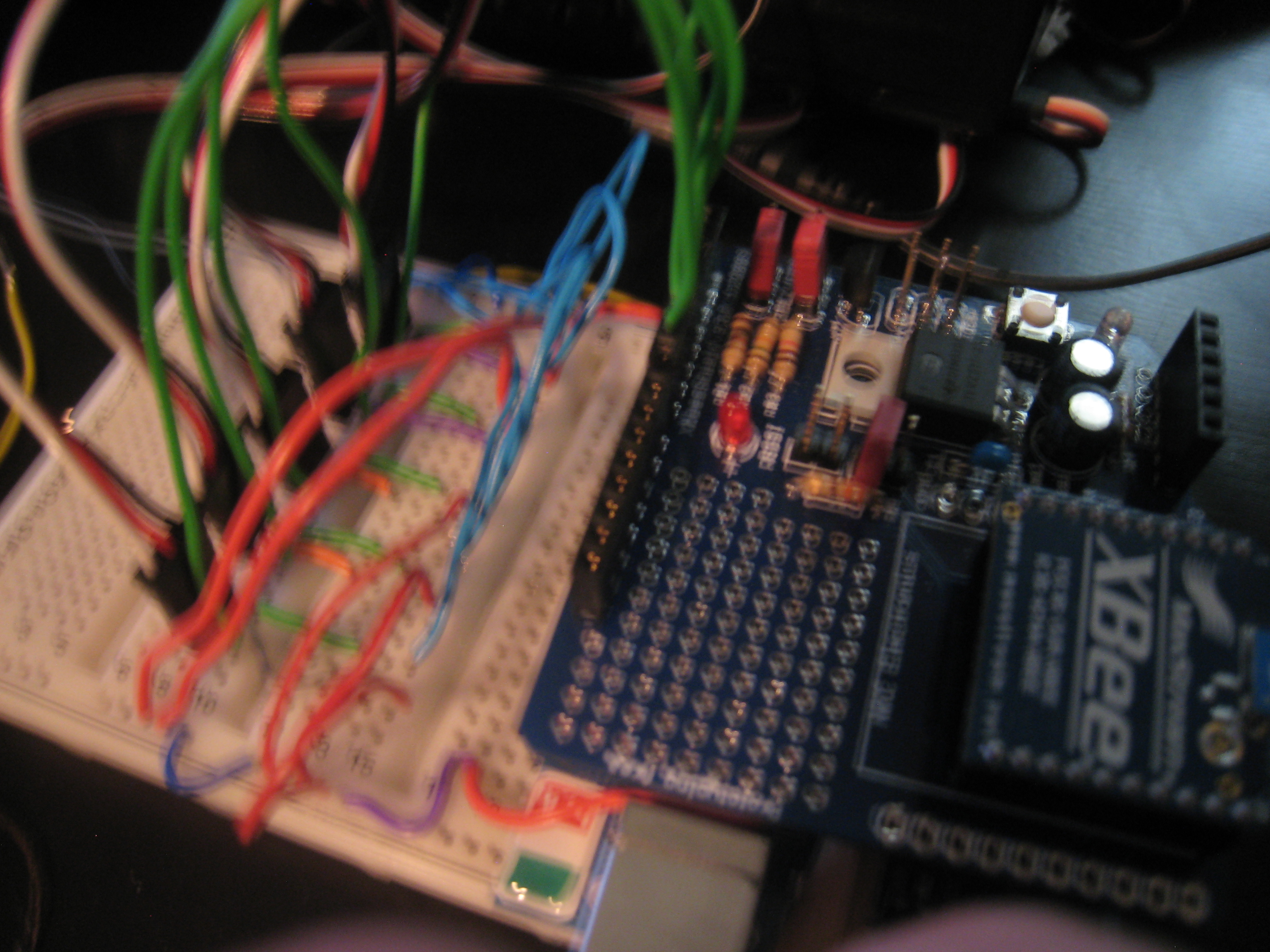

8. I built the circuit on a breadboard with just delivering power the servos and having the control wires into the Digital input on the arduino
9. i ran fishing tackle from the finger tip through the tube and anchored it onto the servo

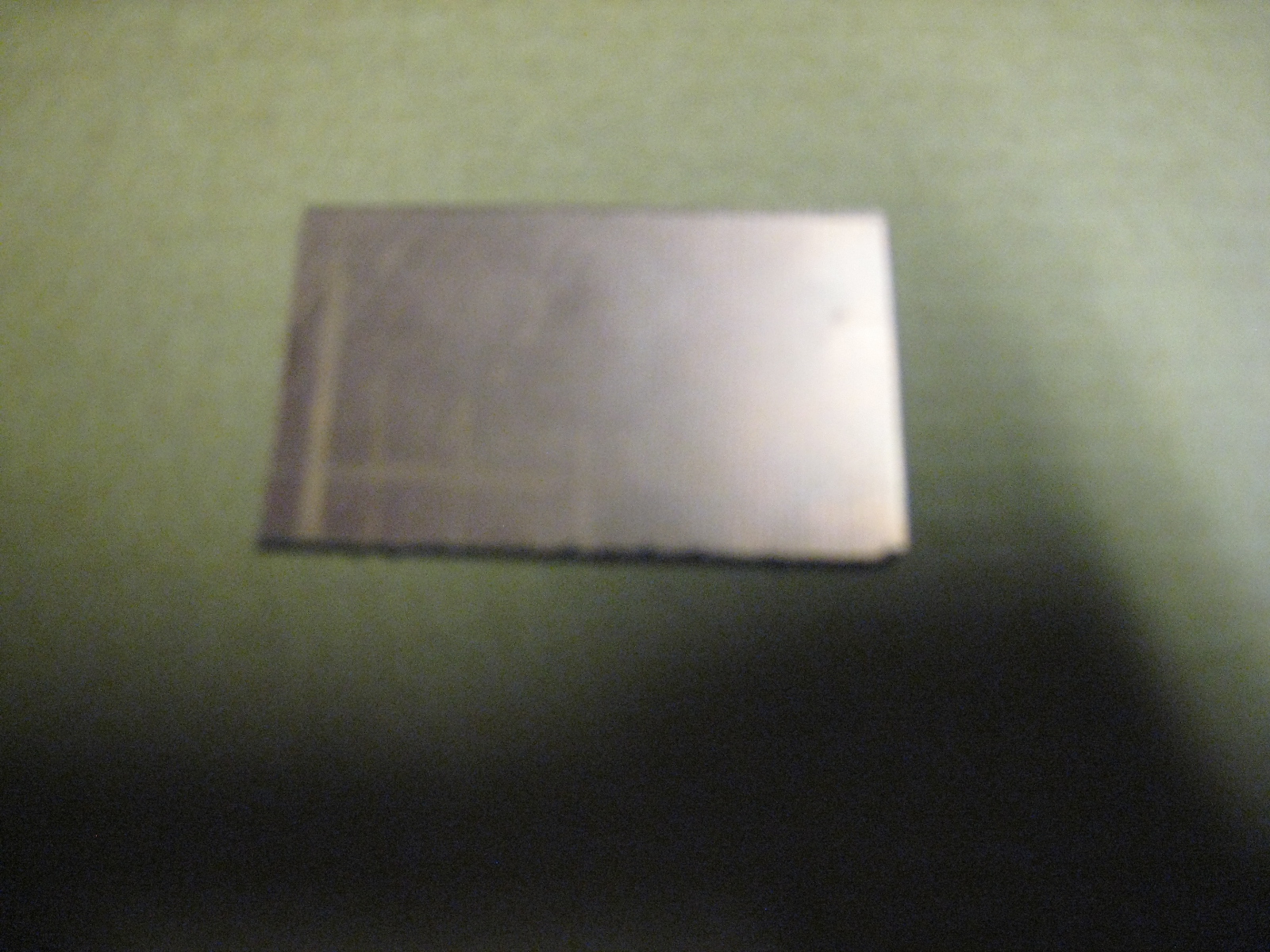

For the hand i am still in the process in building a pcb to take away the wires and reduce space. This time i am using to toner transfer method. I again made the schematic and board layout in EAGLE CAD. i used magazine paper to print onto. I engineered this to be used as a shield on the arduino.

The Very first thing you want to do is make sure your shield or xbee's are unplugged from the arduino. Or make sure the correct jumpers are the in the right place (in my case). I have written this code and if you do use it want credit.

This is the code for the sending Arduino:

int Finger1 = 0;
int Finger2 = 1;
int Finger3 = 2;
int Finger4 = 3;
int Finger5 = 4;

void setup()
{
Serial.begin(9600);
}

void loop()
{
byte servoValue1;
byte servoValue2;
byte servoValue3;
byte servoValue4;
byte servoValue5;

int FingerV1 = analogRead(Finger1);
int FingerV2 = analogRead(Finger2);
int FingerV3 = analogRead(Finger3);
int FingerV4 = analogRead(Finger4);
int FingerV5 = analogRead(Finger5);

if (FingerV1 < 200) FingerV1 = 200;
else if (FingerV1 > 460) FingerV1 = 460;
if (FingerV2 < 200) FingerV2 = 200;
else if (FingerV2 > 460) FingerV2 = 460;
if (FingerV3 < 200) FingerV3 = 200;
else if (FingerV3 > 460) FingerV3 = 460;
if (FingerV4 < 200) FingerV4 = 200;
else if (FingerV4 > 460) FingerV4 = 460;
if (FingerV5 < 200) FingerV5 = 200;
else if (FingerV5 > 460) FingerV5 = 460;

byte servoVal1 = map(FingerV1,460, 200, 255, 0);
byte servoVal2 = map(FingerV2,460, 200, 255, 0);
byte servoVal3 = map(FingerV3,460, 200, 255, 0);
byte servoVal4 = map(FingerV4,460, 200, 255, 0);
byte servoVal5 = map(FingerV5,460, 200, 255, 0);

Serial.print(servoVal1);
Serial.print(servoVal2);
Serial.print(servoVal3);
Serial.print(servoVal4);
Serial.print(servoVal5);


delay(100);
}



Here is the receiving:

#include

Servo myservo1; // create servo object to control a servo
Servo myservo2;
Servo myservo3;
Servo myservo4;
Servo myservo5;

void setup()
{
Serial.begin(9600);

myservo1.attach(2); // attaches the servo on pin 9 to the servo object
myservo2.attach(3);
myservo3.attach(4);
myservo4.attach(5);
myservo5.attach(6);
}

void loop()
{
if(Serial.available() >=5)
{
byte servoAng1 = Serial.read();
byte servoAng2 = Serial.read();
byte servoAng3 = Serial.read();
byte servoAng4 = Serial.read();
byte servoAng5 = Serial.read();


// Send the servo to the position read...  (note: you get to make this happen)
myservo1.write(servoAng1);
myservo2.write(servoAng2);
myservo3.write(servoAng3);
myservo4.write(servoAng4);
myservo5.write(servoAng5);
}
}



I did do this for science fair!

Here is some of my work for it:

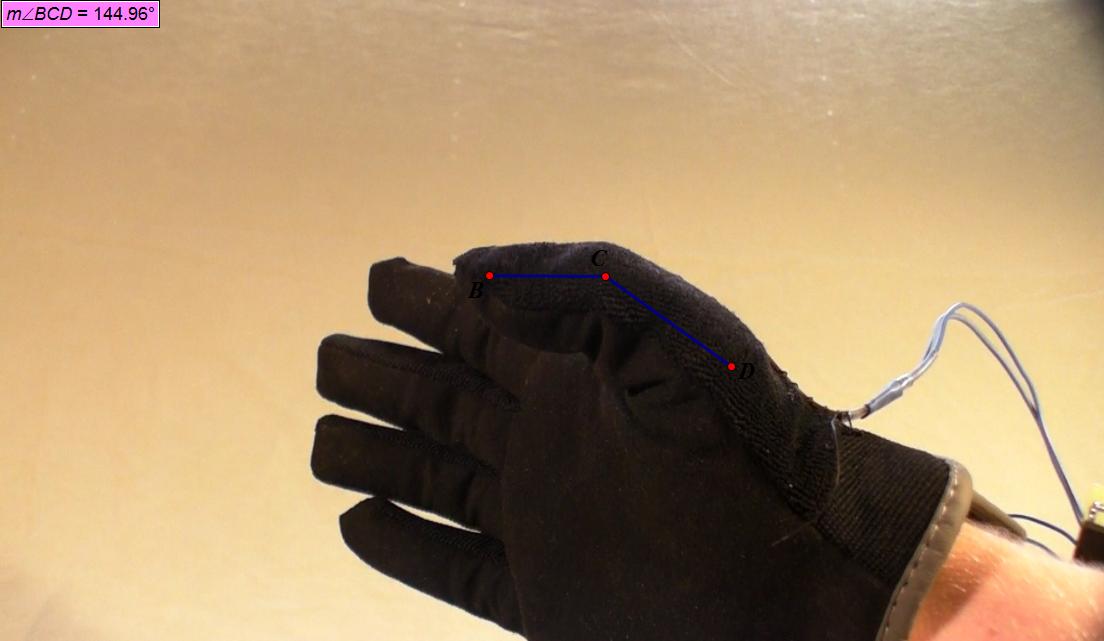

So pretty much what i did was take a HD video at 60 fps to get high resolution skills.i came up with three positions to test, fully extended, half extended and unextended. From here i went into geometers sketchpad and found the angle of each finger at each position for both hands. From here i was able to compare a real hand to my animatronic hand.

Upon conductions of the experiment, using the variables finger, angle, sensor value and position, the fallowing results were produced. During the first test I measured the angle relationship between my finger and the corresponding finger on the animatronic hand. I found that the index finger, middle finger, ring finger, and pinky all had about the same sensor value from the flex sensors. The thumb on the other hand was limited in movement compared to the other fingers, and therefore the sensor data was in a smaller range. I then came up with three positions to test, fully extended, half extended, and unextended. From here I created a video of all my fingers at these different positions. I then analyzed the videos through the use of editing software and found the angle of each finger at each position.
I then conducted the same procedure for the animatronic hand, finding the angle of each finger at each position in the process. I found that at the fully extended position the relationship between my finger and the corresponding finger on the animatronic hand was about a 20° difference. At half extended the relationship was the closest at about a 10° difference. At unextended I noticed the most difference with my fingers bending almost 30° more than the animatronic hand. The thumb was the most consistent finger with only about 10° difference on all three tests. Overall, the comparison of my hand compared to the animatronic hand was greater than I thought. The position with the greatest difference was fully flexed. What all this means is that the animatronic hand has a relationship with my hand.

A few weeks ago i attended the regional science fair in Durango Colorado. The first award i won was 1st place in the Air Force Engineering. The second award i won was a Davin chi award which qualified me for the state competition in Fort Colins. The best award i won qualified me to go to the international science fair in LA for a week, all expense paid, to be an official observer. So i pretty much go to LA for a week and get to check out the sweet project whether i do good at state or not.
