Arduino Watch

by robertodelle in Circuits > Arduino

900 Views, 3 Favorites, 0 Comments

Arduino Watch

VID 20190418 0817141

This is my personal solution for an Watch by Arduino. The aim this project is work around arduino pro mini and 7 pin oled display (SPI). All components wired in a PCB Universal Experiment Matrix:

- Arduino Pro Mini 328 Module Atmega328P

- 0.96 Inch SPI OLED Display Module

- IIC Module Precision Clock Module RTC DS3231SN Memory module

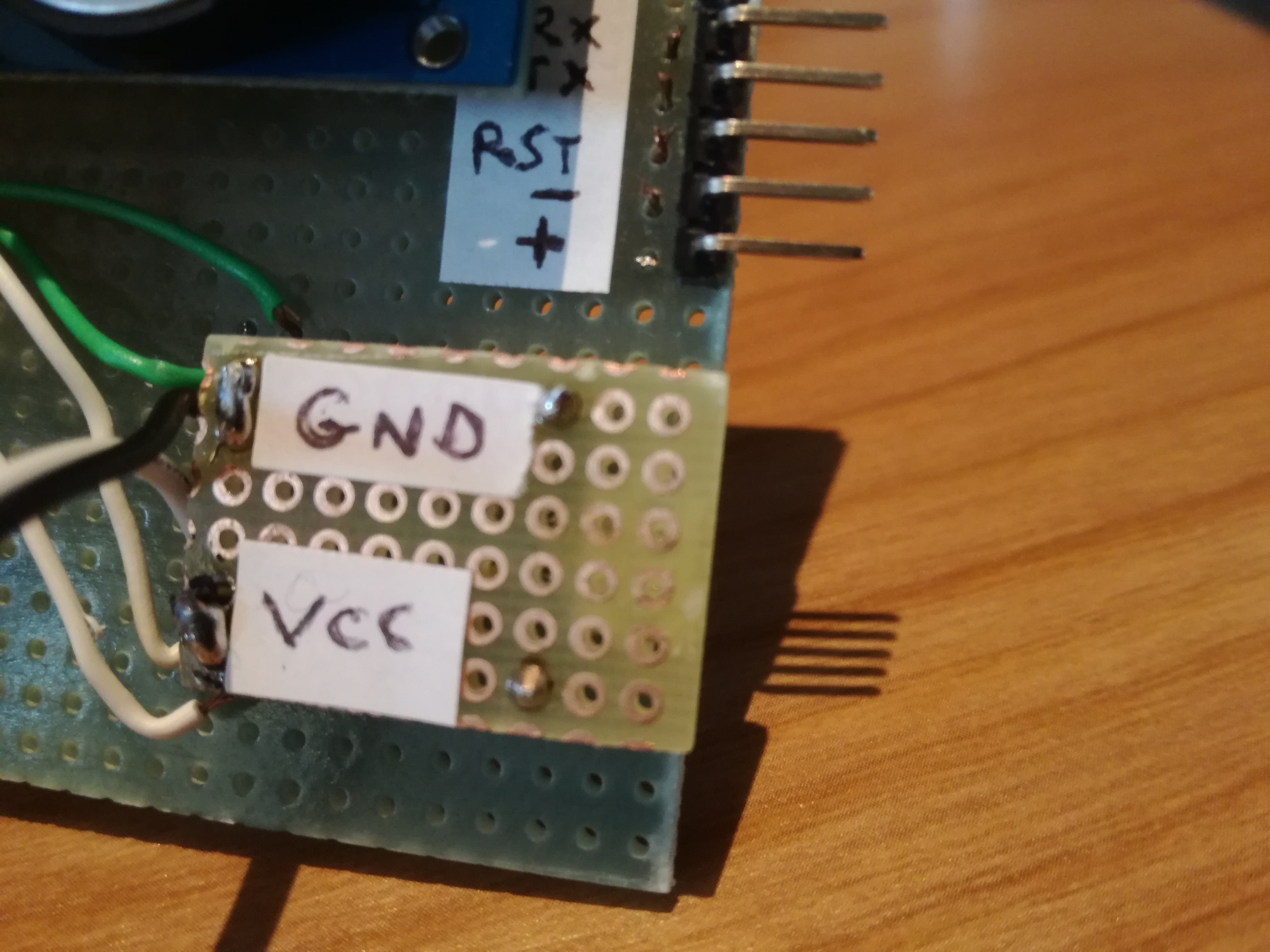

I have solder a mini USB female connector on a a piece Universal Experiment Matrix for voltage supplier the circuit by a mini USB cable. Five pins on the right for programming arduino (Uploading Using an Arduino Board)

Sketch and other files
