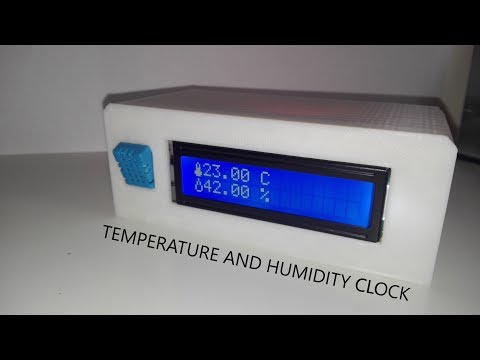

Arduino Temperature and Humidity Clock

In this instructable,i will show you how to build a Temperature and humidity clock,using I2C lcd on the Arduino Nano

For this,you will need(affiliate links to banggood):

-I2C 16x2 LCD

-DHT11 Temperature and humidity sensor

-Arduino Nano

NOTE:You will need a usb Micro B cable to power the arduino

The display

SCL → A5

SDA → A4

GND → GND

VCC → 5V

Temperature sensor

OUT → D2

GND → GND

VCC → 5V

You will need to download Arduino Software and open the sketch.

After you open the sketch,connect the arduino board to the computer,select the port and the Arduino board(You need to select Arduino nano) from Tool menu.

Here are the 3D files for the case

After printing it,glue everything and you are done!
