Arduino Stepper Motor 28byj-48 Control Speed and Direction

In this tutorial we will learn how to move a stepper motor, change the speed with the potentiometer and change the direction using a button.

Watch the Video!

• Arduino UNO (Or any other Arduino)
• Stepper motor 28byj-48 & stepper motor driver board
• Button
• 1k ohm resistor
• Potentiometer module
• Jumper wires
• Breadboard
• Visuino program: Download Visuino

Thank you PCBWay for supporting this tutorial and helping users learn more about electronics.

What I like about the PCBWay is that you can get 10 boards for approximately $5 which is really cost effective for professional made boards, not to mention how much time you save!

Go check them out here. They also offer a lot of other stuff in case you might need it like assembly, 3D printing, CNC machining and a lot more.

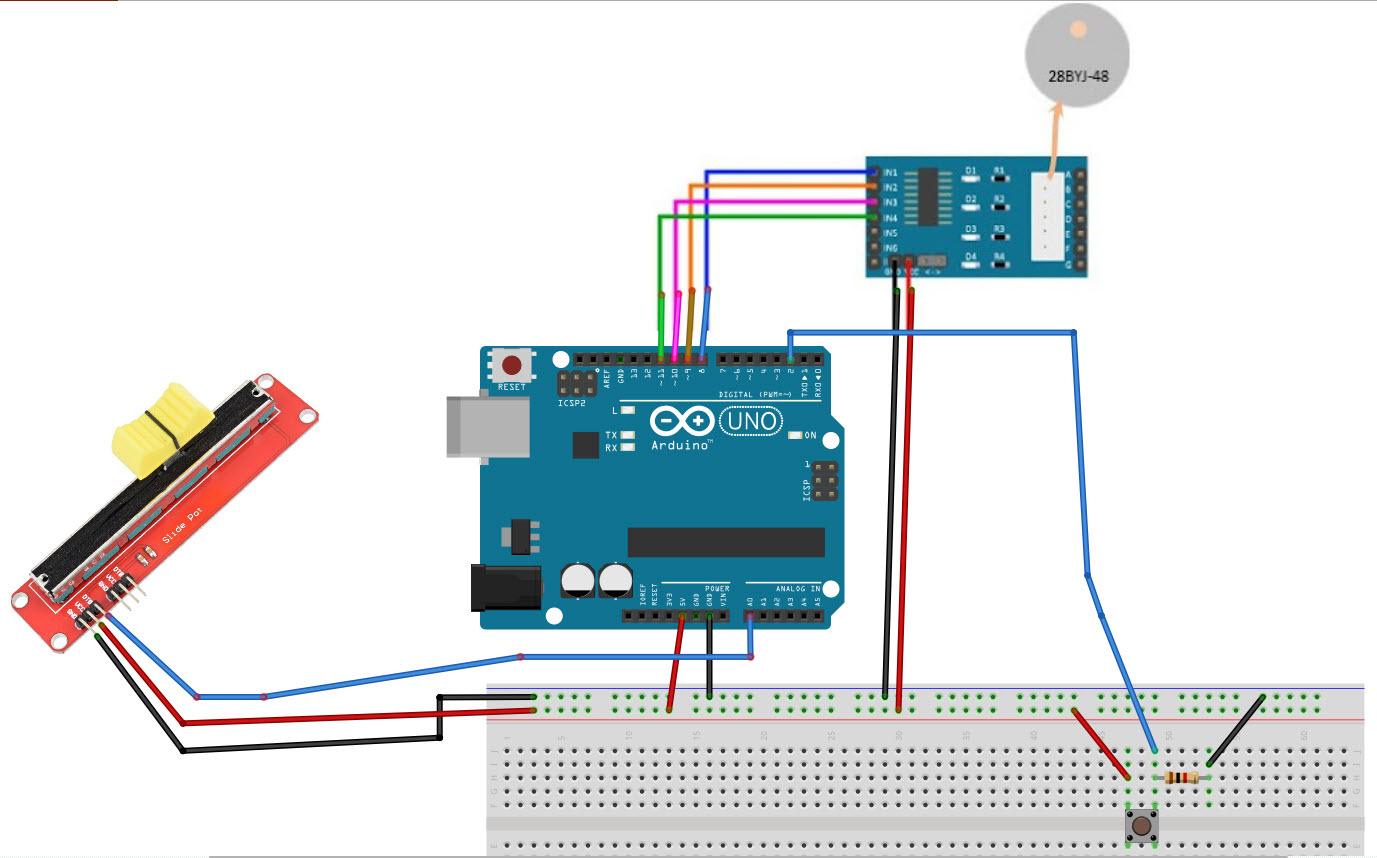

• Connect Stepper Motor to Stepper Motor Driver
• Connect Arduino pin [5V] to Driver Board pin [VCC]
• Connect Arduino pin [GND] to Driver Board pin [GND]
• Connect Arduino digital pin [8] to Driver Board pin [IN1]
• Connect Arduino digital pin [9] to Driver Board pin [IN2]
• Connect Arduino digital pin [10] to Driver Board pin [IN3]
• Connect Arduino digital pin [11] to Driver Board pin [IN4]
• Connect Arduino pin [5V] to breadboard positive pin [Red line]
• Connect Arduino pin [GND] to breadboard negative pin [Black line]
• Connect Arduino Digital pin [2] to the Resistor and button
• Connect other side of the resistor to the breadboard pin [GND]
• Connect Other pin of the button to the breadboard positive pin [5V]
• Connect potentiometer pin [DTA] to arduino analog pin [A0]
• Connect potentiometer pin [VCC] to the breadboard positive pin [5V]
• Connect potentiometer pin [GND] to the breadboard pin [GND]

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

Add "4 Wire Stepper Motor" component

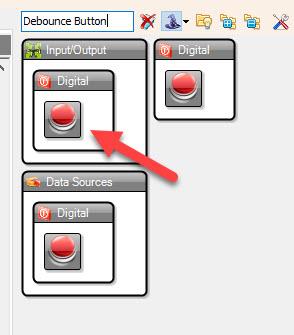

Add "Debounce Button" component

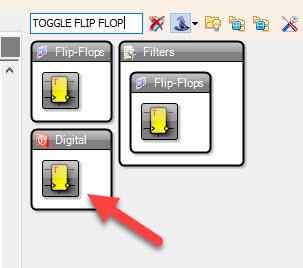

Add "Toggle(T) Flip-Flop" component

Add "Map Range Analog" component

1. Select "MapRange1" and in the properties window set "Output Range" > "Max" to 500 <<this will be the maximum steps per second
2. Select "Stepper1" and in the properties window select "Reversed" & click on the pin icon and select "Boolean SinkPin" and select "Steps Per Second" & click on the pin icon and select "Float SinkPin"

• Connect Arduino Digital pin [2] to "Button1" pin [In]
• Connect Arduino Analog pin [0] to "MapRange1" pin [In]
• Connect "Button1" pin [Out] to "TFlipFlop1" pin [Clock]
• Connect "TFlipFlop1" pin [Out] to "Stepper1" pin [Reversed]
• Connect "MapRange1" pin [Out] to "Stepper1" pin [Steps Per Second]
• Connect "Stepper1" pin [0] to Arduino digital pin [8]
• Connect "Stepper1" pin [1] to Arduino digital pin [9]
• Connect "Stepper1" pin [2] to Arduino digital pin [10]
• Connect "Stepper1" pin [3] to Arduino digital pin [11]

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

If you power the Arduino module, The motor will do will start to run and with the potentiometer you can change the speed. If you press the button the motor will change the direction.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this Instructable, you can download it here and open it in Visuino: https://www.visuino.eu
