Arduino Solenoid Door Lock Using RFID

RFID is an inexpensive and accessible technology. It can be used in many applications such as access control.

Supplies

Hardware Components

Arduino Uno

RFID-RC522 Module

12v Solenoid Lock

Relay Module (Generic)

Hall Effect Sensor

Resistor 10k ohm

Buzzer

Software Components

Arduino IDE

About Project

Solenoid Lock

A solenoid lock operates on the principle of the electronic-mechanical locking mechanism. This lock has an idler with a slanted cut as well as a mounting bracket. When the power is utilized, DC generates a magnetic field that drives the slug inside and maintains the door in the unlocked position. The slug will maintain its position until the power is excluded. When the power is disconnected the slug transits outside and locks the door.

Implementation and Testing

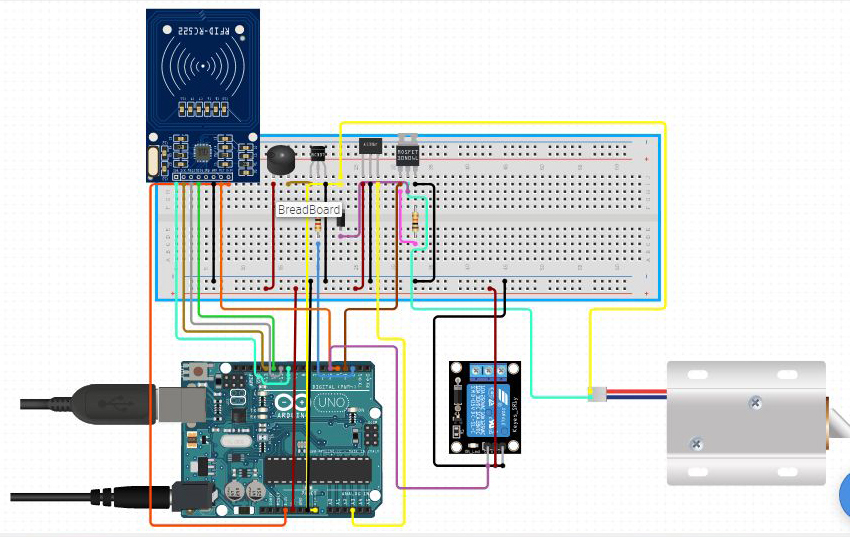

Once we are ready with all implementation, we can start testing the Solenoid Door Lock project. Here in the below diagram, we have soldered all the components on the board so that it can be installed on the door simply. So for testing mount the board on the door frame as well as a magnet on the door so that it can recognize the door movement. Now you can scan your RFID card to open the door lock. The solenoid lock will rest open until the Hall Effect sensor output is high.

Internet Of Things Course Training will help you to build IIoT Applications in various Industries.

Run a Program

#include #include int hall_sensor = 3; int state,lockread; int Buzzer = 4; const int LockPin = 2; #define SS_PIN 10 #define RST_PIN 9 MFRC522 mfrc522(SS_PIN, RST_PIN); // Create MFRC522 instance. void setup() { Serial.begin(9600); // Initiate a serial communication pinMode(LockPin, OUTPUT); pinMode(Buzzer, OUTPUT); pinMode(hall_sensor, INPUT); SPI.begin(); // Initiate SPI bus mfrc522.PCD_Init(); // Initiate MFRC522 //Serial.println("Approximate your card to the reader..."); // Serial.println(); digitalWrite(LockPin, LOW); } void readsensor() { lockread = digitalRead(LockPin); state = digitalRead(hall_sensor); //Serial.print(lockread); //Serial.print(state); // delay(2000); } void loop() { readsensor(); sensor(); // Look for new cards if ( ! mfrc522.PICC_IsNewCardPresent()) { return; } // Select one of the cards if ( ! mfrc522.PICC_ReadCardSerial()) { return; } //Show UID on serial monitor String content= ""; byte letter; for (byte i = 0; i < mfrc522.uid.size; i++) { content.concat(String(mfrc522.uid.uidByte[i] < 0x10 ? " 0" : " ")); content.concat(String(mfrc522.uid.uidByte[i], HEX)); } //Serial.println(); //Serial.print("Message : "); content.toUpperCase(); if (content.substring(1) == "60 4E 07 1E" ) //change here the UID of the card/cards that you want to give access { digitalWrite(LockPin, HIGH); Serial.print("Door Unlocked"); digitalWrite(Buzzer, HIGH); delay(2000); digitalWrite(Buzzer, LOW); sensor(); } else { Serial.println("You are not Authorised"); digitalWrite(Buzzer, HIGH); delay(2000); digitalWrite(Buzzer, LOW); } } void sensor() { readsensor(); if (lockread == HIGH){ readsensor(); if(state==LOW){ digitalWrite(LockPin, LOW); Serial.print("Door Closed"); digitalWrite(Buzzer, HIGH); delay(2000); digitalWrite(Buzzer, LOW); } } }
