Arduino Smart MoneyBox

Welcome friend, today we are going to make Smart Moneybox with Arduino.

We want to;

1. When we drop the money onto compartment, device open the door after 3 seconds. Finally close the door.

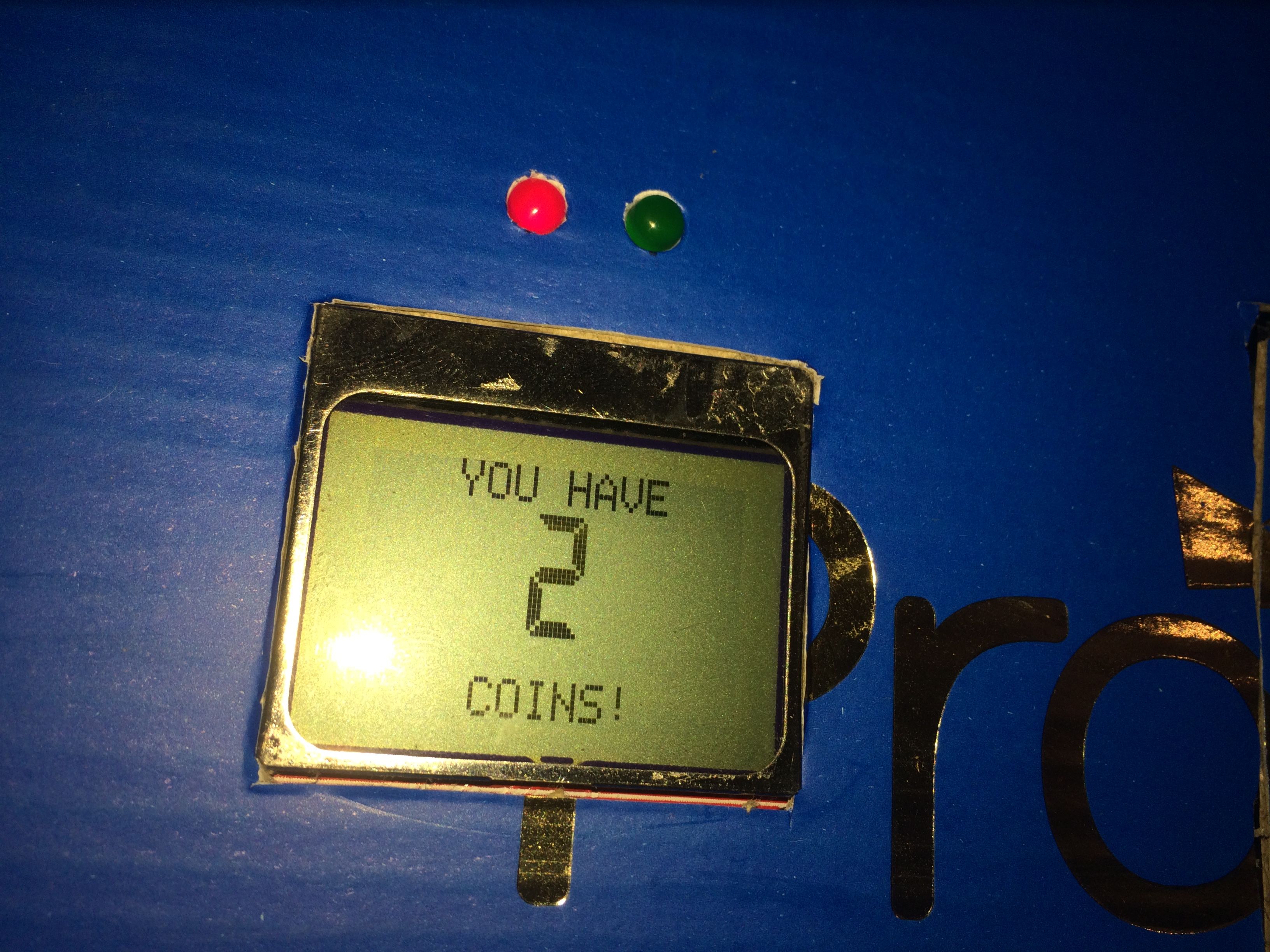

2. And count the how many coins in to the box.

Let's start..
PLEASE FOLLOW ME AND VOTE MY PROJECTS FOR MORE USEFUL PROJECTS. THANK YOU..:)

ALSO YOU CAN SUBSCRIBE FROM YOUTUBE; >>> My YouTube Channel <<<

1. Arduino
2. LDR
3. Servo Motor
4. 5110 Screen
5. A Battery
6. 2 Leds
7. Some Jumpers
8. A Cardboard Box

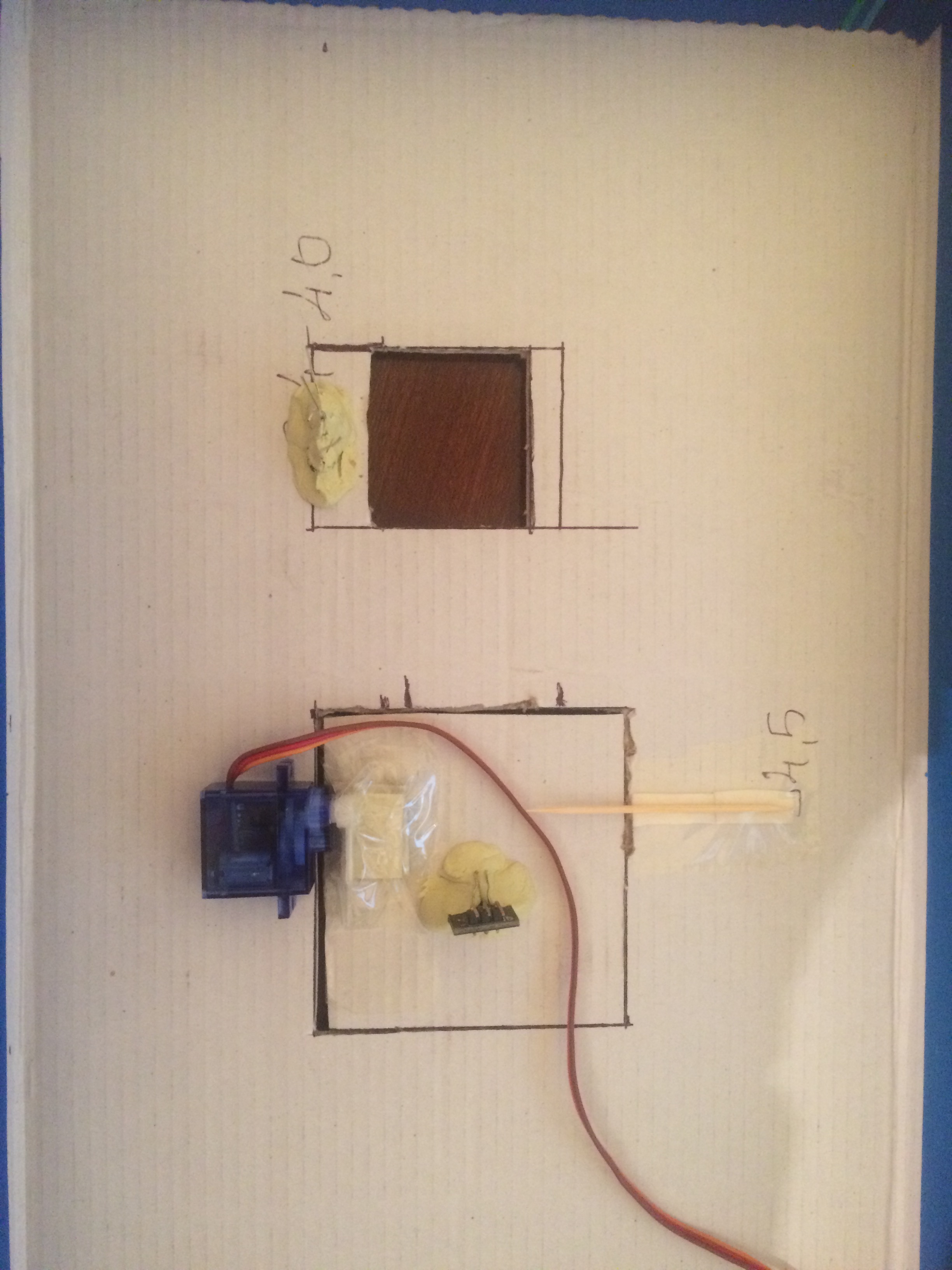

You should cut your cardboard like this and pierce two led slot. After that paste the servo to cardboards' back.

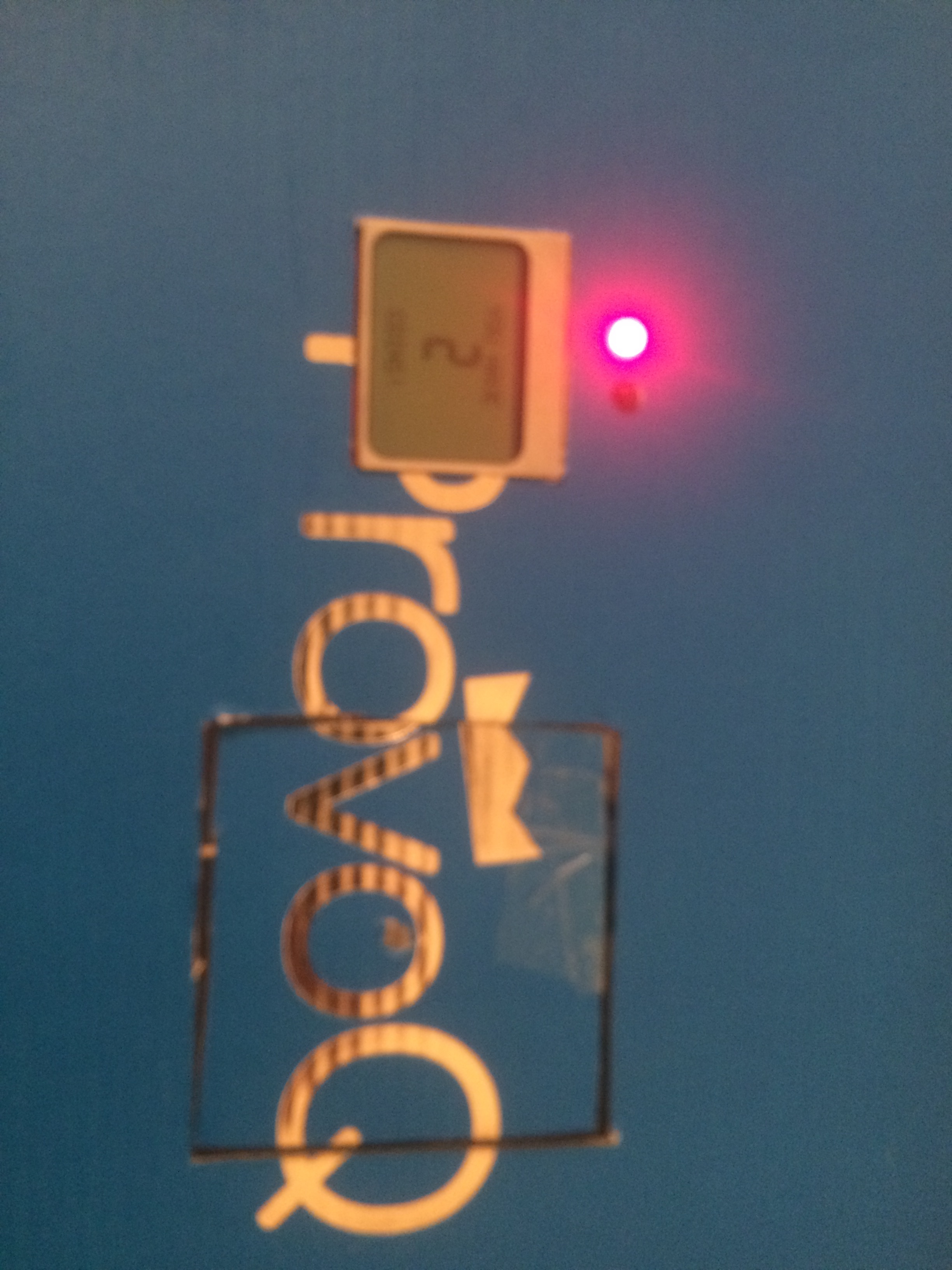

You see 2 hole on the cardboard one of them for 5110 screen other for money slot.

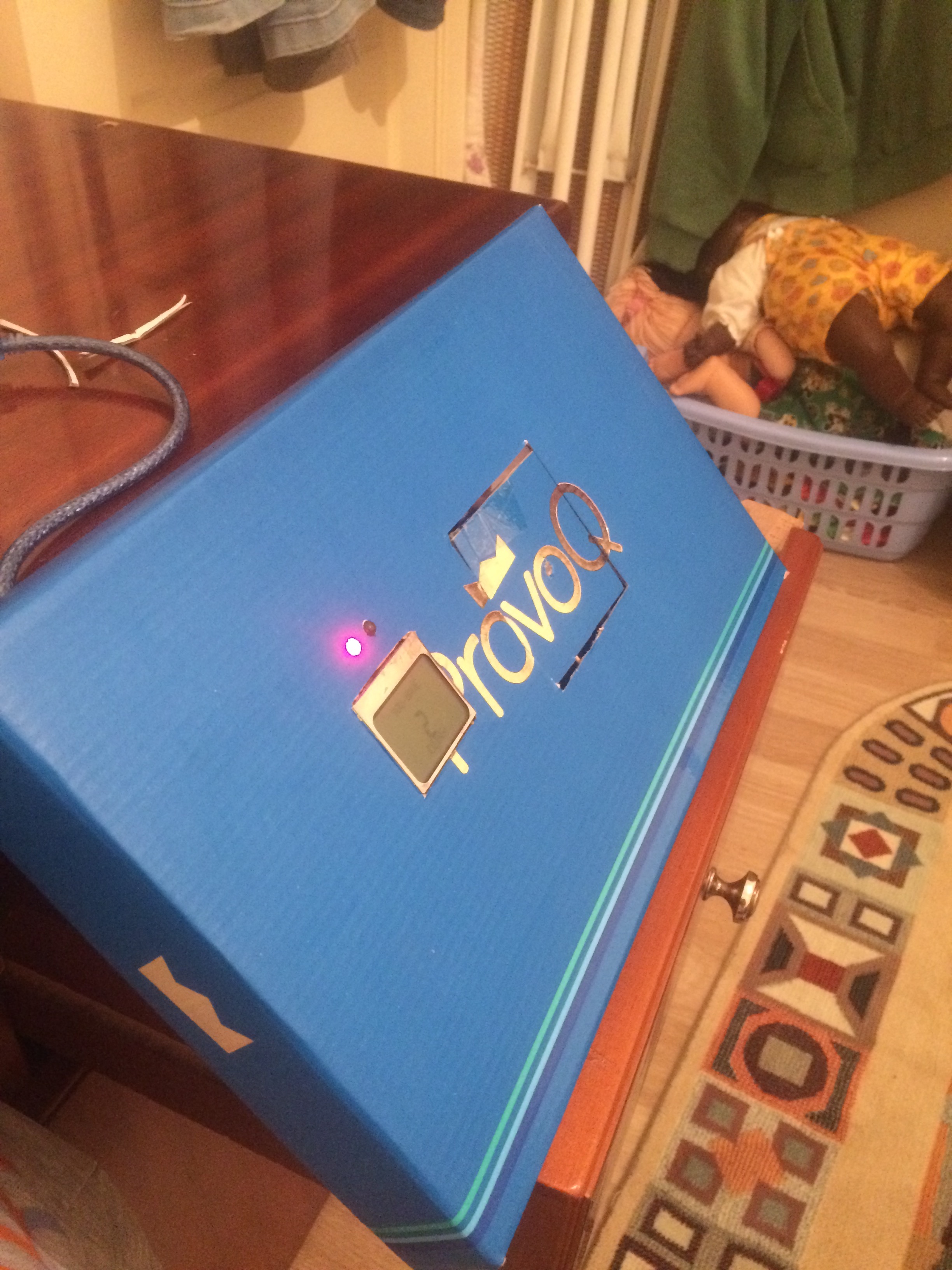

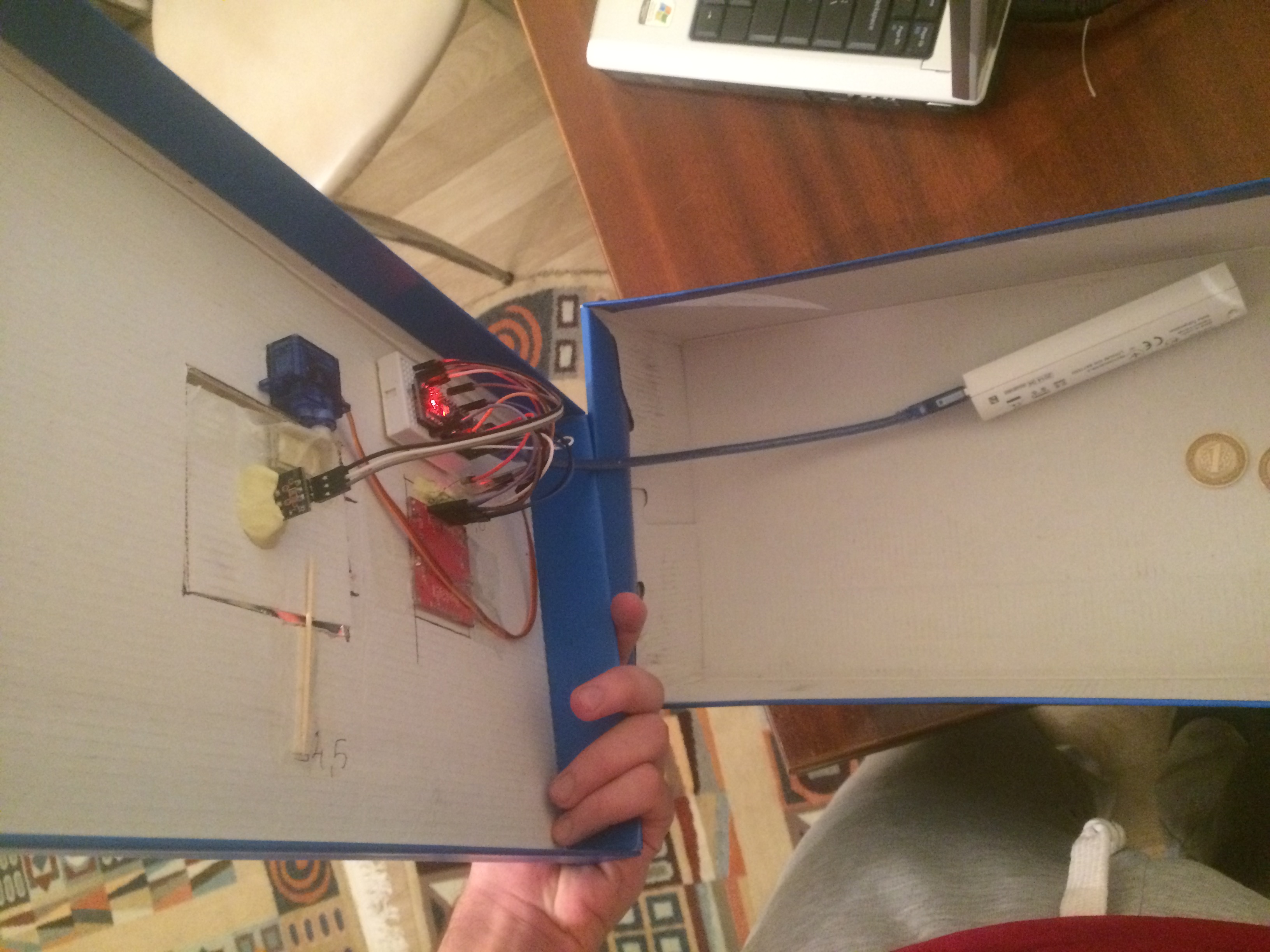

Unite the parts like on the photos. Be careful for servo and money slot.

Connect the part each other strongly.

5110 to Arduino;

GND TO GND

Light TO (Optional)

VCC TO 3.3v

CLK TO D8

DIN TO D9

DC TO D10

CE TO D12

RST TO D11

SERVO TO ARDUINO;

SIGNAL TO D7

5V TO 5V

GND TO GND

LDR TO ARDUINO;

SIGNAL TO A0

5V TO 5V

GND TO GND

You can download the code from this link;

>>> CODE LINK <<<

PLEASE FOLLOW ME AND VOTE MY PROJECTS FOR MORE USEFUL PROJECTS. THANK YOU..:)

ALSO YOU CAN SUBSCRIBE FROM YOUTUBE; >>> My YouTube Channel <<<

Thank You Dear Friends..

You should watch the video.
