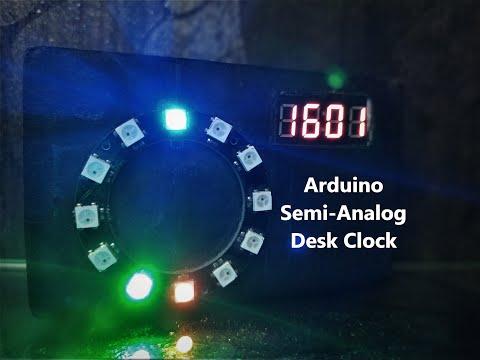

Arduino Semi-Analog Desk Clock || Arduino Desk Clock

Here is the video. Make sure you watch it to get an idea of how it works. and if you like it Don't forget to press the like button and hit the subscribe button!!!😉😉😉

Here is the list of components you would required:

12bit Ws2812b led ring

4 digit 7 Segment module TM1637

DS3231 RTC Module

Atmega328p Microcontroller

Arduino UNO or FTDI Module

2 x 22pf capacitor

16mhz Crystal

10k resistor

2 x Push Button

TP4056 Module

18650 Cell

Here is the most difficult step of this build. But don't worry just follow the schematic and check your connections once again before powering the board. If you face any problem while building the circuit feel free to Email me on 'thecyborglab@gmail.com'.

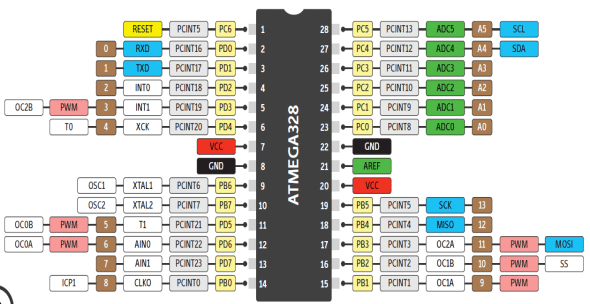

Pinout image is provided by:https://www.researchgate.net/figure/Atmel-MCU-ATmega328-and-the-Arduino-pin-out_fig10_312372376

Here you can find the code for the project. Upload it through an FTDI breakout board or arduino UNO (Just remove the atmega328 chip that come with UNO and place your atmega328 in there). Also make sure to include all the libraries used in this code.

Don't forget to read the instruction text!!

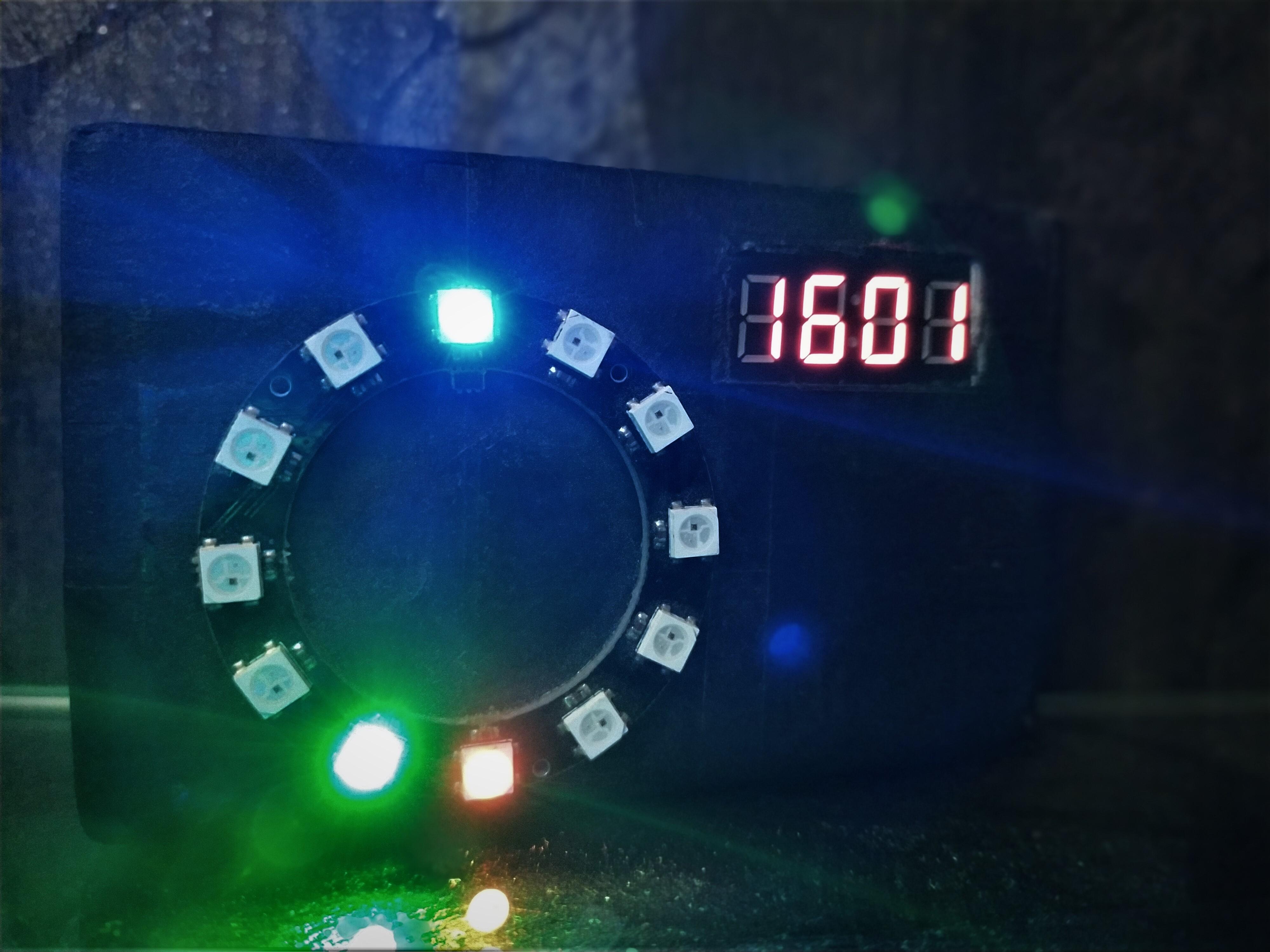

And this how in just 4 simple steps you created your own Arduino Semi-Analog Desk Clock!!!
