Arduino RGB Color Recognising Flashlight

I am always curious about the sensors that can recognize colors, and I just found an Arduino RGB Color Sensor produced by DFRobot. It will be cool to make a color grab flashlight and put into my backpack.

Arduino RGB Color Grab Flashlight

---Despite thousands of colors, only take one---

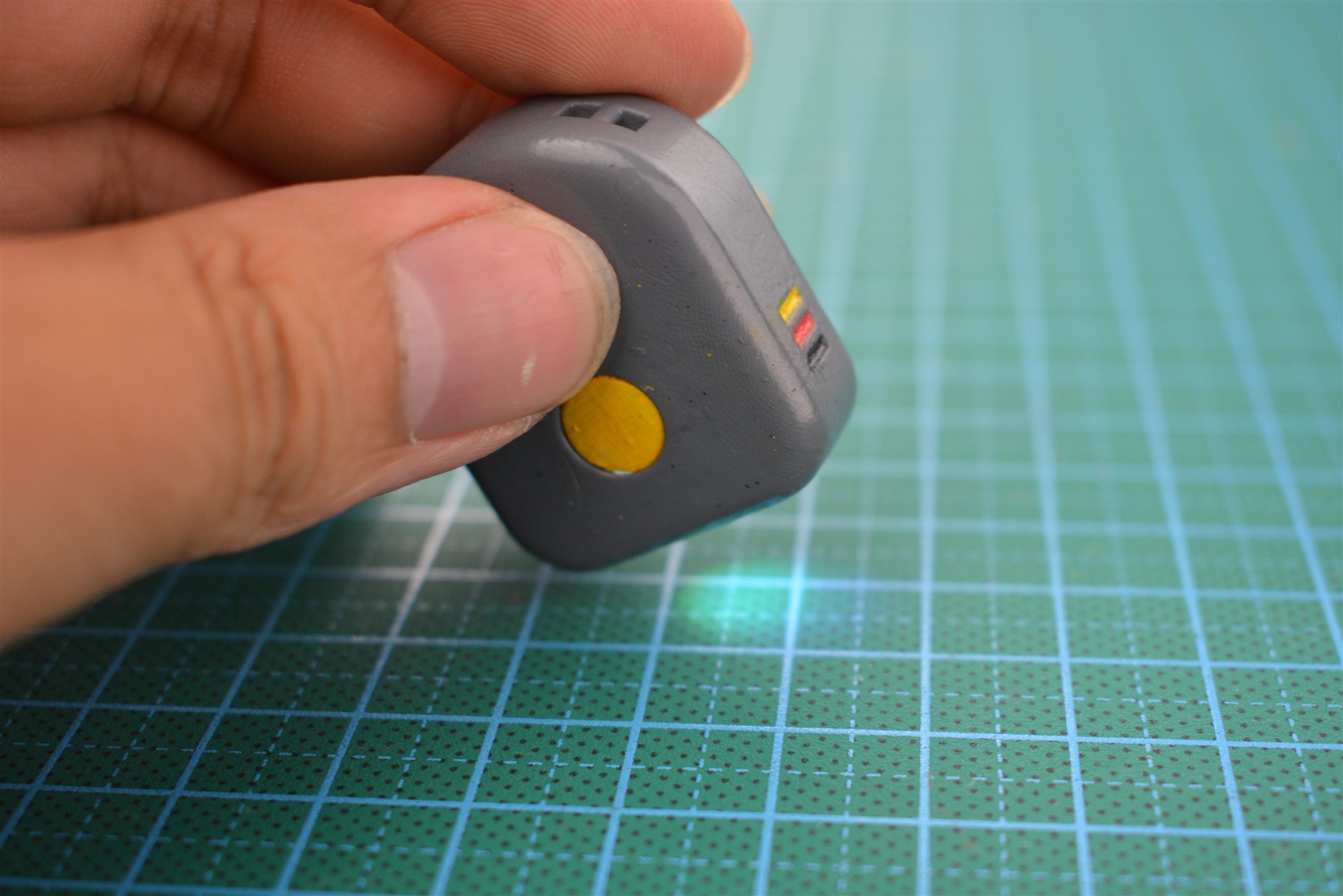

Function Description

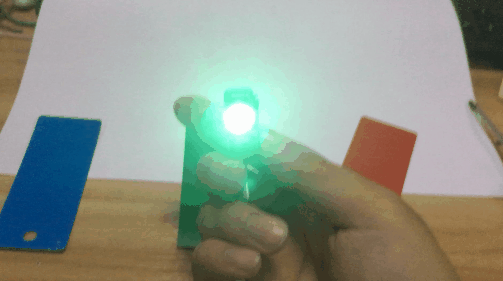

There is only 1 button in the flashlight. Short press the button, open and turn off. Long press it in ON will enter the color grabbing mode and LED is in BLN control. In front of the color you want, short-press the button, the light of the flashlight will be changed accordingly. The color you took will be stored to the EEPROM area which is equals to memory zone, so that the flashlight can memorize the color until you pick up the new one. Short-press the button again, then the flashlight turns off. Let’s store the colorful world to the flashlight now!

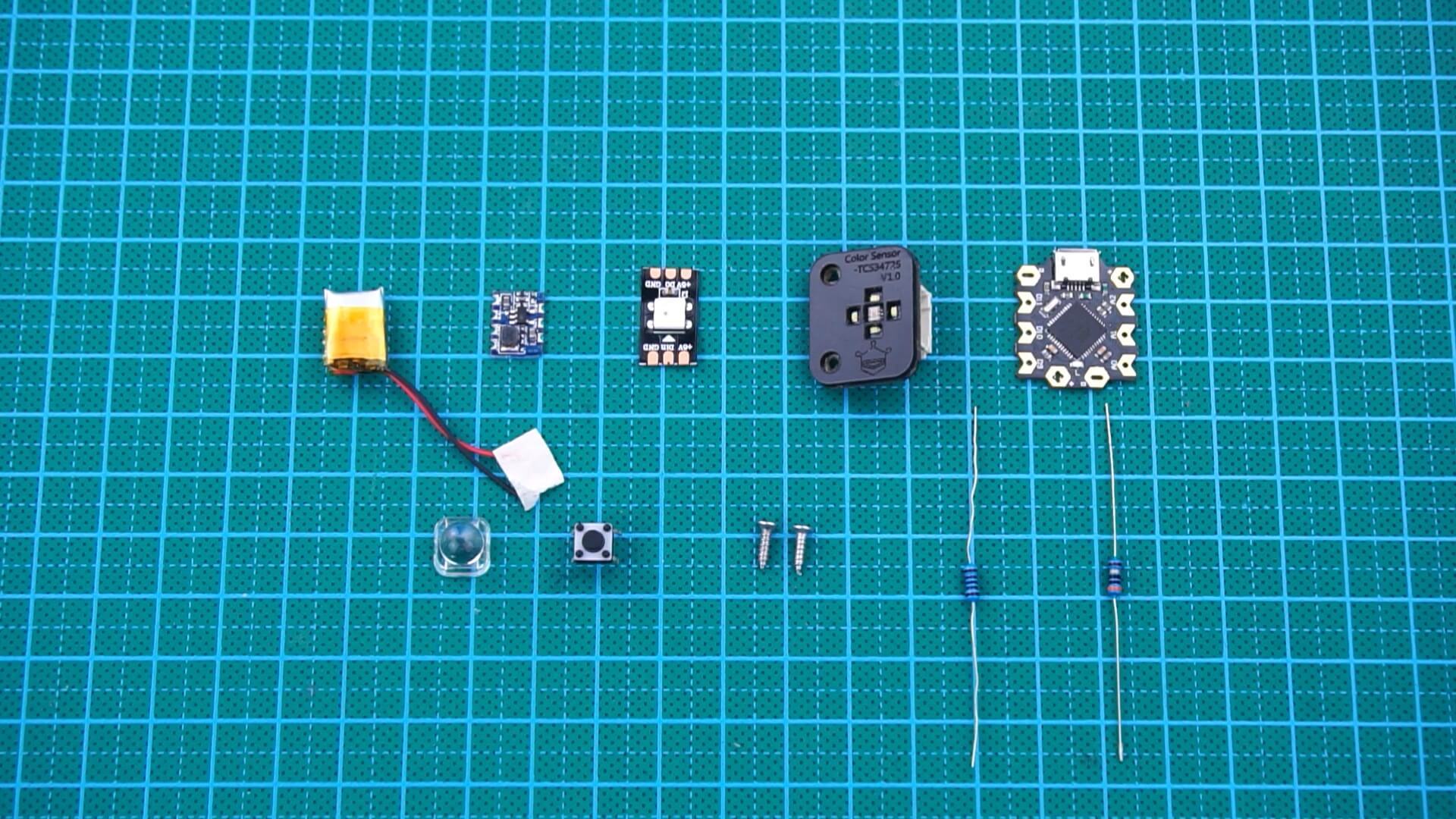

Materials List

1. Gravity: TCS34725 RGB Color Sensor for Arduino

2. Beetle - The Smallest Arduino

3. Digital RGB LED Strip 120 LED-Black

4. Lithium Battery 3.7v 50mah

5. DC-DC Module 5v-4.2v

6. 5050 Spotlight Cover

7. 4 Pin Micro Switch 6*6*5

8. M3.5*10 Self-tapping Screws x2

9. 1kΩ Resistor x1 30Ω Resistor x1

10. 1N4148 Diode x2

11. Acrylic paint Green, Black, Red, White, Grey

12. Spray-paint Black and Grey, and Varnish

Supplies

DFRobot

Design Idea

The light of the flashlight is made of 1 RGB and 30-degree spotlight cover. The button is a micro switch. I selected the powerful small Beetle as the main control. Usually, Beetle keeps in sleep, once the button is pressed, Beetle will be awake and light up the RGB LED, or recognize colors. The lithium Battery 3.7v 50mah is adopted as the power supply. In charging, the DC-DC module is used to transfer 5v of Beetle to stable 4.2V to supply the lithium battery.

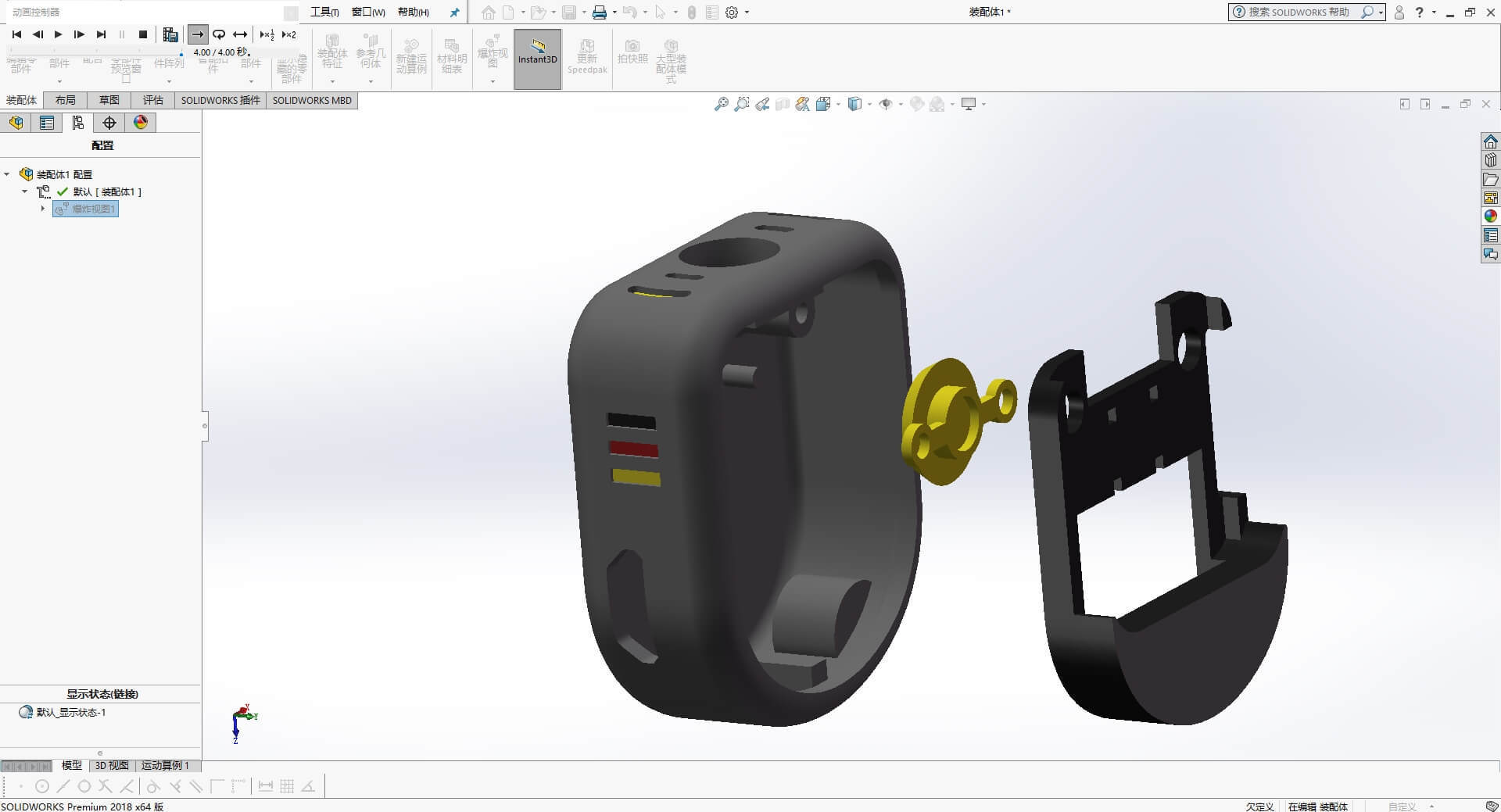

Design the Crust

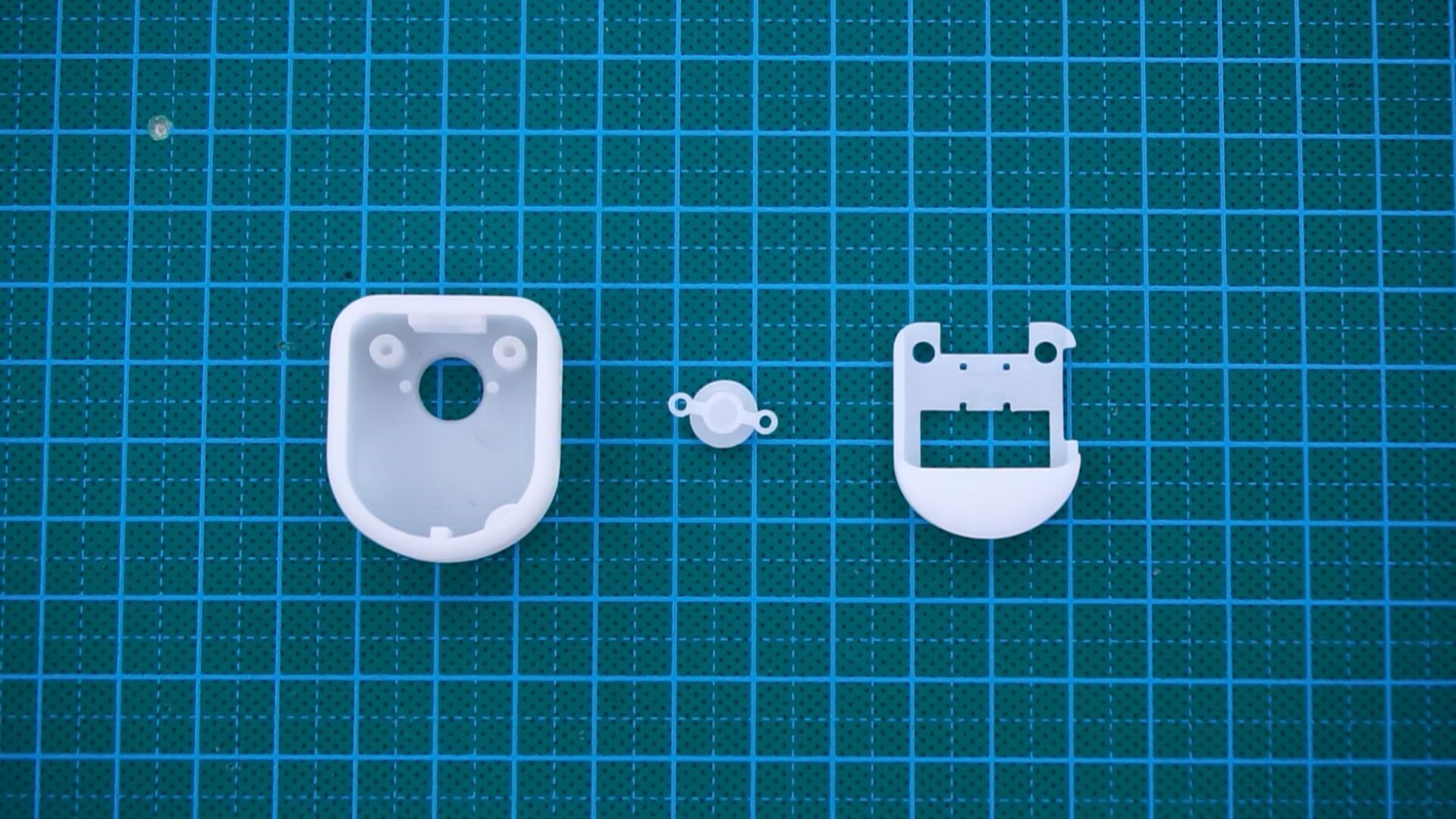

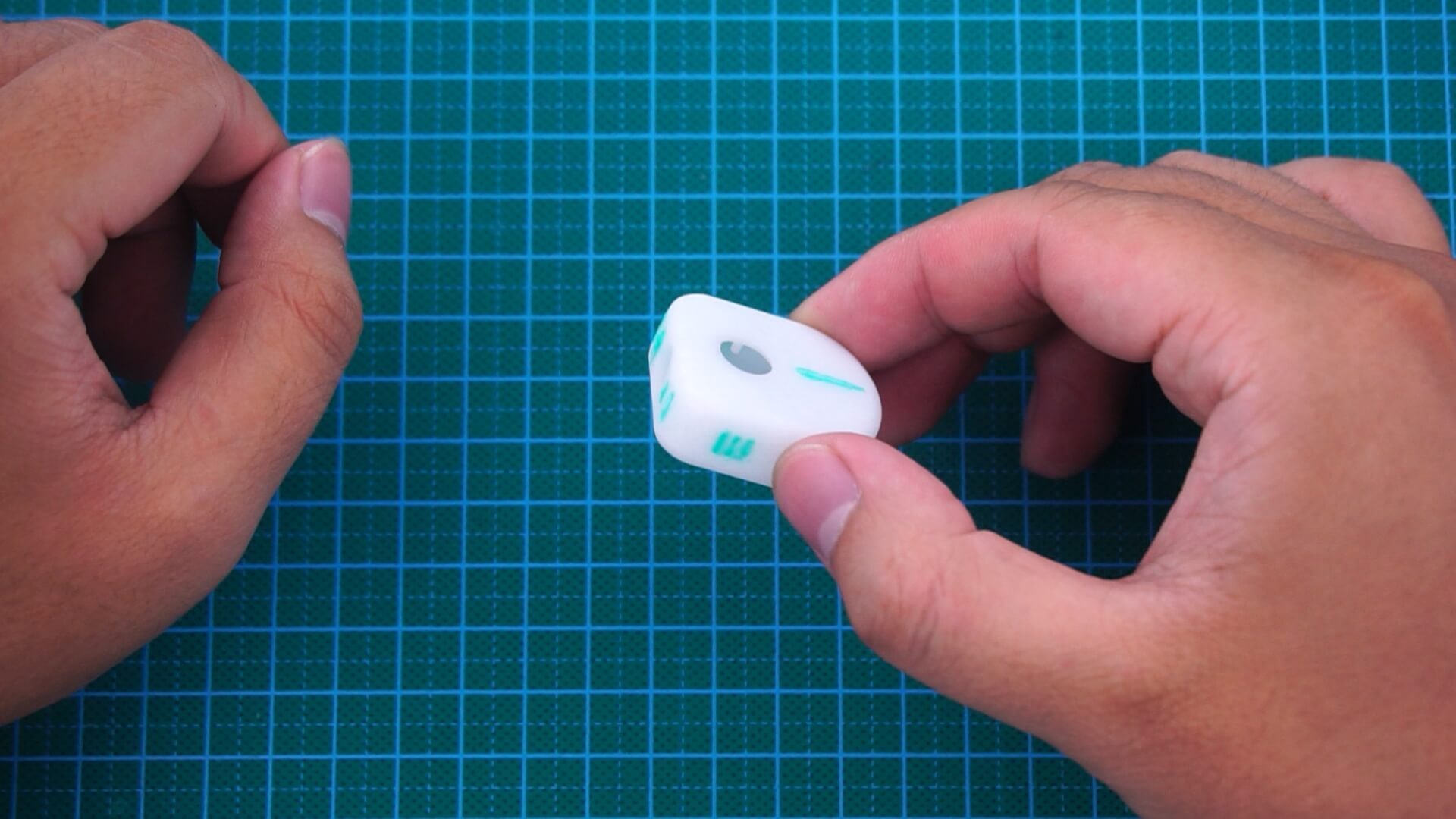

SLA 3D Printing

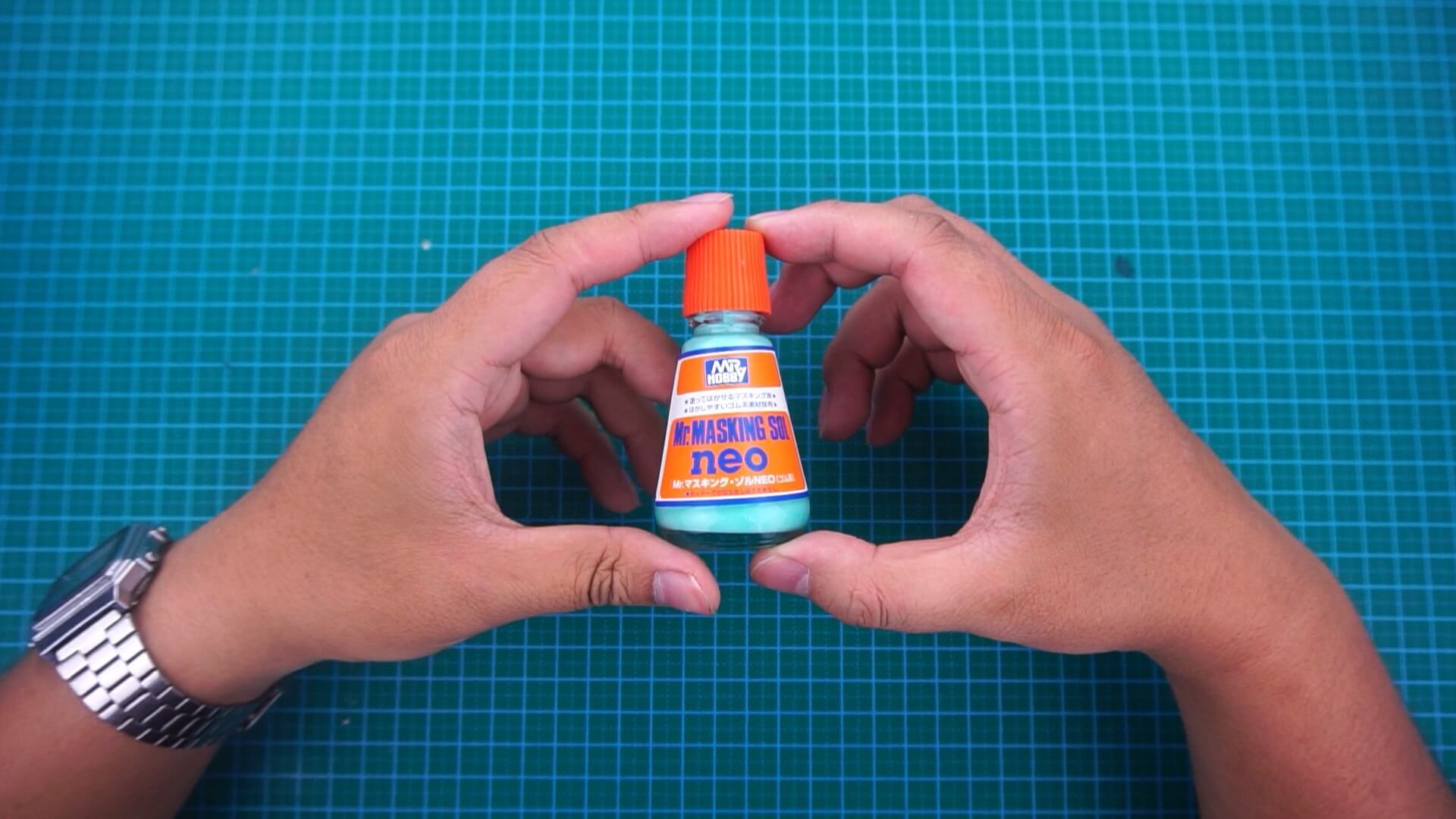

Apply Masking Glue Where Paint Is Not Required

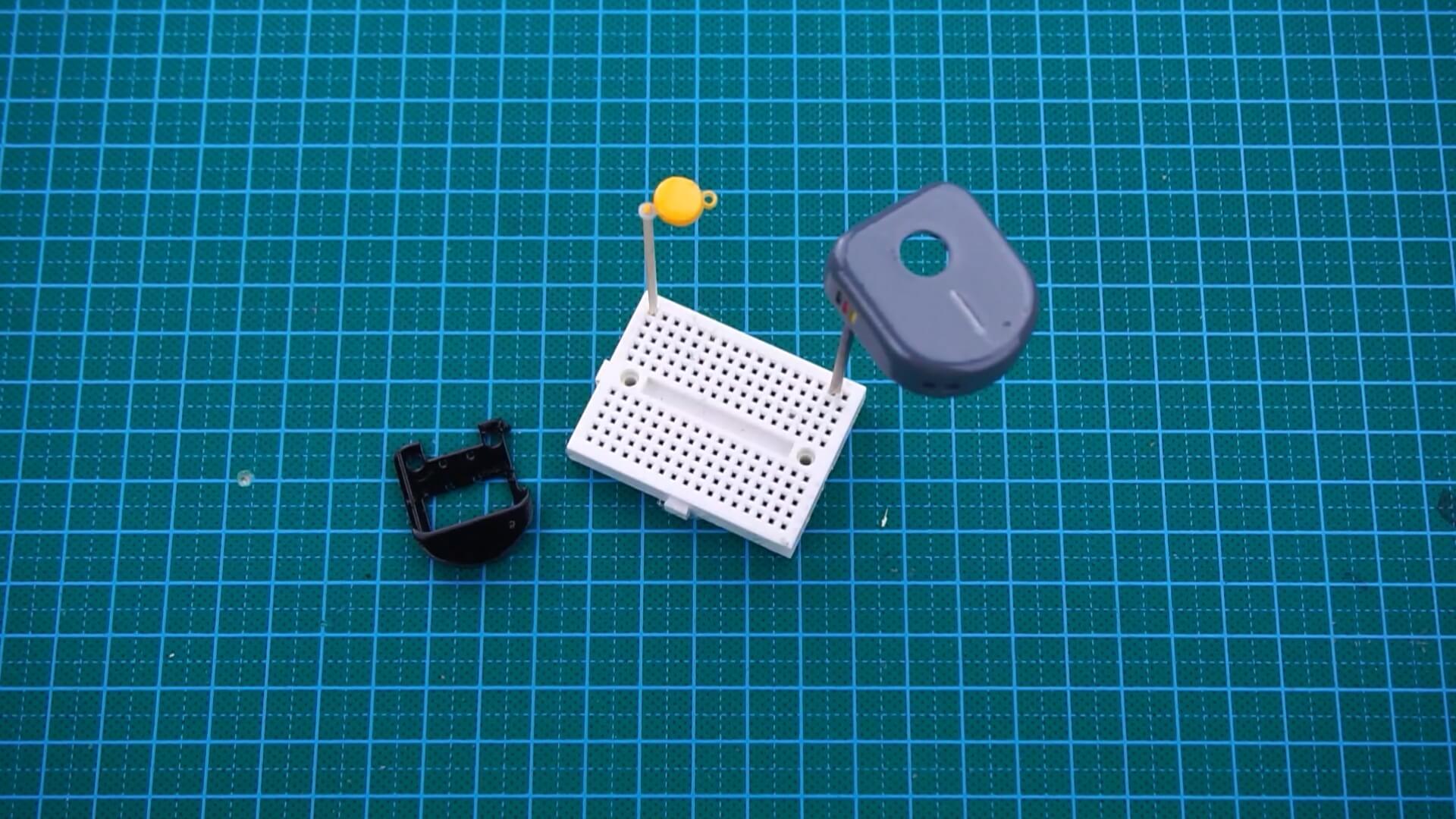

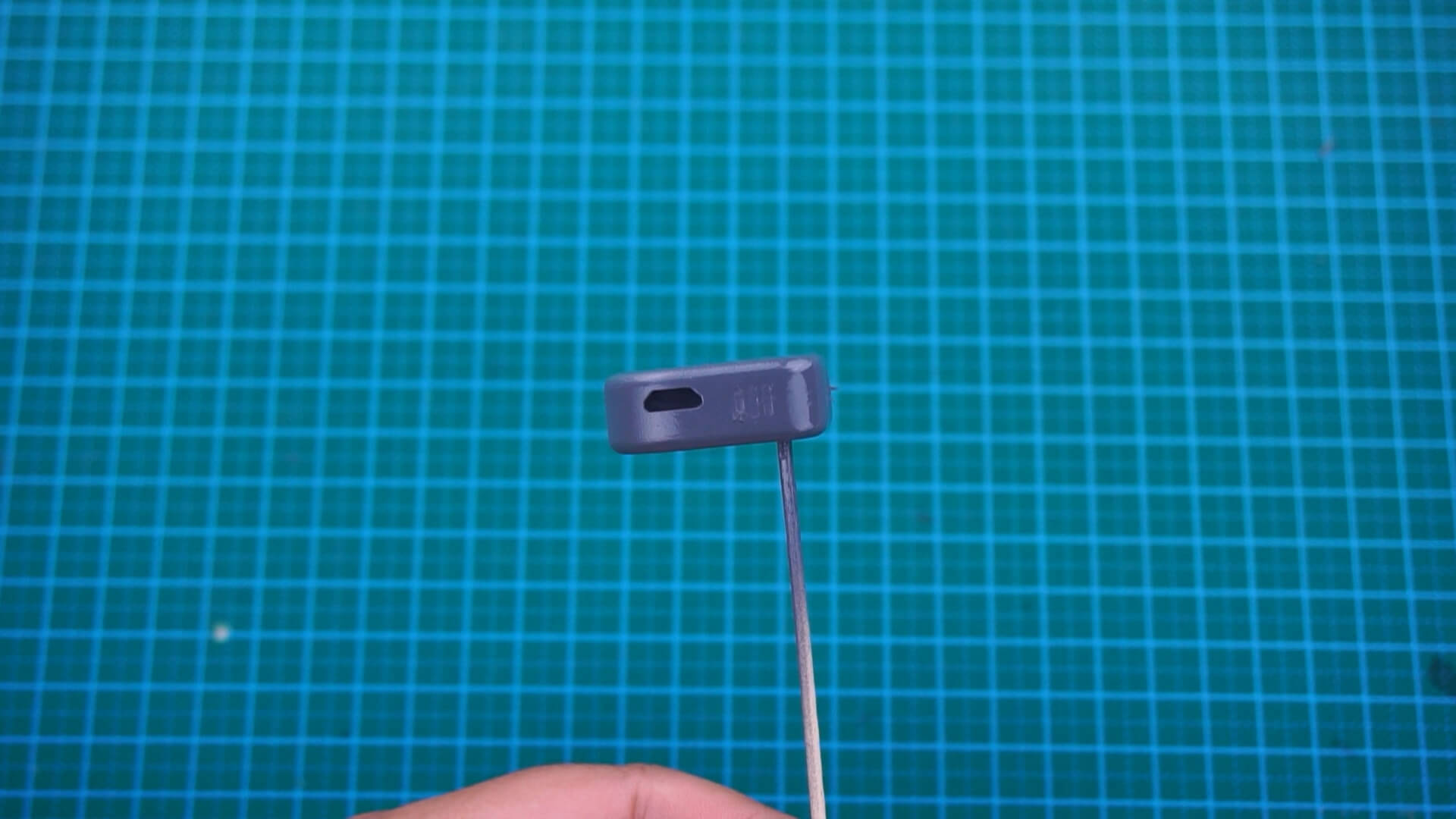

Spray Paint to the Main Part of the Crust in Grey

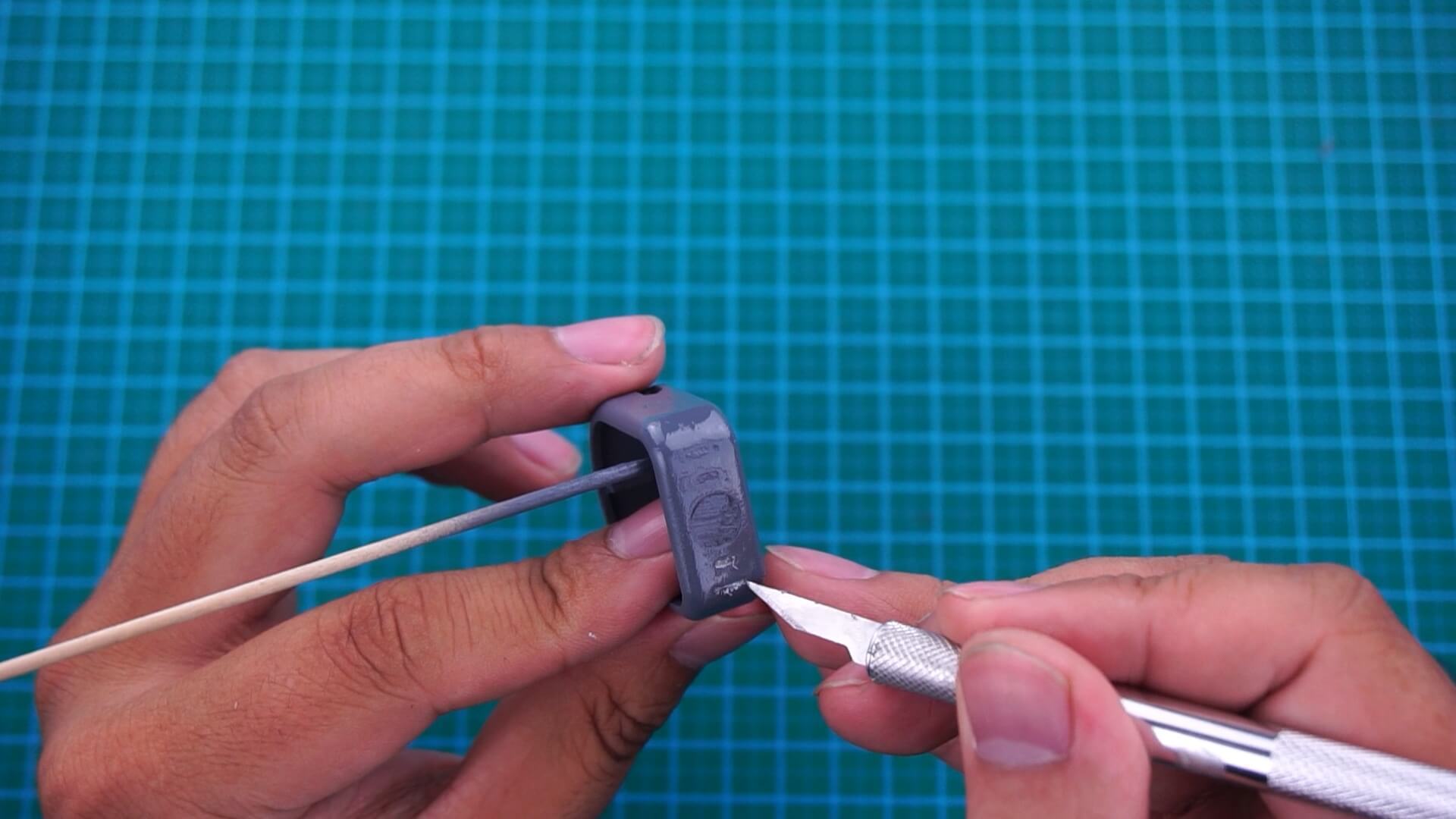

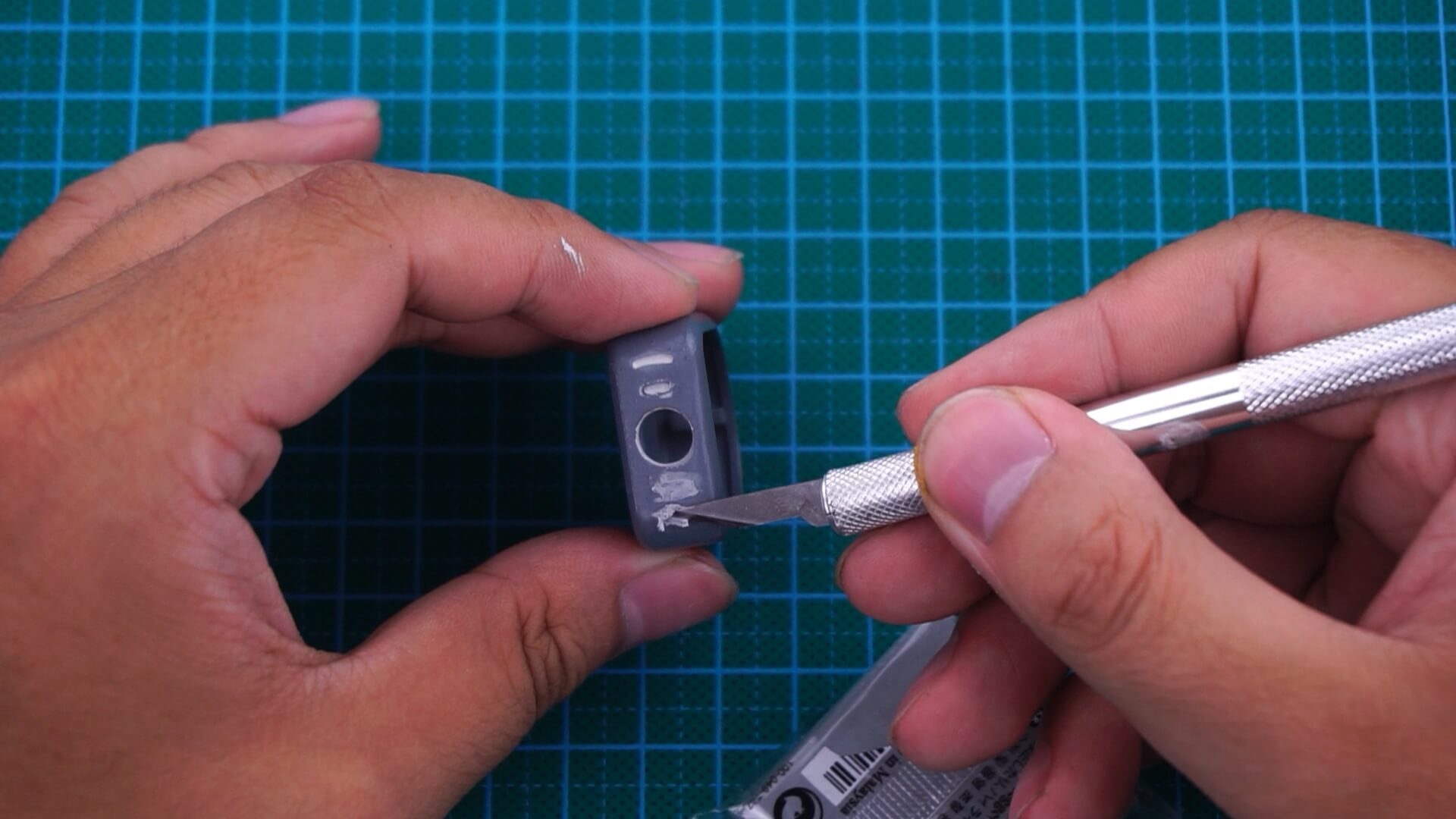

Tilt the Masking Glue Applied Before

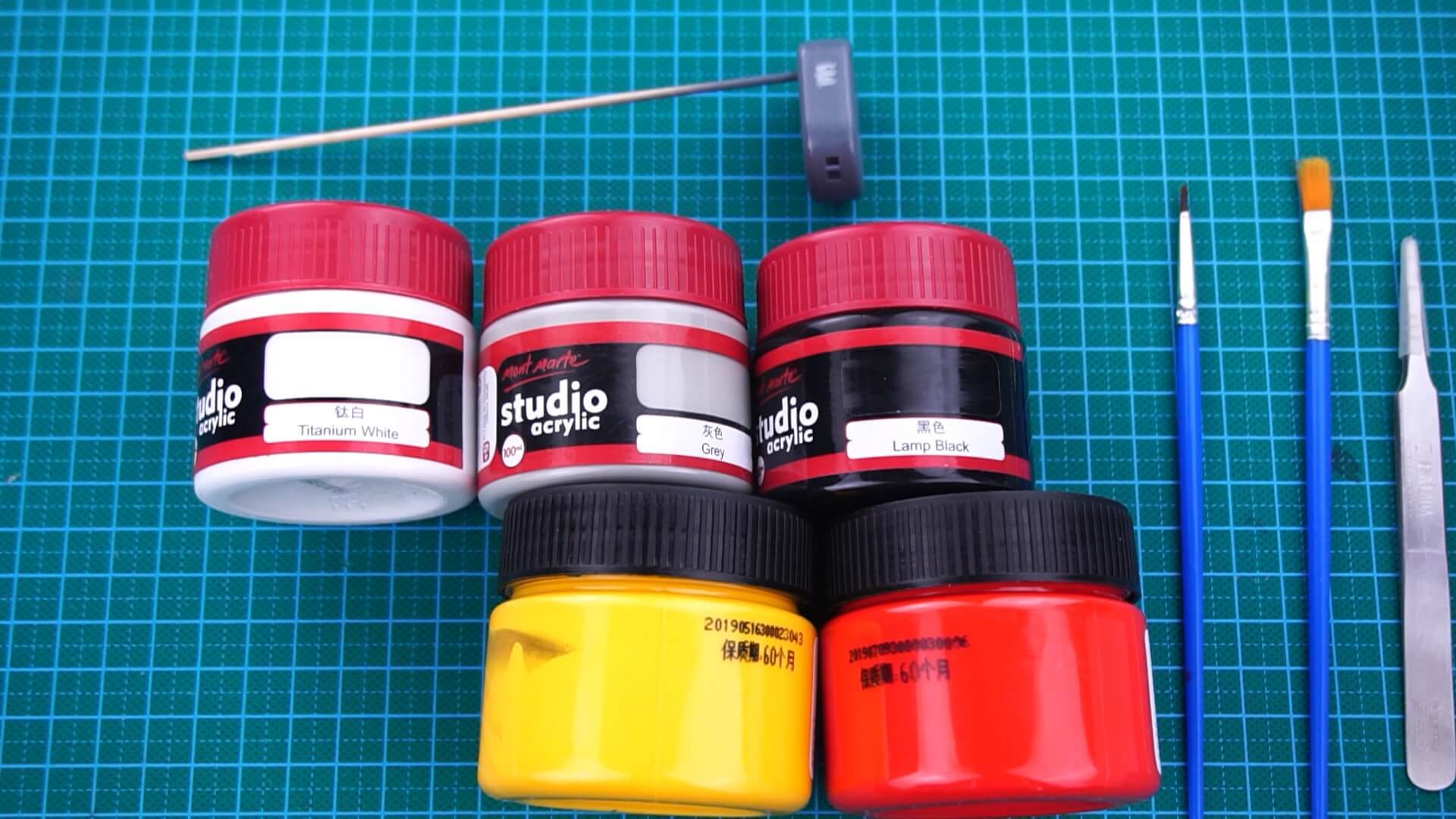

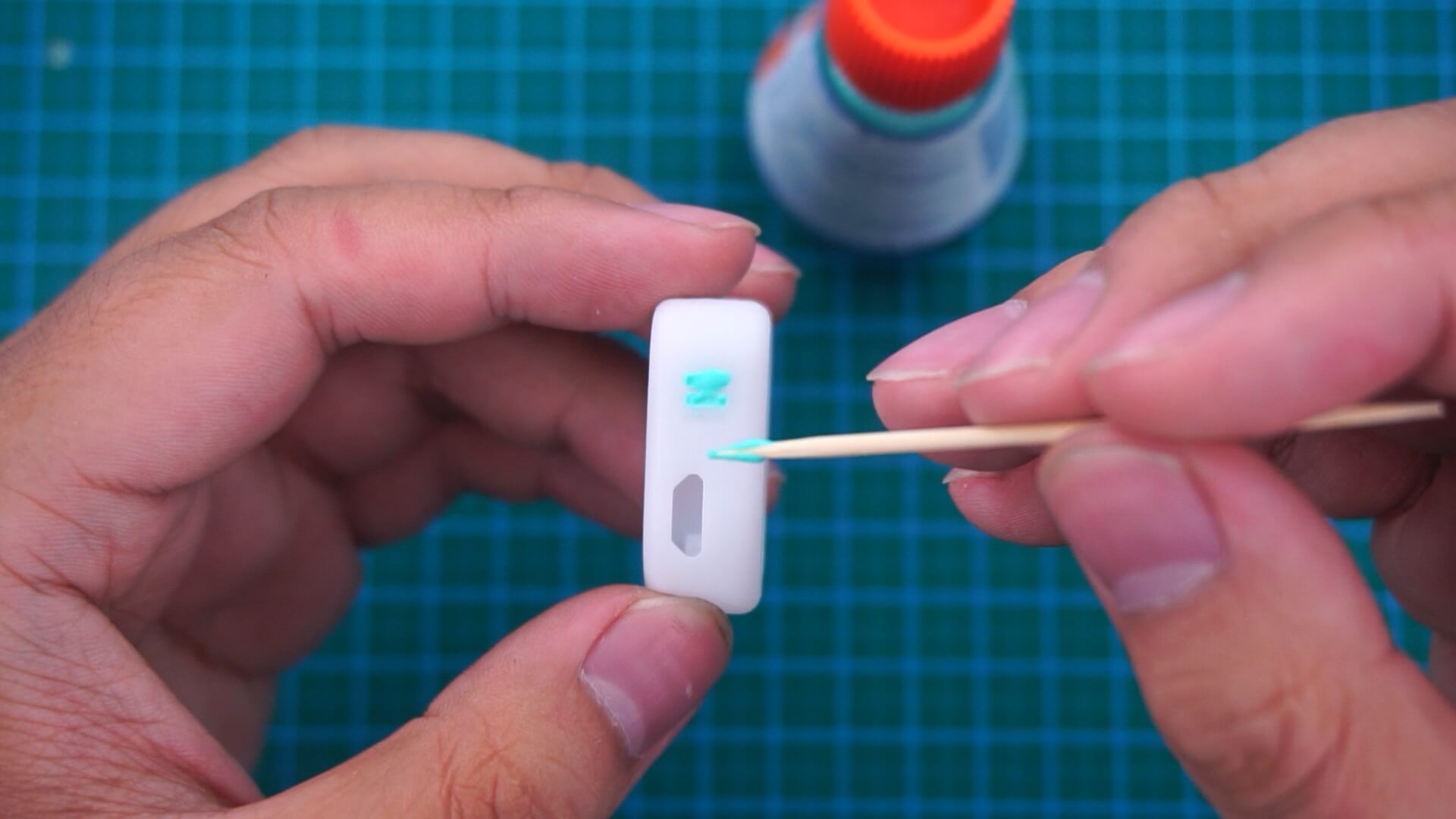

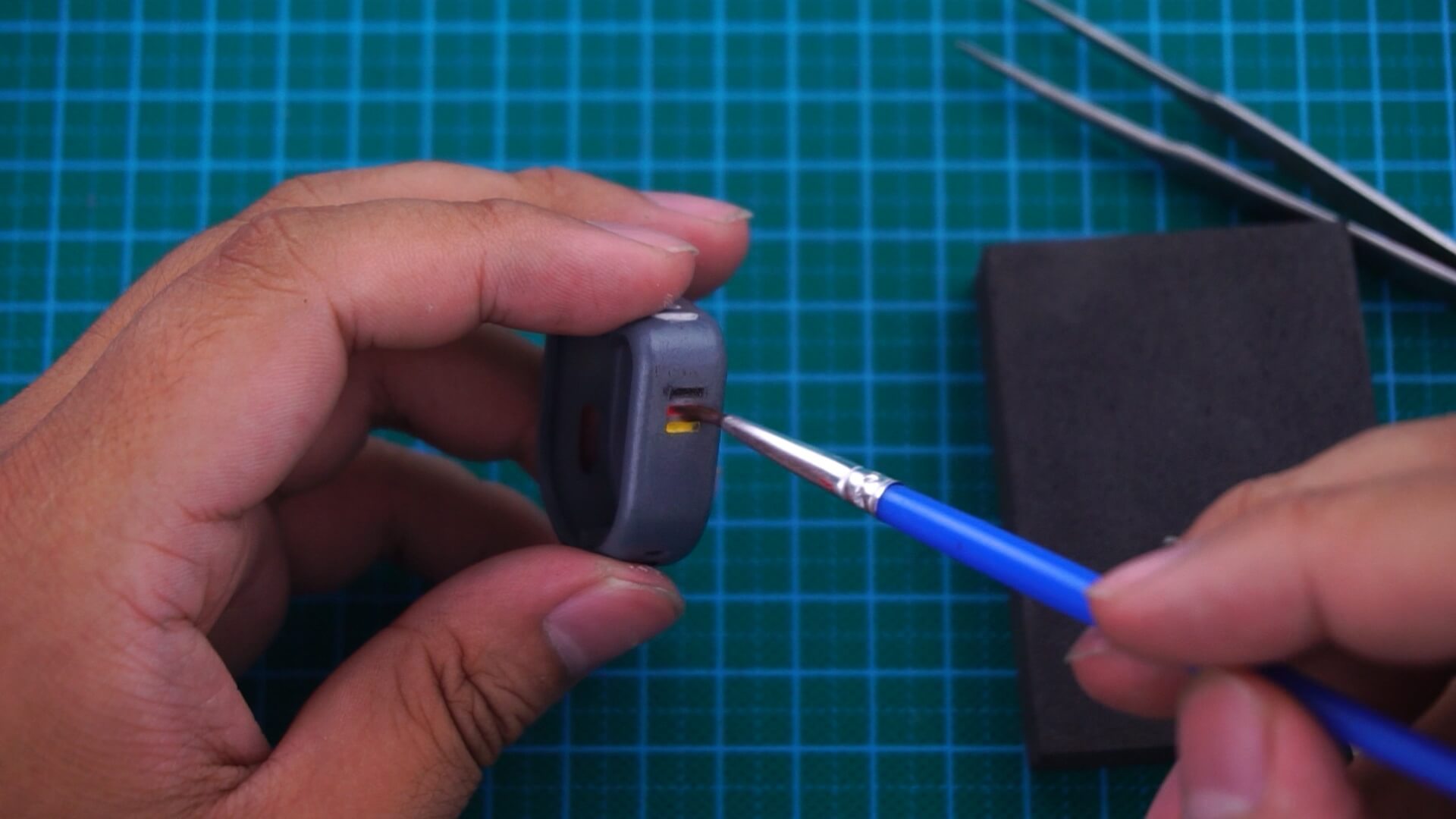

Paint Acrylic to Suitable Positions

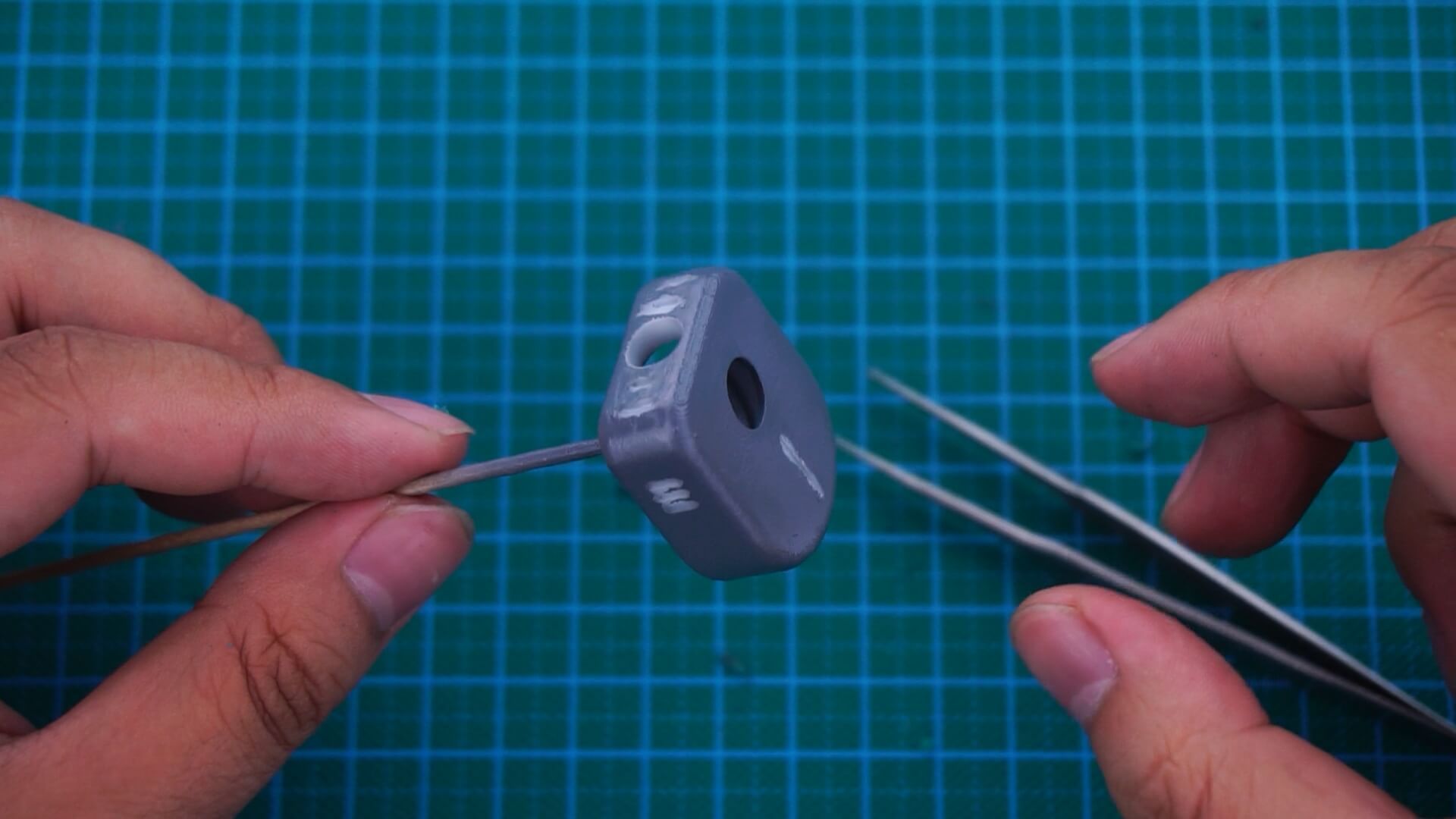

Remove Unnecessary Acrylic Paint Around With the Sandpaper, and Clean-up Dust

Remove Unnecessary Acrylic Paint Around With the Sandpaper, and Clean-up Dust

Paint to the Main Part of the Crust in Grey Again, Take Out All Masking Putty and Varnish.

Here the curst work is done.

And the next part is abot Welding Circuits.

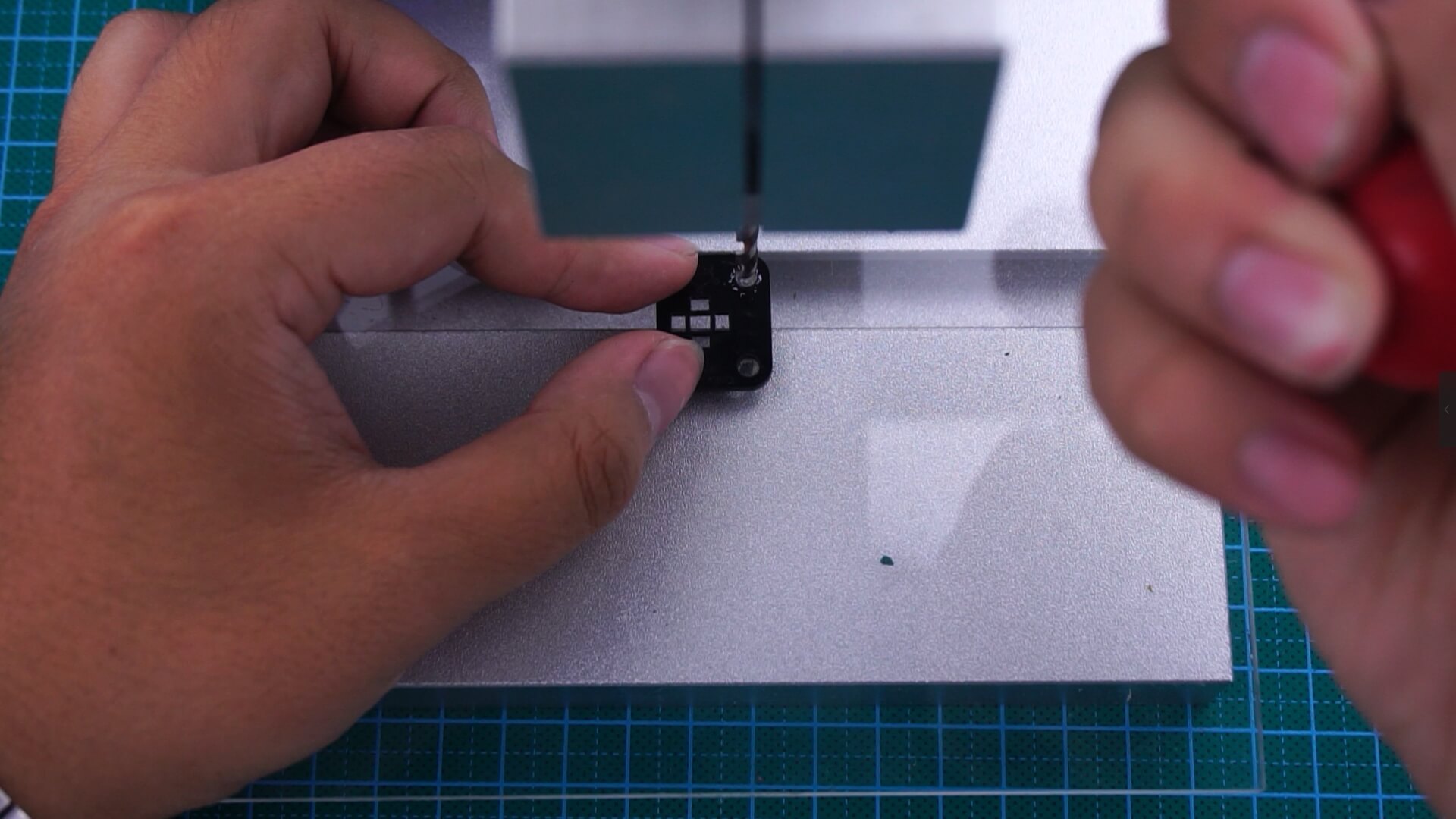

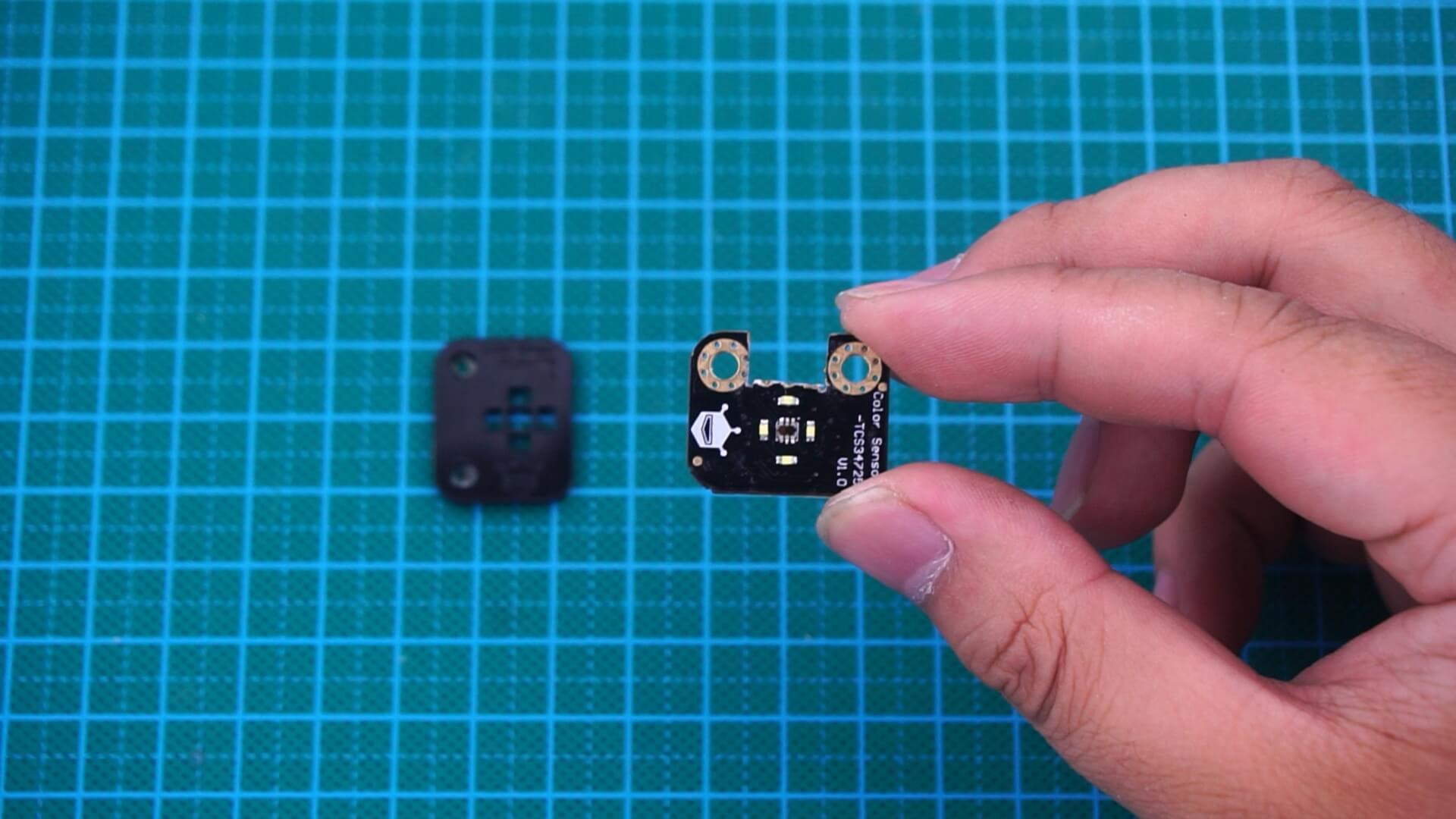

Cut Out Beetle and the Color Sensor

The color sensor is made of black acrylic plate and PCB board. Here we just need to cut the PCB part to make it small enough. Well, you can also keep the original size if you do not mind the flashlight size.

Short-circuit Pins Shown in the Image

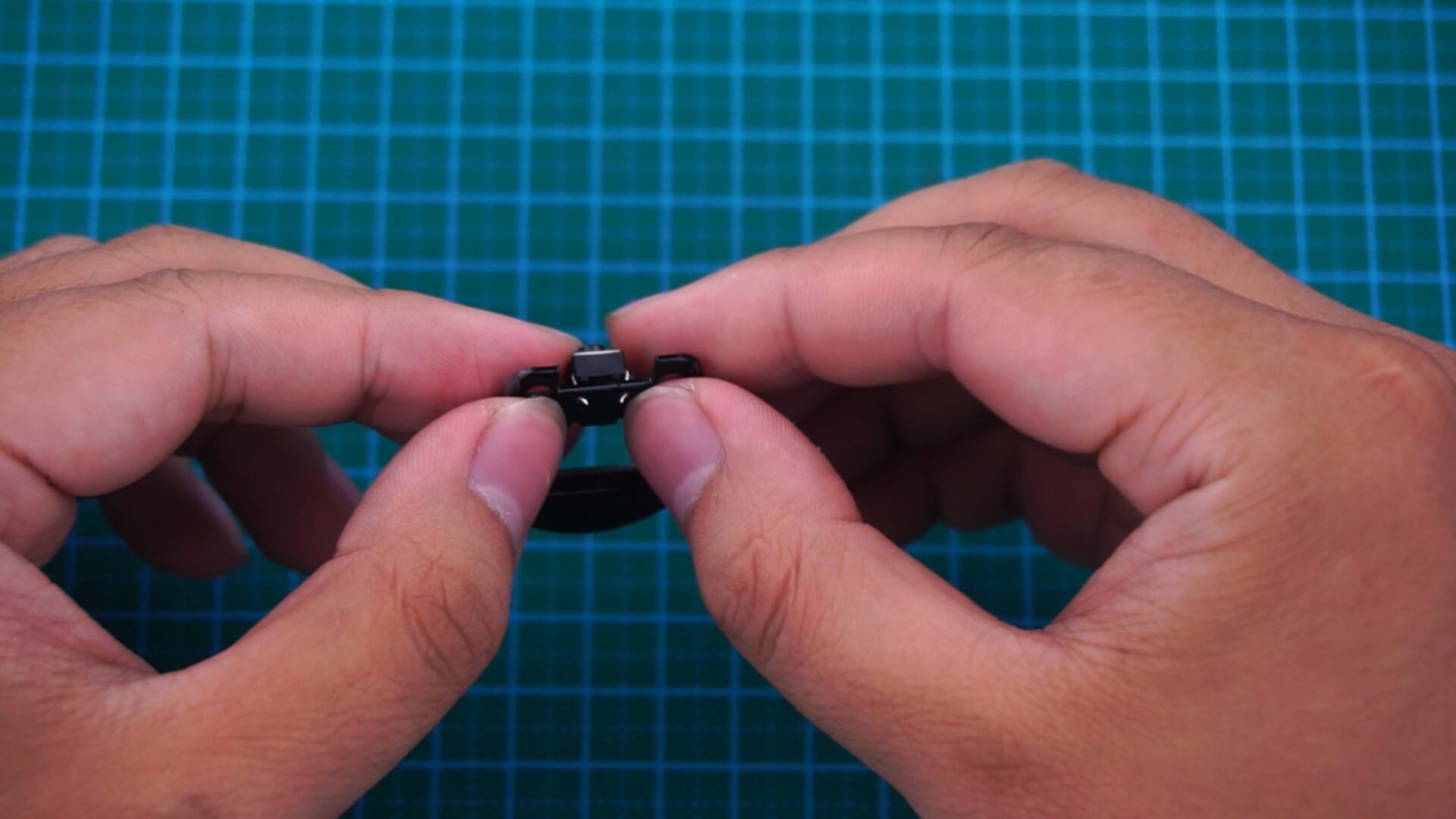

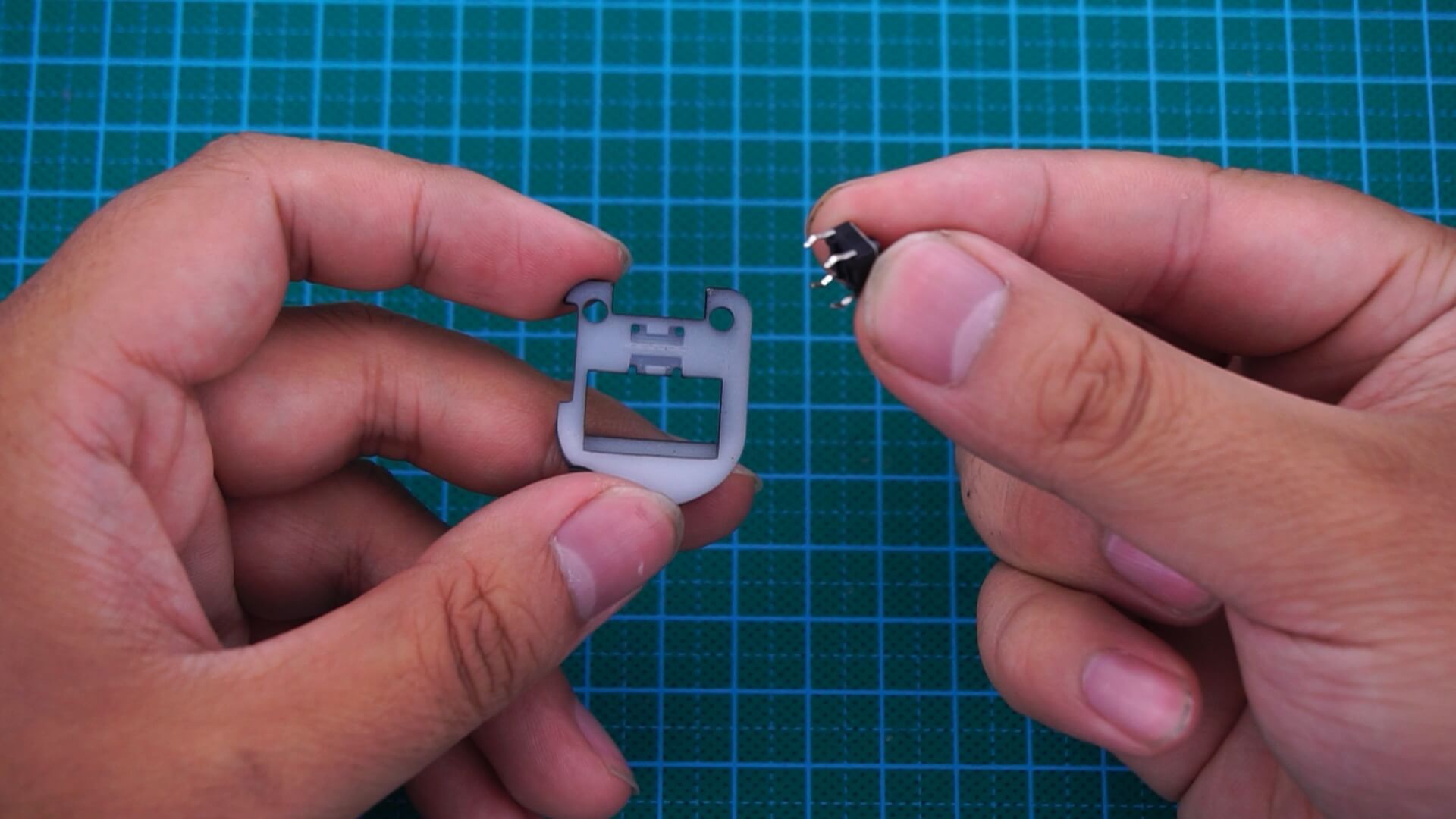

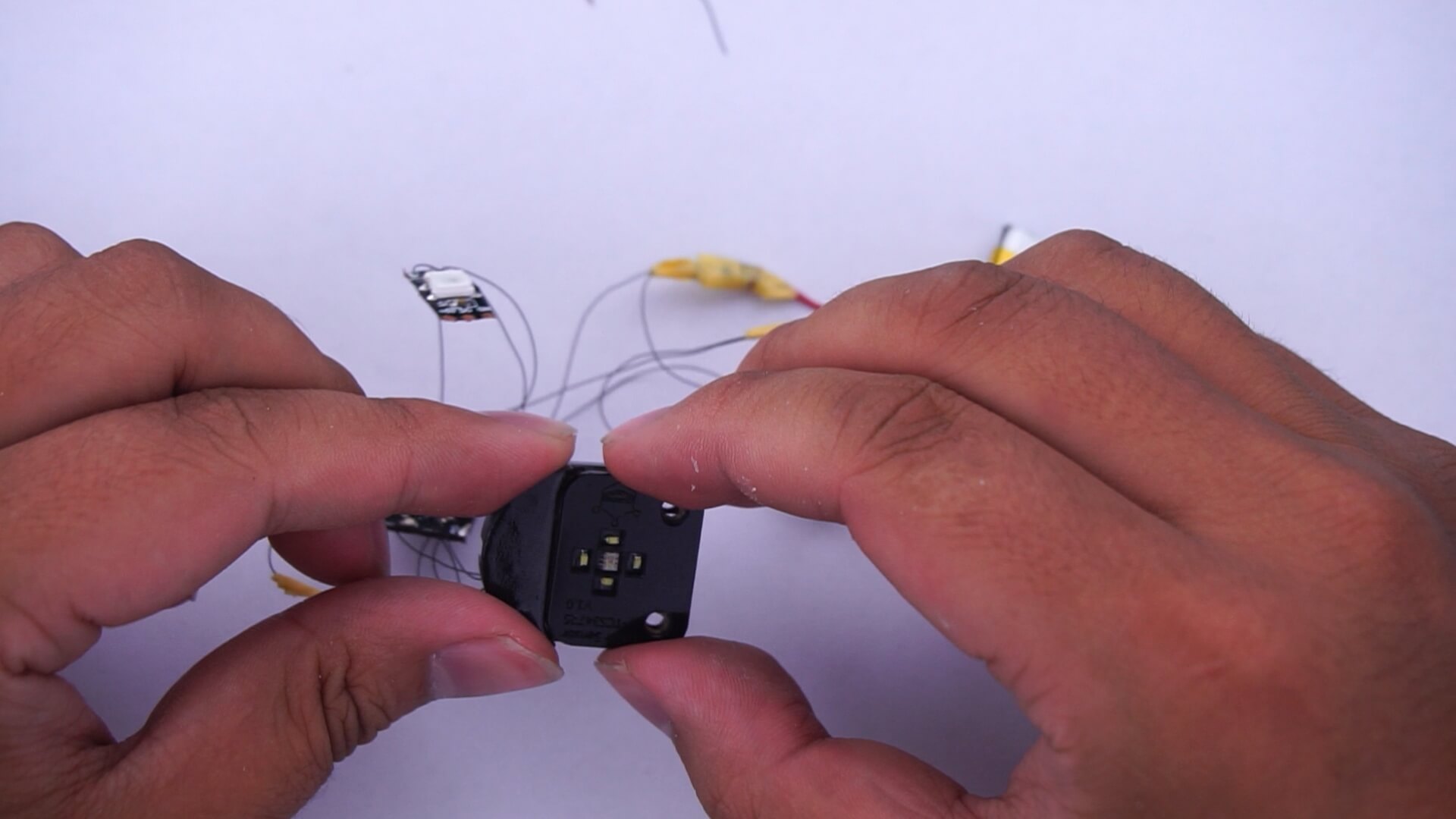

Plug the Micro Switch to 4 Holes in the Back Cover, and Flatten Pins to Cling to Its Surface.

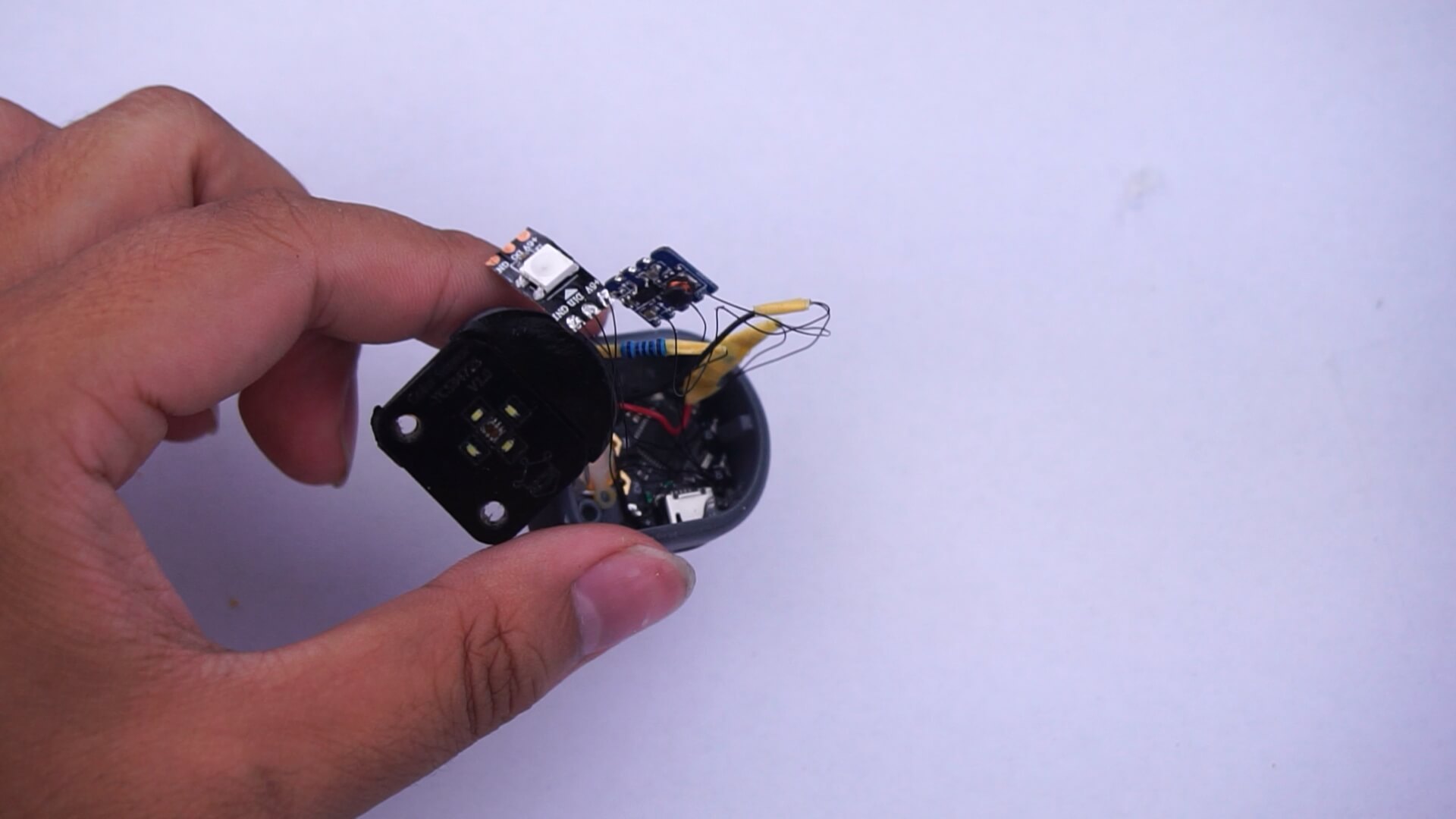

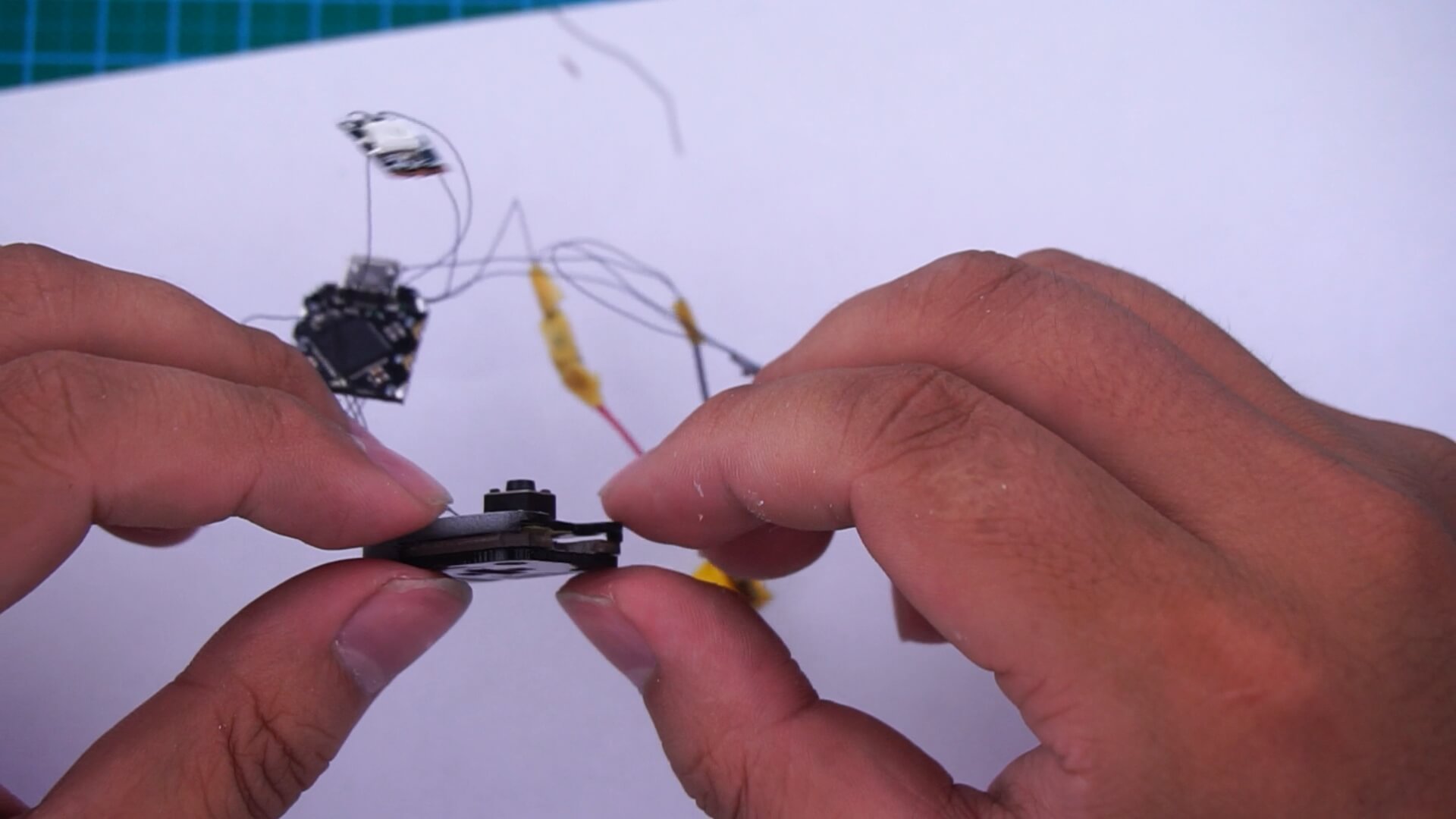

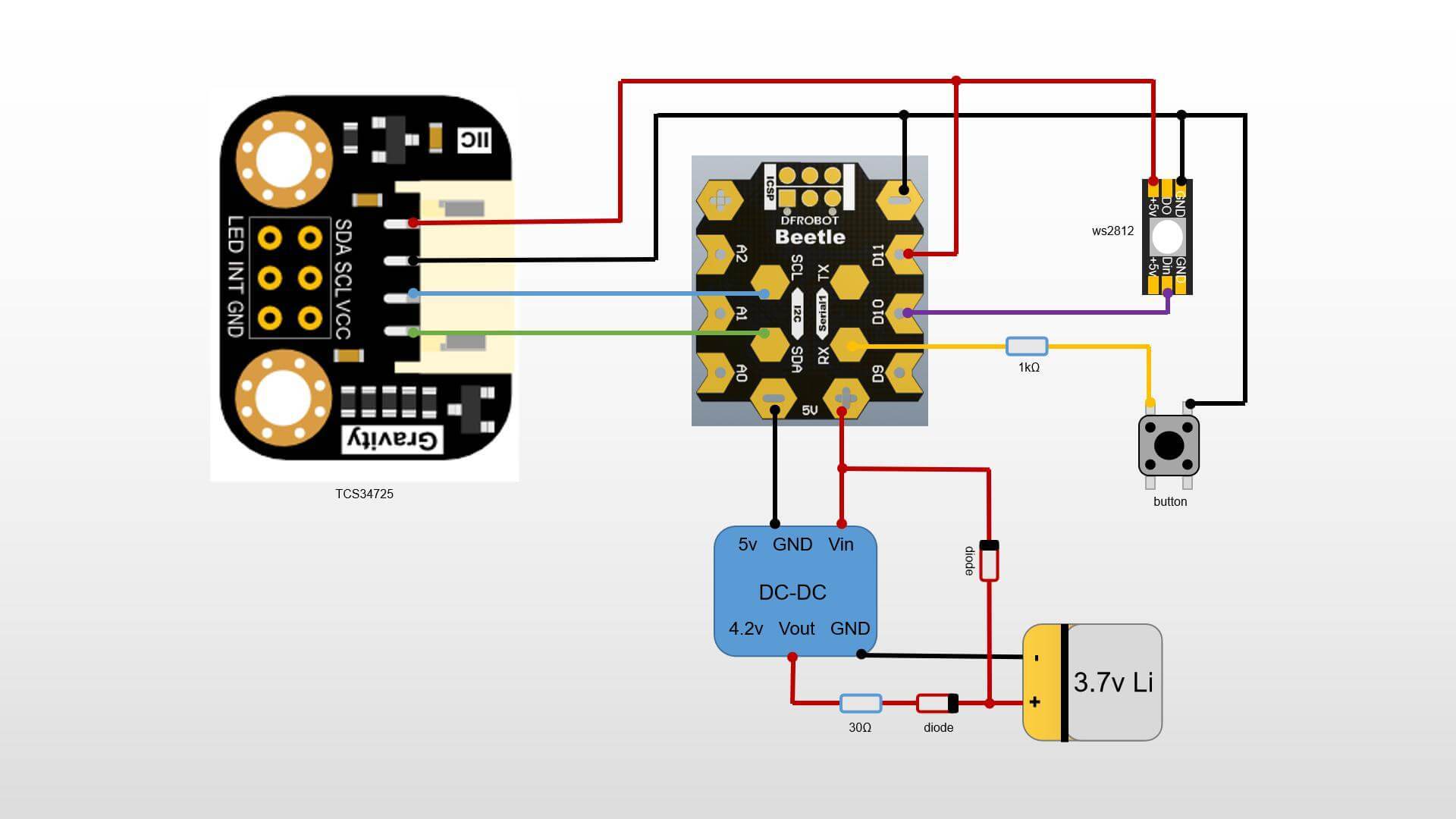

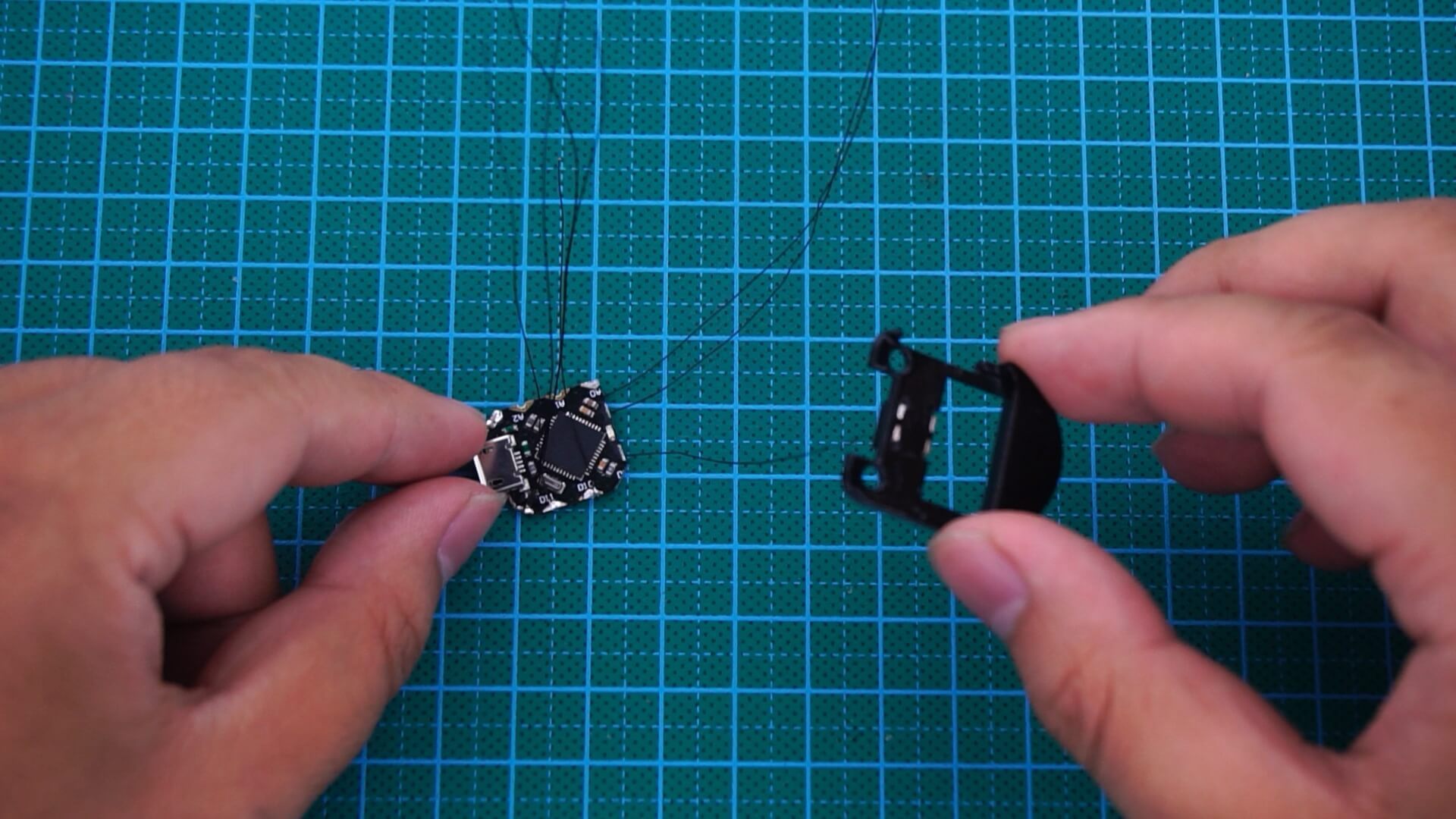

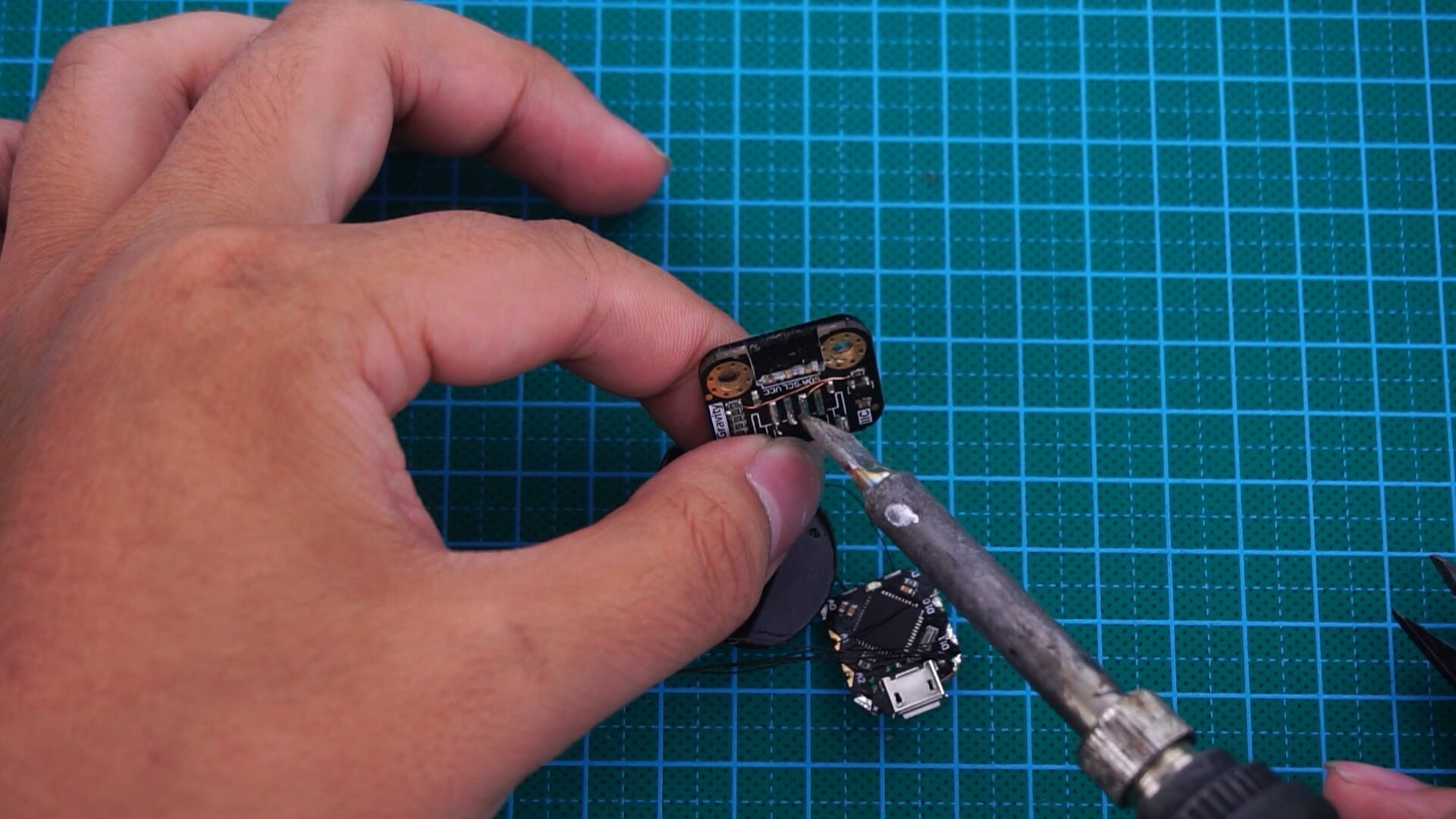

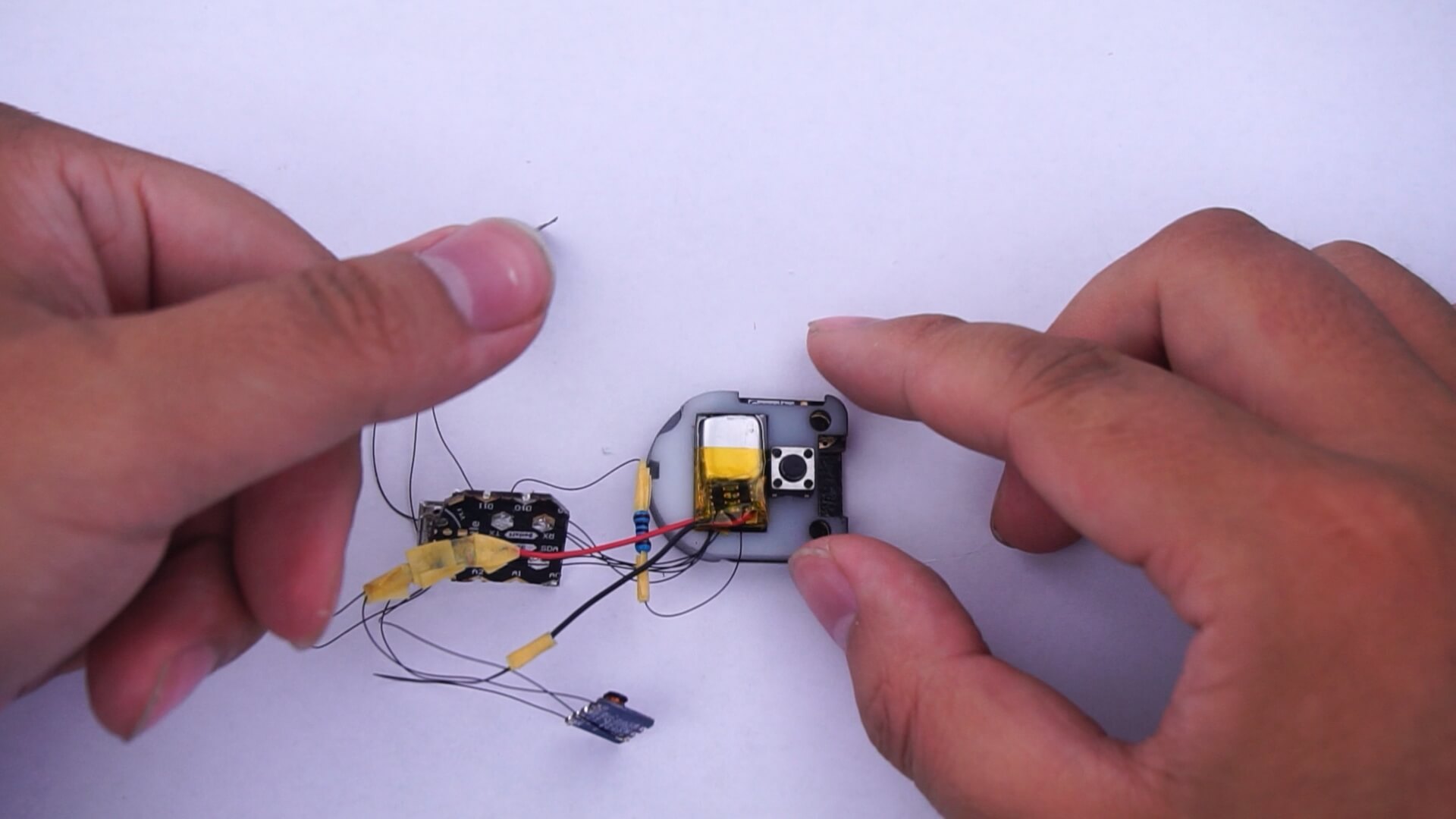

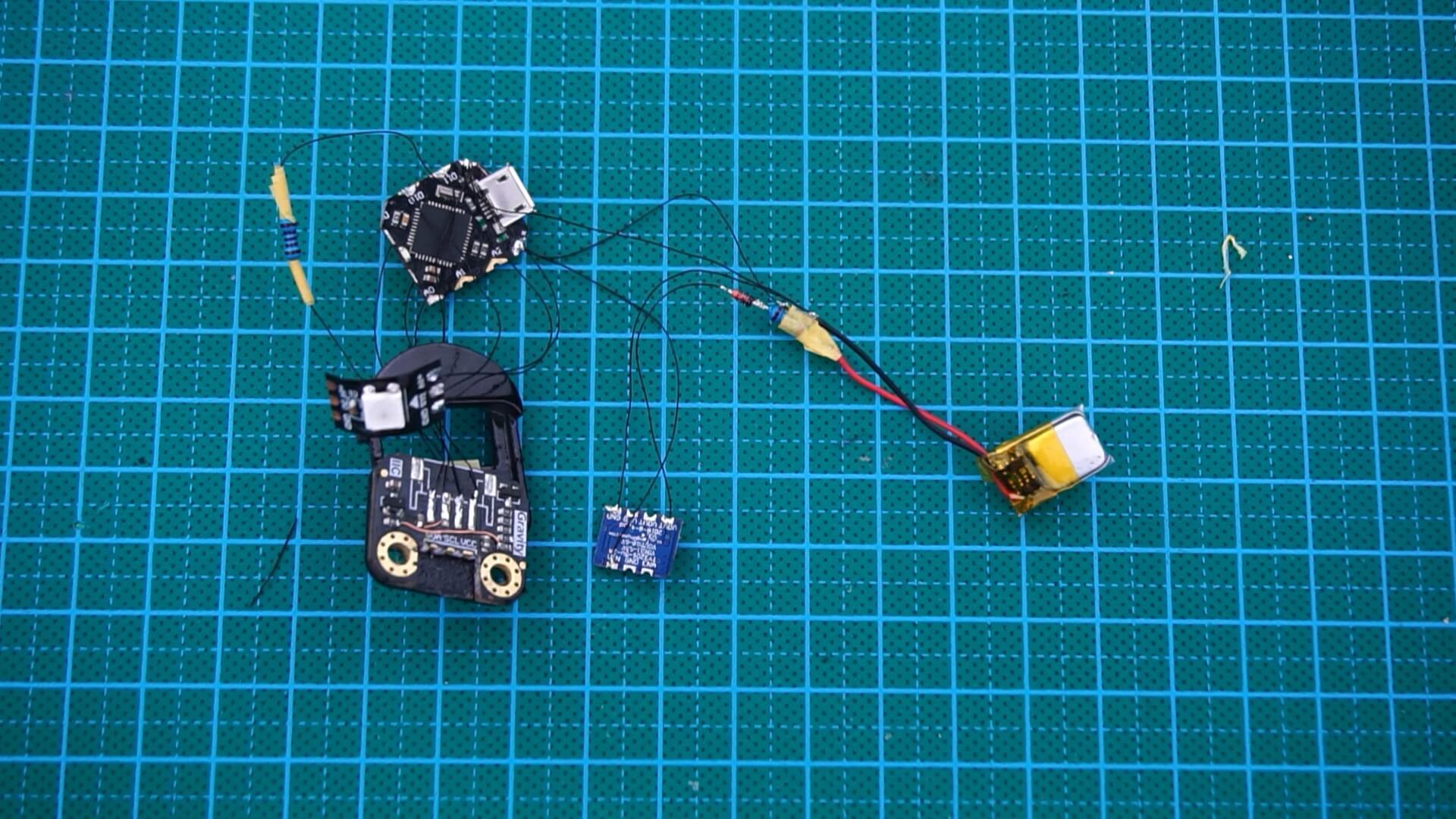

Weld the Circuit

Please note that the all wielding wires of the color sensor and the micro sensor should go through the square holes in the back cover. Because both of them should be installed in the outside of the back cover.

And the welding work is accomplished!

As follows, we will install it.

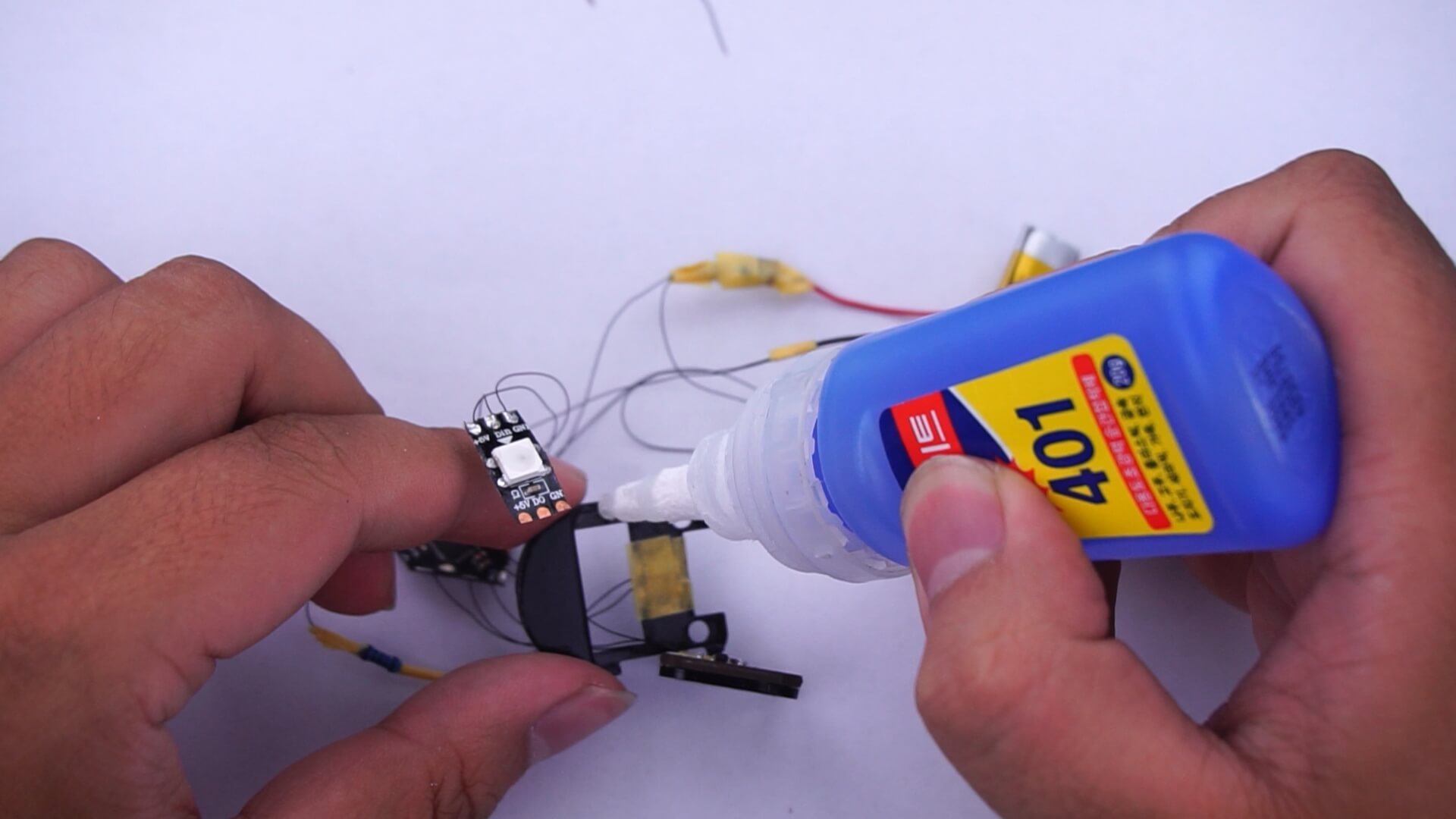

Fix the Color Sensor to the Back Cover With the Quick-drying Glue Temporarily.

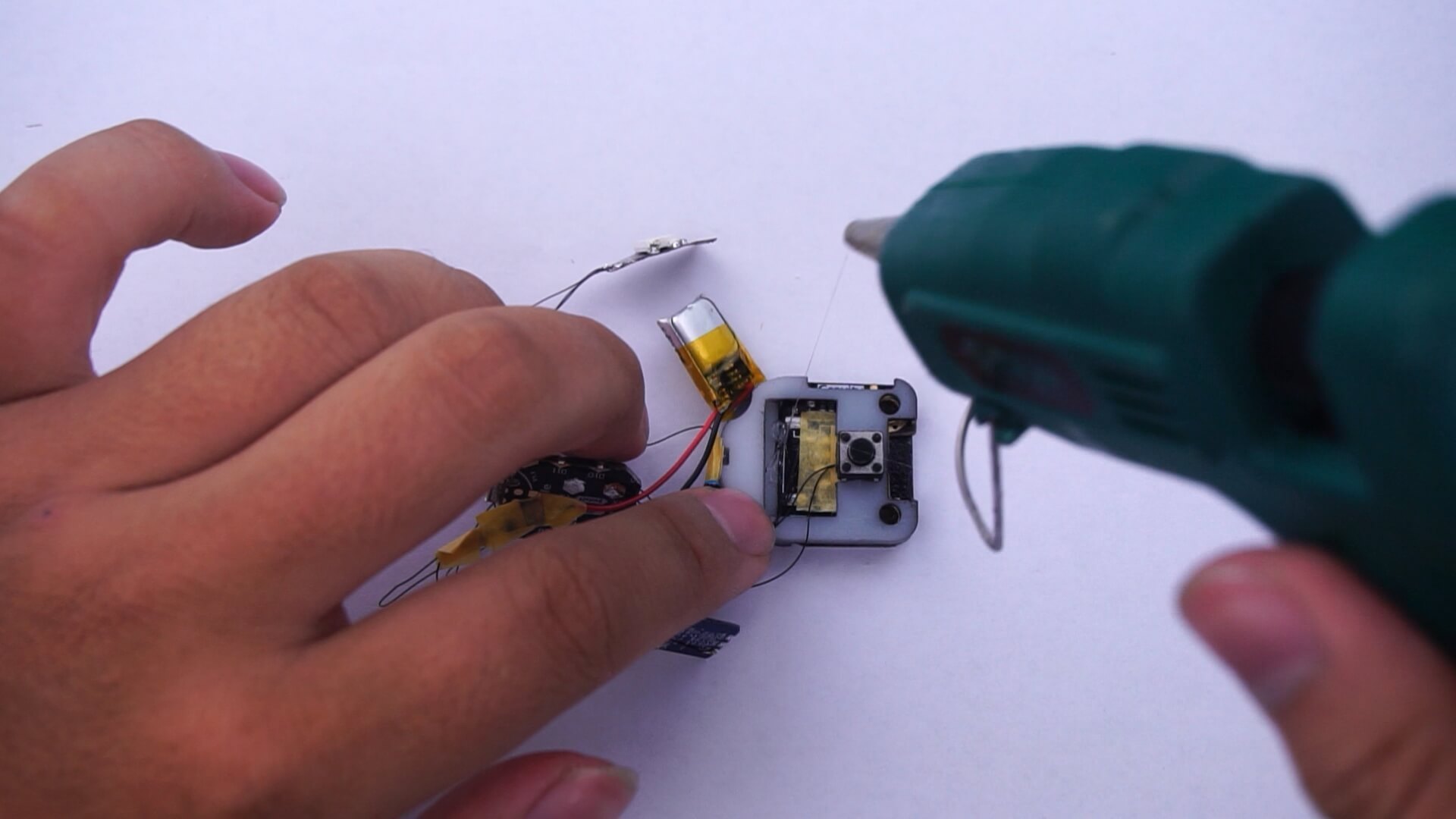

Fix the Battery to the Slot in the Back Cover With the Hot-melt Adhesive

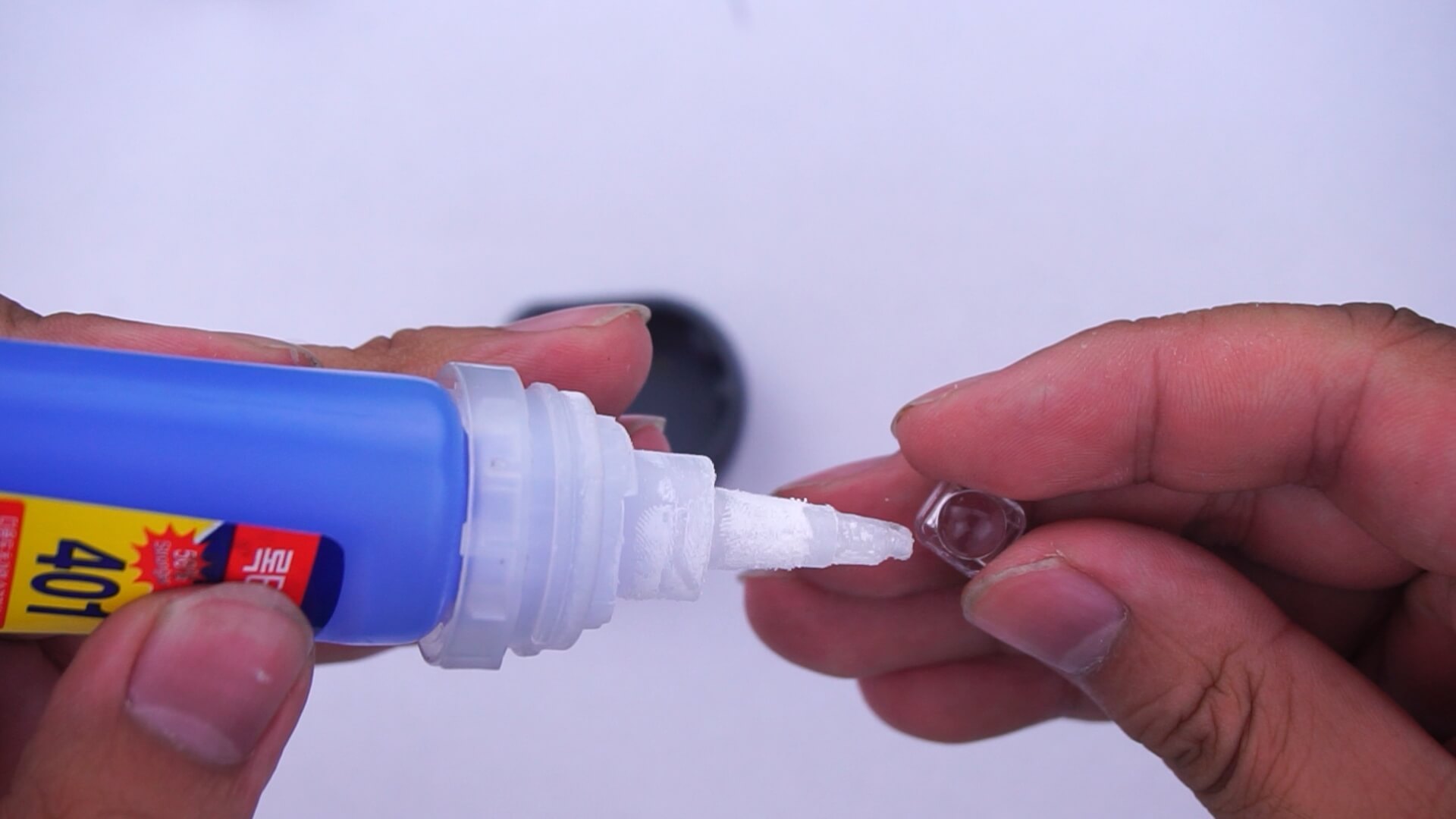

Fix the Light Cover With the Quick-drying Glue to the Holes Reserved in the Crust

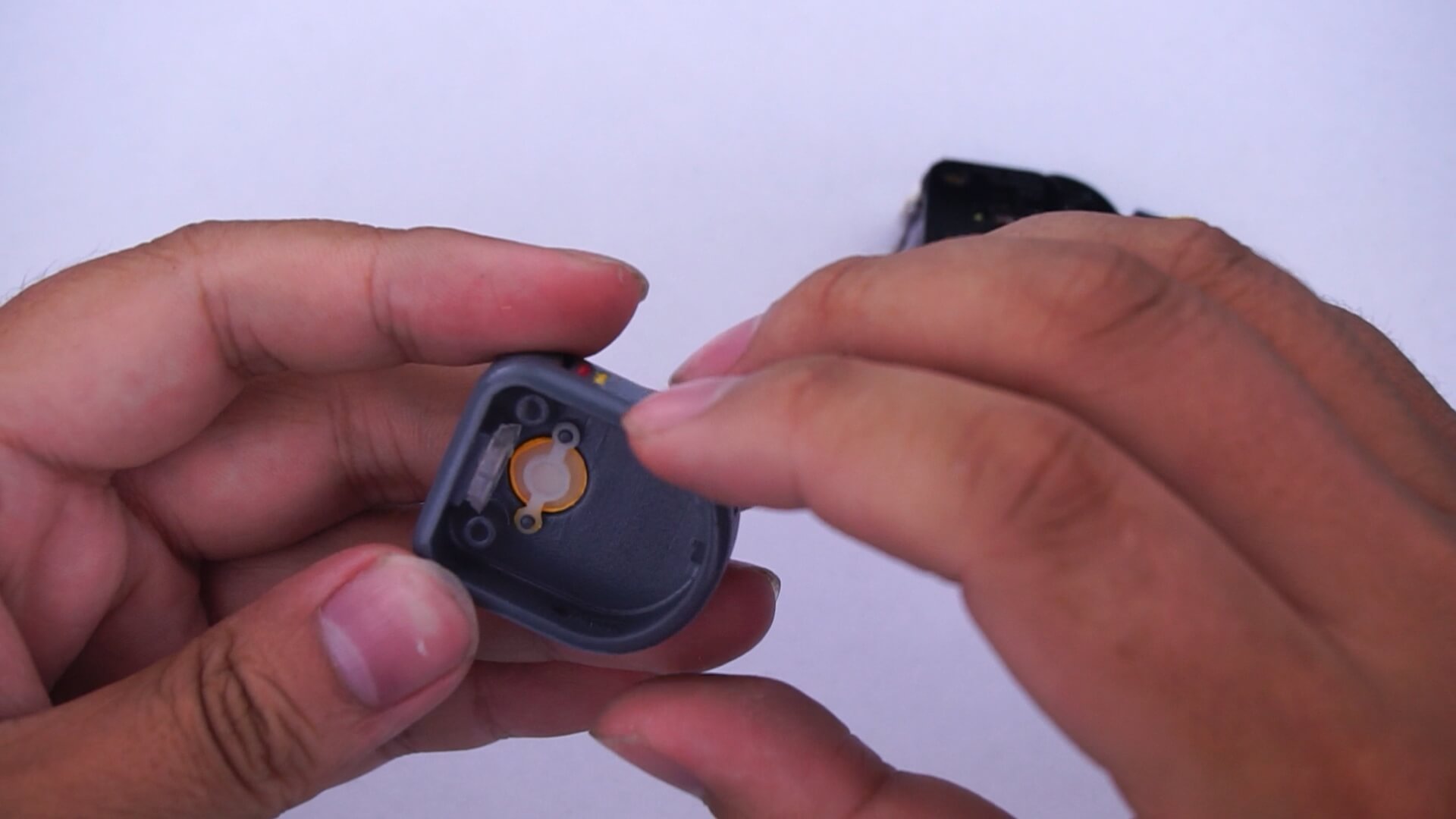

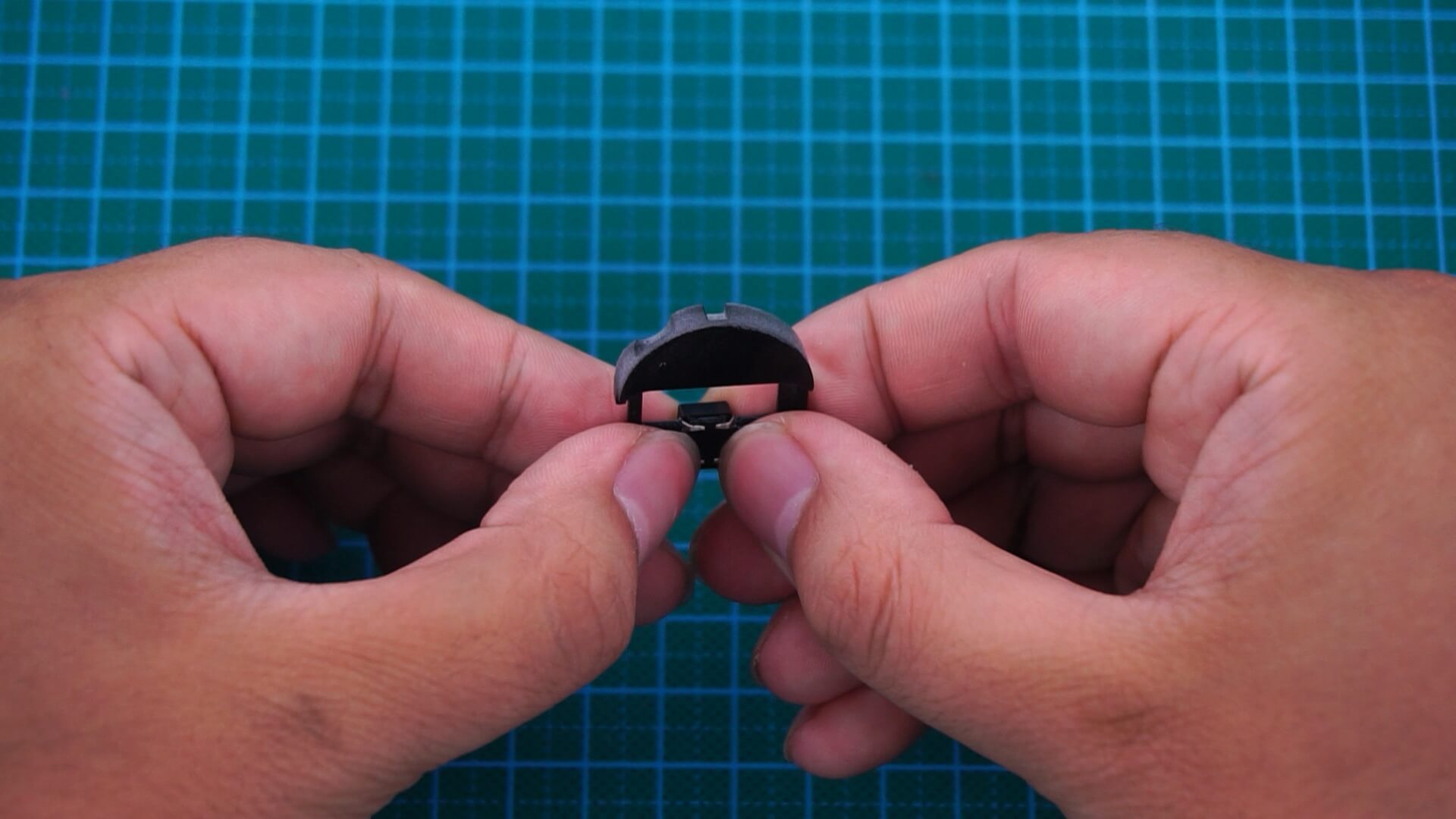

Install the Masking Cap

Install the Masking Cap

Stick the DC-DC Module to the Top Left of the Inner Wall With Hot-melt Adhesive.

Put the RGB LED to the Slot in the Back of the Light Cover

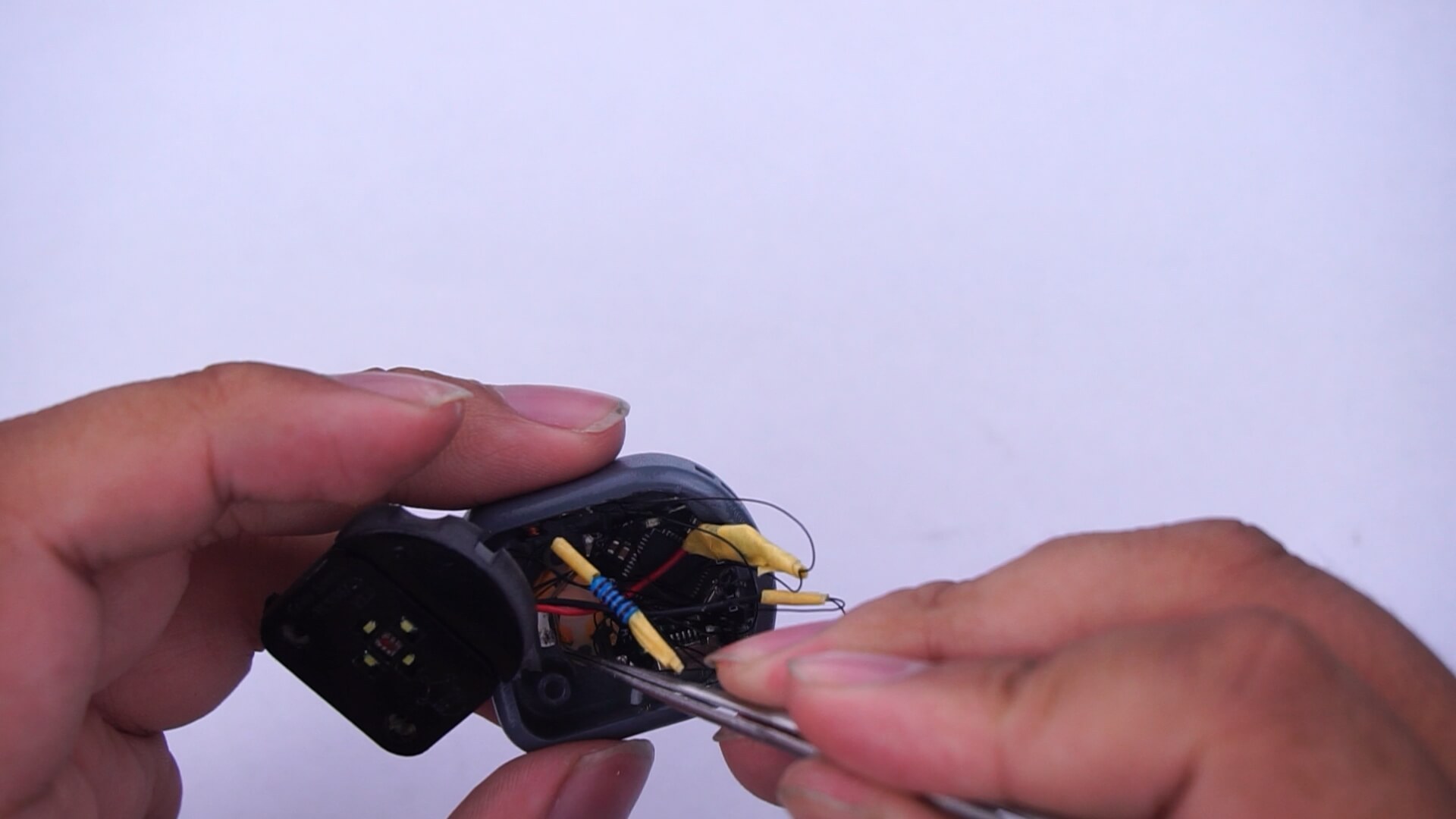

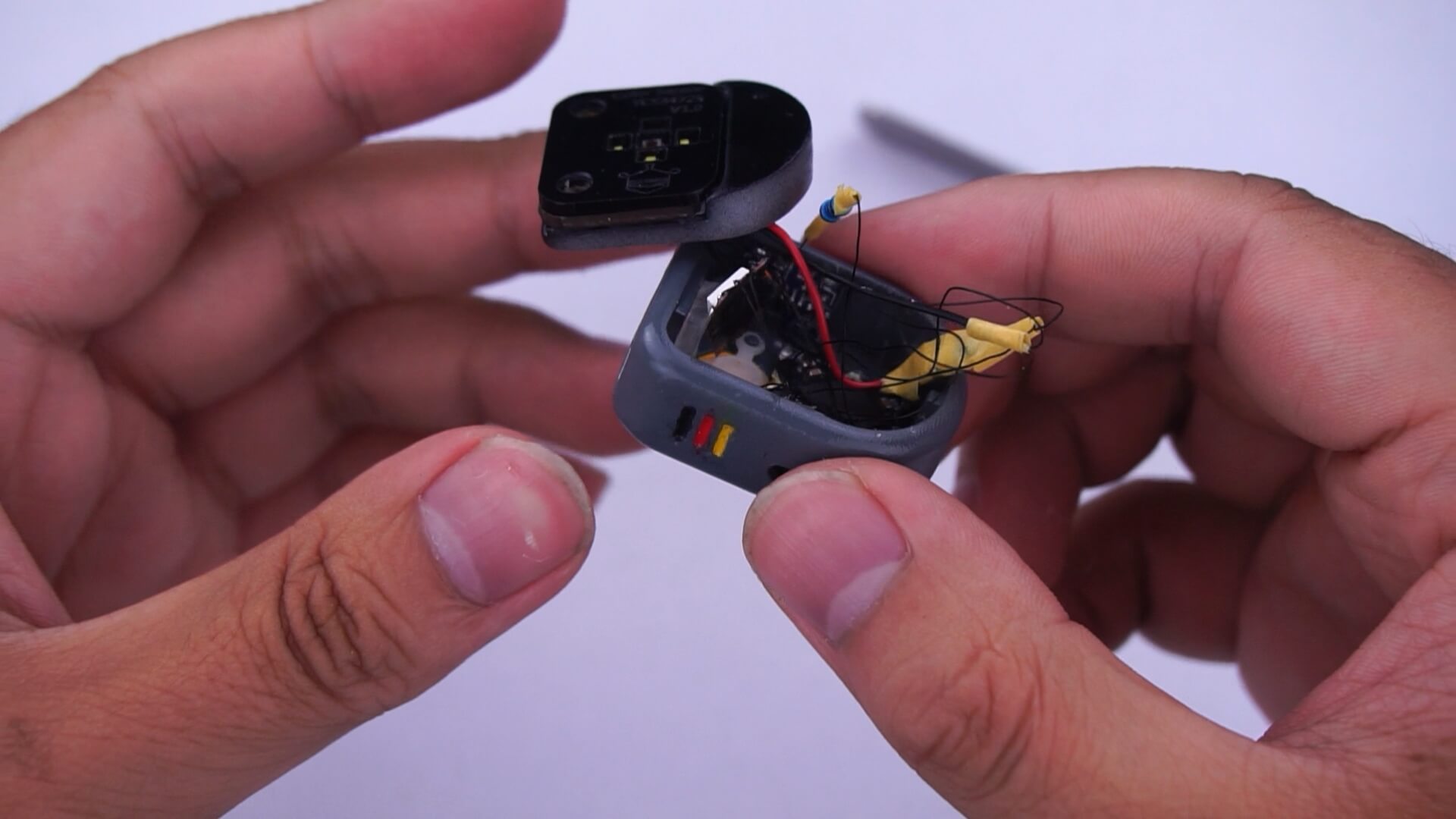

8. Put All Wires to the Inner Part of the Crust.

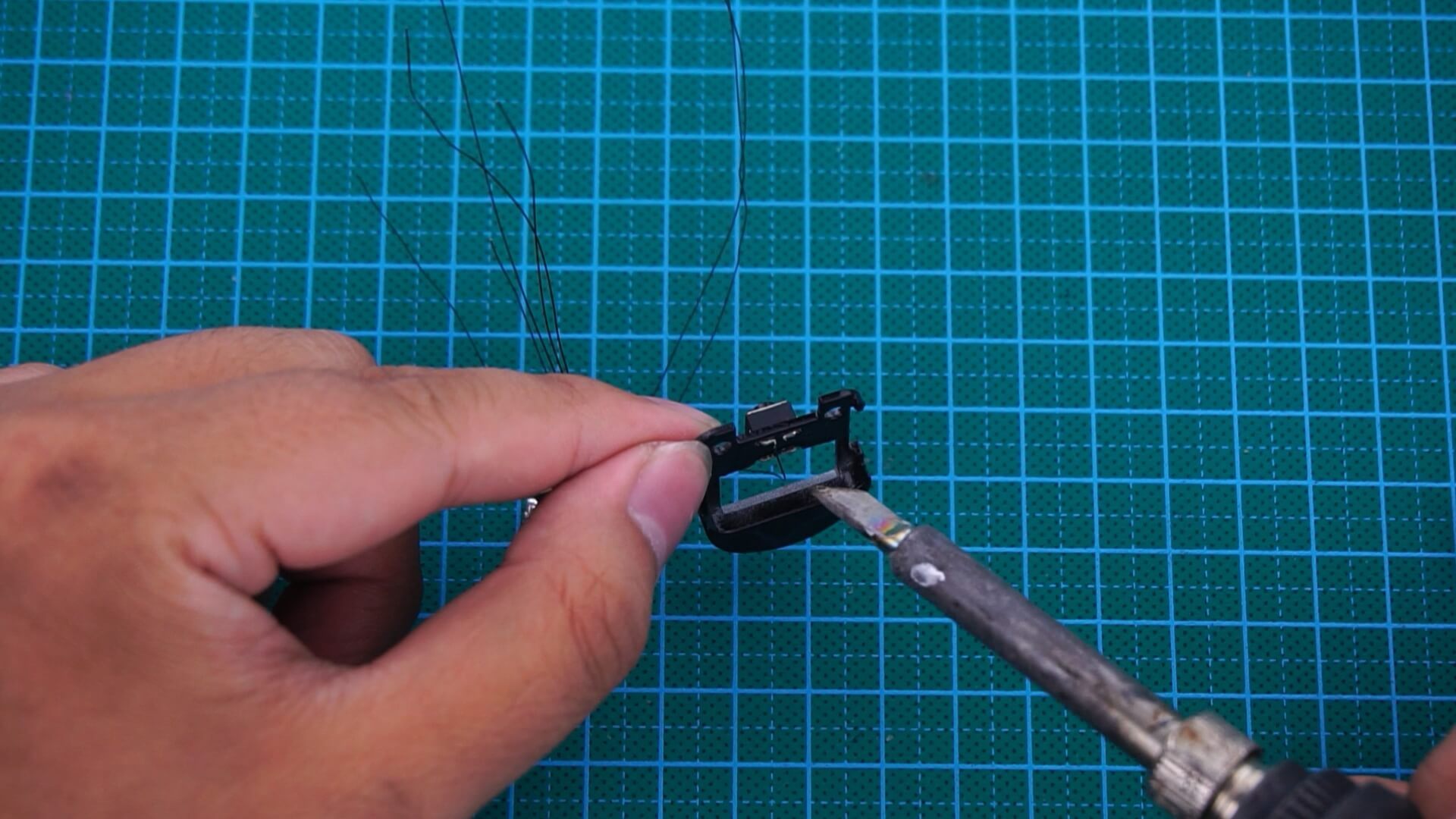

Take off the black acrylic crust, expand the hole size and drill a slope to suit the screw.

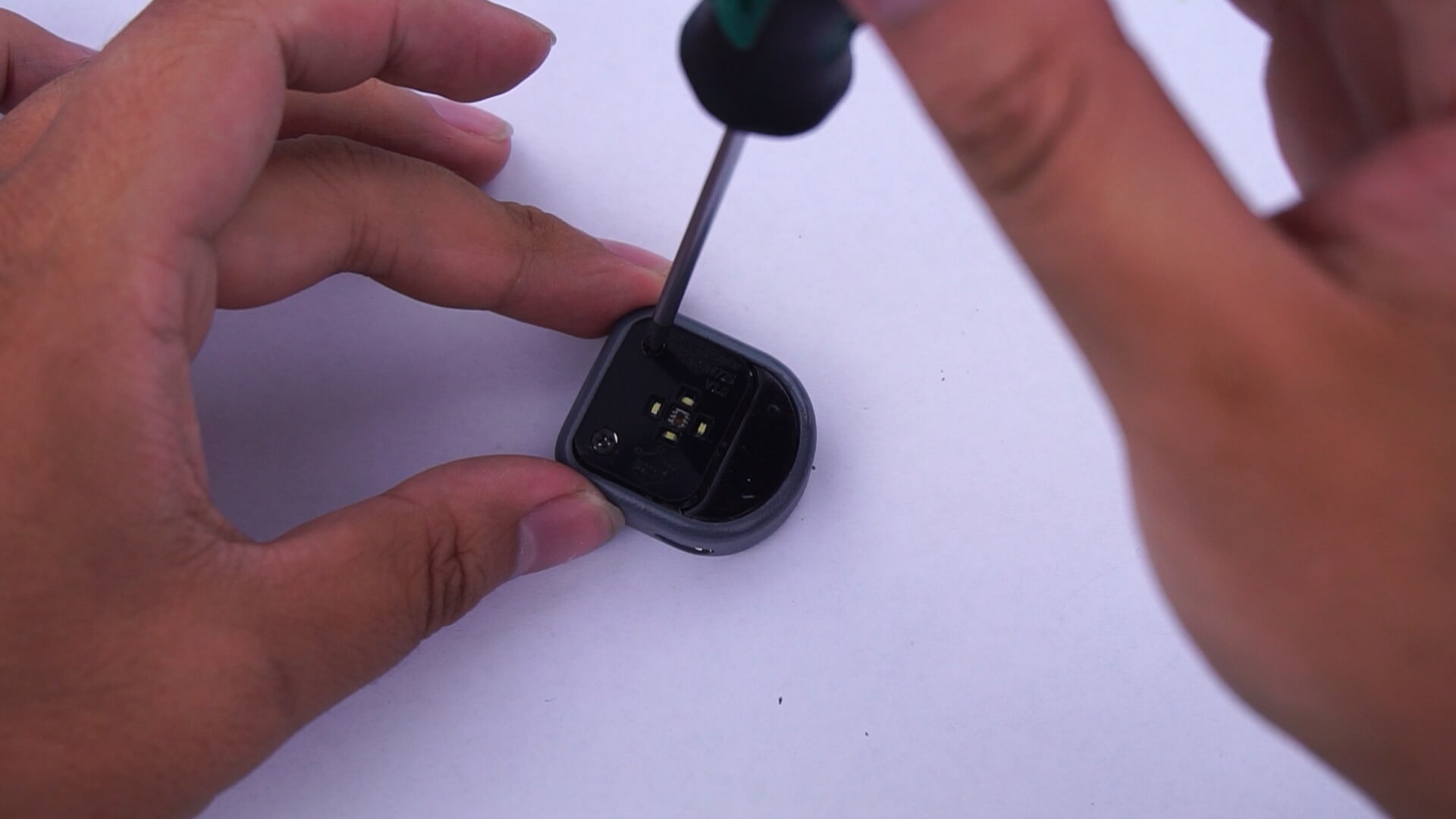

Install 2 Self-tapping Screws.

Here we finish all work to install.

Uploading the Program

Please kindly note that in the end of the program burning, it will not show

“successful loading”, but will remind cannot find the serial port, never mind, it shows that the uploading is done. If you need to upload it again, Beetle should be short circuited, otherwise IDE will not recognize the main control board.

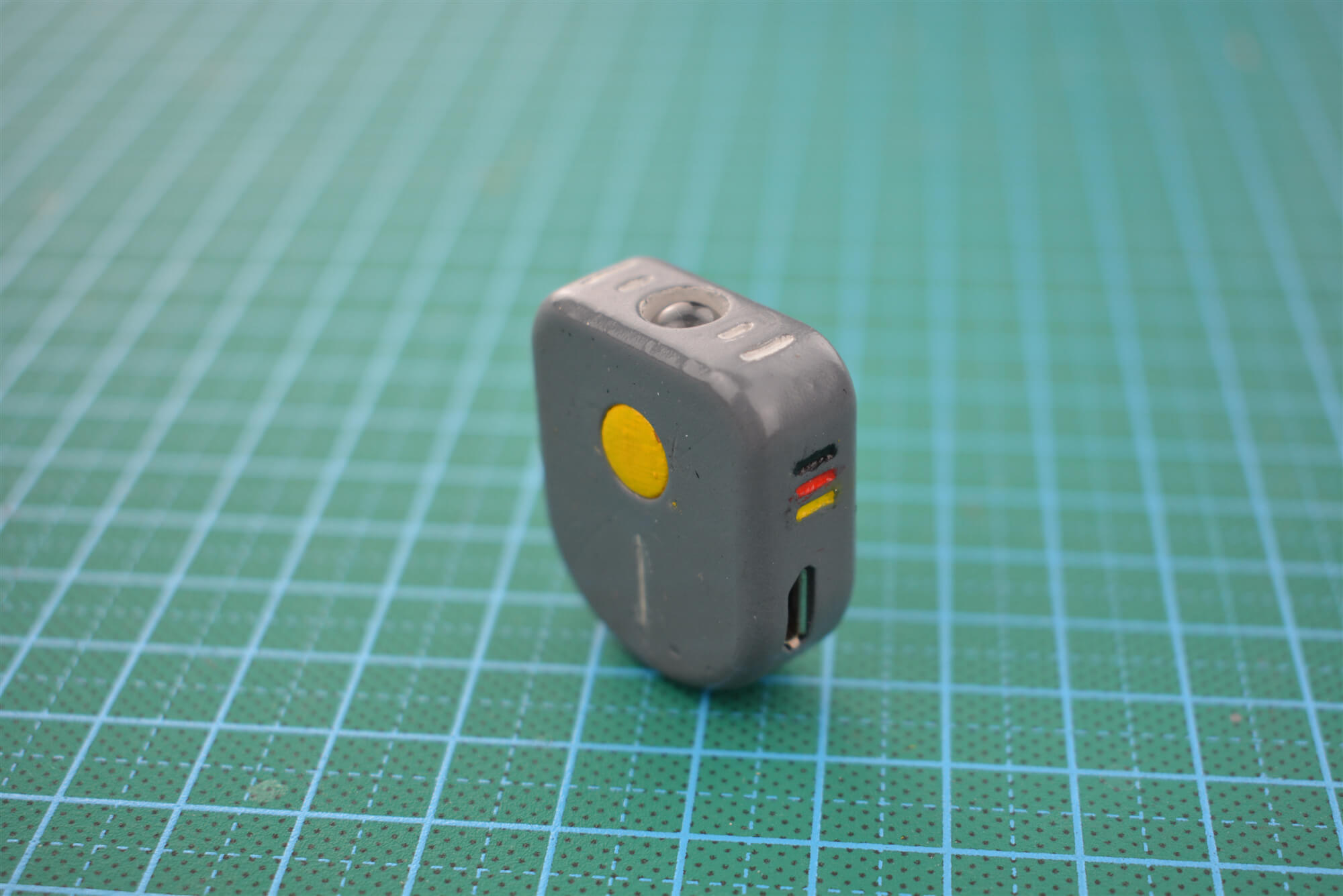

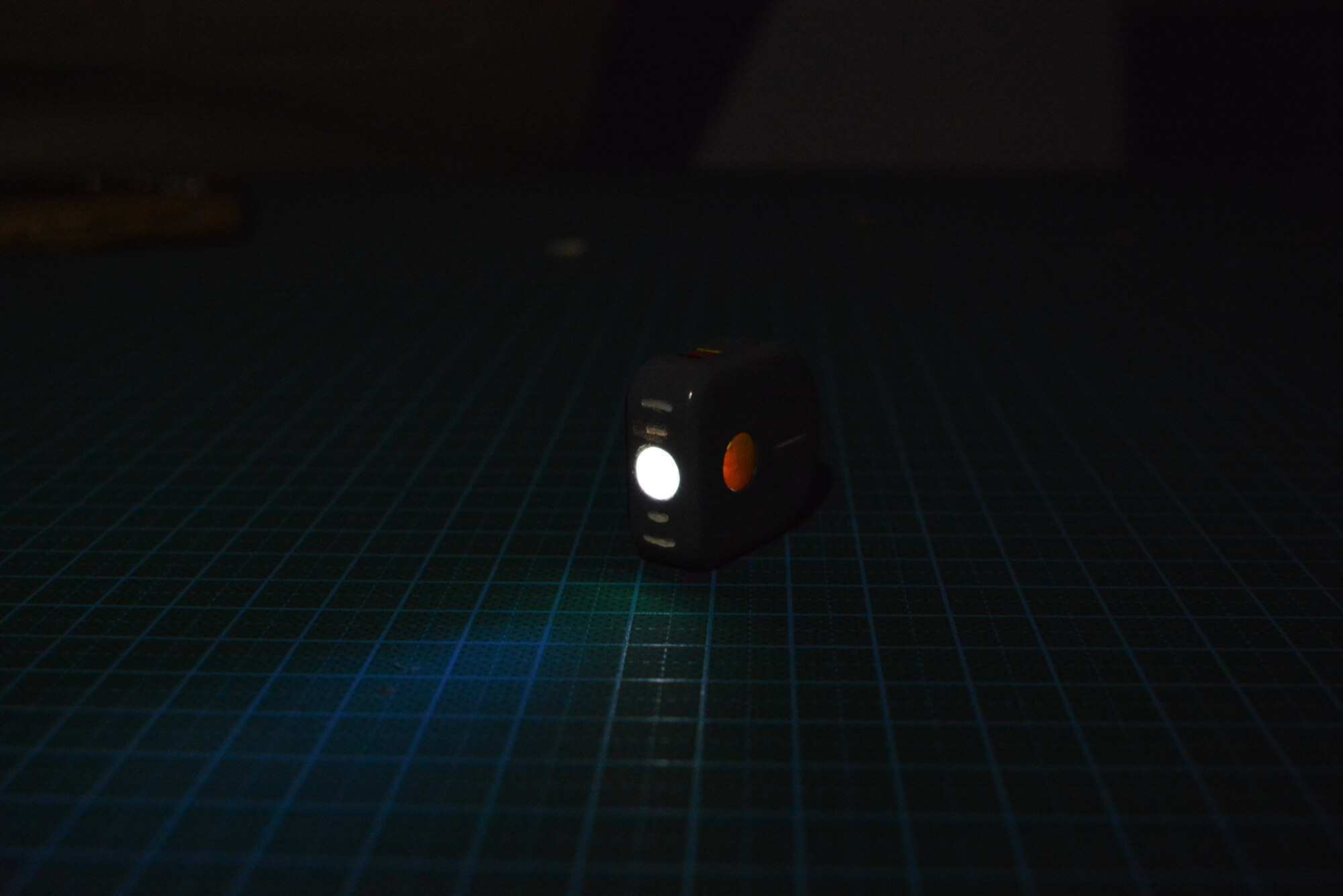

Now we accomplished all works to make a color recognize flashlight.
