Arduino Pulse Generator Frequency Sweep

In this tutorial we will learn how to make a Pulse Generator with a Frequency Sweep.

Pulse generator will start with 1Hz and increase its frequency for 0.5Hz every second. Once it reaches 10Hz it wil stop increasing the frequency.

You can set your own Starting frequency, End frequency, Frequency increment, and the increment interval.

• Arduino UNO (or any other Arduino or ESP)
• OLED Display
• Jumper wires
• Breadboard
• Visuino program: Download Visuino
• Oscilloscope (Optional)

I often use printed designed circuit boards in my projects, however there is a down side to making your boards from a scratch and it takes quite a lot of time and good nerves.

So I started to use a PCBWay service. They were also very kind to support this tutorial to help users learn more about electronics.

They offer you to turn your DIY breadboard circuits into professional PCBs. You can get 10 boards for approximately $5 which is really cheap for professional made boards, not to mention how much time you save.

Go check them out here. They also offer a lot of other stuff in case you might need it like assembly if you are like me who is always in a hurry and don't have a time to get the parts and solder everything then that is a way to go..

On ther website click on the "Get Instant Quote" and you will instantly know how much your PCB will cost. So far I am very satisfied with their service. Where I live I would have to pay at least 4 times more per board to a Local maker and the minimum order would be 200pcs. With PCB I was able to draw the circuit and get prototype boards for a fraction of the cost.

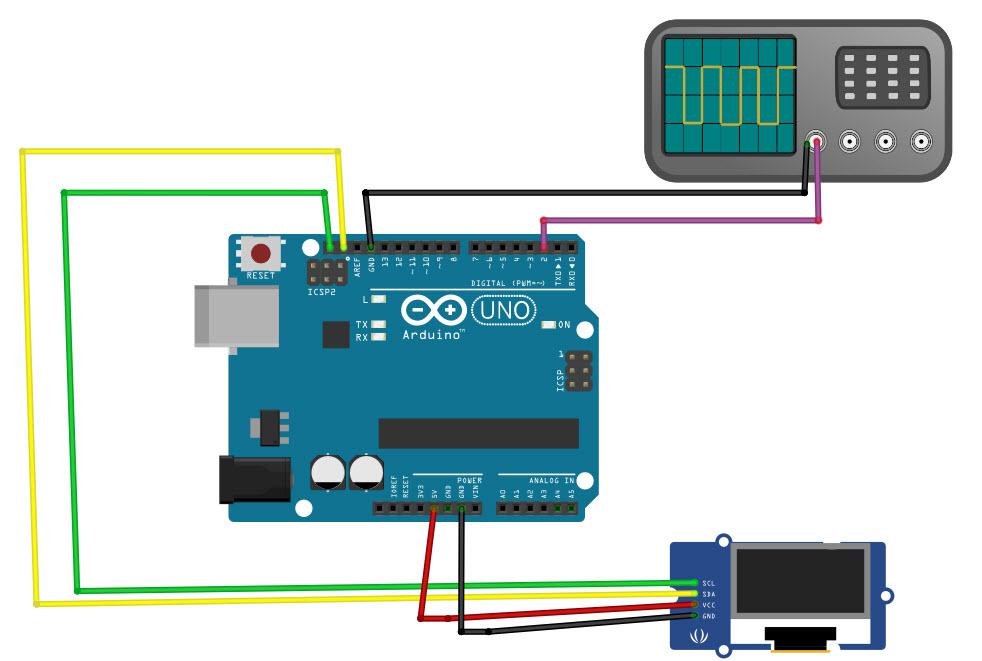

• Connect OLED Display pin [SCL] to Arduino pin [SCL]
• Connect OLED Display pin [SDA] to Arduino pin [SDA]
• Connect OLED Display pin [VCC] to Arduino pin [5v]
• Connect OLED Display pin [GND] to Arduino pin [GND]

• Connect Oscilloscope probe to the Arduino Digital pin [2]
• Connect Oscilloscope Ground probe to the Arduino pin [GND]

• Connect Resistor 1Kohm to the Arduino Digital pin [2]
• Connect Resistor 1Kohm to (other side) to the LED [Positive pin +]
• Connect LED [Negative pin -] to the Arduino pin [GND]

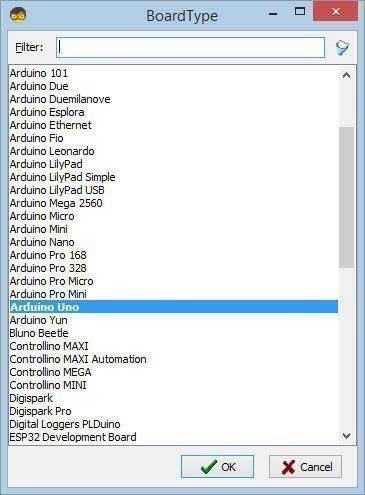

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

• Add "Clock Generator" component
• Add "Counter" component

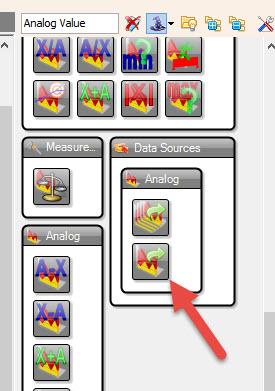

• Add "Analog Value" component
• Add "Integer To Analog" component
• Add "Add Analog" component
• Add "Analog Multi Source" component

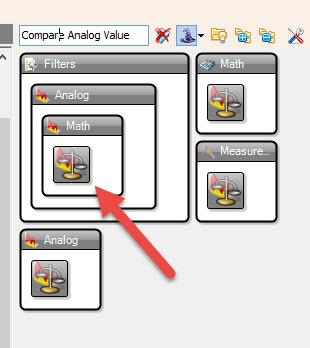

• Add "Compare Analog Value" component
• Add "Analog On/Off Switch" component
• Add "OLED I2C" component
• Add "Pulse Generator" component

• Set the Interval: Select "ClockGenerator1" and in the properties window set frequency, in our case it is 1Hz, this means that the frequency will increase every second
• Set Start Frequency: Select "AnalogValue1" and in the properties window set "Value", in our case it is 1, this means that we will start with the frequency 1Hz
• Set Frequency Increment: Select "IntegerToAnalog1" and in the properties window set "Scale", in our case it is 0.5, this means that the frequency will increase for 0.5Hz every time
• Set End Frequency: Select "CompareValue1" and in the properties window set "Compare Type" to ctSmaller and "Value", in our case it is 10, this means that the frequency will stop increasing at 10Hz
• Select "PulseGenerator1" and in the properties window select "Frequency" and click on the Pin Icon and select "Float SinkPin"

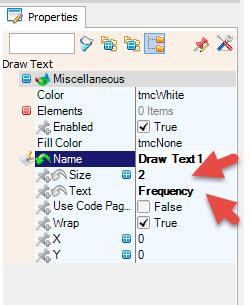

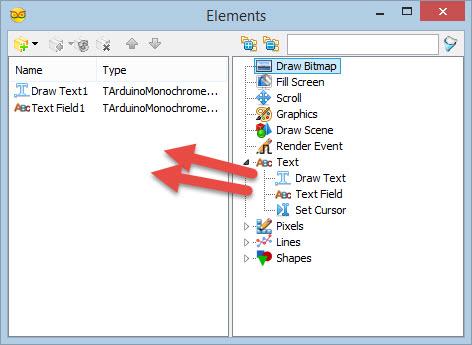

• Double click on the "DisplayOLED1" and in the "Elements" window drag "Draw Text" to the left side and in the Properties window set "Text" to "Frequency" and "Size" to 2
• In the "Elements" window drag "Text Field" to the left side and in the Properties window set "Size" to 2 and "Y" to 30
• Close the "Elements" window

• Connect "ClockGenerator1" pin [Out] to "Counter1" pin[In]
• Connect "Counter1" pin [Out] to "IntegerToAnalog1" pin[In]
• Connect "AnalogValue1" pin [Out] to "Add1" pin[0]
• Connect "IntegerToAnalog1" pin [Out] to "Add1" pin[1]
• Connect "Add1" pin [Out] to "AnalogMultiSource1" pin[In]
• Connect "AnalogMultiSource1" pin [0] to "AnalogSwitch1" pin[In]
• Connect "AnalogMultiSource1" pin [1] to "CompareValue1" pin[In]
• Connect "CompareValue1" pin [Out] to "AnalogSwitch1" pin[Enable]
• Connect "AnalogSwitch1" pin [Out] to "PulseGenerator1" pin[Frequency]
• Connect "AnalogSwitch1" pin [Out] to "DisplayOLED1" > "Text Field1" pin[In]
• Connect "PulseGenerator1" pin [Out] to Arduino Digital pin[2]
• Connect "DisplayOLED1" pin [I2C] to Arduino pin[I2C]

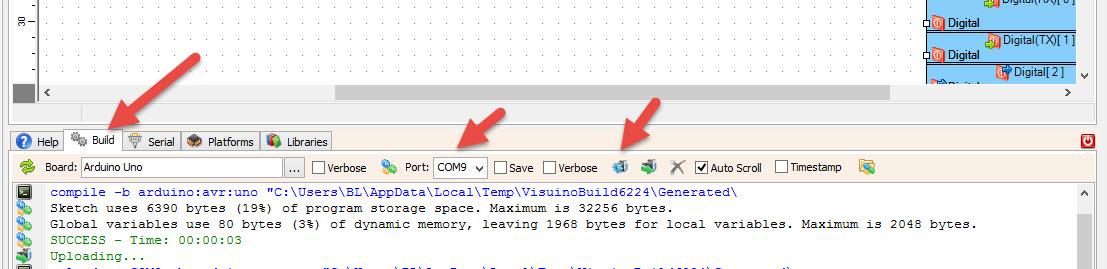

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

If you power the Arduino module, The OLED Display will show the increasing Frequency. If you have an Oscilloscope you can connect it to the Arduino Digital pin 2 (see wiring schematic) or connect a 1KOhm resistor and an LED (see wiring schematic) to see how pulses are increasing.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this tutorial, you can download it and open it in Visuino: https://www.visuino.eu
