Arduino Powered Singing Monkey
by PHS_Engineering in Circuits > Arduino
143 Views, 0 Favorites, 0 Comments
Arduino Powered Singing Monkey
![IMG_2028.jpg](/proxy/?url=https://content.instructables.com/FTH/DIJ3/KWYZ31B1/FTHDIJ3KWYZ31B1.jpg&filename=IMG_2028.jpg)
Every five seconds it sings for three and a half seconds.
Supplies
- Relay
- Alligator clip
- Wires
Get Your Things
First you are going to need to open up the monkey. then you need to get tons of wires a relay an Arduino and bread board.
Wires
![IMG_2022.jpg](/proxy/?url=https://content.instructables.com/FEX/SYM8/KWW47MLK/FEXSYM8KWW47MLK.jpg&filename=IMG_2022.jpg)
wire the bread board up according to the image
Connecting the Monkey
![IMG_1968.jpeg](/proxy/?url=https://content.instructables.com/FLR/LW1P/KWW47MJV/FLRLW1PKWW47MJV.jpg&filename=IMG_1968.jpeg)

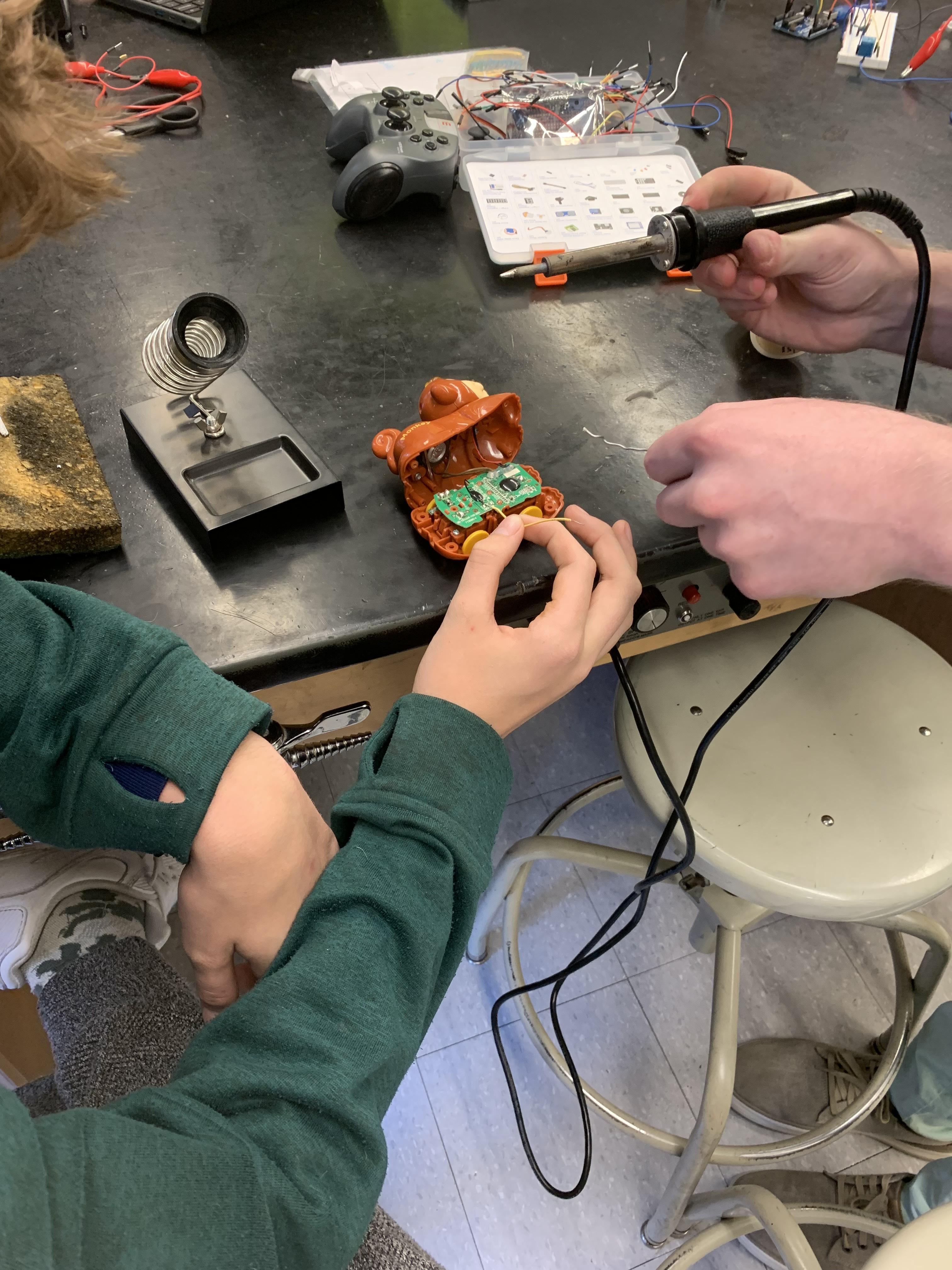

open up the monkey and find the power switch. cut the wires and sauter on new wires to the old leads.
Code
int relay = 13;
void setup(){
pinMode(relay,OUTPUT);
}
void loop(){
digitalWrite(relay,HIGH) ;
delay(3500);
digitalWrite(relay,LOW) ;
delay(4000);
}
Done
You are now done and have a singing monkey!
