Arduino Obstacle Avoiding Robot Car 2WD With AA Battery

by goldscrew in Circuits > Arduino

7935 Views, 4 Favorites, 0 Comments

Arduino Obstacle Avoiding Robot Car 2WD With AA Battery


Prepare the Components

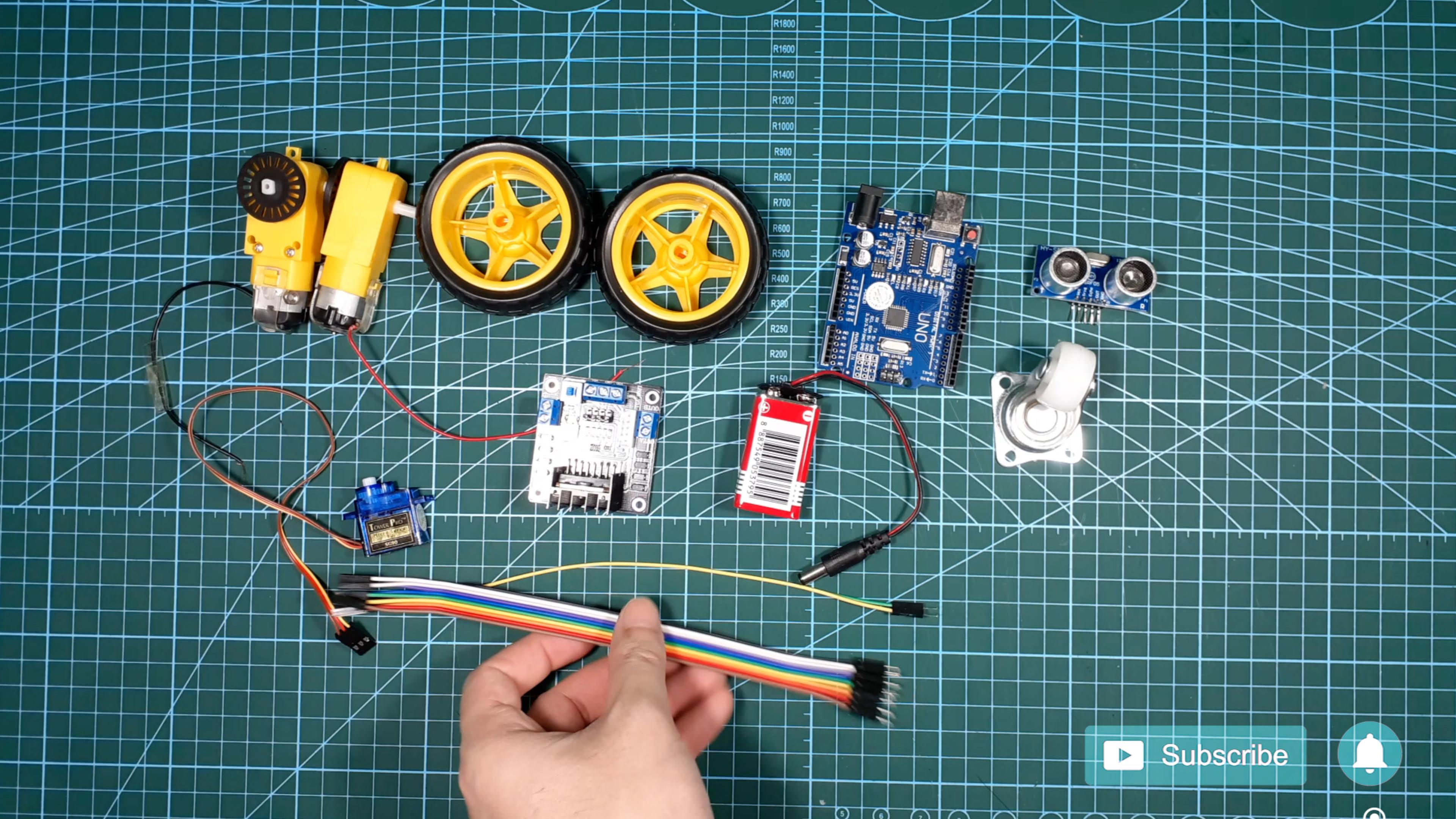

Individual Components:

  • Arduino UNO
  • L298N Motor Driver or L293D Motor Shield
  • Chassis(including motors and wheels)
  • Wires
  • Battery Holder
  • Micro Servo Motor SG90
  • HC-SR04 Ultrasonic Sensor
  • Sensor Mount (Optional)

Tools (Optional):

  • Soldering Iron
  • Hot Glue Gun
  • Wire Cutter
  • Screw Driver

Assembly All Components

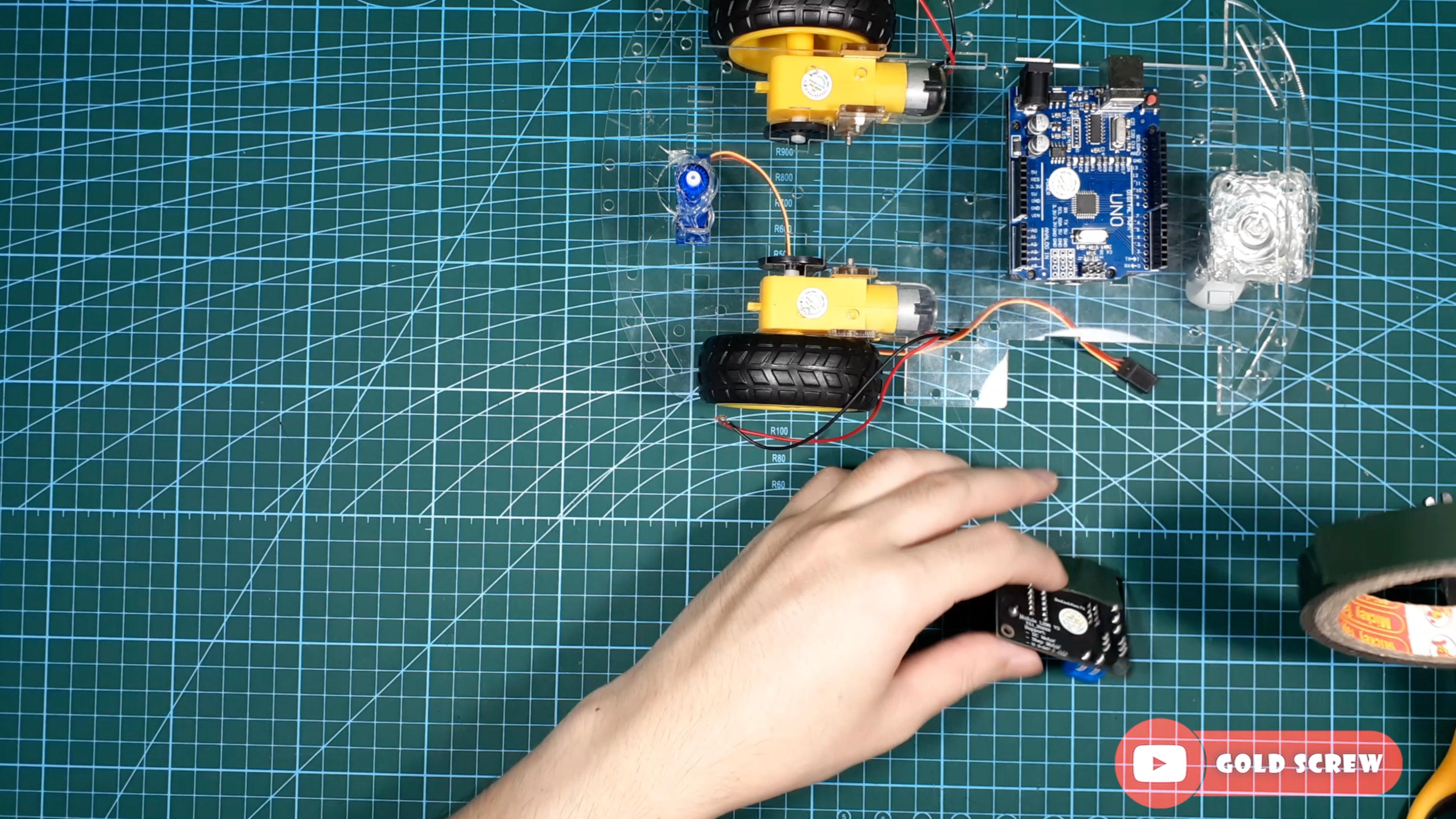

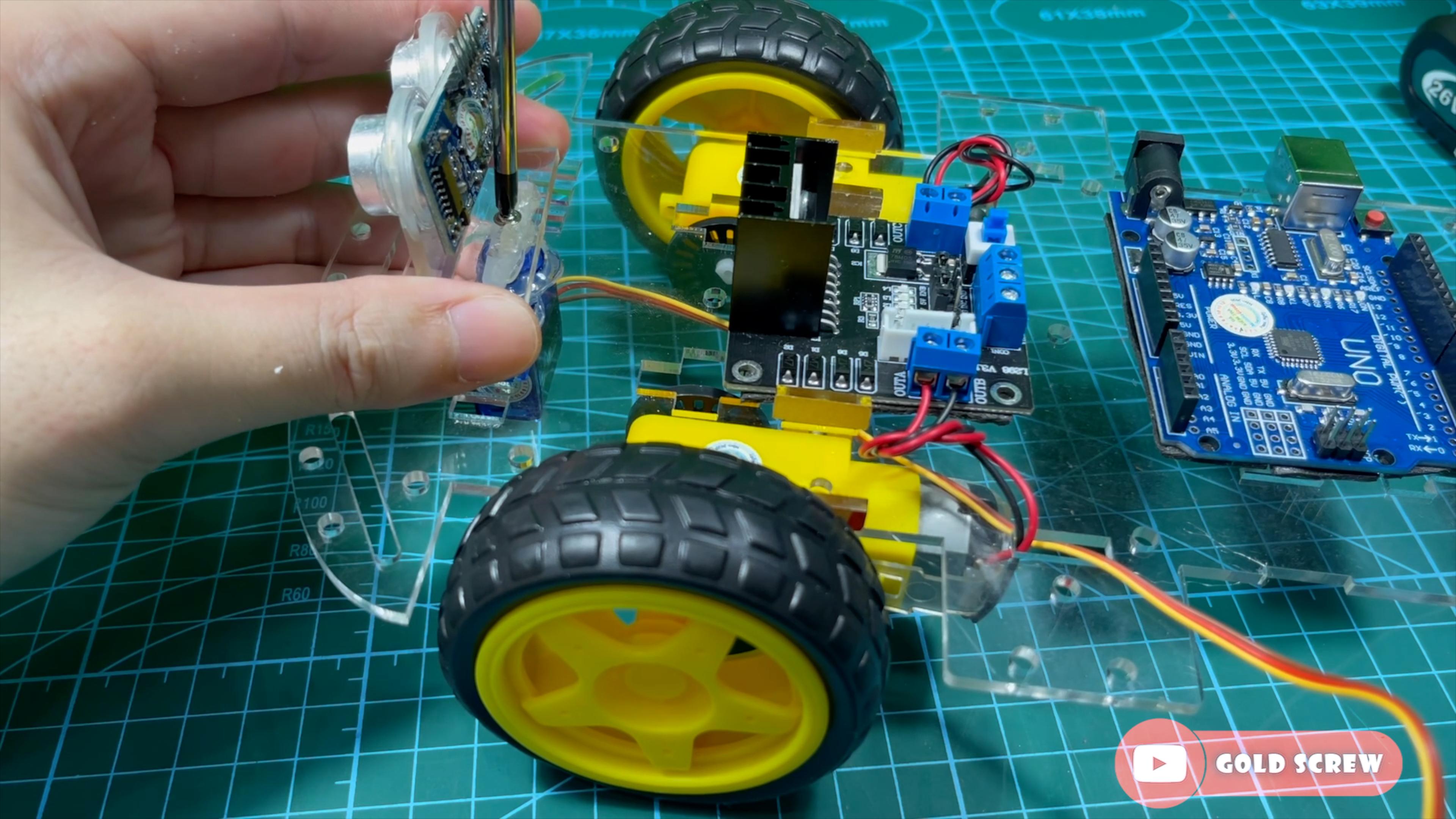

Connect the wheel, circuit board, servo motor, sensor...to the chassis

Wiring

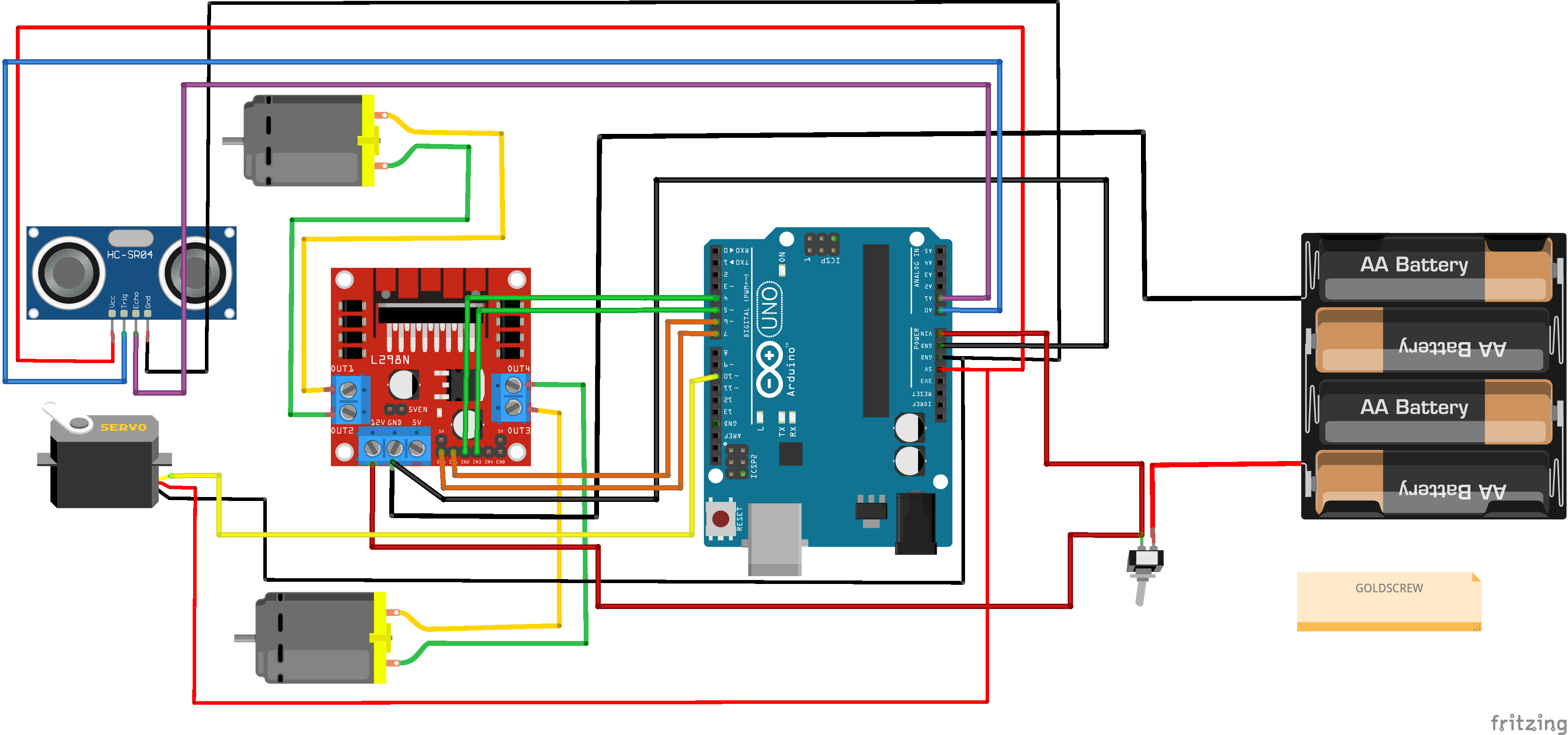

Connect the wires according to the circuit diagram as shown above

Coding & Testing


Upload Sketch and Testing it!

Source code: https://www.hackster.io/goldscrew/arduino-obstacle-avoiding-robot-car-2wd-with-aa-battery-514b3c#code
