Arduino OLED Display Menu With Option to Select

In this tutorial we will learn how to make a menu with a selection option using OLED Display and Visuino.

Watch the video.

• Arduino UNO (or any other Arduino)
• Jumper wires
• OLED Display
• Breadboard
• 1K ohm resistor
• Button
• Visuino program: Download Visuino

• Connect OLED display pin [VCC] to arduino pin [5V]
• Connect OLED display pin [GND] to arduino pin [GND]
• Connect OLED display pin [SDA] to arduino pin [SDA]
• Connect OLED display pin [SCL] to arduino pin [SCL]
• Connect Arduino 5V to one side of the resistor
• Connect other side of the resistor to the button
• Connect other side of the button to the Arduino digital pin[8] and to the ground

To start programming the Arduino, you will need to have the Arduino IDE installed from here: https://www.arduino.cc/.

Please be aware that there are some critical bugs in Arduino IDE 1.6.6. Make sure that you install 1.6.7 or higher, otherwise this Instructable will not work! If you have not done follow the steps in this Instructable to setup the Arduino IDE to program Arduino UNO! The Visuino: https://www.visuino.eu also needs to be installed. Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

• Add "Counter" component
• Add "Integer Array" component
• Add "Integer Multi Source" component
• Add "SSD1306/SH1106 OLED Display (I2C)" component

• Select "Counter1" component and in the properties window set 'Max'>'Value' to 2 and 'Min>'Value' to 0
• Double click on "Array1" and in the Elements window drag 3x 'Value' to the left side
  Select Item[1] and in the properties window set value to 20
  Select Item[2] and in the properties window set value to 40
• Select "IntegerMultiSource1" component and in the properties window set 'Output Pins' to 4
• Double click on "DisplayOLED1" and in the elements window
  -drag 3X "Draw Text" to the left
  Select 'Draw Text1' and in the properties window set color to tmcInvert, size to 2, text to 'Menu-1'
  Select 'Draw Text2' and in the properties window set color to tmcInvert, size to 2, text to 'Menu-2', Y to 20

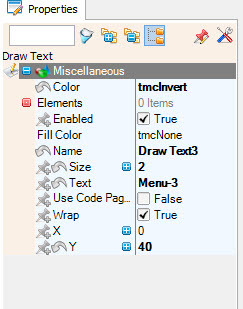

  Select 'Draw Text3' and in the properties window set color to tmcInvert, size to 2, text to 'Menu-3', Y to 40

  -drag "Draw Rectangle" to the left and set color to tmcWhite and fillcolor to tmcWhite, height to 20, Width to 128, select Y and click on the Pin icon and select 'Integer SinkPin'
  -drag "Fill Screen" to the left


• Connect Arduino digital pin[8] to "counter1" component pin[In]
• Connect "Counter1" component pin[out] to "Array1" pin[Index]
• Connect "Array1" component pin[out] to "IntegerMultiSource1" pin[In]
• Connect "IntegerMultiSource1" pin[0] to DisplayOLED1>Fill Screen1 pin[clock]
• Connect "IntegerMultiSource1" pin[1] to DisplayOLED1>Draw Rectangle1 pin[Y]
• Connect "IntegerMultiSource1" pin[2] to DisplayOLED1>Draw Rectangle1 pin[Clock]
• Connect "IntegerMultiSource1" pin[3] to DisplayOLED1>Draw Text1 pin[Clock]
• Connect "IntegerMultiSource1" pin[3] to DisplayOLED1>Draw Text2 pin[Clock]
• Connect "IntegerMultiSource1" pin[3] to DisplayOLED1>Draw Text3 pin[Clock]
• Connect "DisplayOLED1" pin I2C[Out] to Arduino board I2c pin[In]

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

If you power the Arduino UNO module, and the OLED display should start displaying the menu, you can navigate through the menu by pressing on the button.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this Instructable, you can download it here and open it in Visuino: https://www.visuino.eu
