Arduino + Nokia 5110 Display + IR Sensor

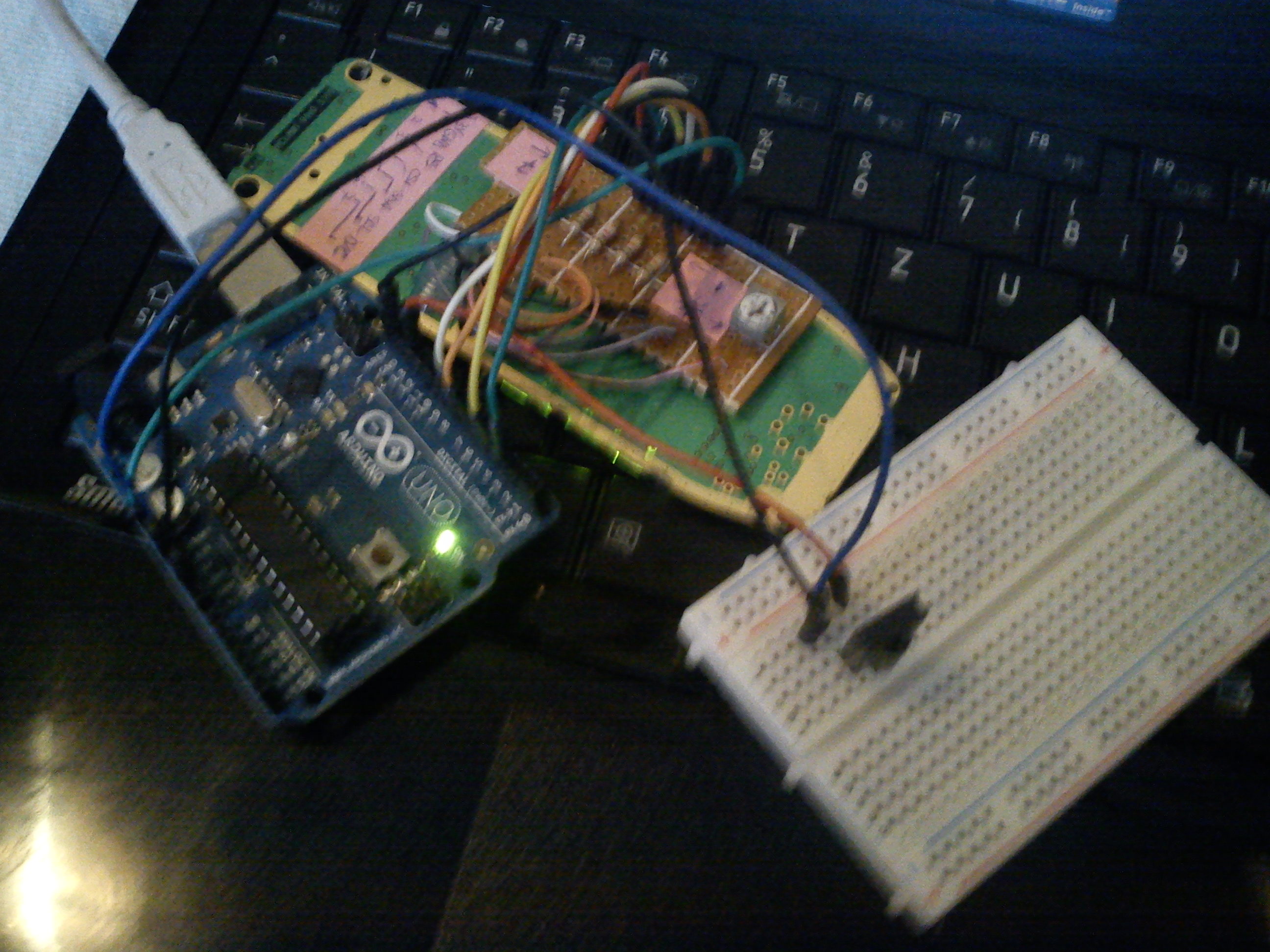

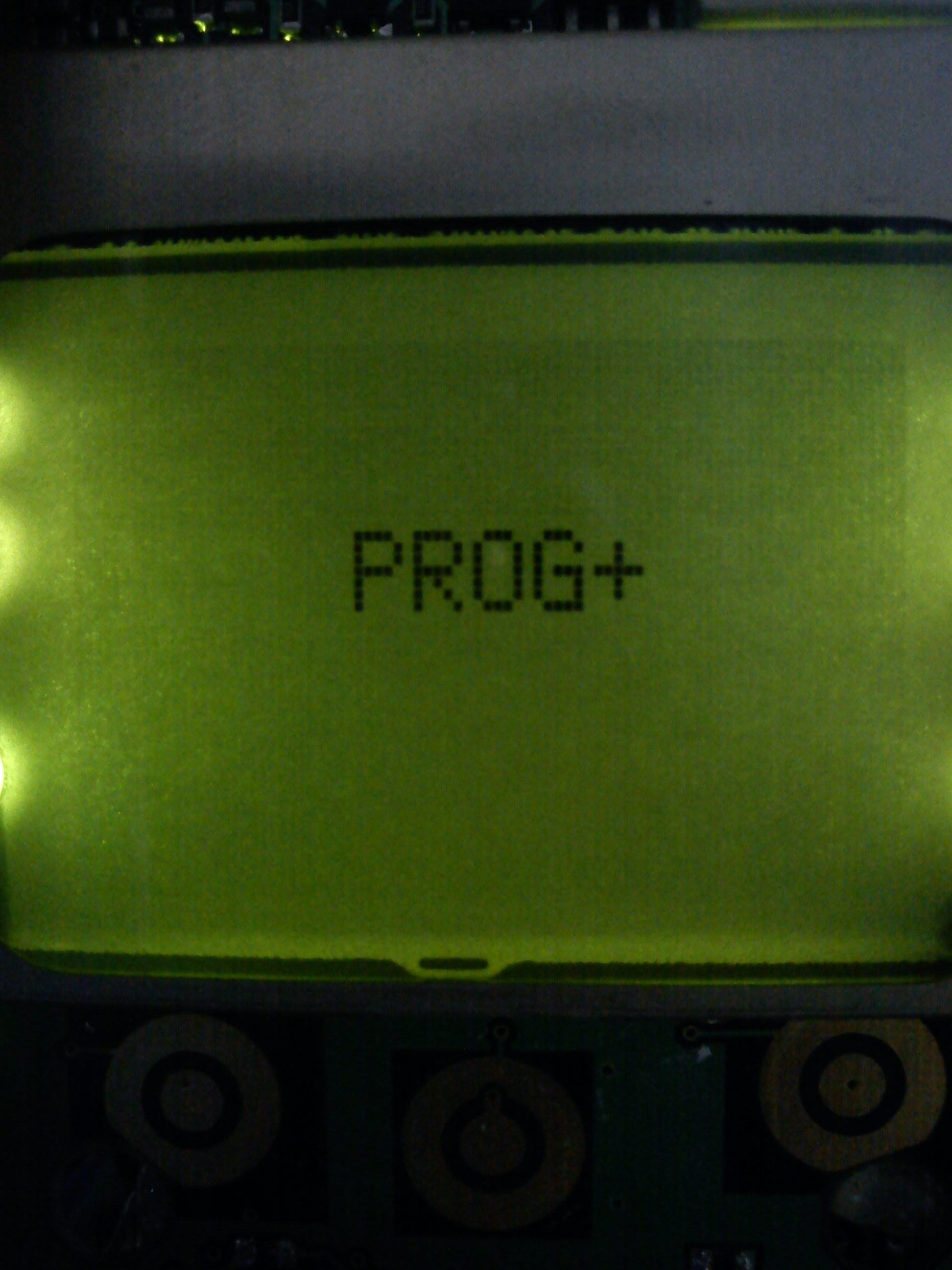

Hi! Today I'm show you my new project using an Arduino UNO, a Nokia 5110 display (PCD8544) and an IR sensor. I managed to write a sketch that's reading the data received by the IR sensor and then display the names of the pushed buttons on the screen. I also used Nokia's entire board with lcd and keyboard because I don't have the possibility to buy or make a breakout board for the LCD. It was a bit of pain to solder some wires on those tiny copper pads from the back of the lcd+keyboard board, but it's working ok and that's enough.
Now, I'm gonna let the pictures to speak from themselves. Cheers!

P.S.: I'm sorry but I cannot change the order of the pictures because there's a problem with the site...


Download sketch from: https://www.dropbox.com/s/al40wsotf1fvlhn/Afisare_comenzi_telecomanda_ir_pe_8544.ino

LE: Here's a link with the document needed for reverse engineering the Nokia 5110 display board. https://www.dropbox.com/s/olc9jxofgeahb60/04UIF.PDF
