Arduino Mother's Day LED Artwork
by vivianchin in Workshop > Lighting
145 Views, 0 Favorites, 0 Comments
Arduino Mother's Day LED Artwork
![VvMkWXXIR6Cx6ih1zVqdMg.jpg](/proxy/?url=https://content.instructables.com/FAM/JKZH/KOIM6WHC/FAMJKZHKOIM6WHC.jpg&filename=VvMkWXXIR6Cx6ih1zVqdMg.jpg)
This artwork is for people who do not know what to give to their mother as a gift on international mother's day. It can be artwork with a carnation drawing, and "Happy Mother's Day" in the morning, and be a LED heart lamp decoration at night.
Prepare What You Need
![D8EkktqgTyCTOQjmCq2iOA.jpg](/proxy/?url=https://content.instructables.com/FP9/86D0/KOIM6WAR/FP986D0KOIM6WAR.jpg&filename=D8EkktqgTyCTOQjmCq2iOA.jpg)
![螢幕快照 2021-05-11 上午1.27.38.png](/proxy/?url=https://content.instructables.com/F2F/UFG5/KOIM6WGS/F2FUFG5KOIM6WGS.png&filename=螢幕快照 2021-05-11 上午1.27.38.png)
![螢幕快照 2021-05-11 上午1.27.23.png](/proxy/?url=https://content.instructables.com/F8X/RQ9H/KOIM6WGM/F8XRQ9HKOIM6WGM.png&filename=螢幕快照 2021-05-11 上午1.27.23.png)
Arduino Board (Leonardo/Uno) & a breadboard x1
LED red x9 white x1
Resistance x3
USB Adapter cable x1
Wire x 44
Computer x1
Cardboard 26.5cm x 42cm x1
Cardboard box 26.5cm x 10cm x 42cm x1
Scissors x1
Box cutter x1
watercolor x1 box
Sketching paper 8k x2
Connect Wires and LED on the Arduino Breadboard
![螢幕快照 2021-05-10 下午11.42.02.png](/proxy/?url=https://content.instructables.com/FRM/LKYE/KOIM6T3T/FRMLKYEKOIM6T3T.png&filename=螢幕快照 2021-05-10 下午11.42.02.png)
![115F7C32-81CF-4718-B5AD-53D5A0F993EB.JPG](/proxy/?url=https://content.instructables.com/F57/1EAT/KOIM6WKJ/F571EATKOIM6WKJ.jpg&filename=115F7C32-81CF-4718-B5AD-53D5A0F993EB.JPG)
1. Connect GND to positive with 1 wire.
2. Connect positive to j10, j15, j20, with 3 wires.
3. Connect g 10 to e10, g15 to e15, g20 to e20, with 3 resistances.
4. Connect pin D13 with a wire, to another wire, then to the negative side (long) of a LED. (picture 2)
5. Connect positive side (short) of a LED with a wire, to row 10, 15, or 20.
6. Repeat step 4 and 5 for D4~D12, total of 38 wires.
Done for connecting wires and LED on the Arduino breadboard!
Write Arduino Code
![螢幕快照 2021-05-10 下午11.45.33.png](/proxy/?url=https://content.instructables.com/FWD/C6FV/KOIM6TCY/FWDC6FVKOIM6TCY.png&filename=螢幕快照 2021-05-10 下午11.45.33.png)
![螢幕快照 2021-05-10 下午11.45.41.png](/proxy/?url=https://content.instructables.com/FMX/CRS1/KOIM6TD2/FMXCRS1KOIM6TD2.png&filename=螢幕快照 2021-05-10 下午11.45.41.png)
Explanation for my Arduino Code:
1. First part: pinMode( ? , OUTPUT); // sets the digital pin as output
meaning: Pin ? was connect to a LED.
2. Second part: void loop(){ // put your main code here, to run repeatedly:
meaning: codes below will be on loop.
3. Third part: digitalWrite( ? , HIGH ); // sets the digital pin on/off
delay( 5000 ); // waits a few milliseconds
digitalWrite( ?? , HIGH ); // sets the digital pin on/off
meaning: LED that Pin ? connected to lights up (HIGH), and after 5 seconds (delay 5000), LED that Pin ?? connected to will lights up (HIGH).
4. Fourth Part: digitalWrite( 4 , LOW ); // sets the digital pin on/off
delay( 5000 ); // waits a few milliseconds
meaning: All the LEDs will turn off (LOW), and wait for 5 seconds (delay 5000), then start again from Third part (because of Second part, the code is on a loop)
https://create.arduino.cc/editor/vivianchin/5b2065...
This is a link for my Arduino code!
Make the Case of the Arduino Breadboard (artwork)
![VvMkWXXIR6Cx6ih1zVqdMg.jpg](/proxy/?url=https://content.instructables.com/FHA/GSRP/KOIM6WL7/FHAGSRPKOIM6WL7.jpg&filename=VvMkWXXIR6Cx6ih1zVqdMg.jpg)
![Zut3CtDwTP6kGYciVTfUYQ.jpg](/proxy/?url=https://content.instructables.com/F1I/BWKC/KOIM6WMA/F1IBWKCKOIM6WMA.jpg&filename=Zut3CtDwTP6kGYciVTfUYQ.jpg)
![V6rNr%gAT92xSyppk8SMIw.jpg](/proxy/?url=https://content.instructables.com/FO2/YBSY/KOIM6WOP/FO2YBSYKOIM6WOP.jpg&filename=V6rNr%gAT92xSyppk8SMIw.jpg)
1. Use the 26.5cm x 42cm cardboard and poke 10 holes, as a shape of heart.
2. Place each LED into the 10 holes.
3. Cover one side of the cardboard with sketch paper.
4. Draw a Carnation with water color, (pink, white and green), and write "Happy Mother's Day" on the sketch paper.

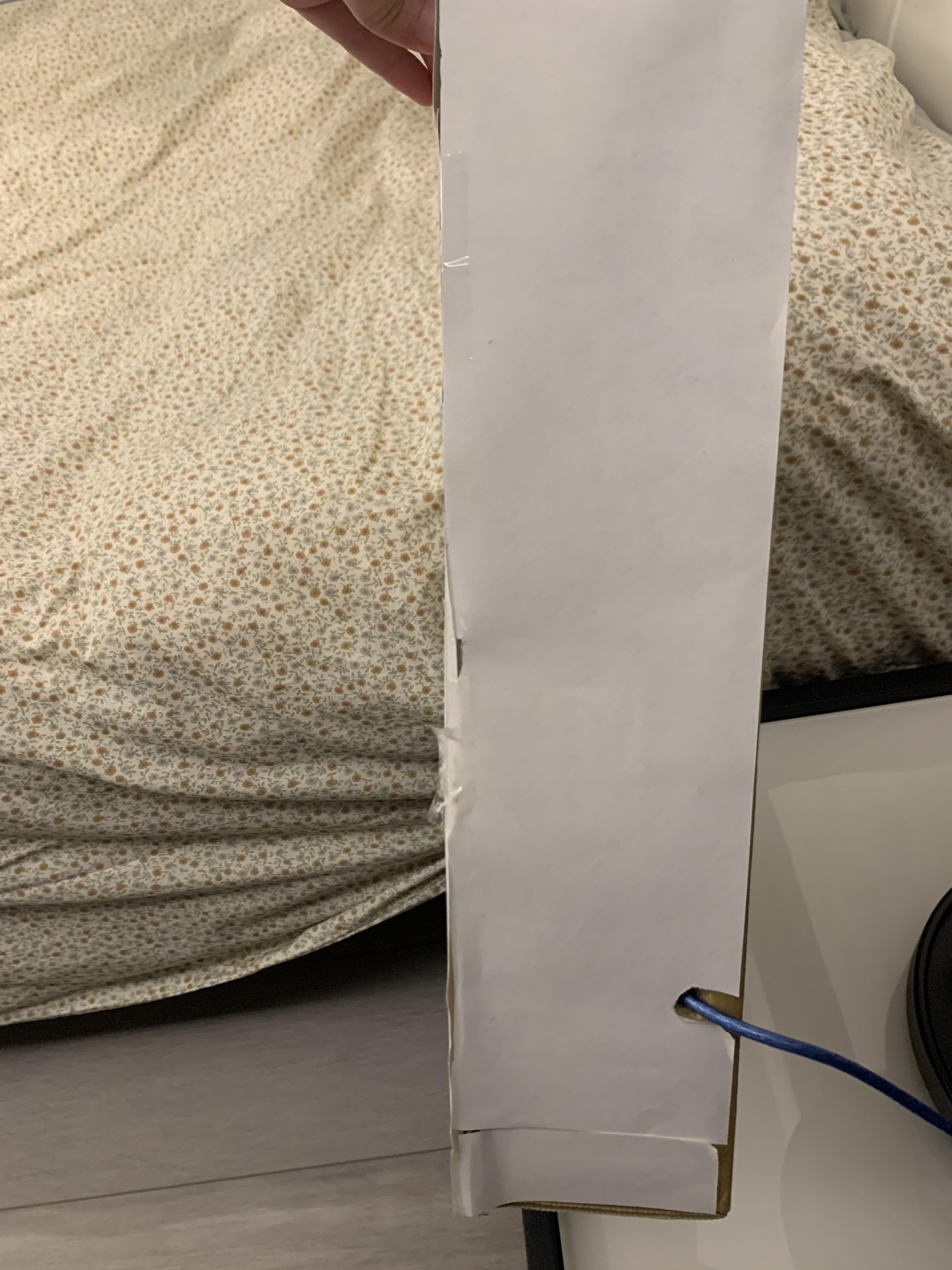

5. Poke a hole on the side of the cardboard box (26.5cm x 10cm x 42cm), for the USB cable to connect to electricity.
6. Cover the side of the cardboard box with sketch paper.
DONE WITH EVERYTHING!
This is a link for my video showing my art work!
