Arduino Lilypad Interactive Passion Sensing Scarf

Here is a list of the items you will need to complete this project. For the Lilypad items, I purchased everything from FunGizmos.com. You will need two of each to make two scarves.

Savings Tip: If you need to save money, you could have one of the scarves work just as an emitter only, which would only need the IR transmitter and a battery.

Electronic Components

1. Lilypad Arduino Board
2. Lilypad Tri-Color LED
3. Coin Cell Holder
4. 3V Coin Cell Battery 20mm
(or you can use any of the other power and battery boards for the Lilypad)
5. Conductive Thread
6. Lilypad Button Board (optional)
7. (x2) Infrared Emitter and Phototransistor Detector - available at RadioShack
8. Resistors 10Kohm and 56ohm
9. FTDI Basic breakout Board (used to program the Lilypad)

Scarf Components - For the fabric needs, I went to my local craft store.

1. I used two different colored fleece scarves
2. Two different fabric prints ( I had 1 yd of each)

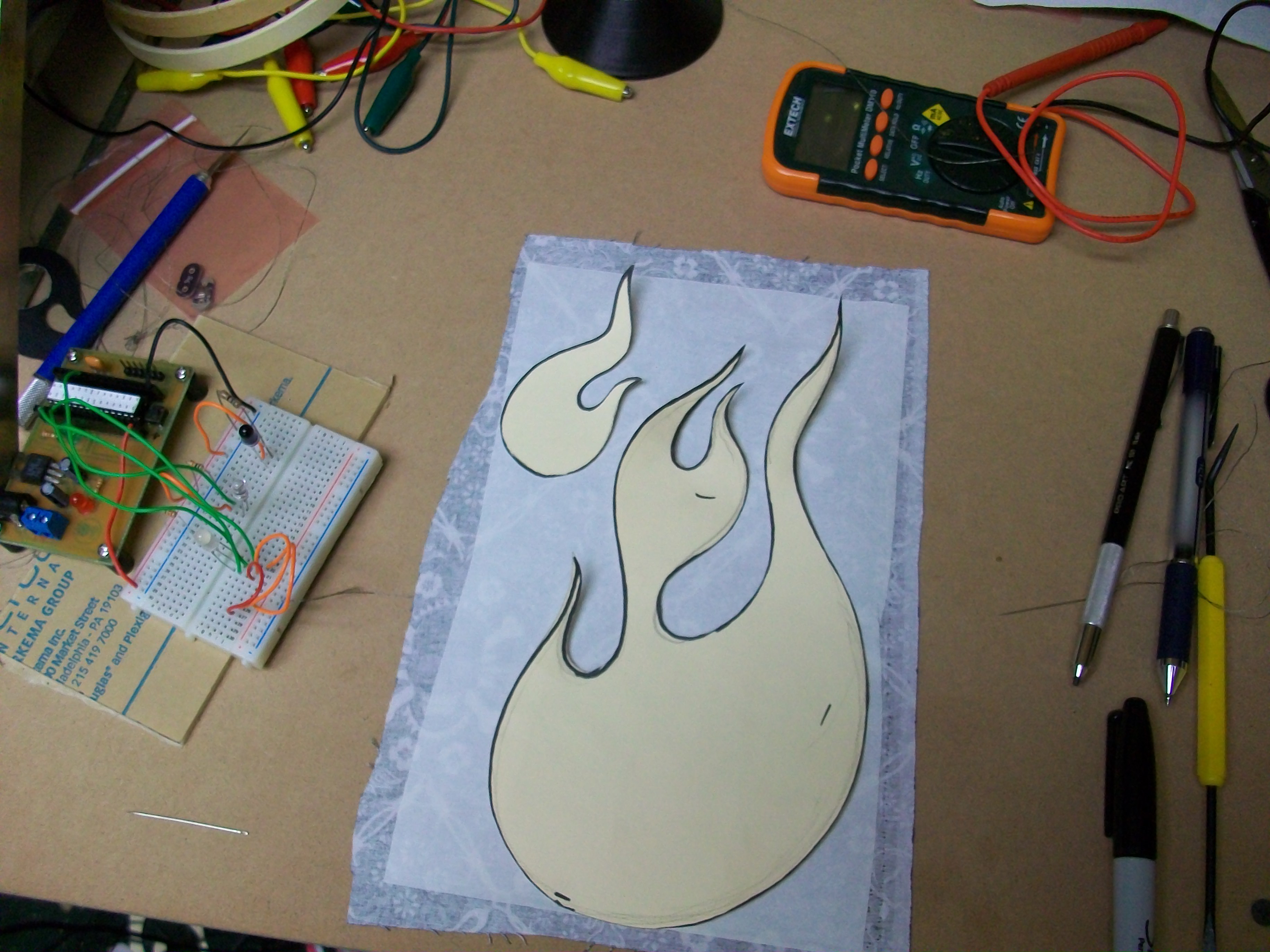

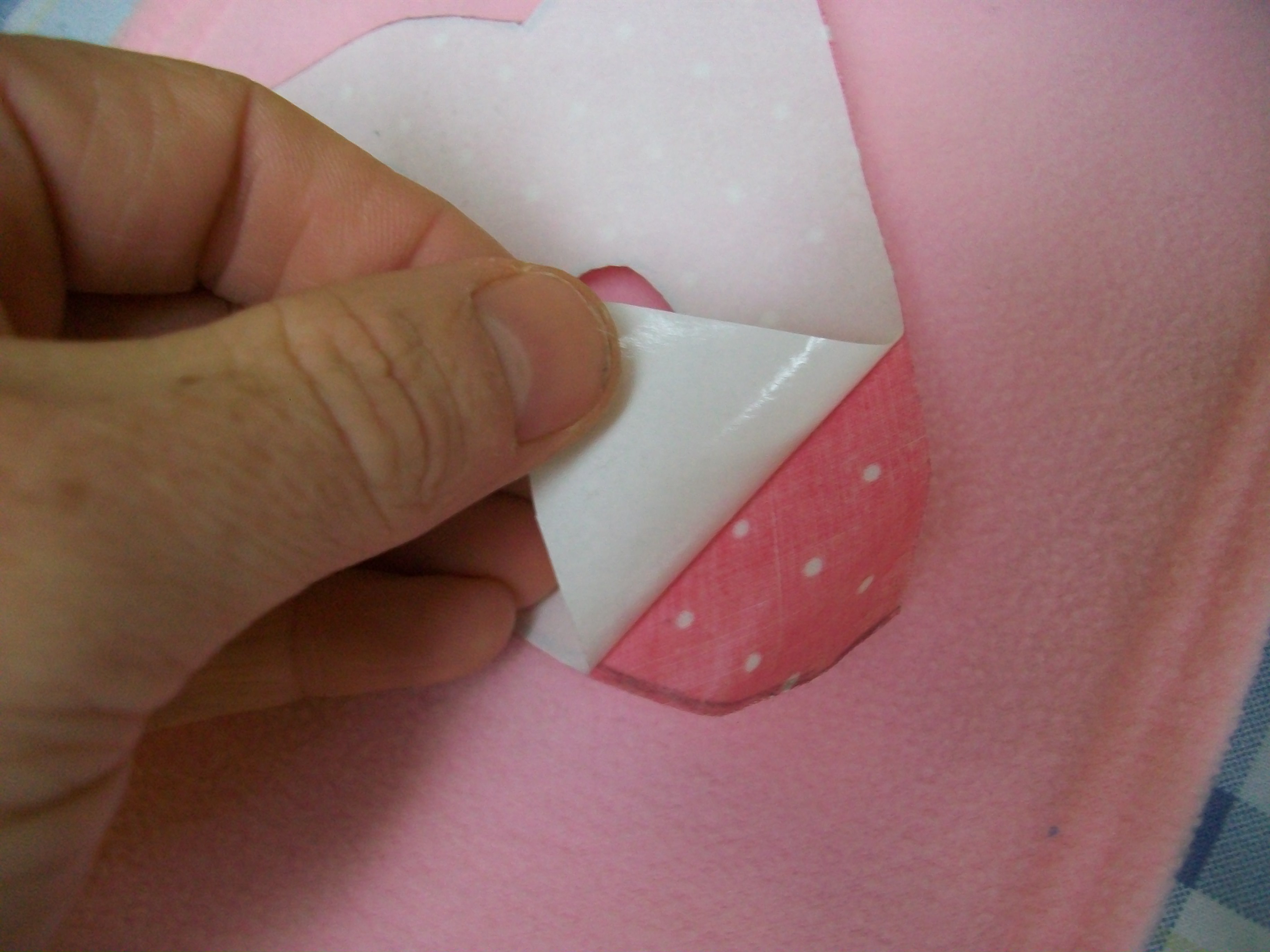

3. Heat'n Bond Ultra Hold Iron-On Adhesive
4. Fabric paint
5. Iron Patches (optional)




The IR Emitter is the one that is tinted in color, and the Phototransistor (detector) is the one with the clear package.

You will need to add some resistors to the emitter and detector. I used a 10Kohm resistor (brown, black, orange) on the detector and a 56ohm resistor (green, blue, black) for the emitter.

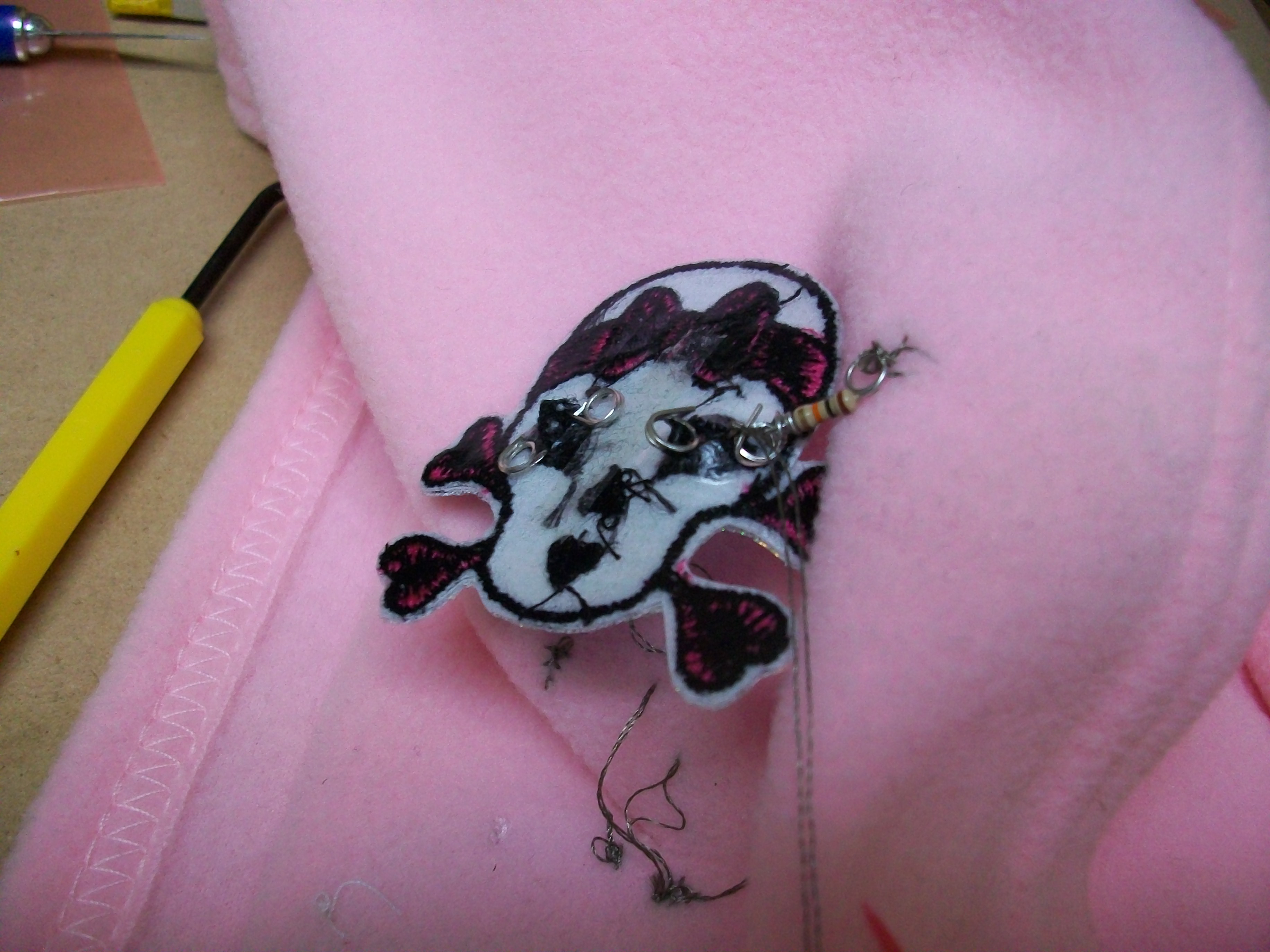

In order to hide the components since the emitter and detector will be on the front of the scarf, I used an iron-on patch. I curled the leads of each of the emitter and detector, then used an exacto knife and cut an "X" slit into each of the eyes. This allowed me to push the emitter and detector through the patch.

Hook-up: The emitter and detector each get hooked up from POWER to RESISTOR to LILYPAD PIN to IR LED to GROUND. Refer to the schematic on this step for better understanding. More information on pull up resistors by Make Online.

NOTE: Full schematic is at the end of this Instructable.

TIP: You wont be able to see the IR LED's light up. If you view them through your digital camera you will be able to. You will notice in my video that you can see the emitter is lighting up.

/*++
  Sheep -  Use a combination of RGB and IR LEDs and a photosensor to imitate
           crowd-reactive (emergent) behavior

  This code goes with the Fuse Factory Workshop "Make an Emergent Behavior Sculpture
  With The Arduino"

  http://thefusefactory.org/2009/09/03/make-an-emergent-behavior-sculpture-with-the-arduino/

  The scultpture, or "sheep", is an artistic assemblage of a Lilypad Pro kit (Lilypad
  base attached to a Lilipad 5V power unit) with a tri-color LED mounted over the 328V
  MCU on the Lilypad board.  A Large Lilypad Protoboard sits between the PSU and the
  Lilypad itself to route power and to hold resistors and the IR components.  The illusion
  of a quadraped is completed by 1W and 2W LEDs soldered to the PSU "body" and bent as legs.

  The code depends on a persistent variable called "mood" - when it is zero or near zero,
  the sheep is "happy".  Below zero and the sheep is "lonely"; above zero and the sheep
  feels crowded or agitated.  Loneliness is represented by blue, happiness by green, and
  agitation by red.  In between expressing "mood" (using PWM to shade the RGB LED), the
  main part of the code checks for IR pulses from other sheep and may emit its own pulses
  to "call out" to other sheep.  By tweaking internal variables, the sheep can be more or
  less sensitive to the calls of other sheep.  The emergent behavior comes out when
  multiple sheep are assembled and placed on a table, calling out to each other.  The
  flurry of IR pulses can induce the sheep to be happy or perhaps agitated.  Few pulses
  and the sheep exhibits loneliness.

  Sheep.pde - turn an Arduino into an emergent behavior sculpture

    Copyright (C) 2009, Ethan Dicks

    This program is free software: you can redistribute it and/or modify
    it under the terms of the GNU General Public License as published by
    the Free Software Foundation, either version 3 of the License, or
    (at your option) any later version.

    This program is distributed in the hope that it will be useful,
    but WITHOUT ANY WARRANTY; without even the implied warranty of
    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
    GNU General Public License for more details.

    You should have received a copy of the GNU General Public License
    along with this program.  If not, see .


--*/

/*++

  Variable initialization - before the code start, put all of the user-adjustable
                            parameters at the top so they are easy to tweak.

--*/
// Definitions of "mood" values
#define MOODMAX 80
#define MOODMIN (-1 * MOODMAX)

#define LONELY (MOODMIN)
#define HAPPY (0)
#define CROWDED (MOODMAX)
#define MSTEPS 5

#define BLEAT_VOLUME 1

// Global definitions of pin assigments (to simplify individual function calls)
int statusPin = 13; 	// onboard status LED is connected to digital pin 13
int redPin    = 11; 	// R petal on RGB LED module connected to digital pin 11
int greenPin  =  9; 	// G petal on RGB LED module connected to digital pin 9
int bluePin   = 10; 	// B petal on RGB LED module connected to digital pin 10
int sensorPin =  5;     // IR phototransistor connected to digital pin 5
int irPin     =  6;     // IR LED connected to digital pin 6

// Start off expecting to be happy
int mood = HAPPY;

// Keep track of the sense of the input pin
int eye = 0;

// And remember how "loud" we are "bleating" (flashing our IR LED)
int bleat = BLEAT_VOLUME;

/*++

  setup() - The Arduino environment will call the code in setup() one time
            only, right after the board is reset.

  Put code in this function to initialize I/O pins and such - things that
  only need to be done once during a run.

--*/
void setup()
{

  // for debugging
  Serial.begin(9600);
  Serial.println("Sheep v0.02");

  // Mostly, our I/O pins are outputs to LEDs
  pinMode(statusPin, OUTPUT); 	// sets the statusPin to be an output

  pinMode(redPin, OUTPUT); 	// sets the redPin to be an output
  pinMode(greenPin, OUTPUT); 	// sets the greenPin to be an output
  pinMode(bluePin, OUTPUT); 	// sets the bluePin to be an output

  pinMode(irPin, OUTPUT); 	// sets the irPin to be an output

  // One exception is the IR phototransistor
  pinMode(sensorPin, INPUT); 	// sets the sensorPin to be an input

  Serial.print("Setting IR 'bleat' to ");
  Serial.println(bleat);

  analogWrite(irPin, bleat);

}

/*++

  loop() - the Arduino environment will call the code in this loop forever.

  Put interesting things in here that are meant to run endlessly after setup()
  is called once.

  The only way out of this loop is to reset the board.

--*/
void loop() 	// run over and over again
{
  // Set our RGB LED to reflect our "mood", which will hopefully change from time to time
  set_mood(mood);

  // Slow down how fast we react to other 'sheep'
  delay(100); 	// delay for .1 second

  // sensorPin has a 10K pullup resistor, so *no* light reports a 1.  We need to
  // invert the logical sense of the pin if we want to think of the light logically
  // as 1-is-on/0-is-off
  eye = 1 - digitalRead(sensorPin);    // set eye to 1 if we "see" any IR light

  // Report our present status everytime through the loop
  Serial.print("Mood is ");
  Serial.print(mood);
  Serial.print(".  Sensor is ");
  Serial.println(eye);

  // If we see pulses from another 'sheep', increment the mood, but not past MOODMAX
  if (eye) {
    // since humans cannot "see" infrared light, use the status LED as a visible indicator
    digitalWrite(statusPin, HIGH);  // echo IR input detection on the status LED
    mood += MSTEPS * 2;
    if (mood >MOODMAX) {
      mood = MOODMAX;
    }
  }
  // If we don't see any IR pulses, decrement the mood, but not below MOODMIN
  else {
    // since humans cannot "see" infrared light, use the status LED as a visible indicator
    digitalWrite(statusPin, LOW);  // echo IR input detection on the status LED
    mood -= 1;
    if (mood < MOODMIN) {
      mood = MOODMIN;
    }
  }
}

/*++
  set_mood - convert "mood" to a color scheme

  Mood varies from some negative number to that same value as a positive number
  (so far, -80/+80 and -100/+100 produce reasonable results).

  Proportionally, the continuum of mood to color mapping resembles the following:

                    Mood
  -100                0                +100

  Lonely     ->     Happy      ->     Crowded

R   0        0        0        30       100
G   0        30      100       70        0
B  100       70       0         0        0

--*/
void set_mood (int mood)
{
  // Start out with each color being off - adjust upwards based on "mood"
  unsigned char redness   = 0;
  unsigned char greenness = 0;
  unsigned char blueness  = 0;

#ifdef DEBUG
  Serial.print("Mood is ");
  Serial.println(mood);
#endif

  // blueness is all about mood being less then happy
  if (mood < HAPPY) {
      blueness  = abs(mood);
      greenness = MOODMAX + mood;
  }
  // redness is all about mood being more than happy
  else if (mood > HAPPY) {
      redness   = mood;
      greenness = MOODMAX - mood;
  }
  // greenness is about mood being around happy
  else {
      greenness = MOODMAX;
  }

  // Set the LED to reflect our present mood
  color(redness, greenness, blueness);

}

/*++

  color(r, g, b) - set the tri-color LED to the requested color value

  Uses analogWrite(pin, value) to set PWM value for each individual LED color

  The Tri-color LED is a common-anode device, so to make light, we ground the
  desired pin.  To invert the PWM waveform, we subtract our desired intensity
  from 255, so that, for example, if we want red off, logically, we pass around
  a value of zero, but set the PWM value to 255 so that the pin is driven high
  100% of the time.  To get red to the maximum brightness, we pass around a
  logical value of 255, but set the PWM value to 0, pulling that pin low 100%
  of the time.

--*/
void color (unsigned char red, unsigned char green, unsigned char blue)     // the color generating function
{
#ifdef DEBUG
  Serial.print("color(");
  Serial.print(red,HEX);
  Serial.print(blue,HEX);
  Serial.print(green,HEX);
  Serial.println(")");
#endif

  // invert the sense of the PWM value when calling analogWrite() for each color
  analogWrite(redPin, 255-red);
  analogWrite(bluePin, 255-blue);
  analogWrite(greenPin, 255-green);

}
