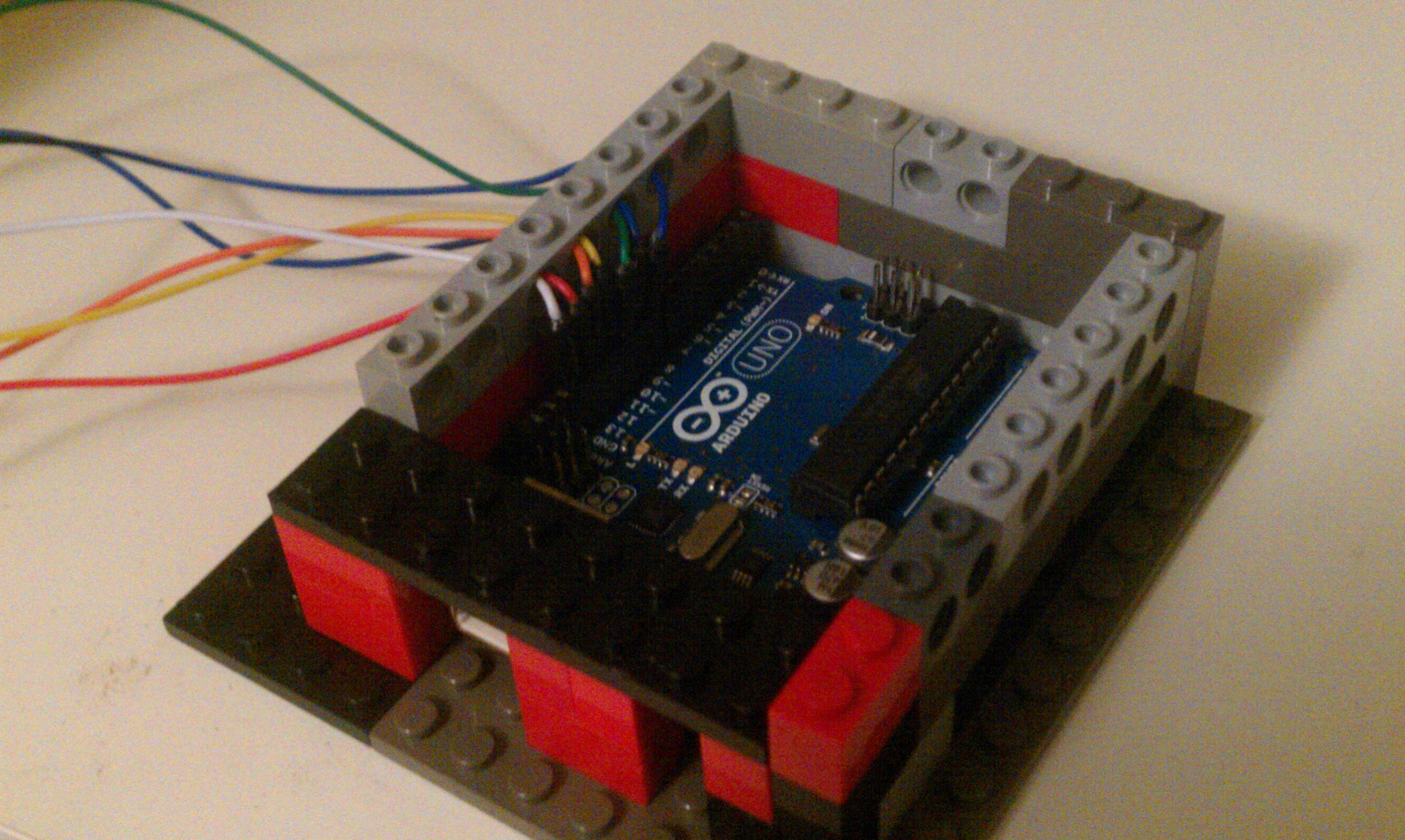

Arduino Lego Case.
Hello Instructables community ,this is my first project.I hope you understand the guide,its very simple and pratical.Any problem or doubt give feedback in comments.
What You Will Need.
Here you will find a list of parts needed for the project.
-Lego:
1x Plate 4x8
1x Plate 4x12
1x Plate 8x8
1x Brick 1x1 #3005
1x Brick 1 hole 1x2
1x Brick 1x4
2x Plate 1x12( not in photo)
2x Brick Corner 1x2x2
2x Brick 5 Holes 1x6
2x Brick 1x6
3x Brick 2 Holes 1x2
3x Brick 1x8
4x Brick 1x3
8x Brick 1x2
-Arduino:
Arduino Uno or Duemilanove.
Jumpers
Usb cable a to b( the one you use to program)
9V Battery Adapter( http://playground.arduino.cc/Learning/9VBatteryAdapter).
-Lego:
1x Plate 4x8
1x Plate 4x12
1x Plate 8x8
1x Brick 1x1 #3005
1x Brick 1 hole 1x2
1x Brick 1x4
2x Plate 1x12( not in photo)
2x Brick Corner 1x2x2
2x Brick 5 Holes 1x6
2x Brick 1x6
3x Brick 2 Holes 1x2
3x Brick 1x8
4x Brick 1x3
8x Brick 1x2
-Arduino:
Arduino Uno or Duemilanove.
Jumpers
Usb cable a to b( the one you use to program)
9V Battery Adapter( http://playground.arduino.cc/Learning/9VBatteryAdapter).
The Base
Use the lego plates.Just follow the images its very simple.
The First Layer
2nd Part
Final Step
In this stepp add the 9v adapter and Jumpers

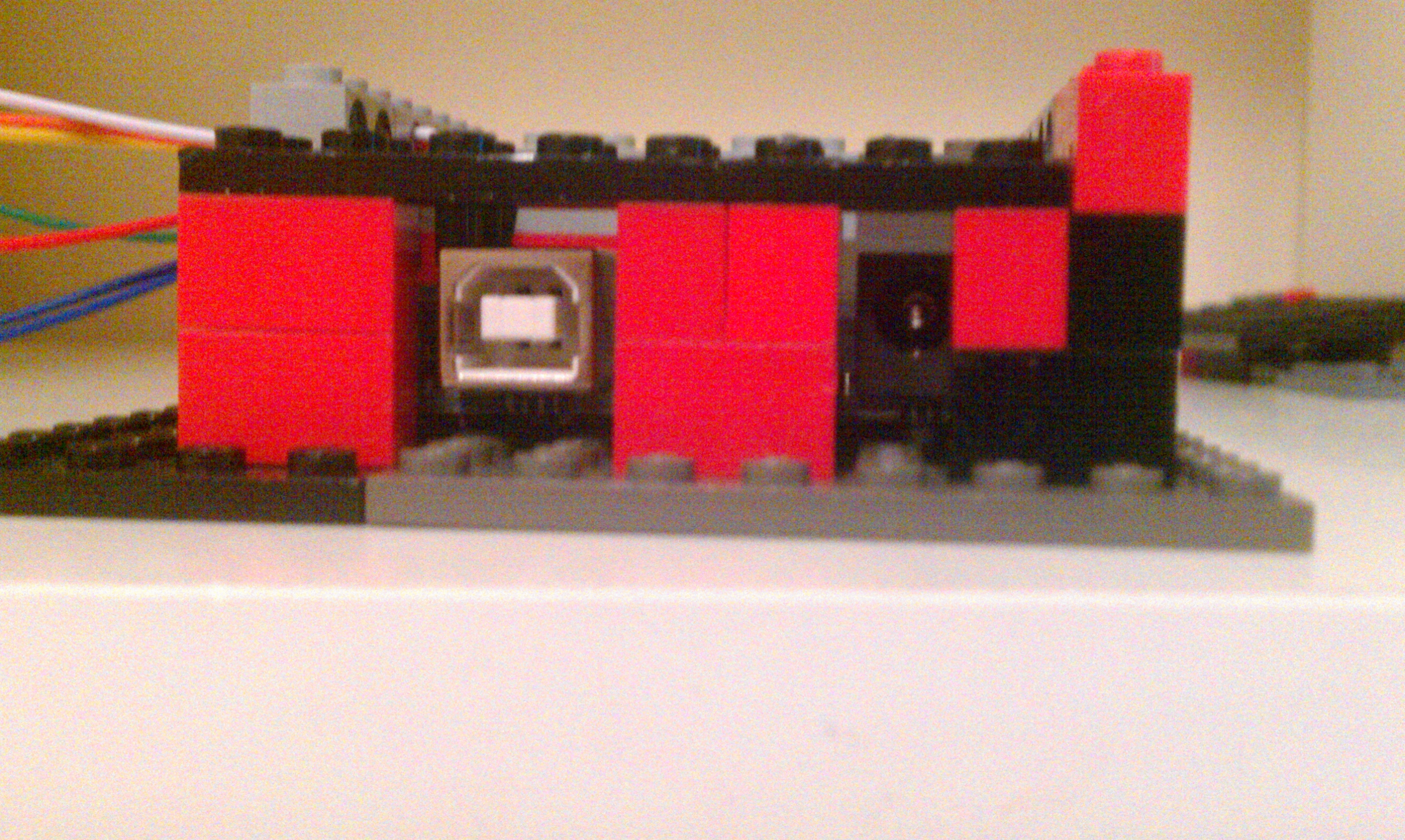

Just a Little Test.
The main cause of this project is the cables organization.I hope you liked.Any question or doubts ,just comment :)
