Arduino Led Matrix Connection With Utsource

An LED matrix or LED display is a large, low-resolution form of dot-matrix display,
useful both for industrial and commercial information displays as well as for hobbyist human–machine interfaces. It consists of a 2-D diode matrix with their cathodes joined in rows and their anodes joined in columns (or vice versa). By controlling the flow of electricity through each row and column pair it is possible to control each LED individually .

* ARDUINO UNO

* 8*8 LED MATRIX

* FEMALE - MALE JUMPERS

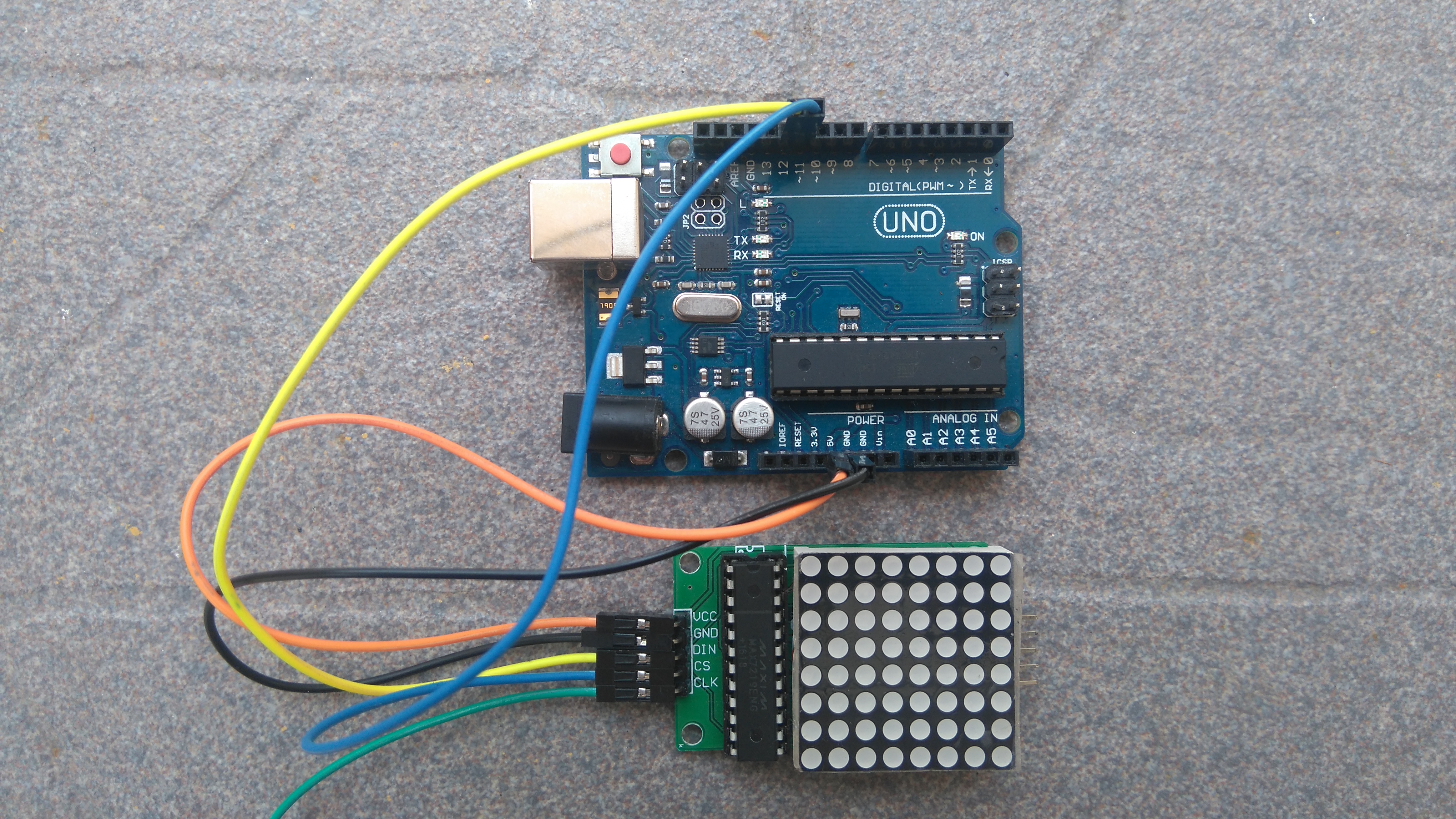

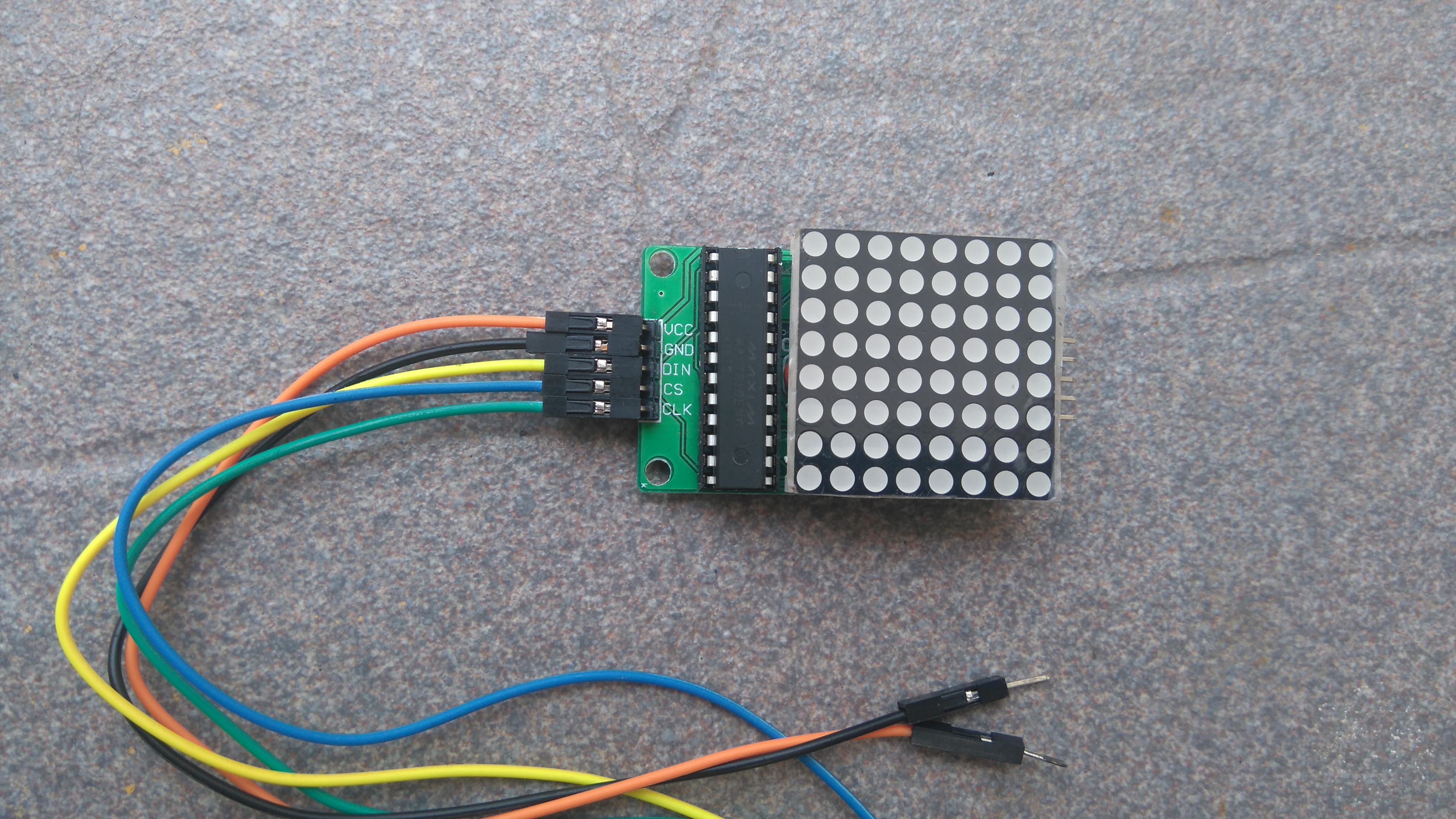

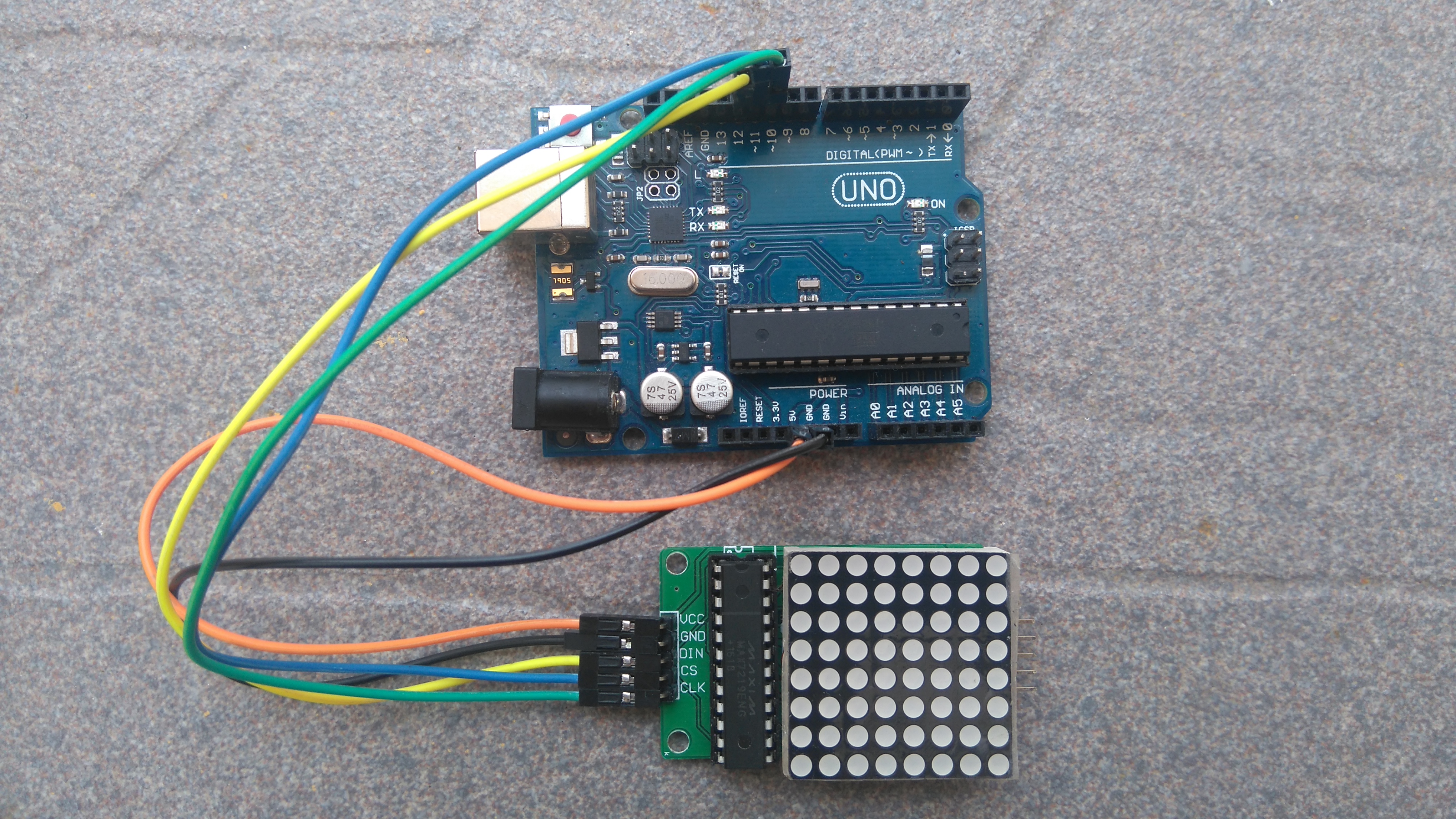

Connect The Jumpers To The Led Matrix ..

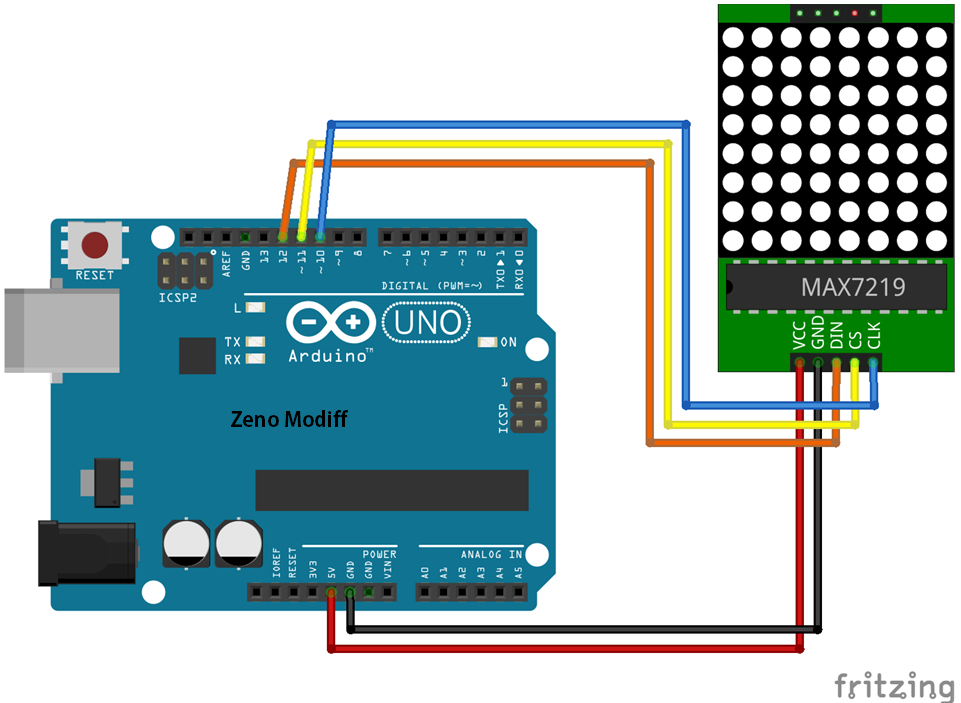

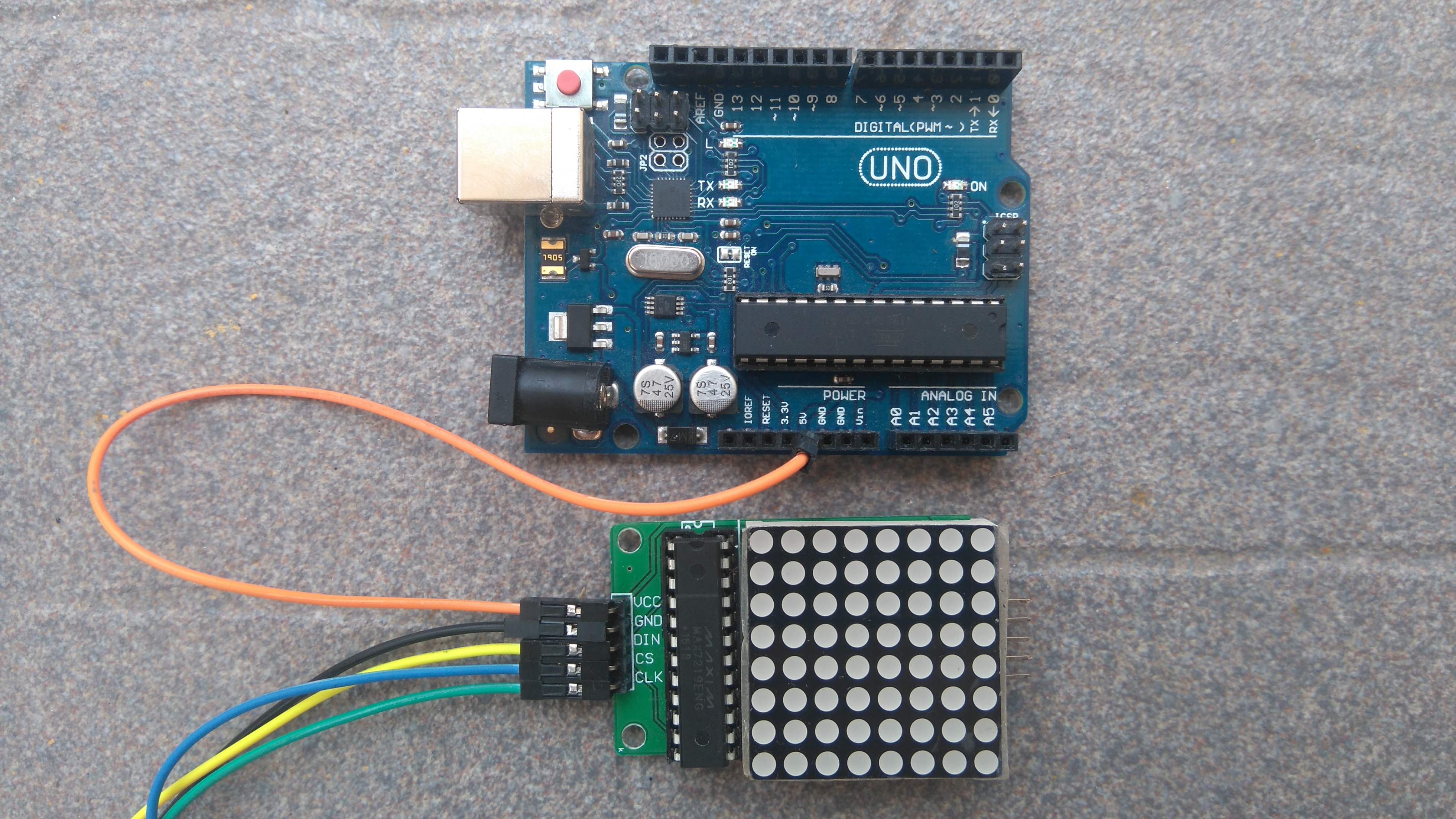

Connect Led Matrix VCC To Arduino 5V Pin ..

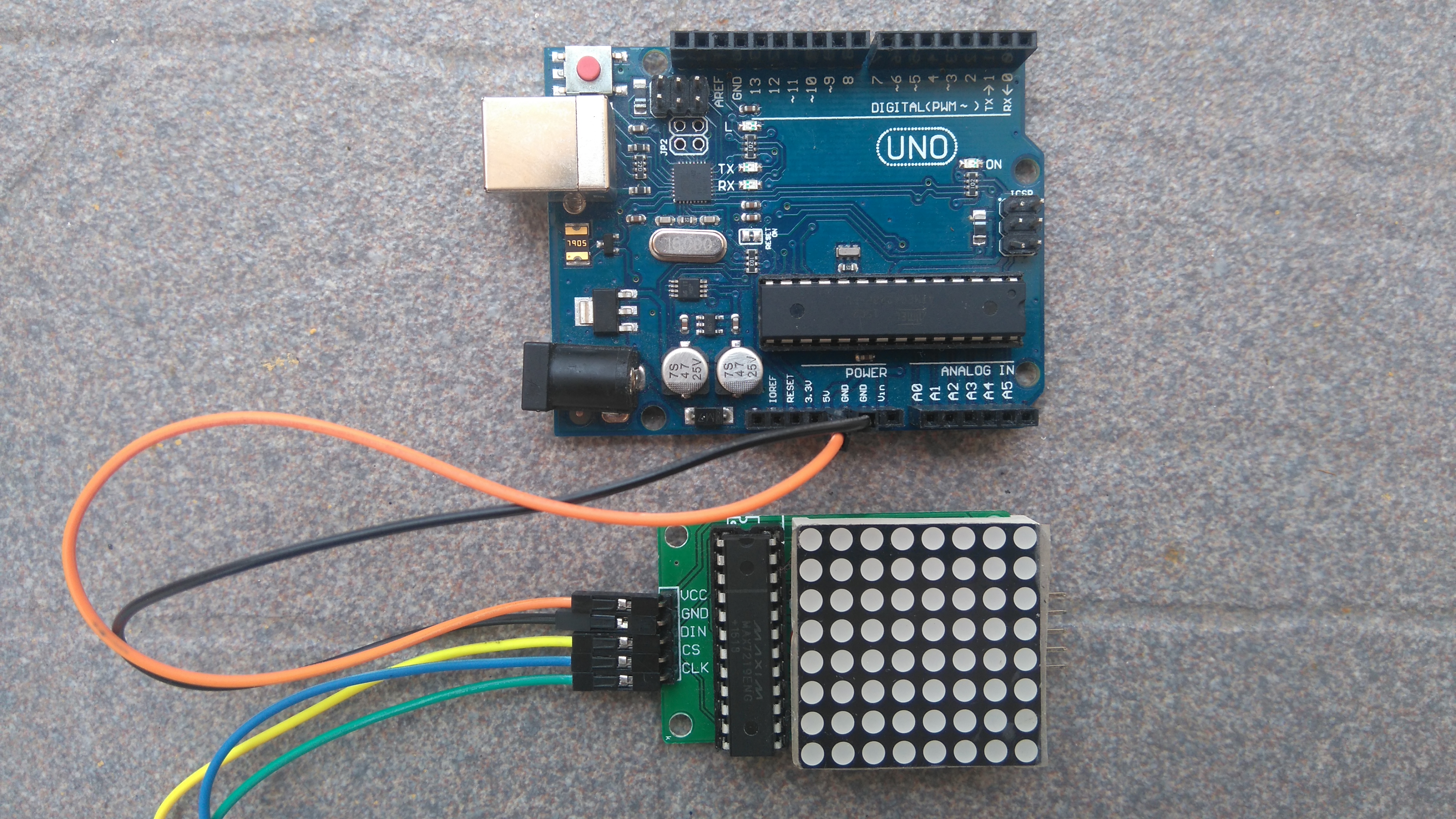

Connect Led Matrix GND To Arduino GND Pin ...

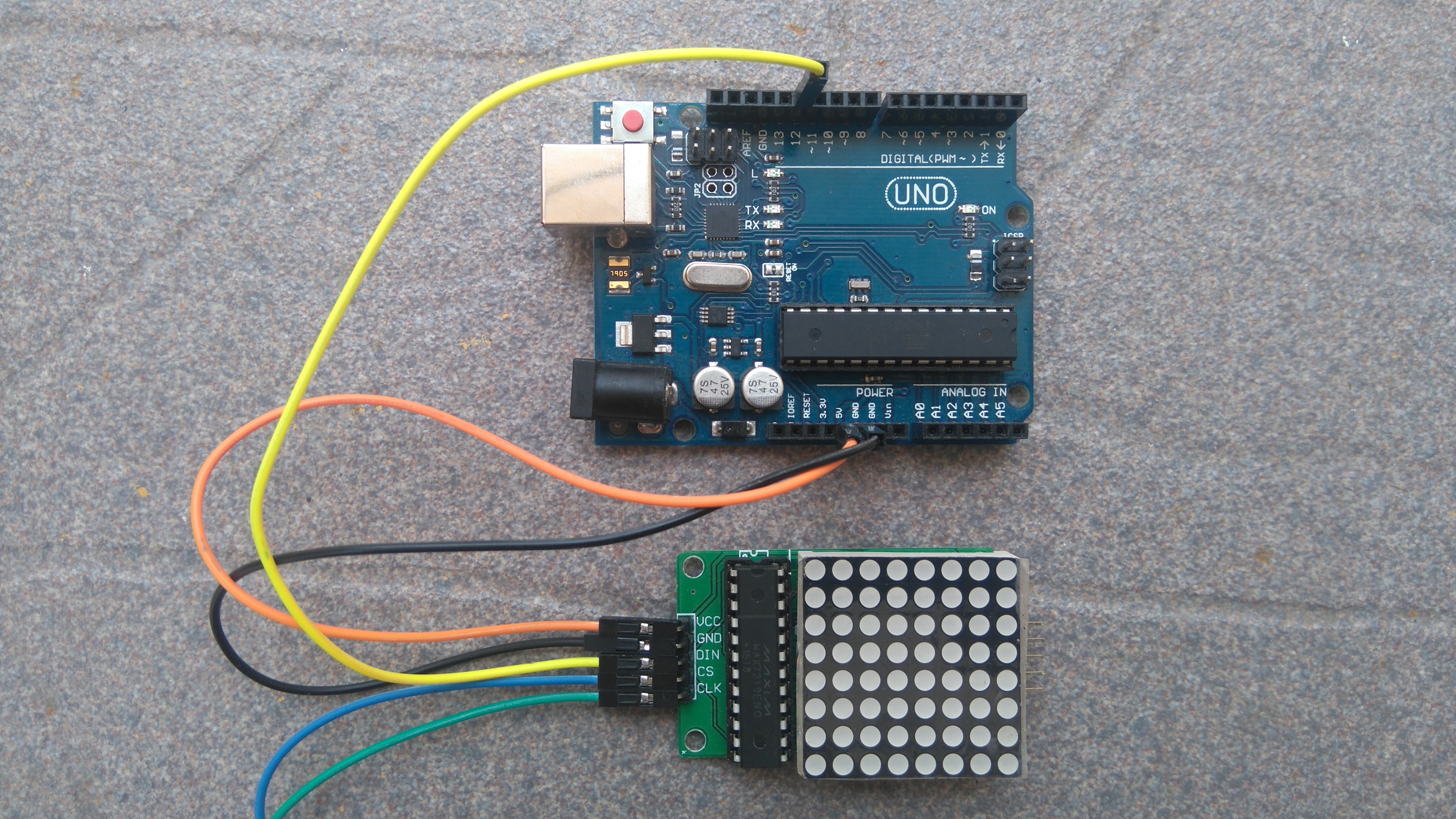

Connect Led Matrix DIN To Arduino 12 Pin ...

Connect Led Matrix CS To Arduino 11 Pin ...

Connect Led Matrix CLK To Arduino 10 Pin ...

Arduino Main Software :-- https://www.arduino.cc/en/Main/Software

--------------------------------------

Code :-- http://www.mediafire.com/file/23n440p13tat3th/LCD...

----------------

Library :-- https://github.com/wayoda/LedControl

-------------------

Buy from Utsource

------------------------

Arduino Uno :-- https://in.utsource.net/itm/p/8647184.html

Led Matrix 8*8 :-- https://in.utsource.net/itm/p/9221528.html

Male - Female Jumpers :-- https://in.utsource.net/itm/p/9221306.html
