Arduino Led Dice

This instructable will show you how to create a dice using Arduino and few components. It's an easy and fun project, suitable for beginners and those who want to start with Arduino; it also requires a minimal amount of components.
This explaines how to create it in the breadboard, how to solder it and how to make some changes.

What Is Arduino?

Arduino is a tool for making computers that can sense and control more of the physical world than your desktop computer. It's an open-source physical computing platform based on a simple microcontroller board, and a development environment for writing software for the board.

Arduino can be used to develop interactive objects, taking inputs from a variety of switches or sensors, and controlling a variety of lights, motors, and other physical outputs. Arduino projects can be stand-alone, or they can be communicate with software running on your computer (e.g. Flash, Processing, MaxMSP.) The boards can be assembled by hand or purchased preassembled; the open-source IDE can be downloaded for free.

The Arduino programming language is an implementation of Wiring, a similar physical computing platform, which is based on the Processing multimedia programming environment.

Why Arduino?

There are many other microcontrollers and microcontroller platforms available for physical computing. Parallax Basic Stamp, Netmedia's BX-24, Phidgets, MIT's Handyboard, and many others offer similar functionality. All of these tools take the messy details of microcontroller programming and wrap it up in an easy-to-use package. Arduino also simplifies the process of working with microcontrollers, but it offers some advantage for teachers, students, and interested amateurs over other systems:

Inexpensive - Arduino boards are relatively inexpensive compared to other microcontroller platforms. The least expensive version of the Arduino module can be assembled by hand, and even the pre-assembled Arduino modules cost less than $50
Cross-platform - The Arduino software runs on Windows, Macintosh OSX, and Linux operating systems. Most microcontroller systems are limited to Windows.
Simple, clear programming environment - The Arduino programming environment is easy-to-use for beginners, yet flexible enough for advanced users to take advantage of as well. For teachers, it's conveniently based on the Processing programming environment, so students learning to program in that environment will be familiar with the look and feel of Arduino
Open source and extensible software- The Arduino software and is published as open source tools, available for extension by experienced programmers. The language can be expanded through C++ libraries, and people wanting to understand the technical details can make the leap from Arduino to the AVR C programming language on which it's based. SImilarly, you can add AVR-C code directly into your Arduino programs if you want to.
Open source and extensible hardware - The Arduino is based on Atmel's ATMEGA8 and ATMEGA168 microcontrollers. The plans for the modules are published under a Creative Commons license, so experienced circuit designers can make their own version of the module, extending it and improving it. Even relatively inexperienced users can build the breadboard version of the module in order to understand how it works and save money.

How do I use Arduino?

Step-by-step instructions for setting up the Arduino software and connecting it to an Arduino Duemilanove:

(All this part was taken from the official website of Arduino)

Parts & Tools

This is what you need for this simple project:

Parts:

Arduino
7x Leds of any kind (I use 5mm Red Leds)
A 10k Resistor (brown black orange)
7x 220 or 330 Resistor (red red brown or orange orange brown)
A little Push Button
Breadboard
Some wires for the breadboard

Tools:

The arduino programmer (you can download it from the official site of Arduino)
Usb Cable A-B
Soldering Iron (If you want solder the project)
A ProtoBoard (f you want solder the project)
Solder Spool (If you want solder the project)
Third Hand (optional, but useful if you want solder the project)

Schematic & Intro

To create all the six faces of a dice, you need 7 LEDs, placed in the shape of an "H".

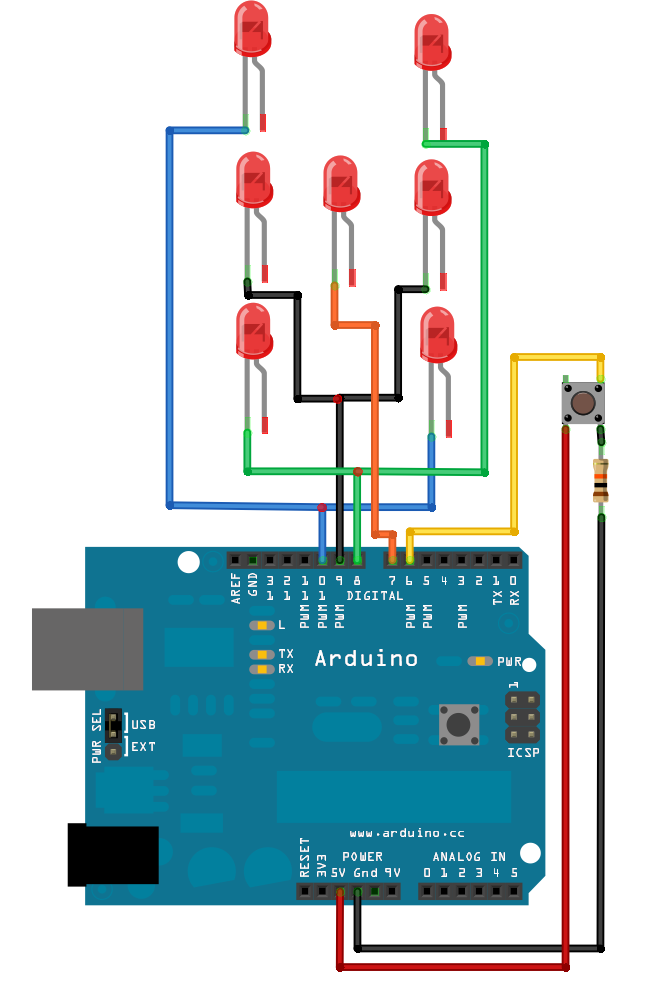

As you can see from the diagram, they're not all linked to different pins of Arduino, but most are connected in pairs, to facilitate the use.
To create all the faces of the dice, you must follow these rules:

For the number 1 of the dice: lights up the led 4
For the number 2 of the dice: lights up the group 1
For the number 3 of the dice: lights up the groups 3 and 4
For the number 4 of the dice: lights up the groups 1 and 3
For the number 5 of the dice: lights up the groups 1, 3 and 4
For the number 6 of the dice: lights up the groups 1, 2 and 3

If you want to see the schematic with more detail, click here:

https://www.instructables.com/files/orig/F5L/A4E0/G1BB7YY2/F5LA4E0G1BB7YY2.jpg

Place the Components on the Breadboard

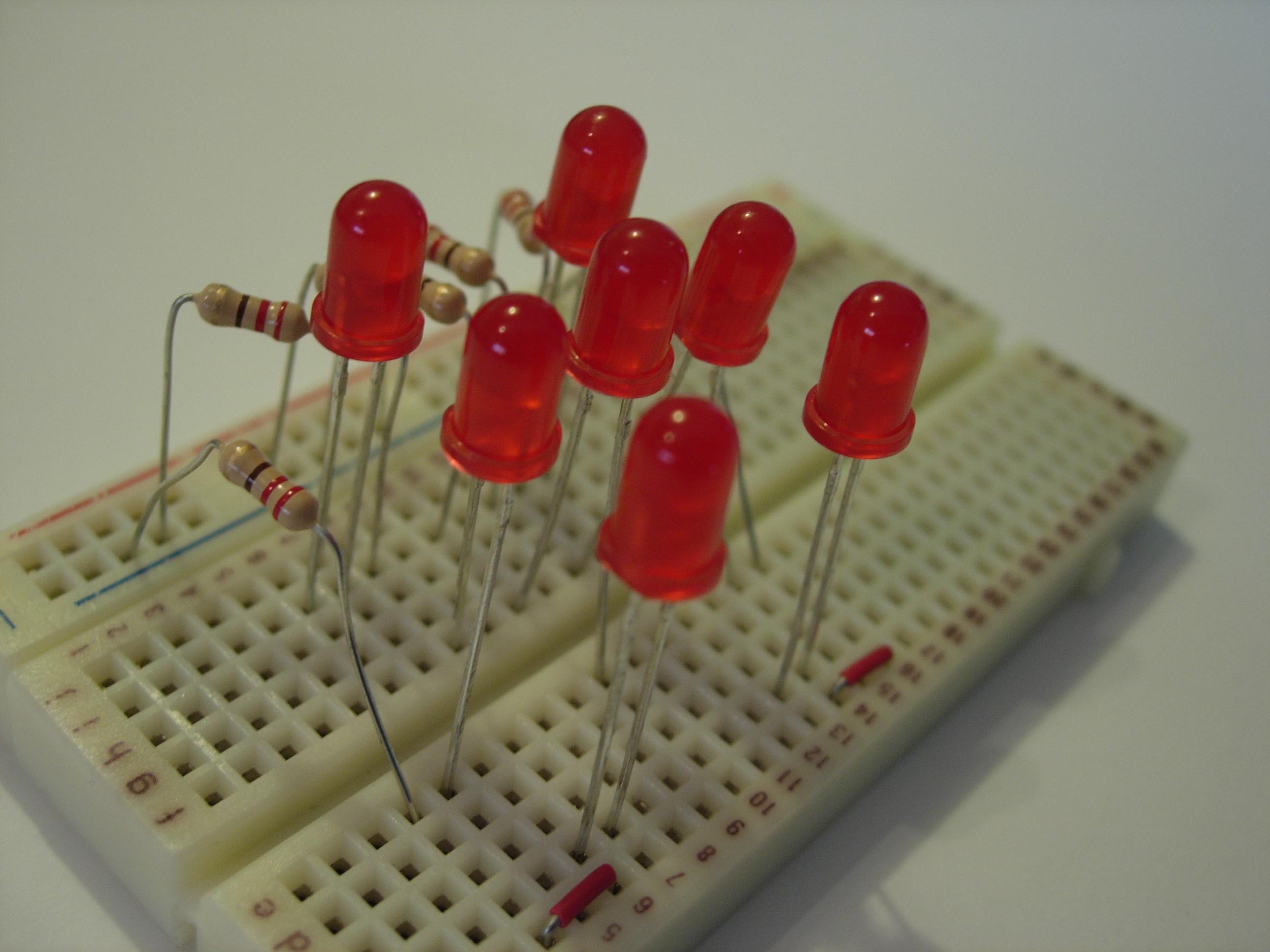

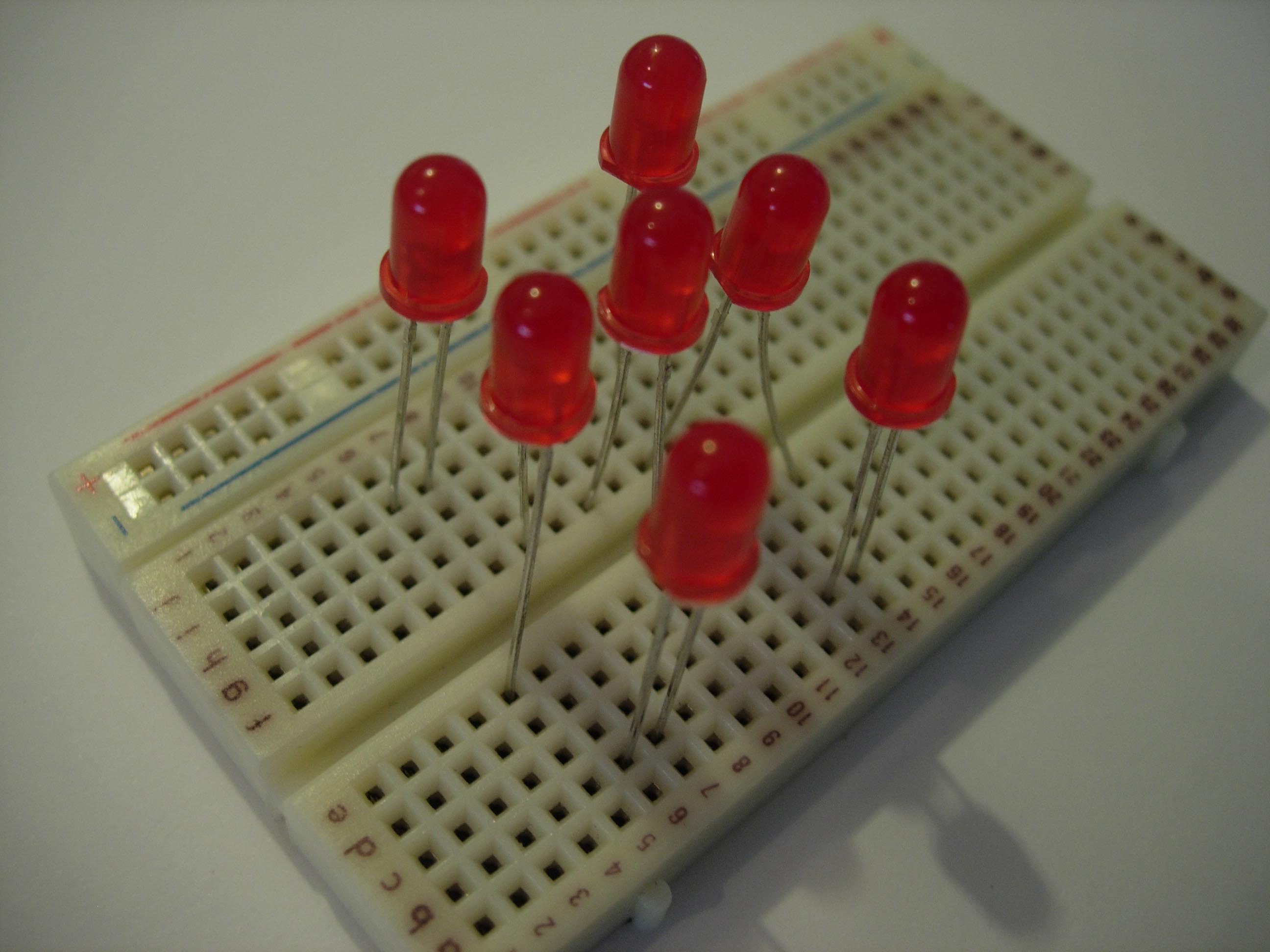

First, place the Leds in the shape of an "H". It may be a little difficult to find the right configuration without superimpose the leds, but in the pictures there is a scheme to facilitate this part.
After that, connect all the cathodes of the Leds to ground with 220 or 330 ohm resistors (red red brown or orange orange brown)

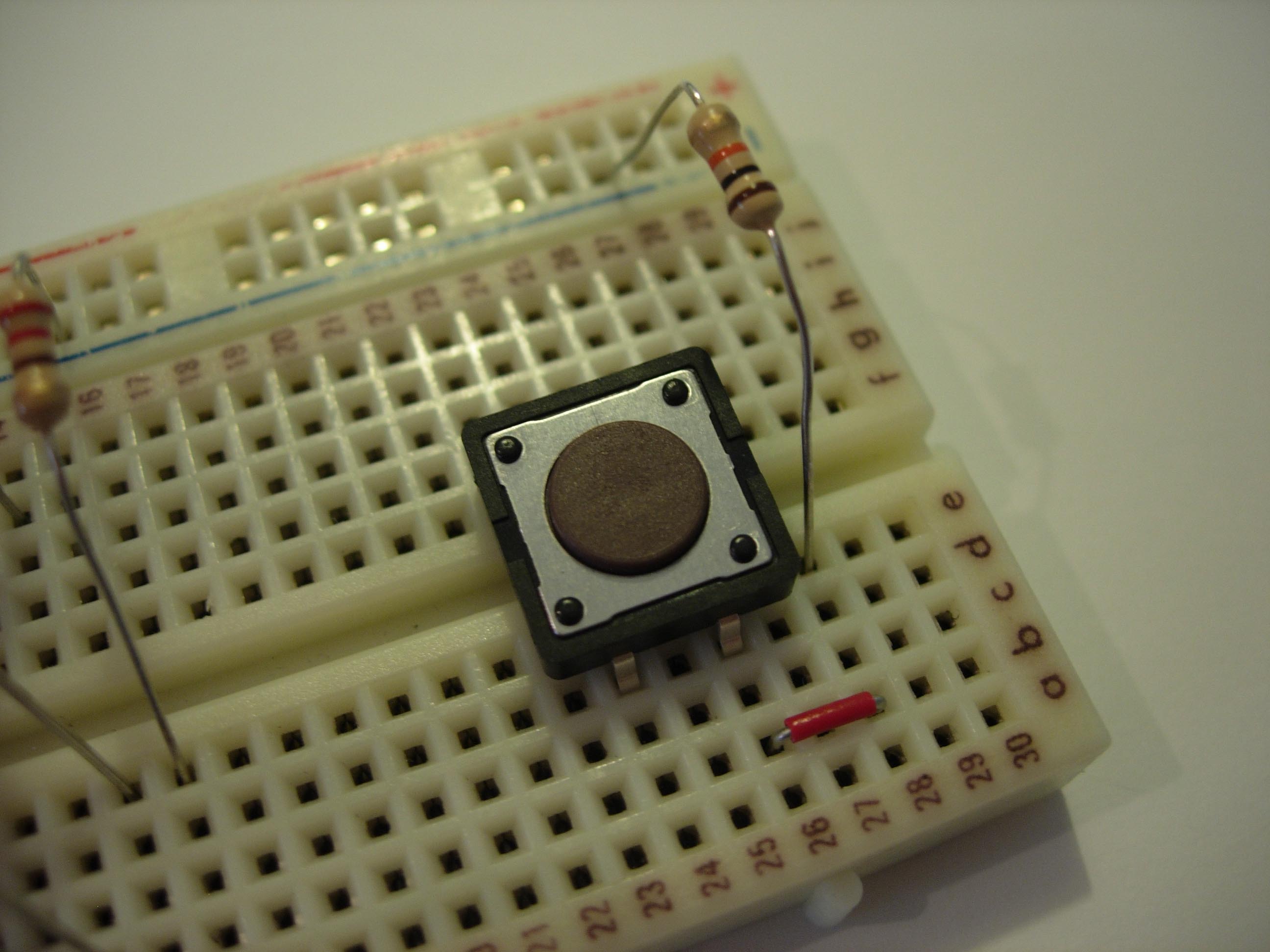

Then, put the pushbutton on the breadboard and connect it to ground with 10k ohm resistance.

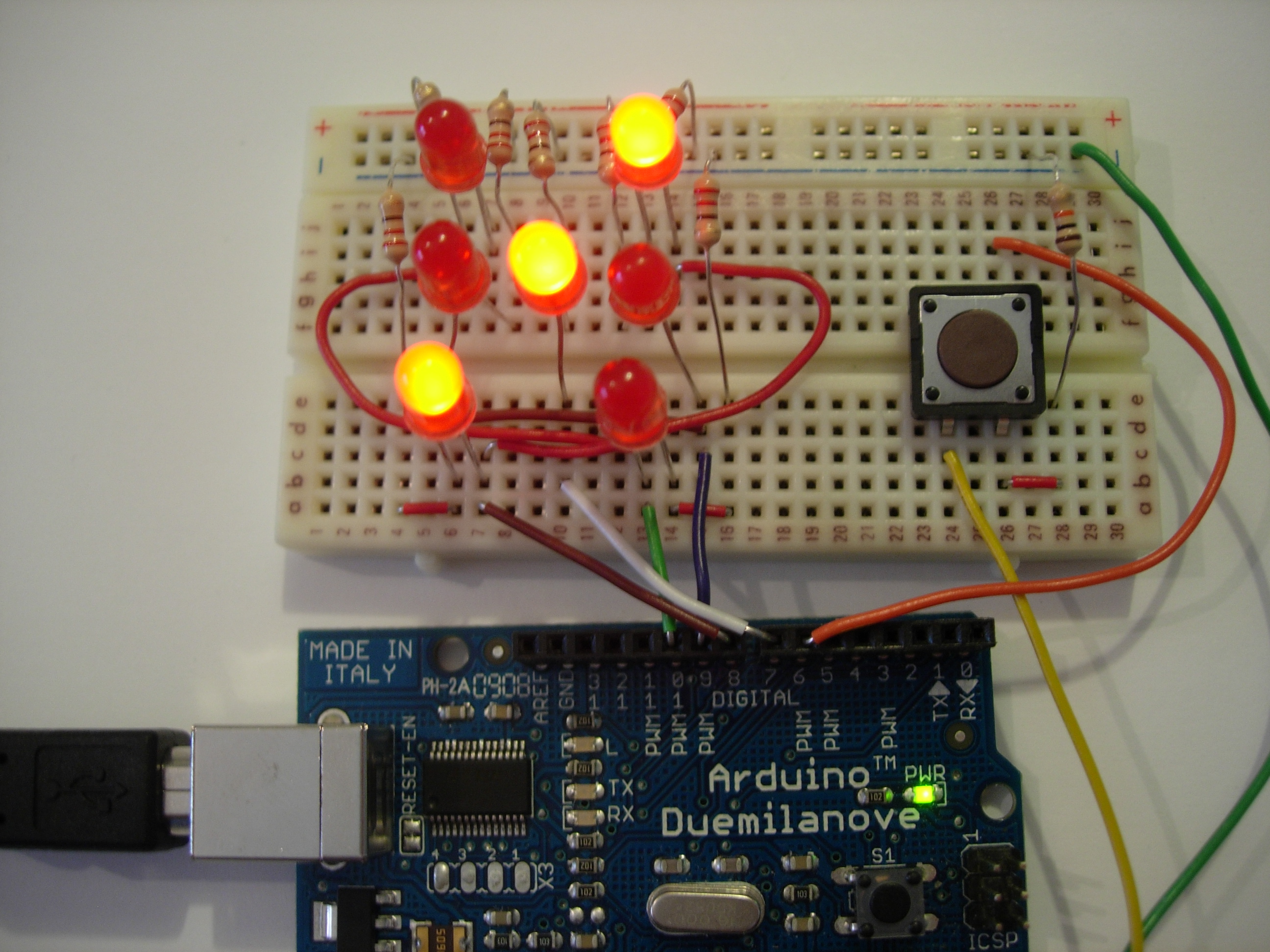

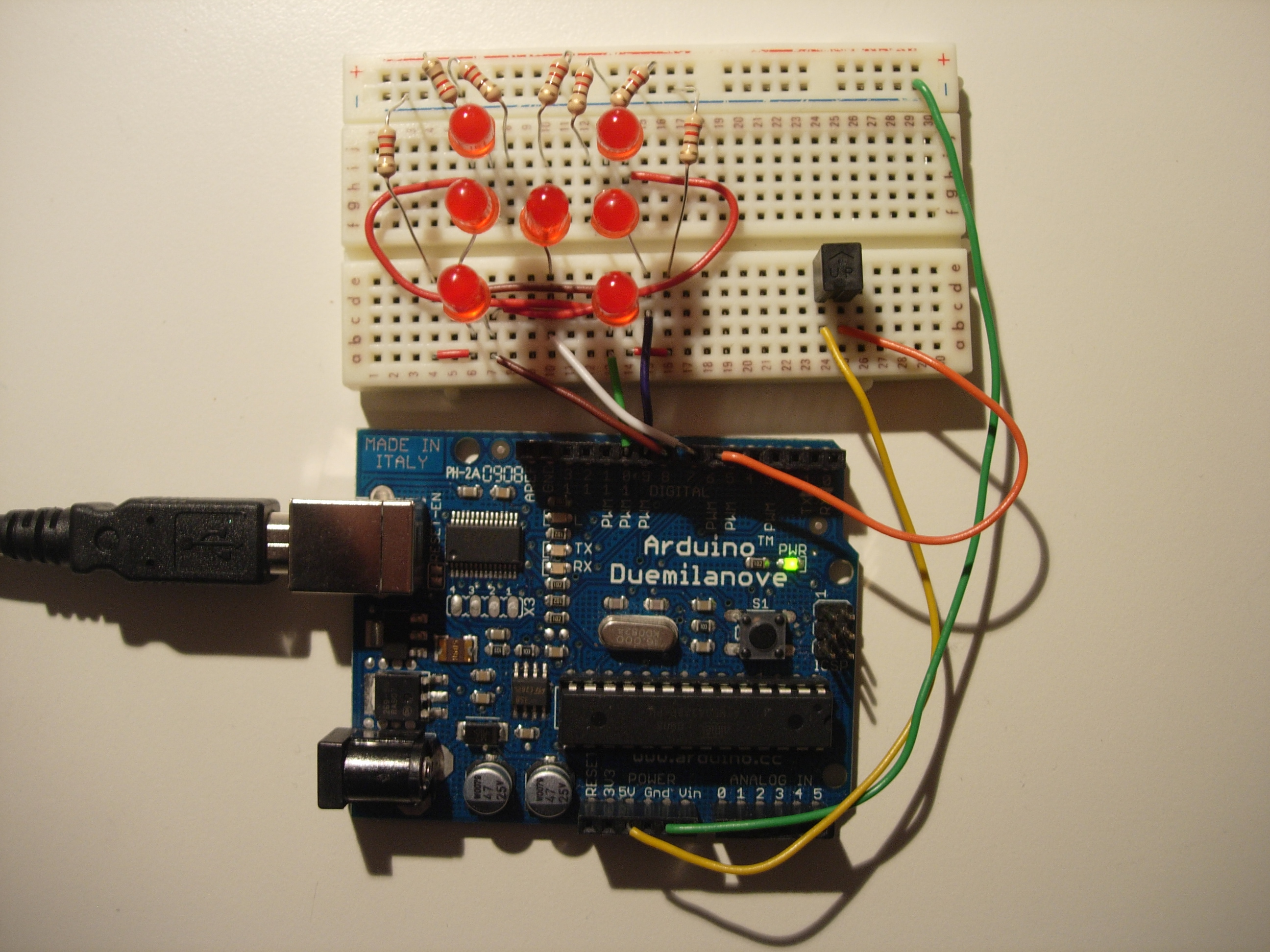

Connect the Components With Arduino

Now....let's take Arduino!
First, attach the Arduino ground with the ground line of the breadboard
Then, connect the Leds to Arduino...this part can be a bit difficult, but there is an useful schematic.
Finally, connect the 5v of arduino with the button, and connect the button with the pin 6 of Arduino...be careful also in this part and follow the picture.

Hey...you're done!

Program Code

This is the code without the comments to reduce the space (You can find the comments in the downloadable file):

int pinLeds1 = 10; int pinLeds2 = 9; int pinLeds3 = 7; int pinLed4 = 8; int buttonPin = 6; int buttonState; long ran; int time = 2000; void setup () { pinMode (pinLeds1, OUTPUT); pinMode (pinLeds2, OUTPUT); pinMode (pinLeds3, OUTPUT); pinMode (pinLed4, OUTPUT); pinMode (buttonPin, INPUT); randomSeed(analogRead(0)); } void loop() { buttonState = digitalRead(buttonPin); if (buttonState == HIGH){ ran = random(1, 7); if (ran == 1){ digitalWrite (pinLed4, HIGH); delay (time); } if (ran == 2){ digitalWrite (pinLeds1, HIGH); delay (time); } if (ran == 3){ digitalWrite (pinLeds3, HIGH); digitalWrite (pinLed4, HIGH); delay (time); } if (ran == 4){ digitalWrite (pinLeds1, HIGH); digitalWrite (pinLeds3, HIGH); delay (time); } if (ran == 5){ digitalWrite (pinLeds1, HIGH); digitalWrite (pinLeds3, HIGH); digitalWrite (pinLed4, HIGH); delay (time); } if (ran == 6){ digitalWrite (pinLeds1, HIGH); digitalWrite (pinLeds2, HIGH); digitalWrite (pinLeds3, HIGH); delay (time); } } digitalWrite (pinLeds1, LOW); digitalWrite (pinLeds2, LOW); digitalWrite (pinLeds3, LOW); digitalWrite (pinLed4, LOW); }

Downloads

Dice.pde

Test It!

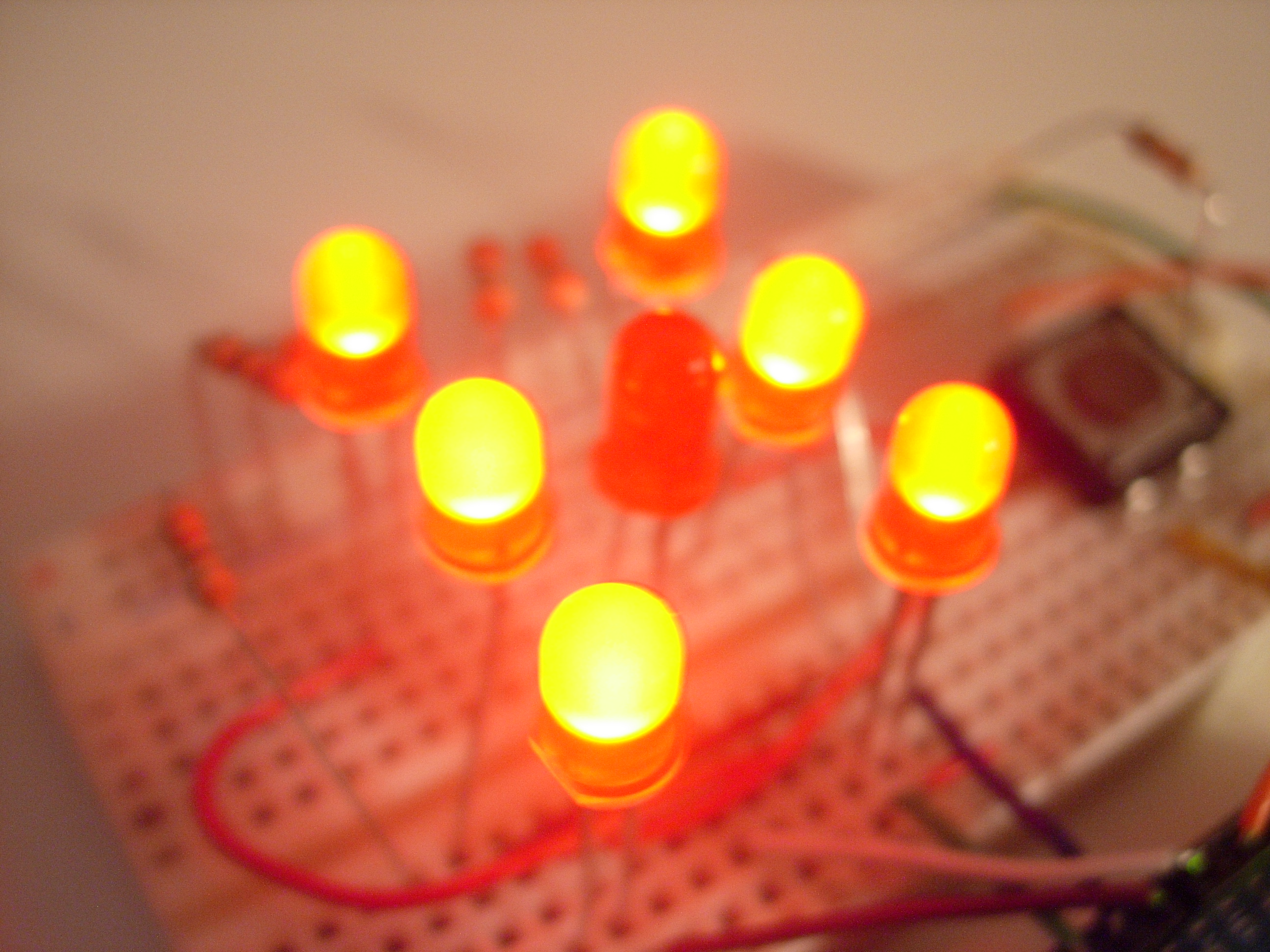

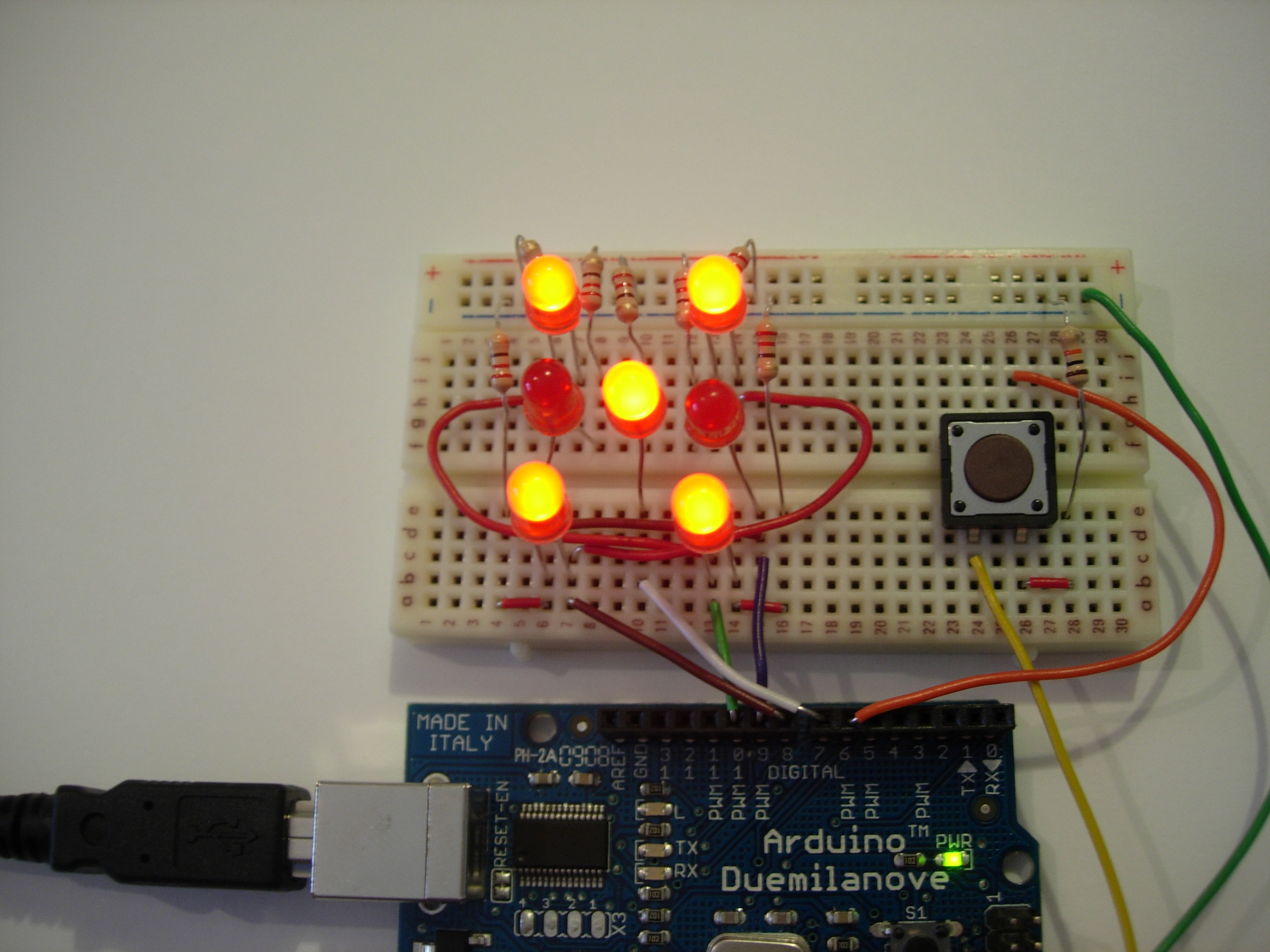

Now the Arduino led dice is finished and you can try it...you just have to power Arduino and press the button to see the number!
This project is very useful for those who wants to begin to become familiar with Arduino, the code is easy, clean and funny.
Now, if you want to improve the project, you can try to solder it or make some changes, as explained in the next steps of instructable.

Solder the Arduino Led Dice

If you want, you can also solder the project, to make it more compact and better.
Solder is not easy, and if you are a beginner, I recommend to follow some guides on the web to learn it.

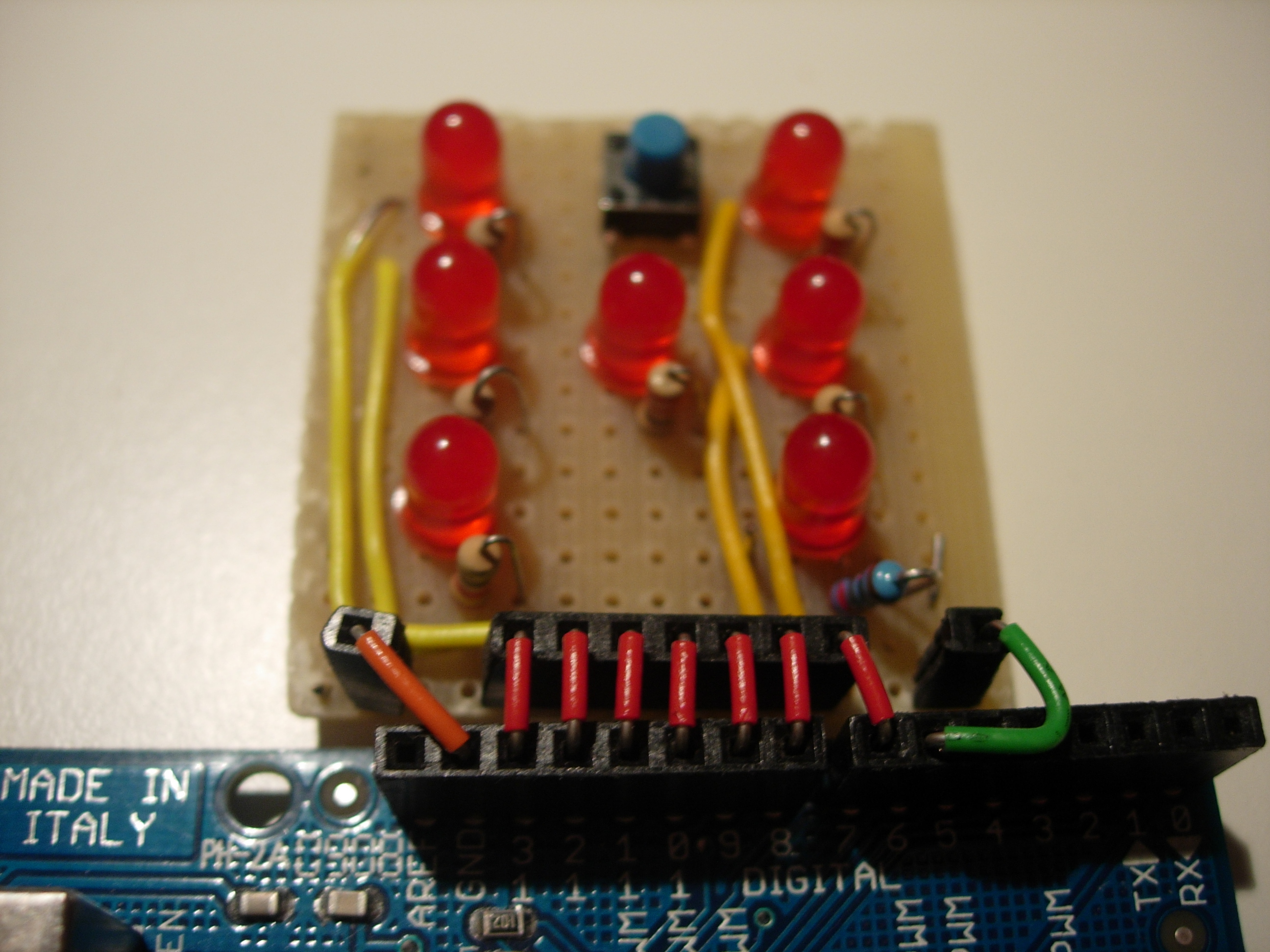

In the images, there's my old solder version of my Arduino led dice, and unfortunately, in this version each led is connected to an Arduino pin: during soldering, it's advisable to connect the LEDs in pairs as in the breadboard version, for convenience.

Project Variations

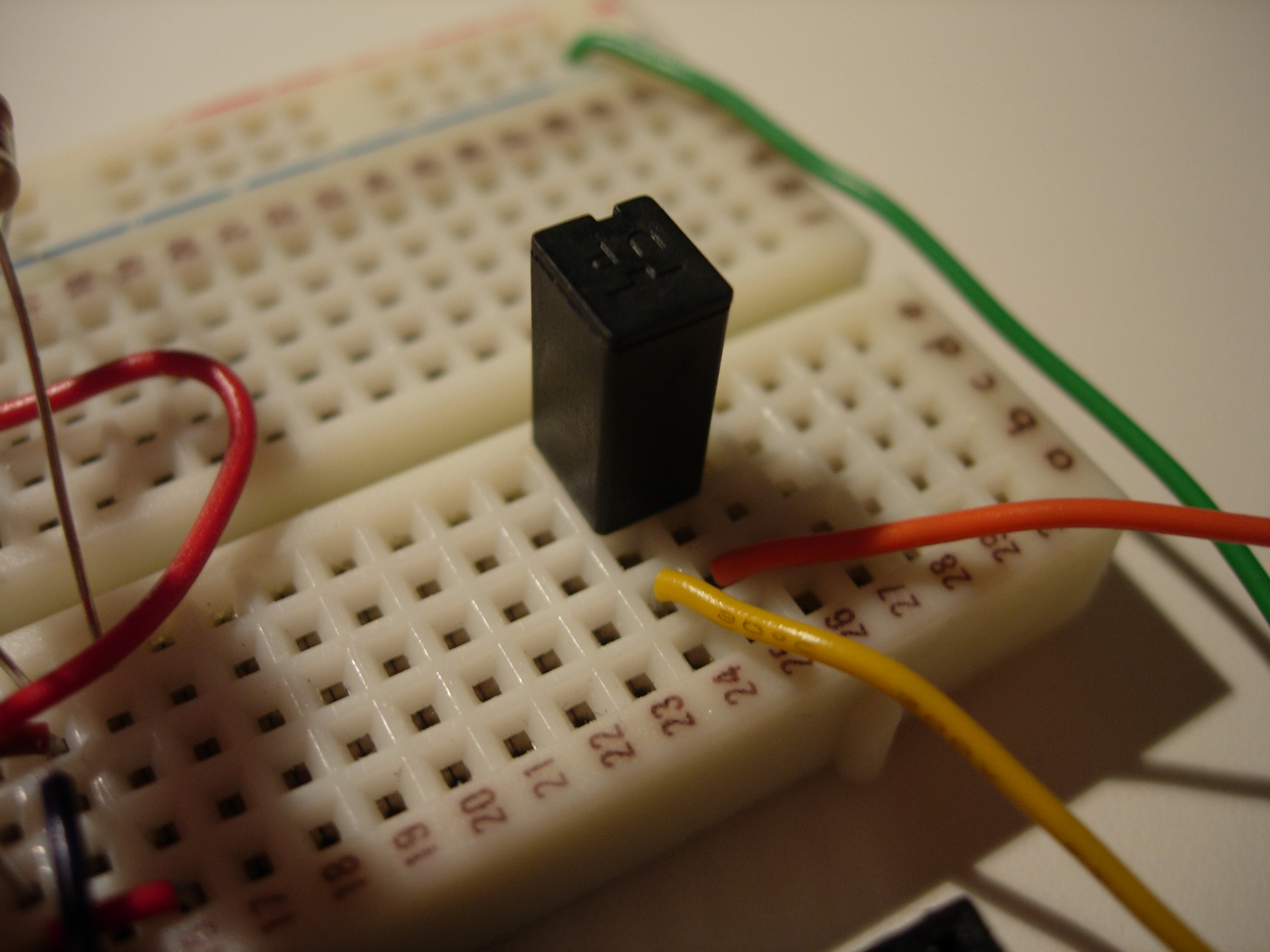

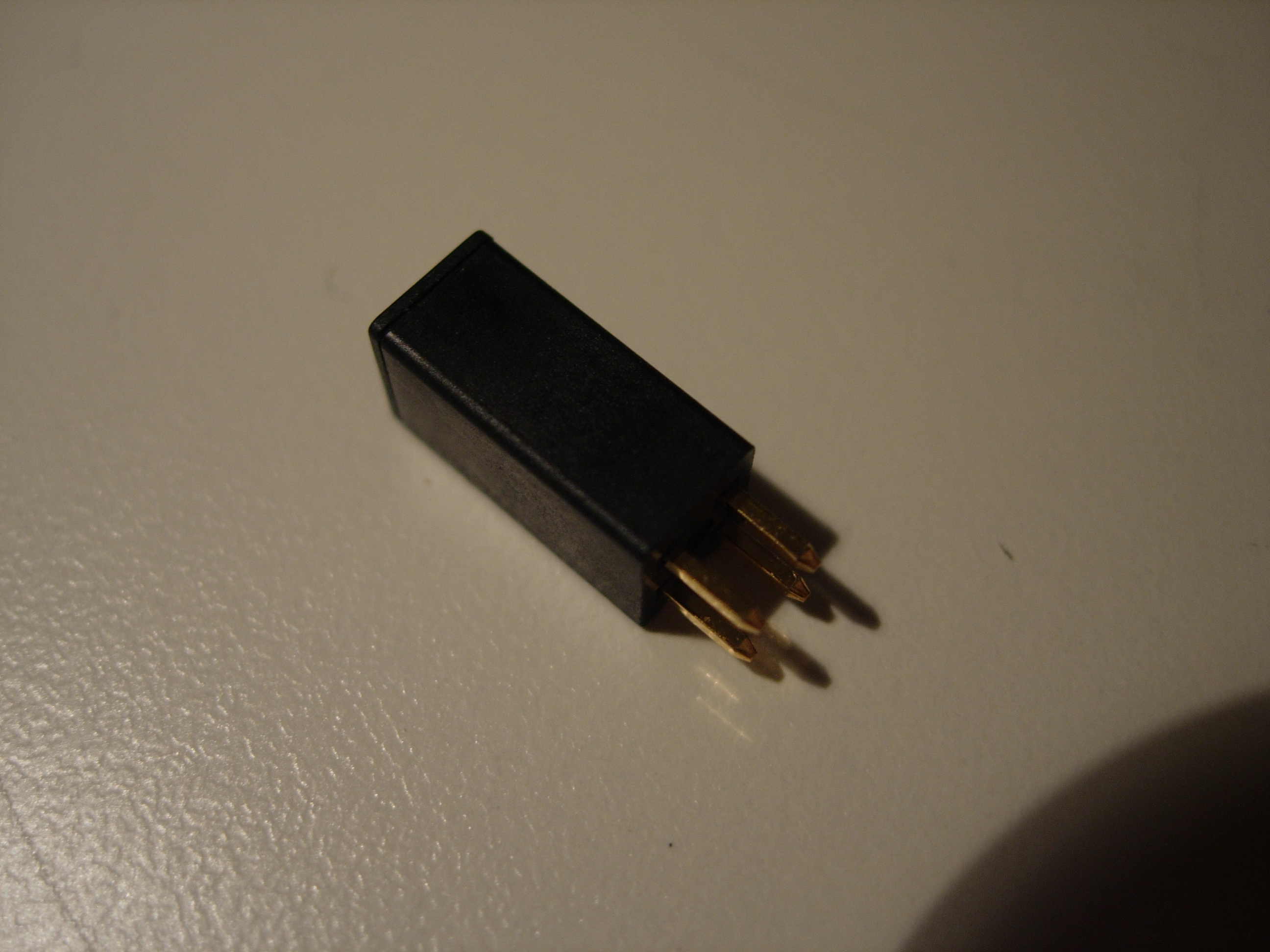

You can also apply funny changes to the project, such as using a tilt switch or a vibrator switch instead of the button. So, to read the number of the dice just shake the breadboard, and it's funny!
If you want to do this, simply connect the tilt switch to the 5V Arduino and the other side to pin 6 of Arduino, as in figure.

For the tilt switch, you need to change this line code:

if (buttonState == HIGH) {
in this:
if (buttonState == LOW) {

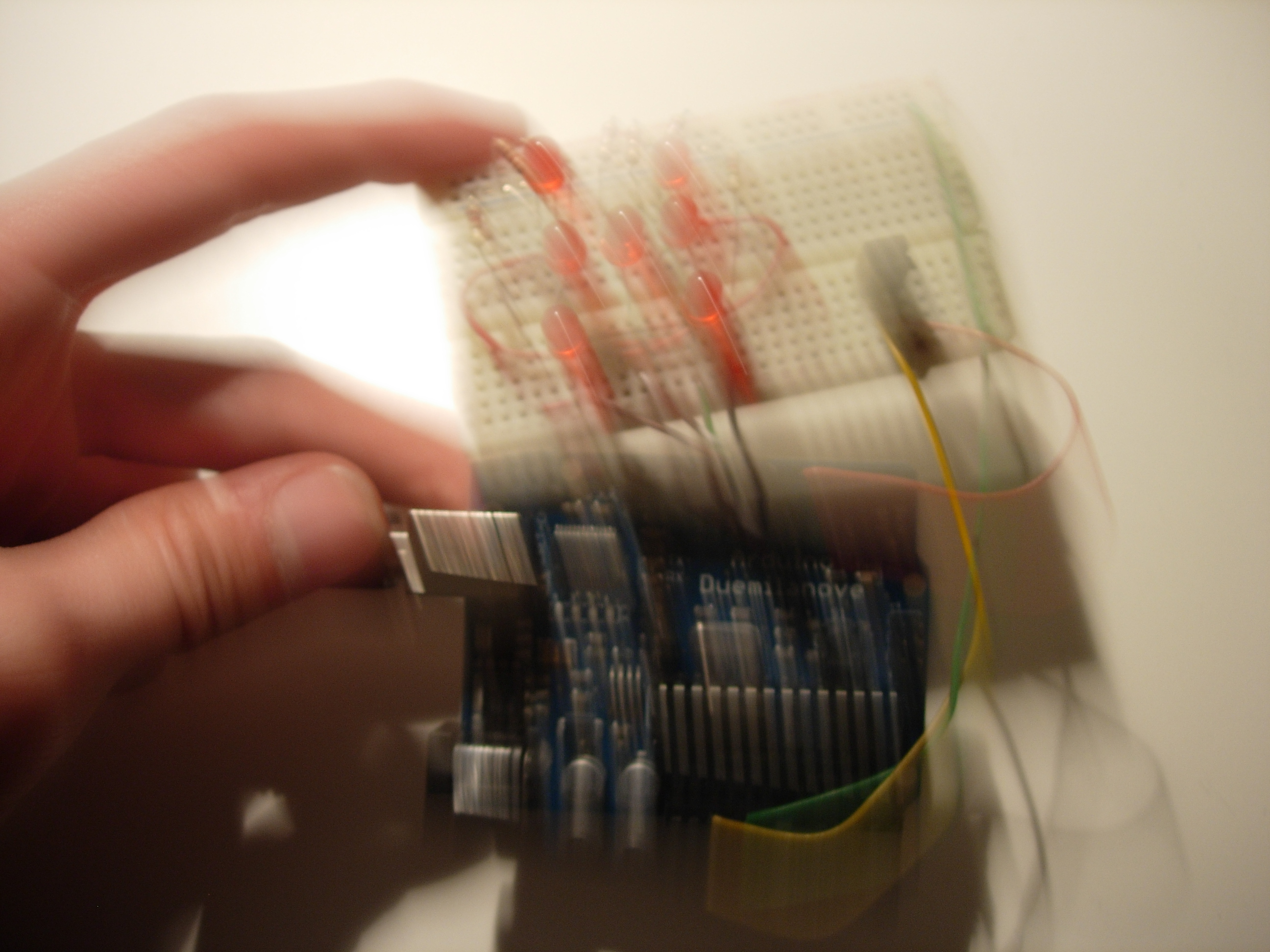

Now you just have to take the project in hand, shake it (without breaking it!) and read the number!
