Arduino LED Digital Dice

by kYLe yAnG in Craft > Digital Graphics

42 Views, 0 Favorites, 0 Comments

Arduino LED Digital Dice

image0 (1).jpeg

This Arduino project is adapted from https://www.instructables.com/Arduino-Led-Dice/

Step 1:Parts

Parts:

  • Arduino Leonardo*1
  • Any kind of Led*7
  • Resistor(1/4W, 100Ω)*7
  • Button*1
  • Breadboard*1
  • Wires(At least 7 wires)

Step 2:Place All the Components on the Breadboard

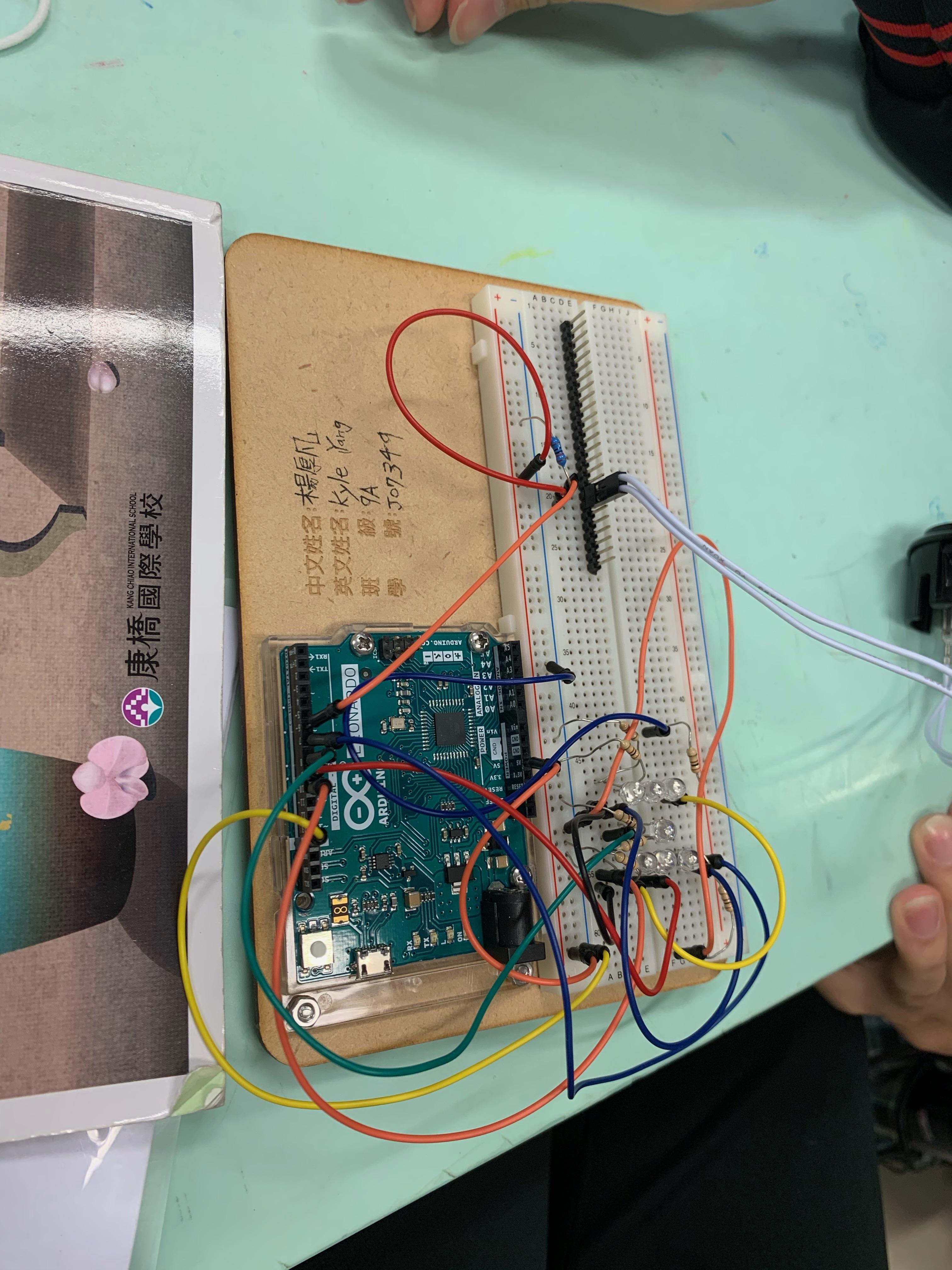

Place the Led on the breadboard as the shape of letter 'H', and then connect wires and resistor as the image above.

Step 3: Coding

The code is provided in the following link:https://create.arduino.cc/editor/kylefanfan/8eede05f-ec16-4b6b-9e22-66ca18b3dfa4/preview
