Arduino LCD Thermometer

Hey guys this is Gaige TheEngineer here to give you a basic arduino project: The Arduino LCD thermometer

This is something a 12 year old can do pretty easy. So please enjoy and check out my Youtube Channel (even if there is nothing on there yet! There will be videos soon!!!)

Please subscribe and I will do many more projects, Please also if you have any suggestions on projects, please comment on my Channel as well.

This simple Project Requires A couple thing You might have if you have the arduino kits or parts.

Components

• Arduino Uno R3
• Jumpers
• LCD Liquid Crystal Display 16x2
• Potentiometer
• LM36Gz
• Bread Board, or PCB if your making this permanent( but I recommend bread board prototype first!)
• 9V Power Source

LCD Pins connections:

Pin 1 to Arduino GND

Pin 2 to Arduino 5V

Pin 3 to wiper ( this is the middle pin of the 10k potentiometer )

Pin 4 to Arduino pin 12

Pin 5 to Arduino GND

Pin 6 to Arduino pin 11

Pin 11 to Arduino pin 5

Pin 12 to Arduino pin 4

Pin 13 to Arduino pin 3

Pin 14 to Arduino pin 2

The Temperature Sensor is easy: Just connect the Middle To Arduino Analog Pin A0

and the Positive to one side and negative to the other. CAUTION IF YOU CONNECT THE GND AND + PINS WRONG ON THE TEMP SENSOR IT WILL GET VERY HOT> USE AT YOUR OWN RISK AND YOU WILL BREAK THE SENSOR.

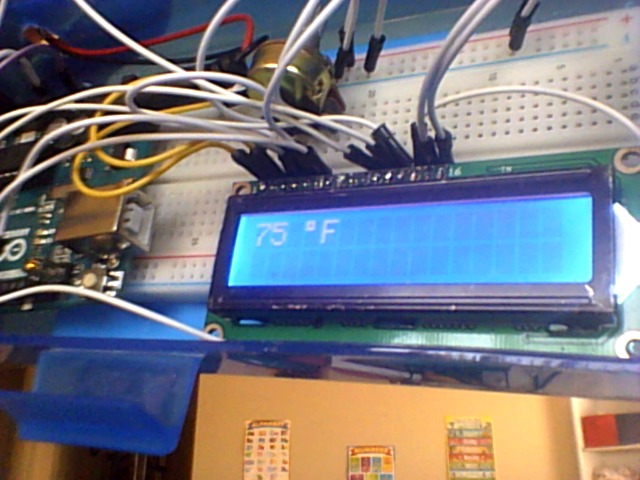

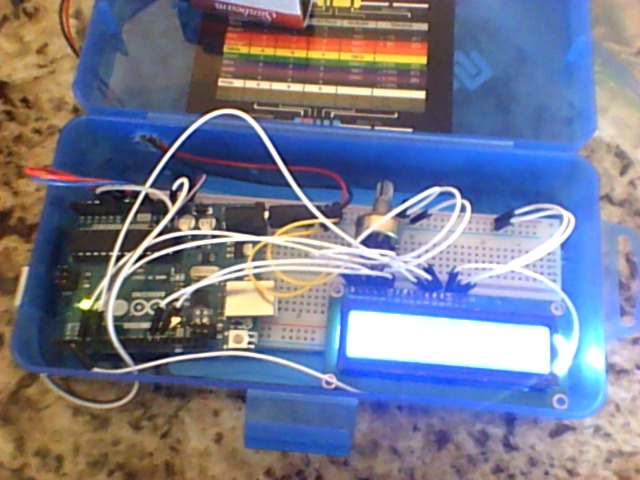

The temp sensor isn't shown on the picture.

Here is the code.

Author: Gaige Kerns

Author:       Gaige Kerns
--------------------------------------------------------------*/
#include
// Arduino pins used for LCD
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);
void setup() {
    // initialize the LCD display
    lcd.begin(16, 2);
}
void loop() {
    float temperature = 0.0;   // stores the calculated temperature
    int sample;                // counts through ADC samples
    float ten_samples = 0.0;   // stores sum of 10 samples

    // take 10 samples from the MCP9700
    for (sample = 0; sample < 10; sample++) {
        // convert A0 value to temperature
        temperature = ((float)analogRead(A0) * 5.0 / 1024.0) - 0.5;
        temperature = temperature / 0.01;
        // sample every 0.1 seconds
        delay(100);
        // sum of all samples
        ten_samples = ten_samples + temperature;
    }
    // get the average value of 10 temperatures
    temperature = ten_samples / 10.0;
    // display the temperature on the LCD
    lcd.setCursor(0, 0);
    lcd.print(temperature);
    lcd.print(" deg. C  ");
    ten_samples = 0.0;
}
