Arduino (Increase Power Port Pins)

Hello friends,

This instructable is show you how to increase the number of power port in arduino board. In arduino micro-controller we have only few pins for power. For example we have only 1 port for 5V power supply in arduino uno r3. When we require many 5V port than we connect so many jumper wire and use breadboard. As a result the wires are look like a net of wire. If we connect a wrong connection of wire. Then find out a wrong wire connection is quite difficult. To overcome these types of problems follow this instructable.

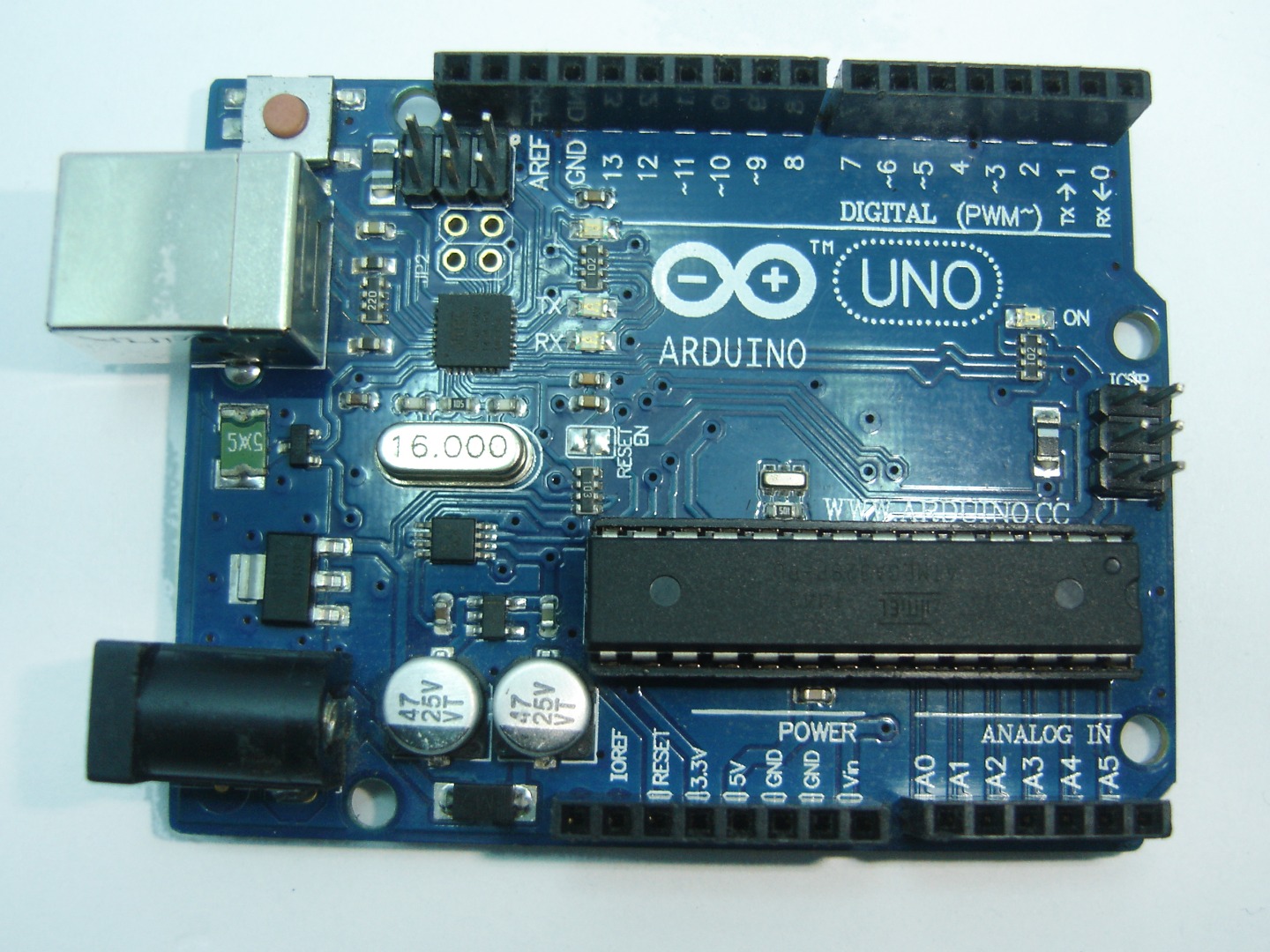

1. Arduino uno
2. Female Header
3. Soldring iron
4. Wire etc.

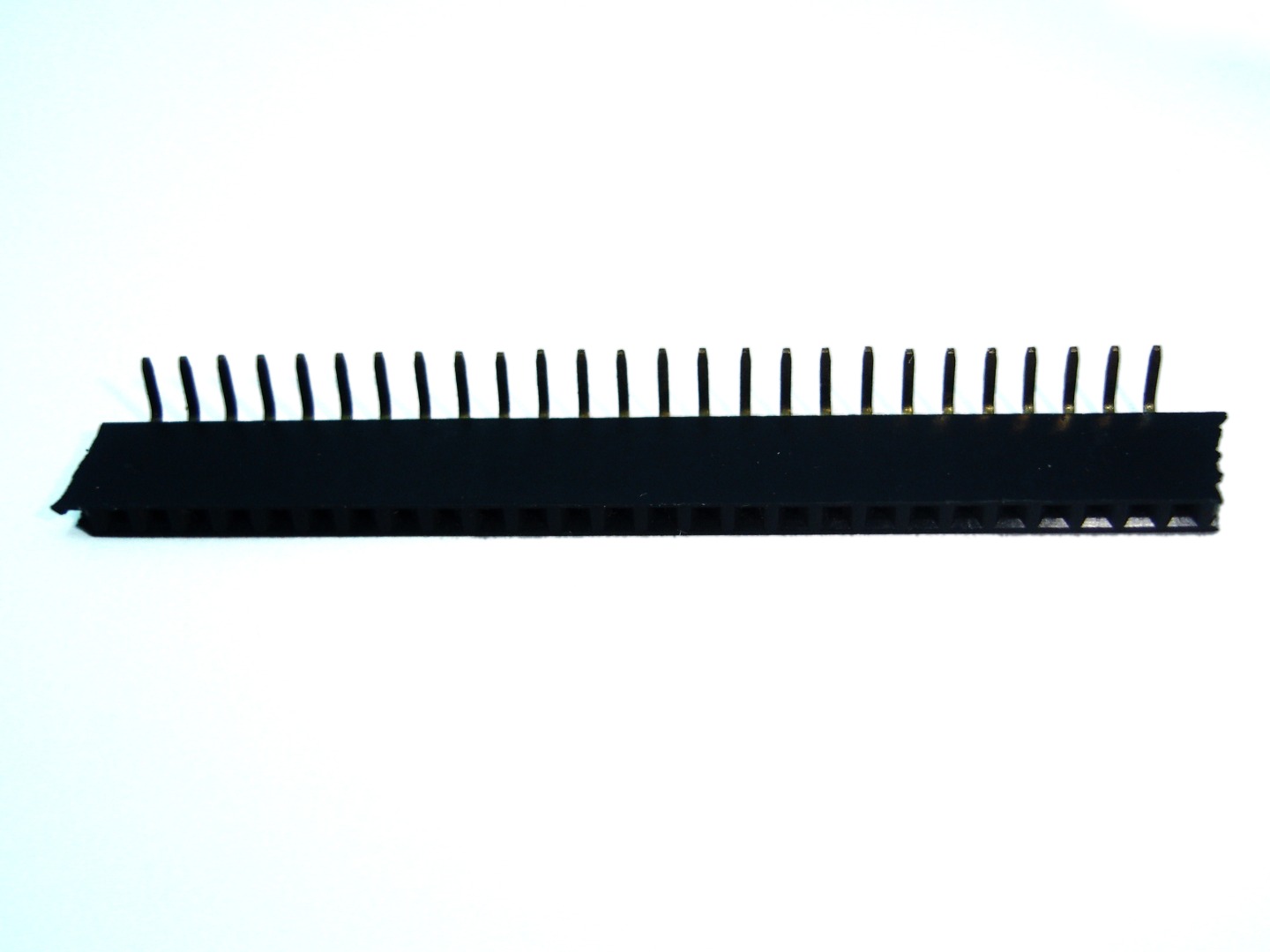

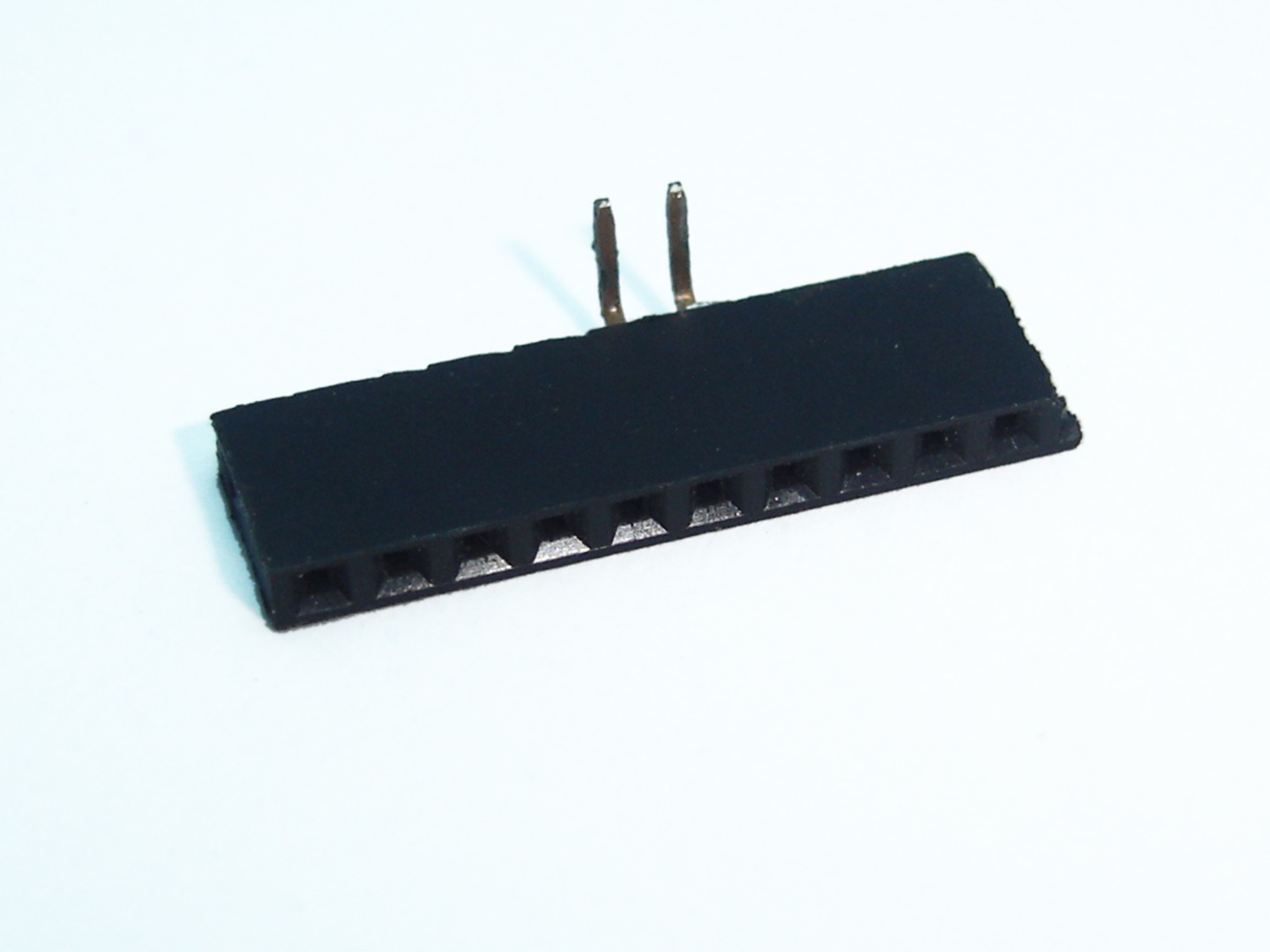

Now take a Female Header and cut it as much you required. In my case I cut 10 port of Female Header. In arduino have required only 2 pins, so cut all extra pins. And then a 2 pin Female Header port cut for arduino 5V and GND as shown in above image.

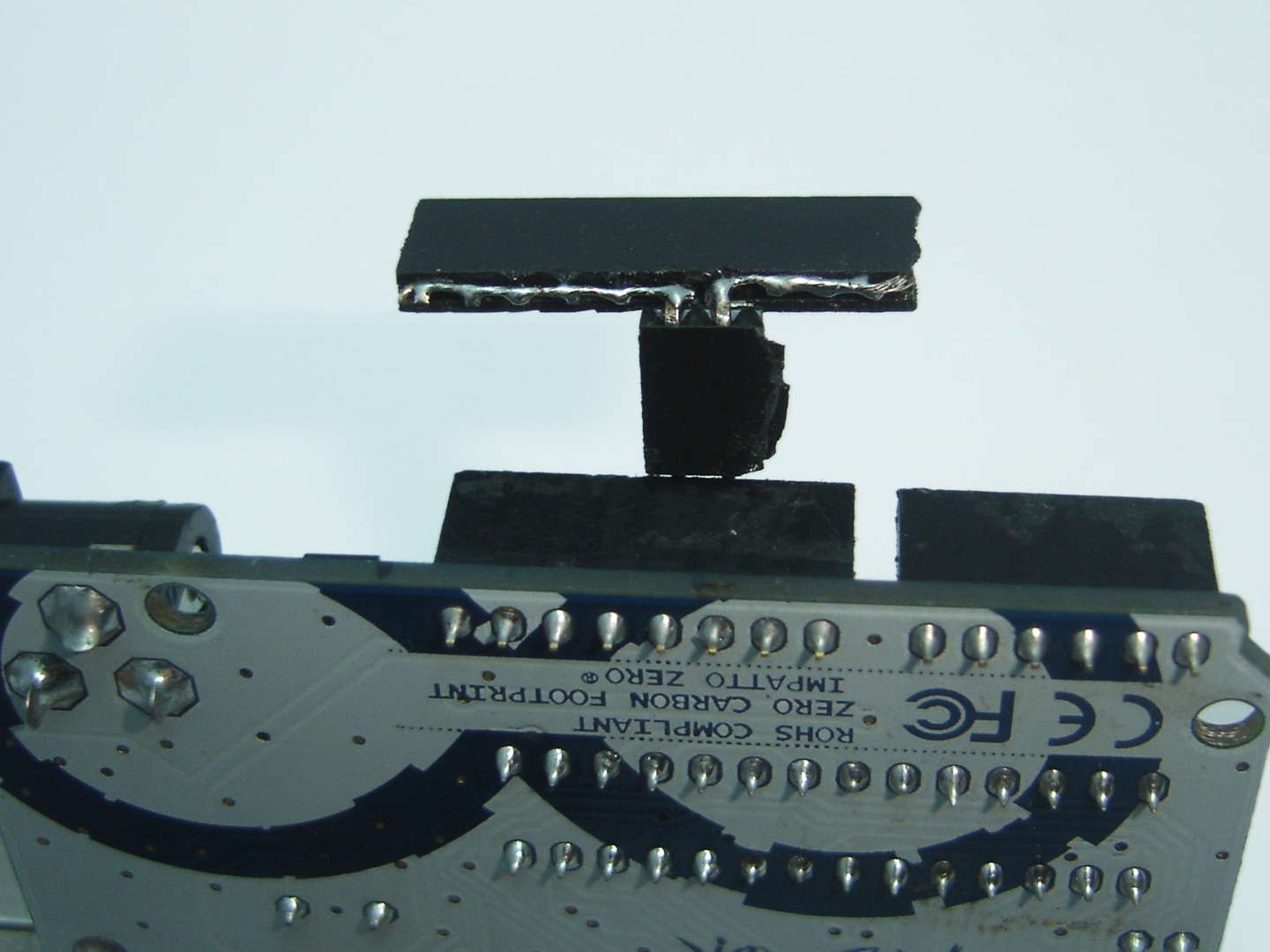

You can use simple wire for connect to each other. solder 2 side of Female Header (Left side & Right side). Now solder it. as shown in above image.

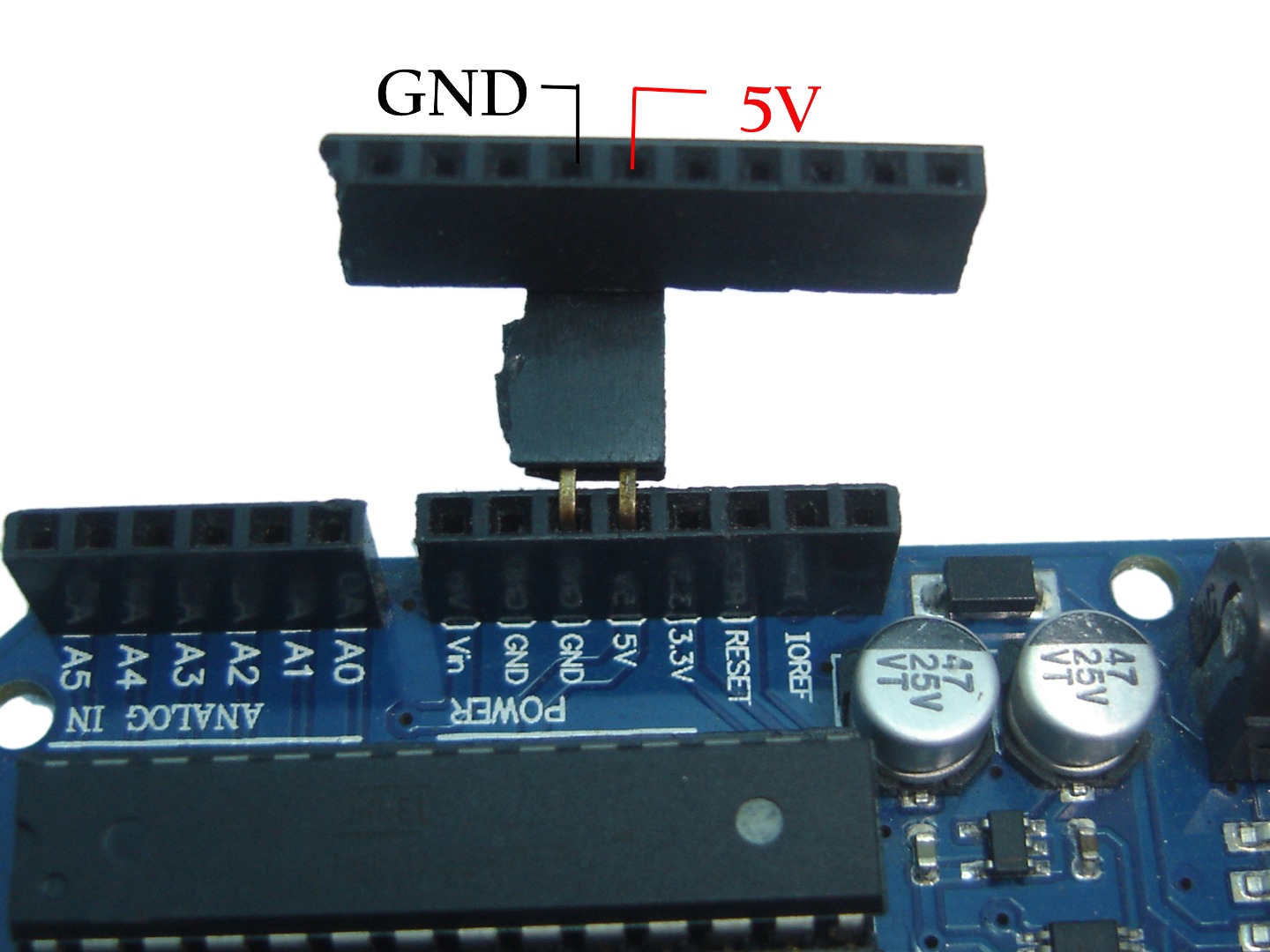

Now attached the 2 pin Female Header on the arduino. first pin is connect to 5V and other pin is connect to GND of arduino as shown in above image.

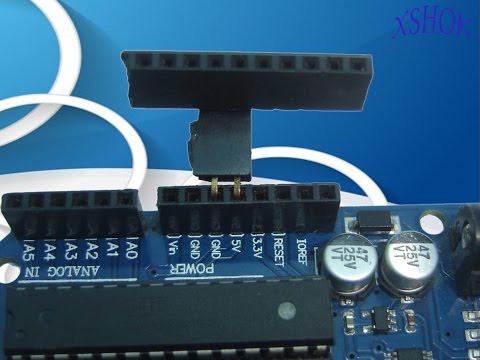

In the last step you connect the 10 pin Female Header on 2 pin Female Header.

The process is complete.

Now Enjoy it.

Thank you for reading.
