Arduino IDE for Building Compiling Environment of ESP32

Arduino IDE is simple!

There are many development platforms for ESP32 (ESP-WROOM-32). In some situations, using Linux or cygwin in Windows are quite intimidating for beginners. Using Arduino IDE is a more user-friendly approach.

Open Arduino IDE (I am using version 1.8.0).An installation tutorial for Arduino IDE can be found here.Navigate to File > Preferences and click the circled button as shown below: as pic1

Enter the following URL in the new pop-up window.

https://git.oschina.net/dfrobot/FireBeetle-ESP32/r...

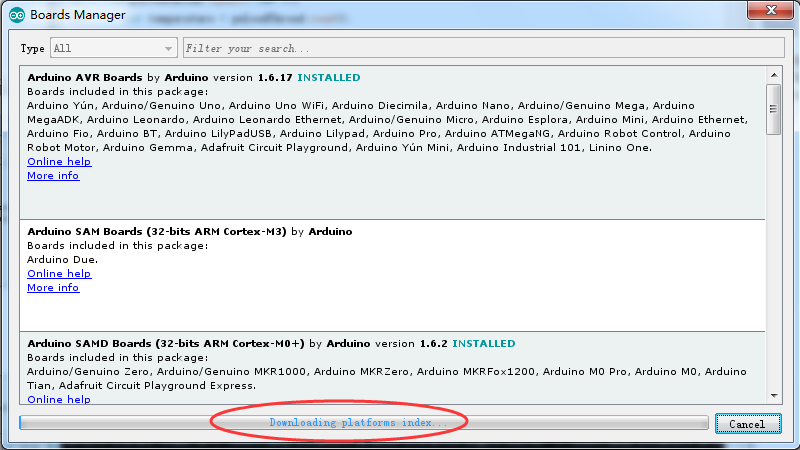

You should see this progress window: as pic2

After the input is completed, click OK.

After adding the mainboard URL of ESP32 (ESP-WROOM-32) to Arduino IDE, we need to update the board list, and use Arduino IDE to download ESP32 (ESP-WROOM-32) libraries.

Open Tools->Development board->Development board manager, as shown below:pic1

After opening the development board manager, the board list will automatically be updated, as can be seen below:pic2

After completing the update, you should find FireFly-ESP32 Mainboard options which you can then edit.

as pic1

Select “ESP32 (ESP-WROOM-32)” and click “Install”. The manager will automatically download the relevant libraries. as pic2,3

Now that our compilation environment is set up, we can upload a test program.

Open tools->development board，select Firefly-ESP32 mainboard, as shown in the following:

Navigate to Tools > Board and Select Firefly-ESP32 from the list.

Please Note: If you haven’t installed ESP32 (ESP-WROOM-32) mainboard you will not see the board in the list, so be sure you follow the steps above to install it first.

Open File->Example->Basics->Blink, as shown in the following:

Click the right button to start compiling.

Done!
