Arduino I2C 16*2 Lcd Display Connection With Utsource

I²C (Inter-Integrated Circuit), pronounced I-squared-C, is a multi-master, multi-slave, packet switched, single-ended, serial computer bus invented by Philips Semiconductor (now NXP Semiconductors)

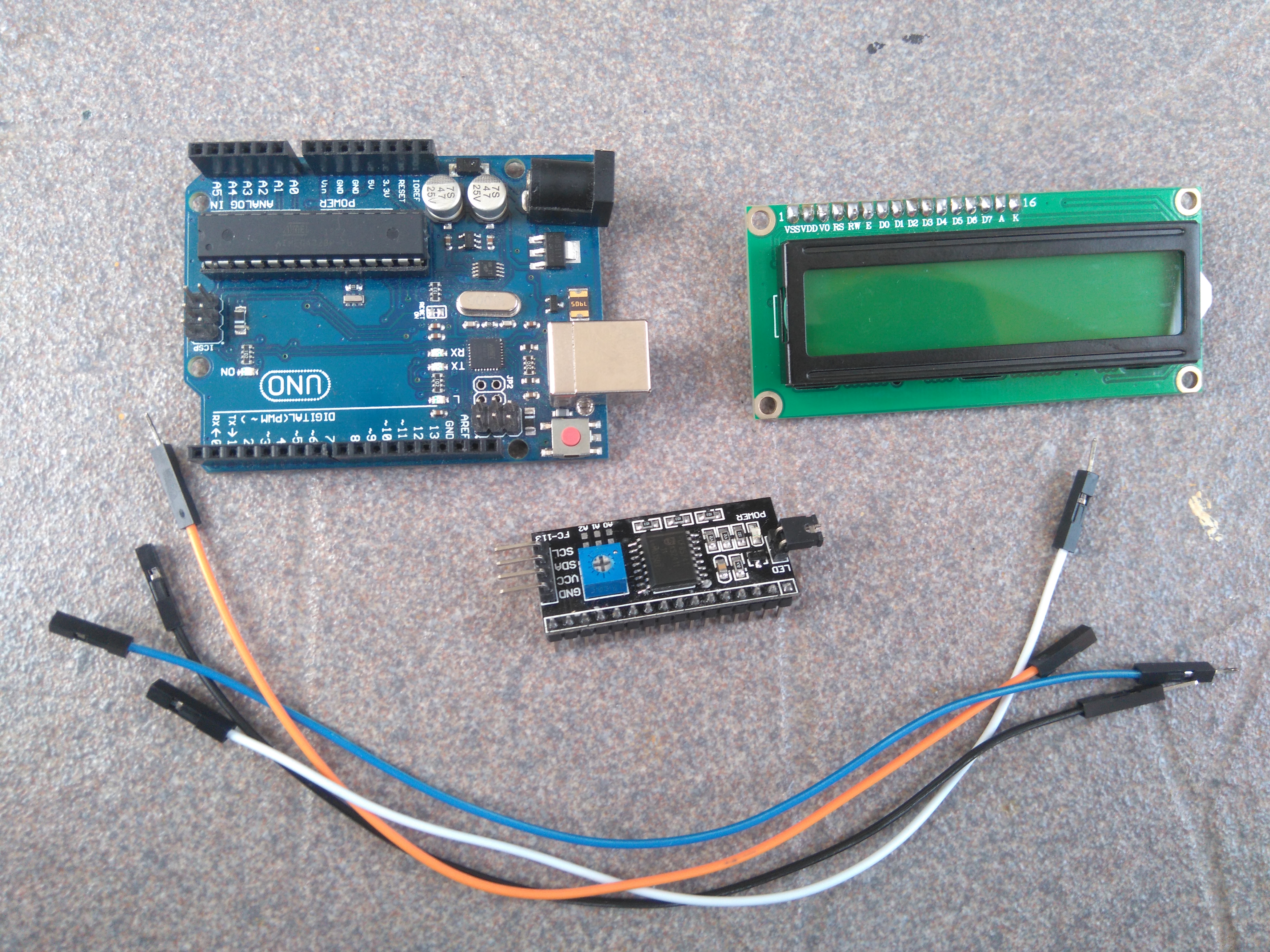

* Arduino Uno

* 16*2 Lcd Display

* I2C Breakout

* Male - Female Jumpers

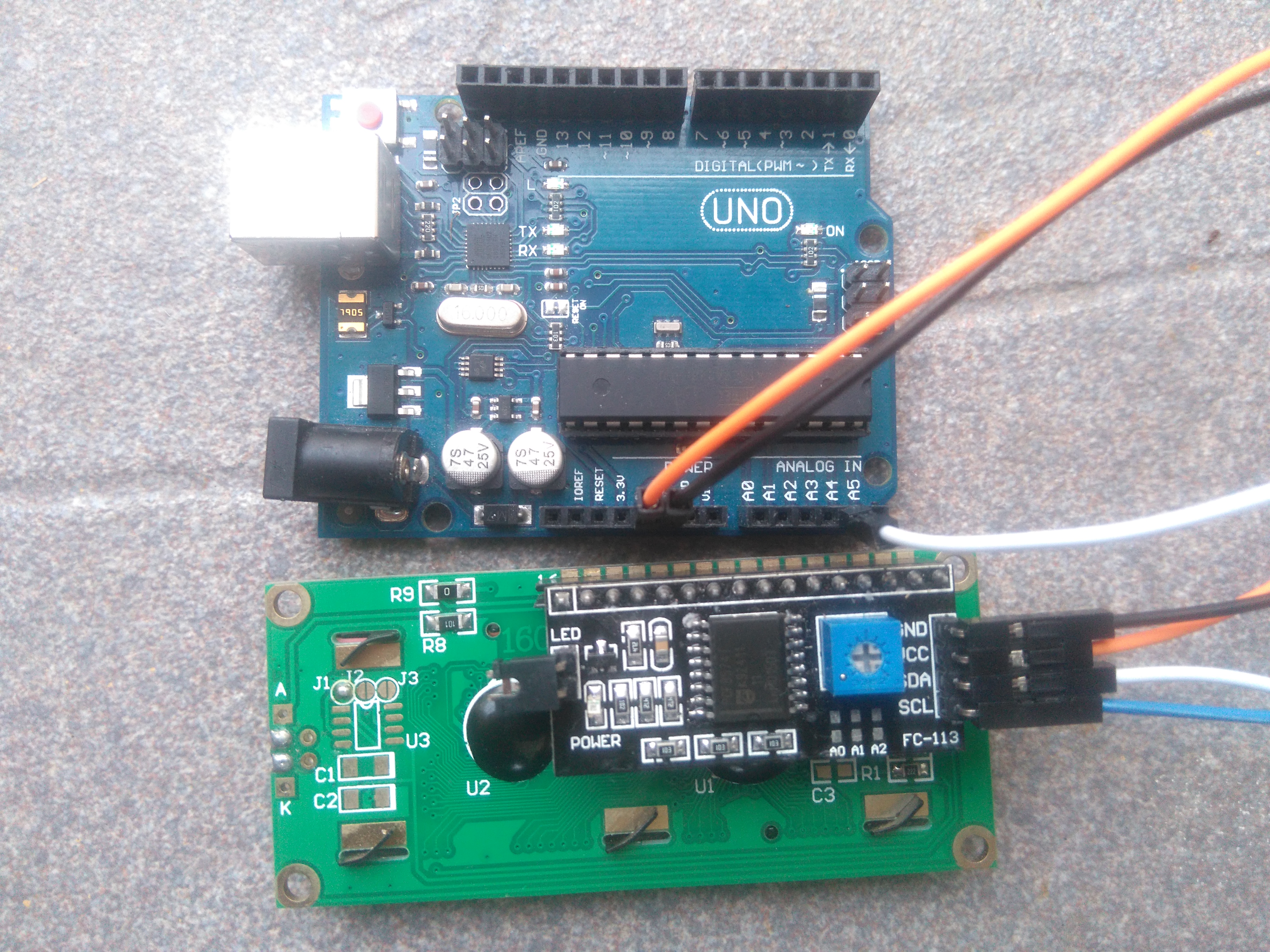

Connect The Breakout To The Lcd Display

&

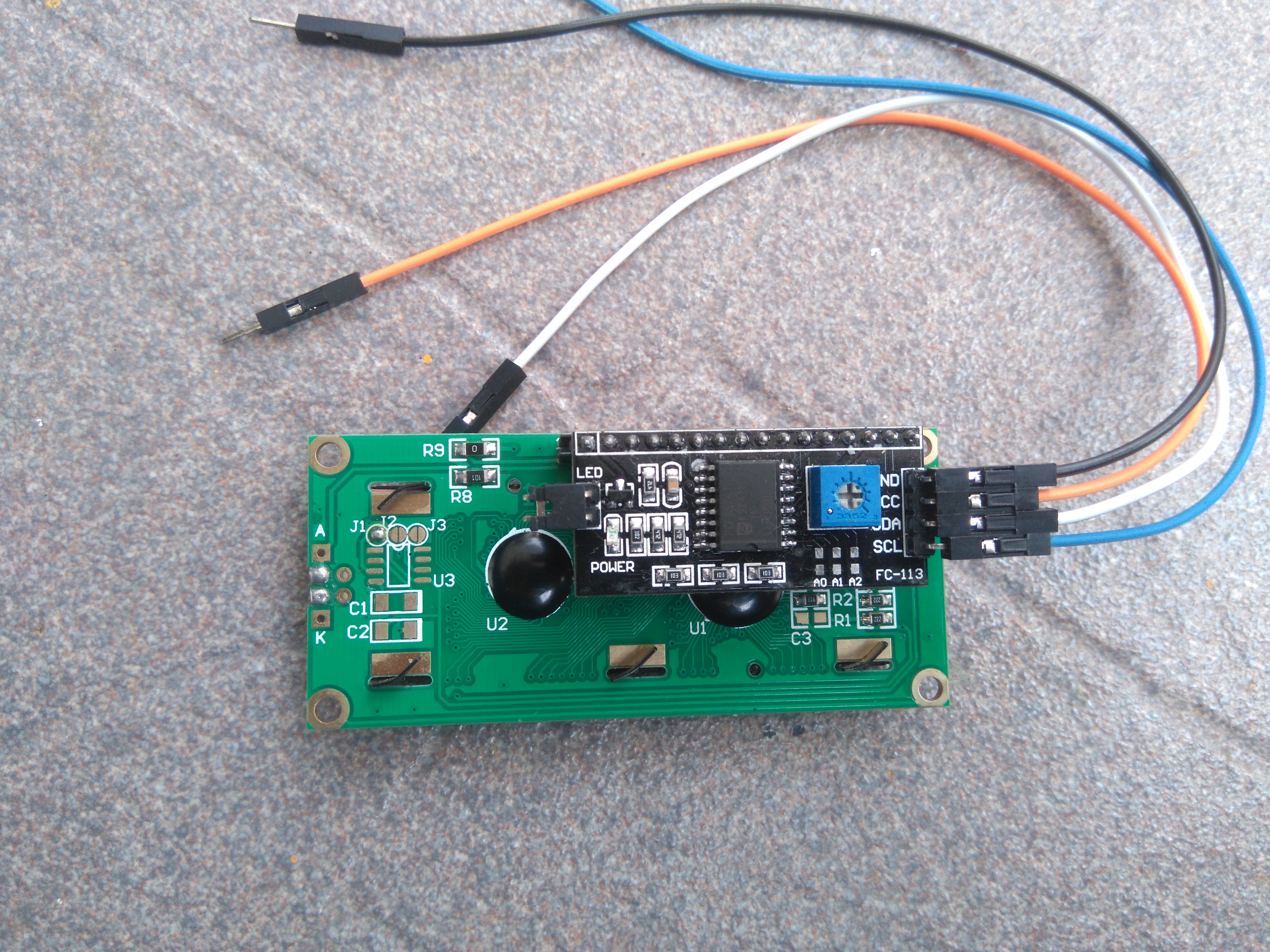

Connect The Jumpers To The Breakout

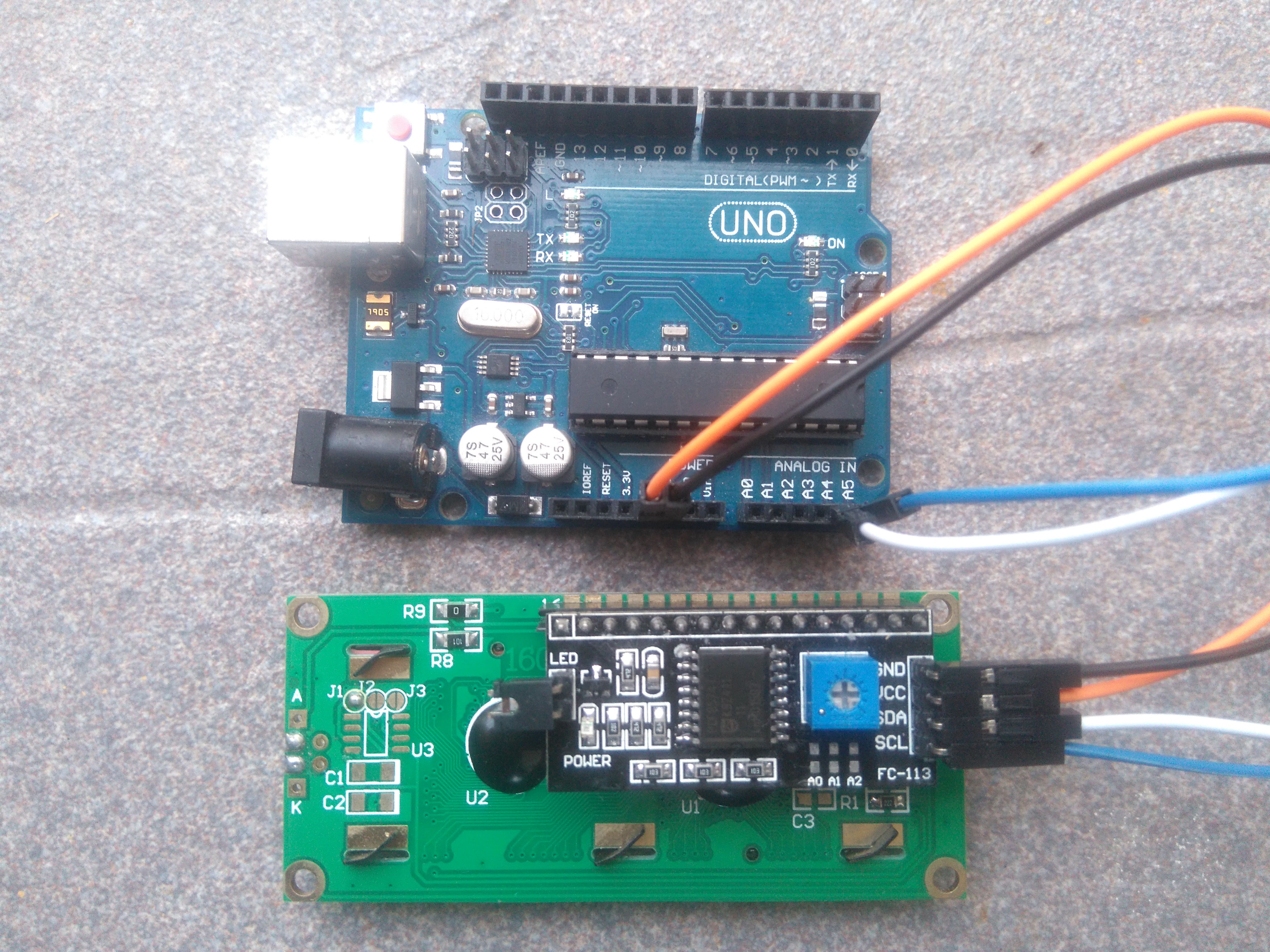

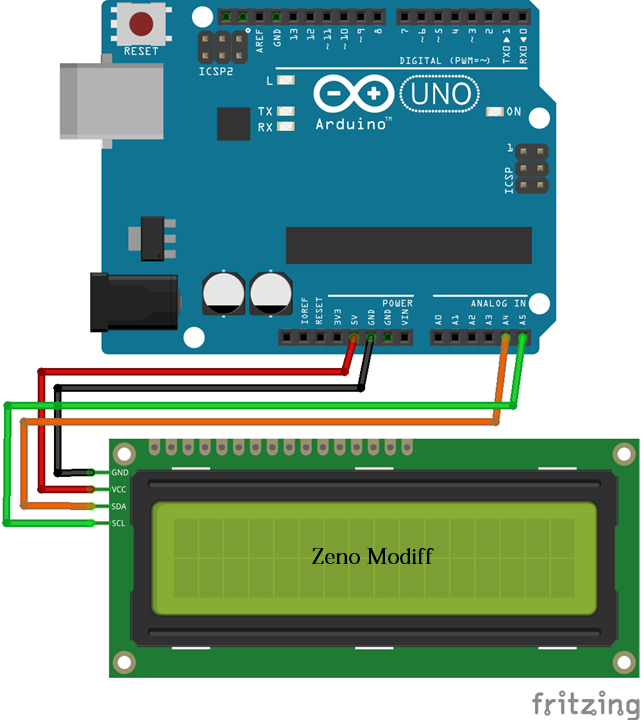

Connect The GND Of Breakout To Arduino GND Pin

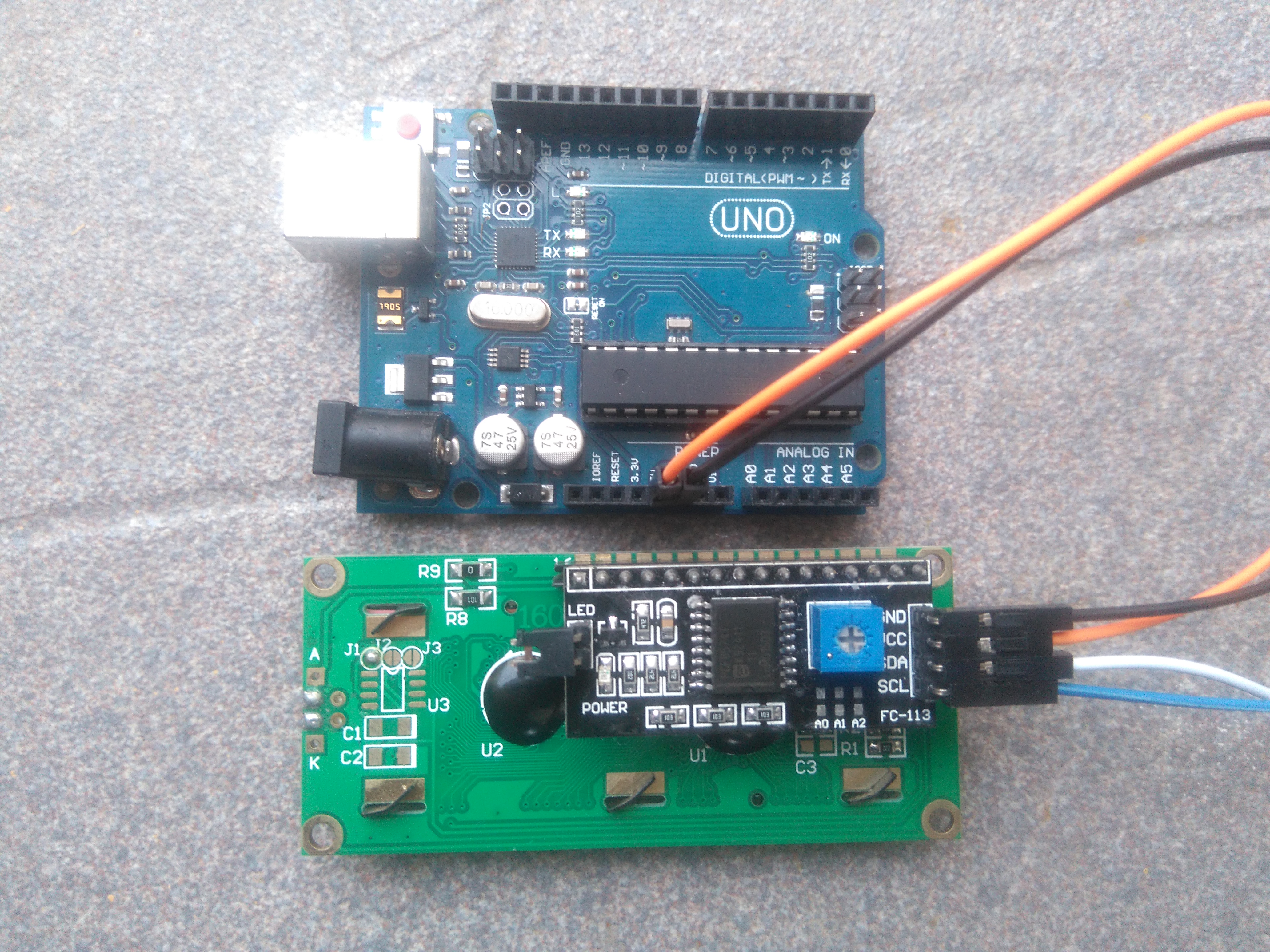

Connect VCC Of Breakout To Arduino 5V Pin

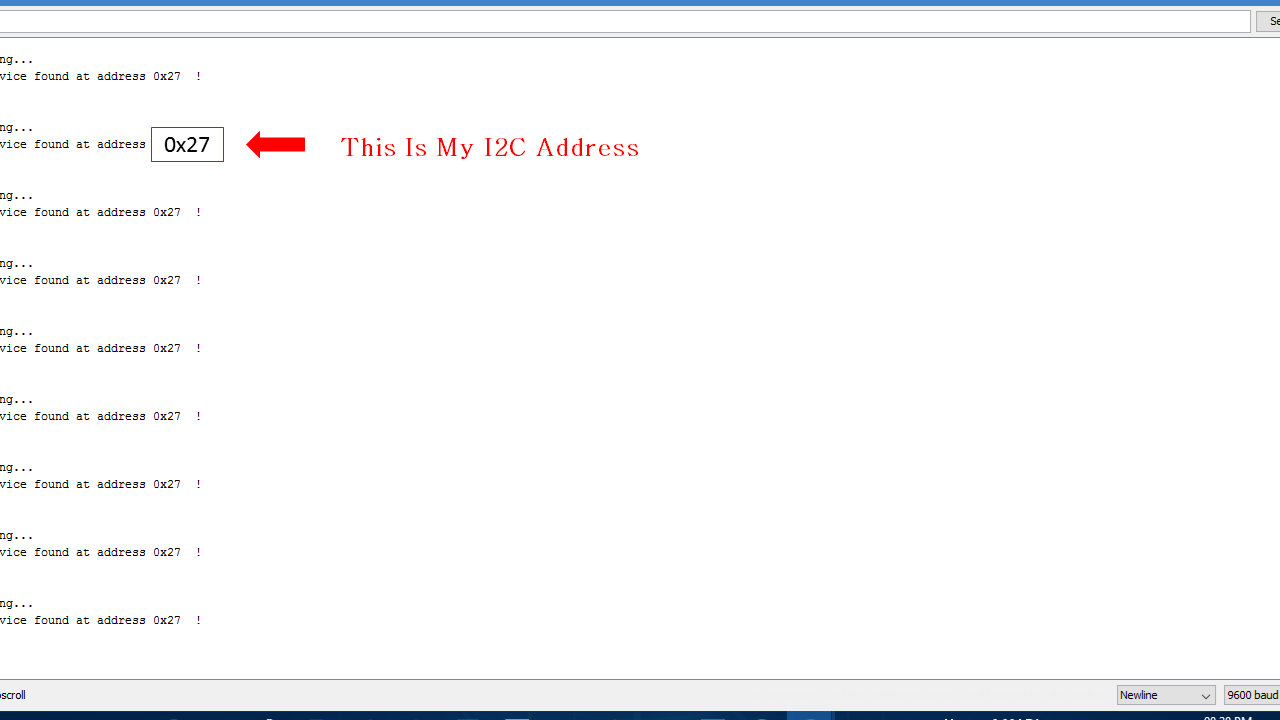

To Find Your I2C Address First Upload This i2C Scanner Code & Open The Serial Monitor Then You Will Get A Code Like This Unplug Your Arduino Cable & By Using Cntrl + C Copy The Address

i2c Scanner :--
http://www.mediafire.com/file/f7oaa4et779yaaz/i2c...

After getting the I2C Address , Include The Library

https://bitbucket.org/fmalpartida/new-liquidcryst....

After That Get The Arduino Code

http://www.mediafire.com/file/lin64dm0v235qim/ZEN....

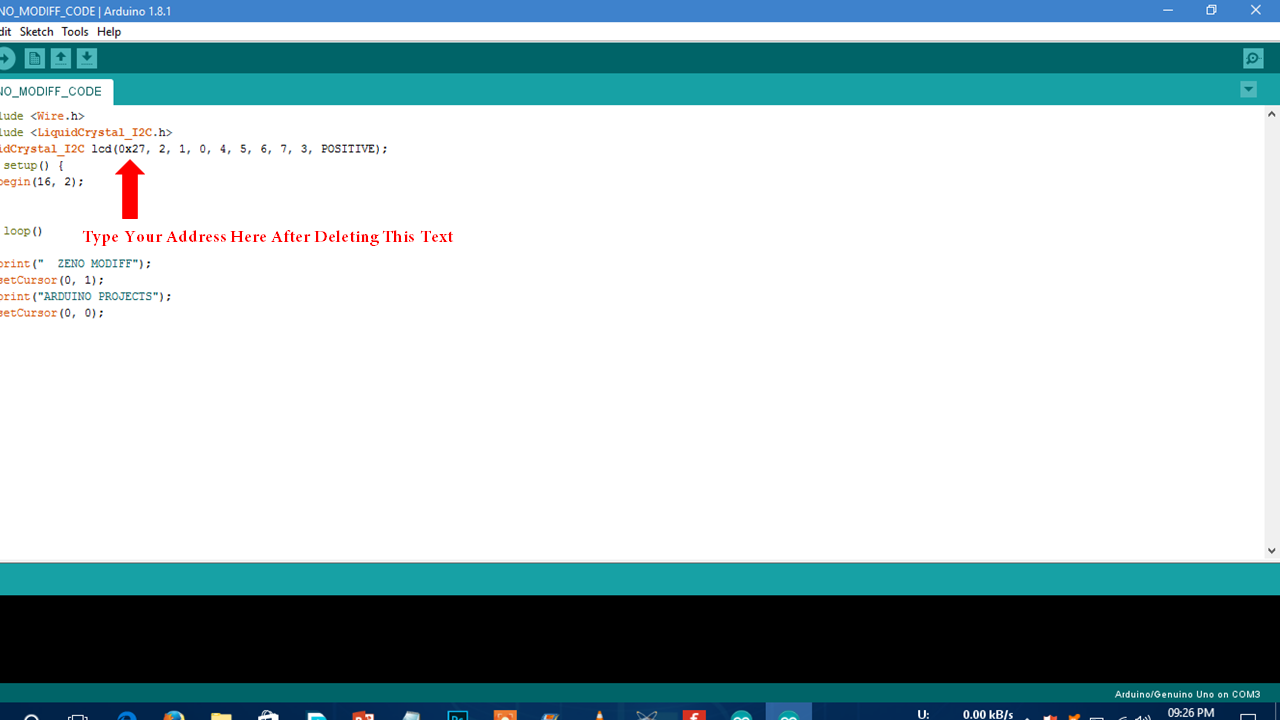

And Paste The Address Over There , To Make Your I2C Communication Easier With Arduino

Then Upload The Code .

Arduino Main Software :-- https://www.arduino.cc/en/Main/Software

------------------------------------

i2c Scanner :-- http://www.mediafire.com/file/f7oaa4et779yaaz/i2c...

------------------------

i2c Address :-- http://www.mediafire.com/file/hli95ycile599di/I2C...

------------------------

Code :-- http://www.mediafire.com/file/lin64dm0v235qim/ZEN...

-------------------

Library :-- https://bitbucket.org/fmalpartida/new-liquidcryst...

-------------------
