Arduino How to Control Traffic Lights

In this tutorial we will learn how to control traffic lights using arduino and Visuino.
This tutorial is great for beginners.

Watch the video.

• Arduino UNO (or any other Arduino)
• Traffic lights module
• Jumper wires
• Breadboard
• Visuino program: Download Visuino

• Connect "Traffic lights module" pin [GND] to Arduino pin[GND]
• Connect "Traffic lights module" pin [R] to Arduino digital pin[2]
• Connect "Traffic lights module" pin [Y] to Arduino digital pin[3]
• Connect "Traffic lights module" pin [G] to Arduino digital pin[4]

To start programming the Arduino, you will need to have the Arduino IDE installed from here: https://www.arduino.cc/.

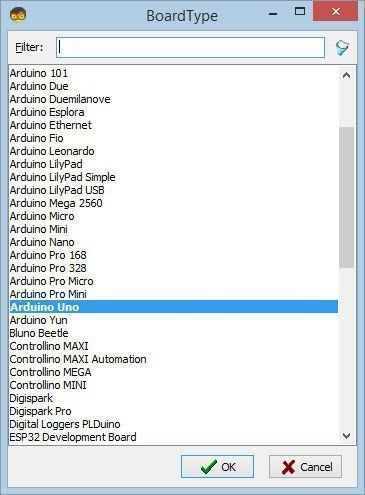

Please be aware that there are some critical bugs in Arduino IDE 1.6.6. Make sure that you install 1.6.7 or higher, otherwise this Instructable will not work! If you have not done follow the steps in this Instructable to setup the Arduino IDE to program Arduino UNO! The Visuino: https://www.visuino.eu also needs to be installed. Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

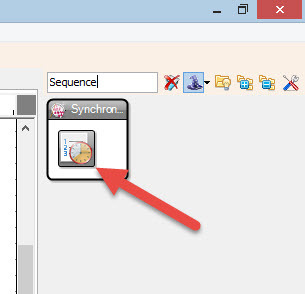

• Add "Sequence" component
• Select "Sequence1" component and in the properties window set "Repeat" to: True, this will enable to repeat the whole process over and over meaning the lights will continue to flash
• Double click on "Sequence1" component
• in the "Elements" window drag 3X "Digital Period" to the left
• On the left side of the "Elements" window select "Digital Period1" and in the properties window set "Delay" to 3000 <<This is the time after (3s) for the first light to flash
• On the left side of the "Elements" window select "Digital Period2" and in the properties window set "Delay" to 6000 <<This is the time after start(6s) for the second light to flash
• On the left side of the "Elements" window select "Digital Period3" and in the properties window set "Delay" to 9000 <<This is the time after start(9s) for the third light to flash
• Close the "Elements" window

• Connect "Sequence1" > "Digital Period1" pin[Out] to Arduino board digital pin[2]
• Connect "Sequence1" > "Digital Period2" pin[Out] to Arduino board digital pin[3]
• Connect "Sequence1" > "Digital Period3" pin[Out] to Arduino board digital pin[4]

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

If you power the Arduino UNO module, the traffic lights module will start to change colors in a sequence.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this Instructable, you can download it and open it in Visuino: https://www.visuino.eu
