Arduino Halloween Party
Learn how to quickly make a Arduino Halloween Party project using Neopixels LED Ring and Arduino.
Watch the Video!
What You Will Need
- Arduino UNO (or any other Arduino)

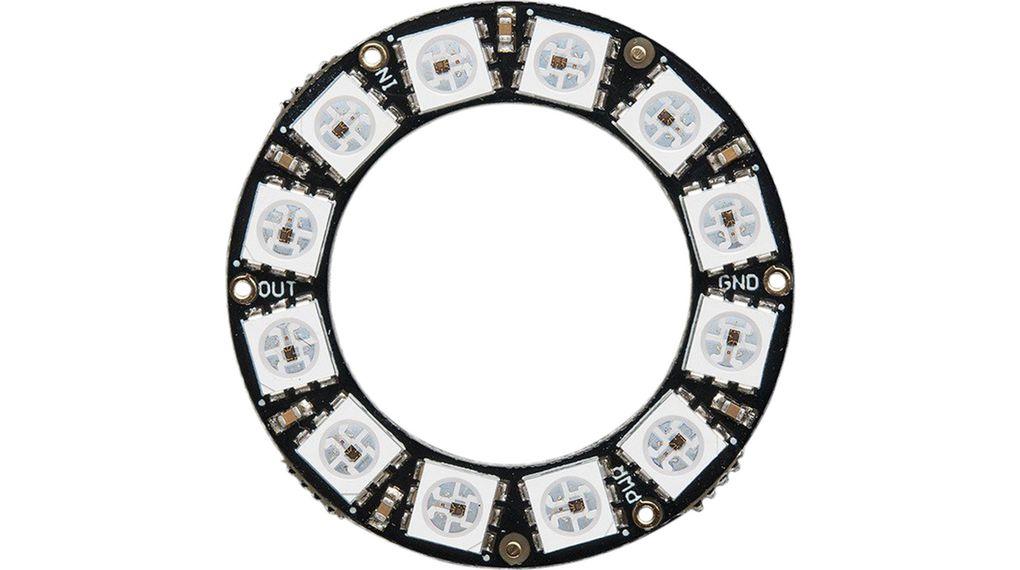

- Neopixel LED ring
- Halloween pumpkin (can be decorative)
- Jumper wires
- Visuino program: Download Visuino
The Circuit
- Connect LED Ring pin [VCC] to Arduino pin [+5V]
- Connect LED Ring pin [GND] to Arduino pin [GND]
- Connect LED Ring pin [IN] or (DI) to Arduino digital pin [6]
Start Visuino, and Select the Arduino UNO Board Type
Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2
In Visuino Add Components
- Add "Random Clock Generator" component
- Add "Clock Multi Source" component
- Add "Random Color" component
- Add "NeoPixels" component
In Visuino Set Components
- Select "RandomClockGenerator1" and in the properties window set "Max Frequency" to 20 and "Min Frequency" to 10
- Select "RandomColor1" and in the properties window set "Max" to clRed and "Min" to clBlack
- Double click on the "NeoPixels1" and in the "PixelGroups" window drag "Running Color" to the left
- On the left side of the "PixelGroups" window then select "Running Color" and in the properties window set "Count Pixels" to 12 or 16 (Depends on how many LED your LED ring is having)
- Close the "PixelGroups" window
In Visuino Connect Components

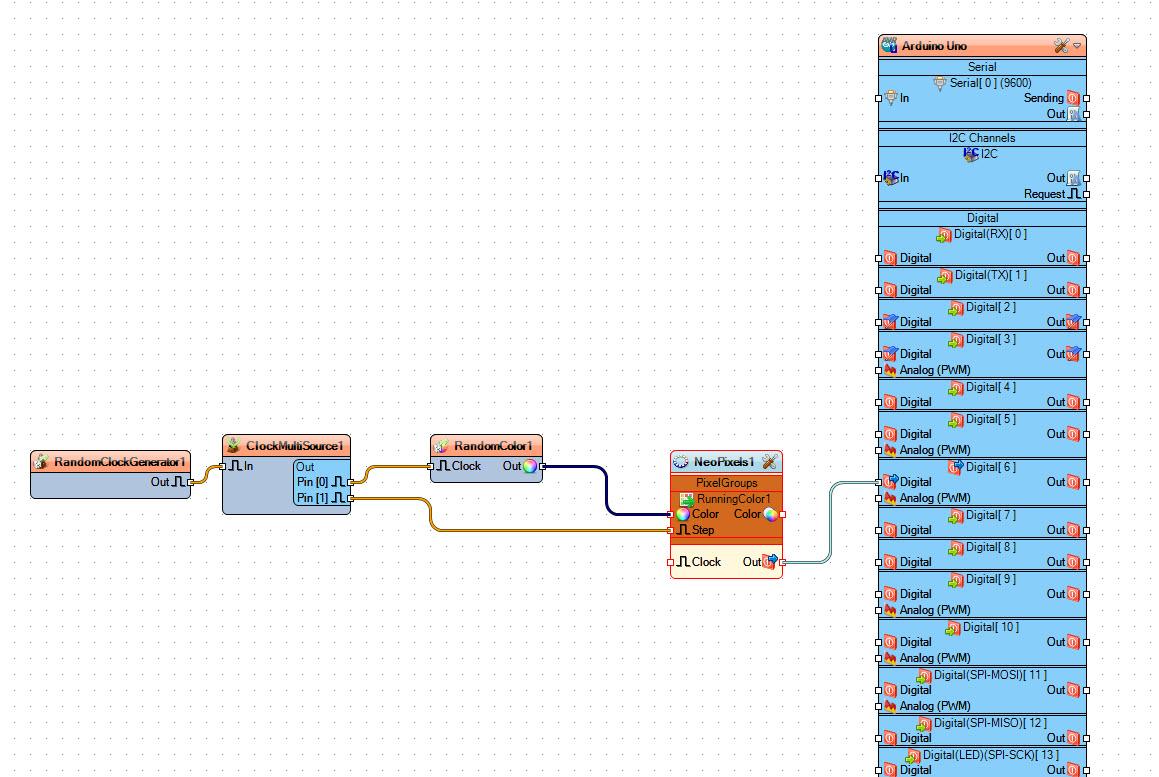

- Connect "RandomClockGenerator1" pin [Out] to "ClockMultiSource1" component pin [In]
- Connect "ClockMultiSource1" pin [0] to "RandomColor1" component pin [Clock]
- Connect "ClockMultiSource1" pin [1] to "NeoPixels1" >"RunningColor1" component pin [Step]
- Connect "RandomColor1" component pin [Out] to "NeoPixels1" >"RunningColor1" component pin [Color]
- Connect "NeoPixels1" component pin [Out] to Arduino digital pin[6]
Generate, Compile, and Upload the Arduino Code
In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.
Play
If you place the LED Ring into the Halloween pumpkin and power the Arduino UNO module, the LED ring will start to change its colors that will imitate the fire in the Halloween pumpkin.
Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this Instructable, you can download it here and open it in Visuino: https://www.visuino.eu
