Arduino + HC-SR04

by guschabal in Circuits > Arduino

1874 Views, 10 Favorites, 0 Comments

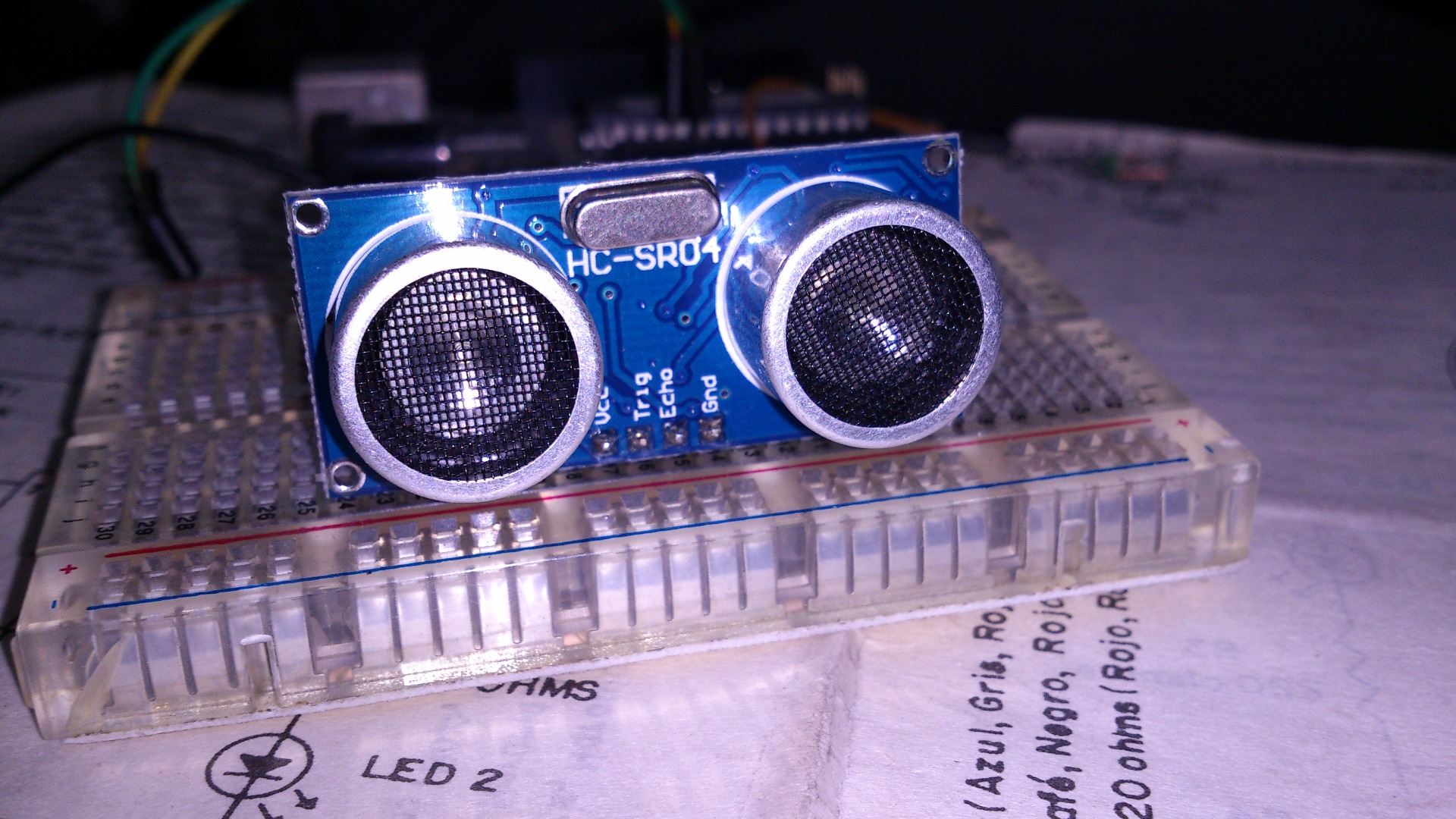

Arduino + HC-SR04


Arduino + HC-SR04

assembling

Video

Arduino + HC-SR04

This projects consists to use the HC-SR04 sensor with Arduino.

This sensor can be used to measure distances or overcome obstacles.

How this happend?

Well, one transducer send a ultrasonic signal , an the other waits for captured the signal when return.

Let's get started!

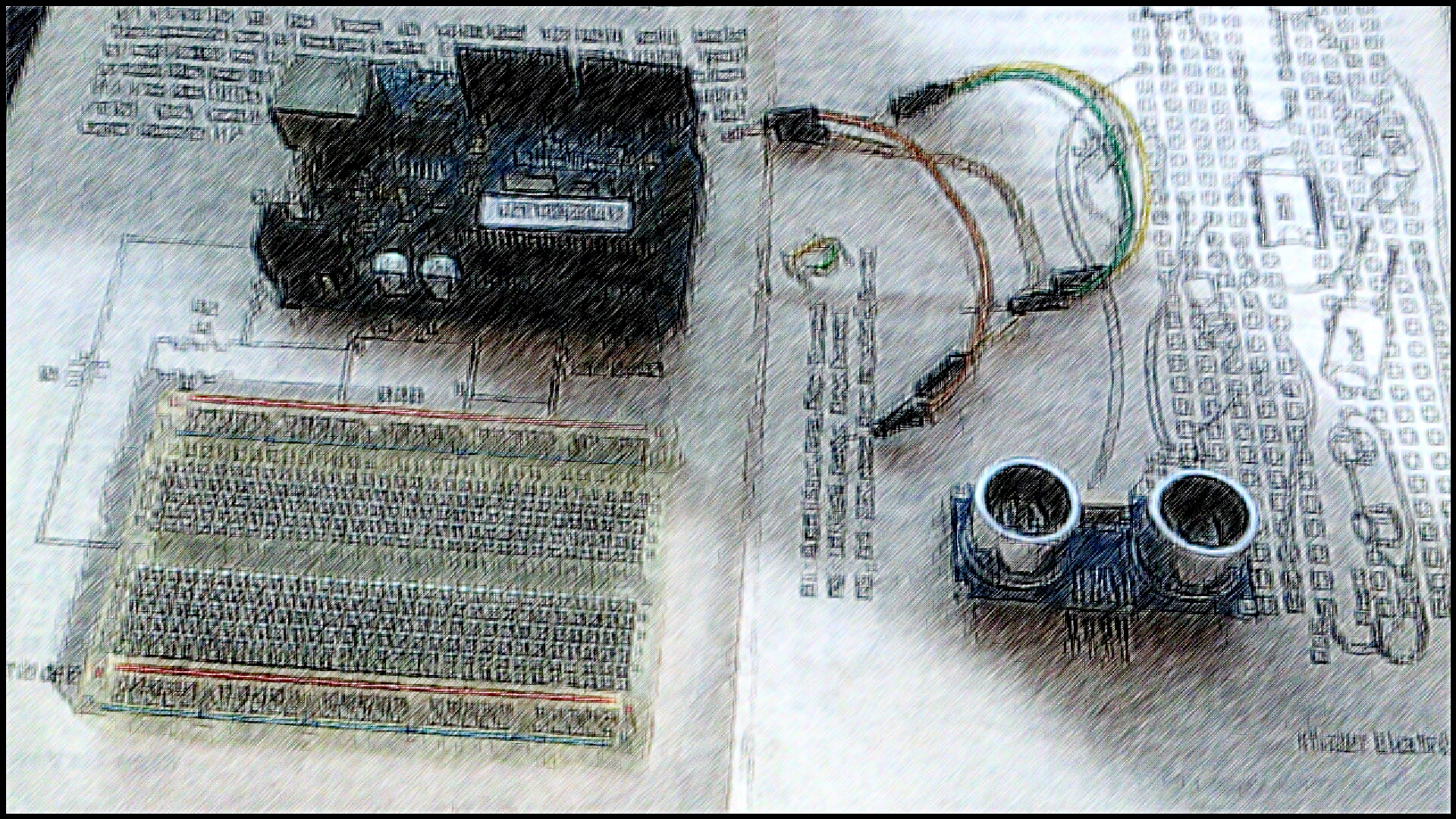

Required Hardware


  1. Arduino

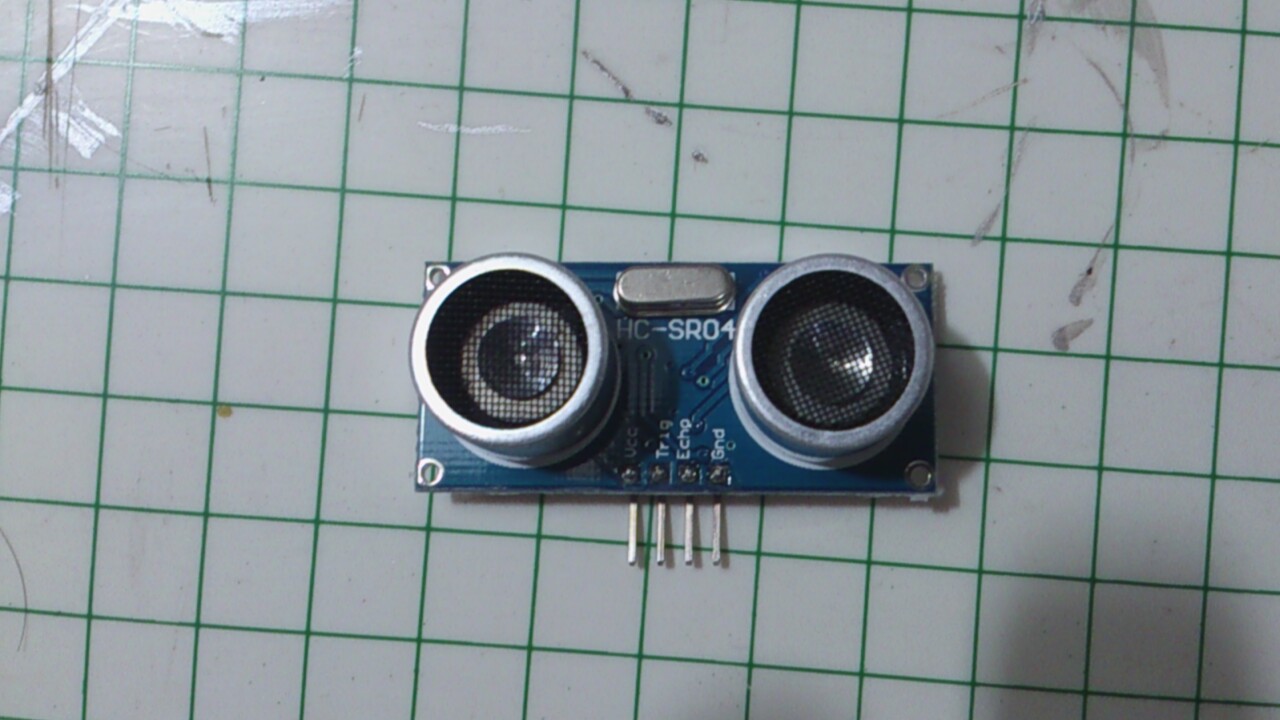

  2. Sensor HC-SR04
  3. Wires
  4. Breadboard
  5. Rule

Circuit

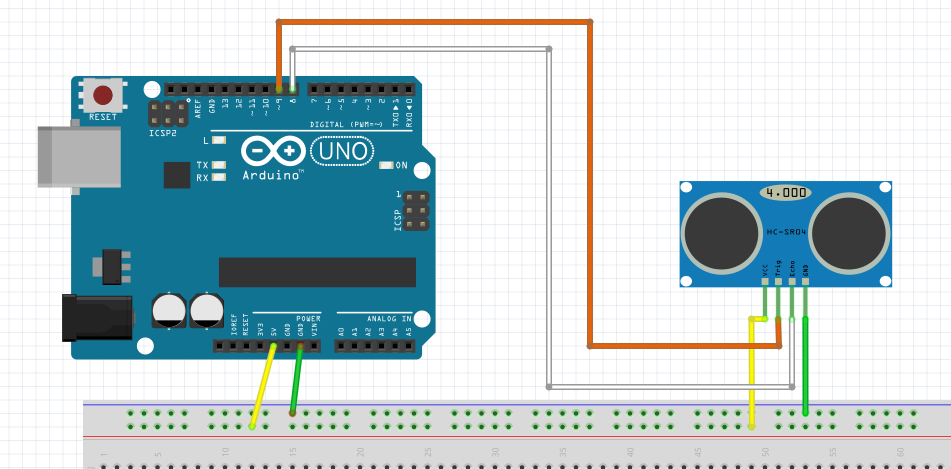

This same diagram created with Fritzing was as connect all circuit.

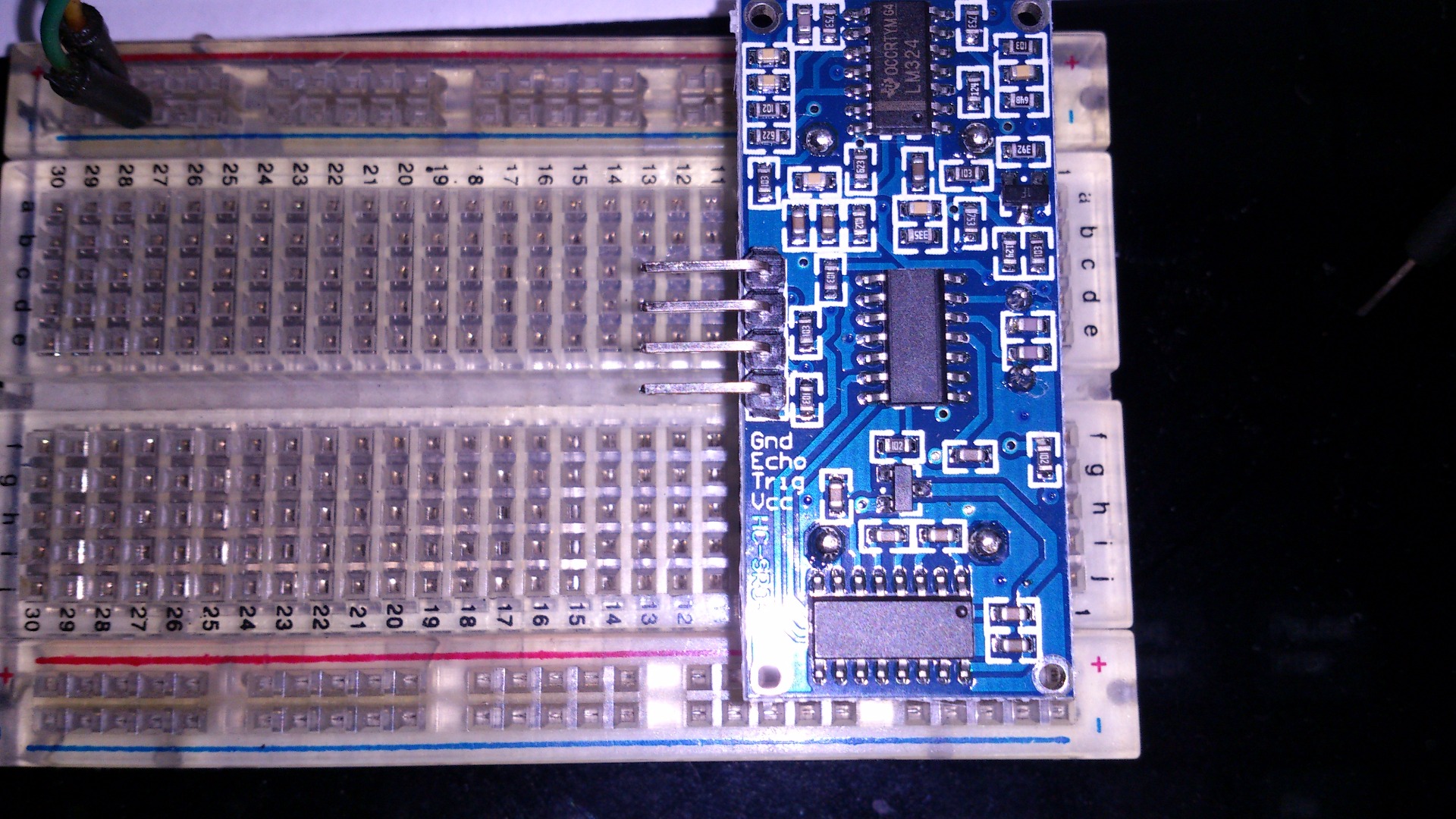

The sensor consists of 4 pins:

  1. "VCC" connected to the output of 5V.
  2. "Trig" connected to digital pin board responsible for sending the ultrasonic pulse.
  3. "Echo" to the digital input pin to receive the echo said pulse.
  4. "GND" grounded.

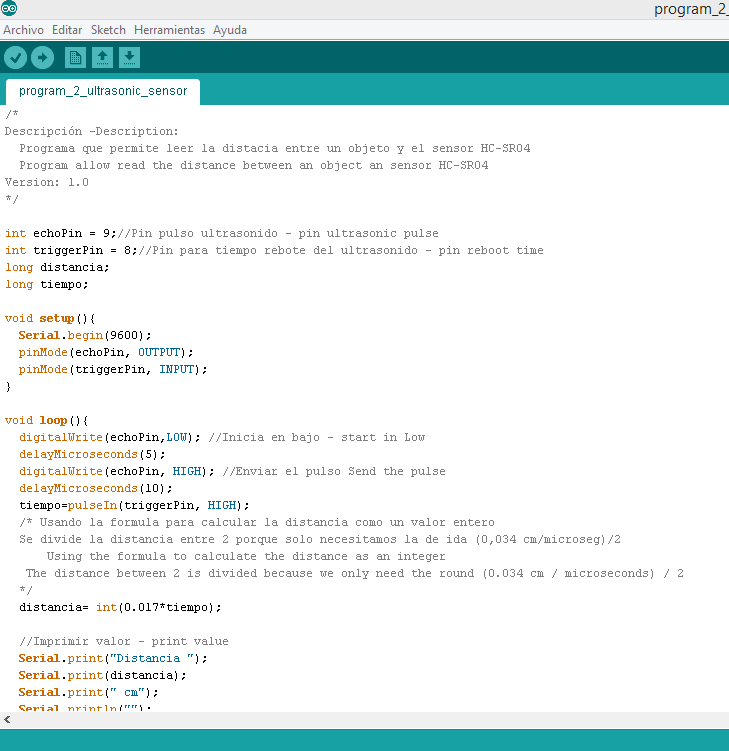

Code


The code has the explanation how the signal is obtained.
