Arduino GoPro Wifi Control
![main1.jpg](/proxy/?url=https://content.instructables.com/FVB/YOEX/JIOU767R/FVBYOEXJIOU767R.jpg&filename=main1.jpg)

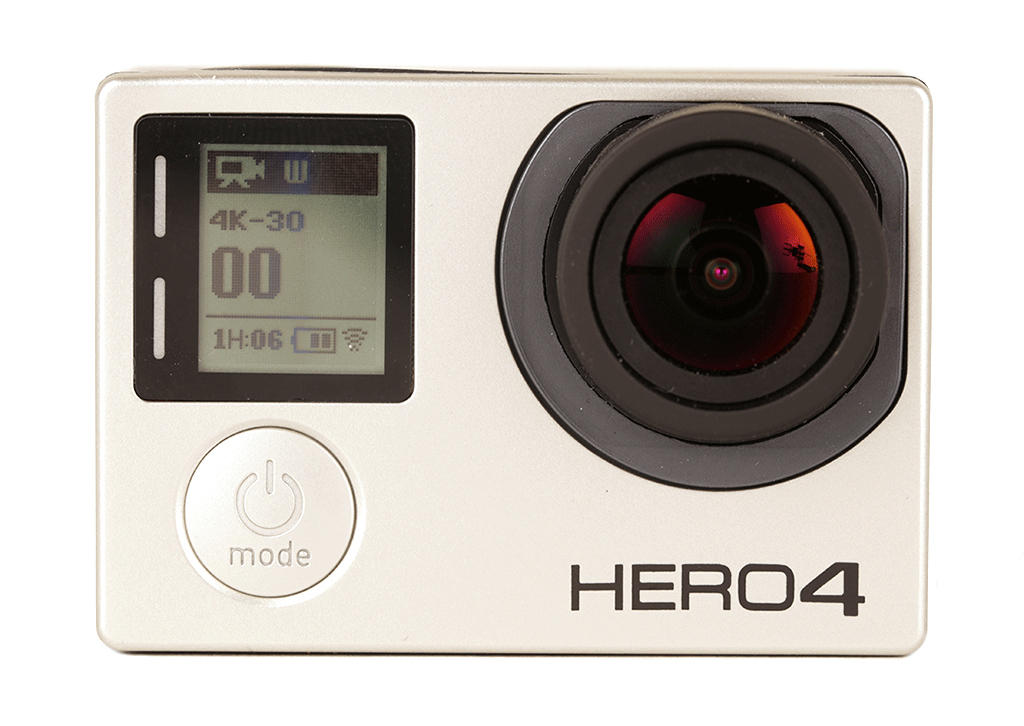

In these steps I show you how to simply control a GoPro Hero 4 and a GoPro Hero Session 5 using an Arduino wifi board. As you will learn, these instructions could easily be adapted for any type of GoPro.
This is useful for when you want to build you own custom controller for a project. Rather than hacking into existing controllers, you can just use the Arduino to communicate with it directly using some basic networking commands. Not only are you able to control the functionality on the GoPro, but you can also receive status updates about the camera. This makes it a versatile solution for a host of different types of projects including custom robots and drones
Materials
![materials.jpg](/proxy/?url=https://content.instructables.com/F4T/ACFA/JIOU76VA/F4TACFAJIOU76VA.jpg&filename=materials.jpg)

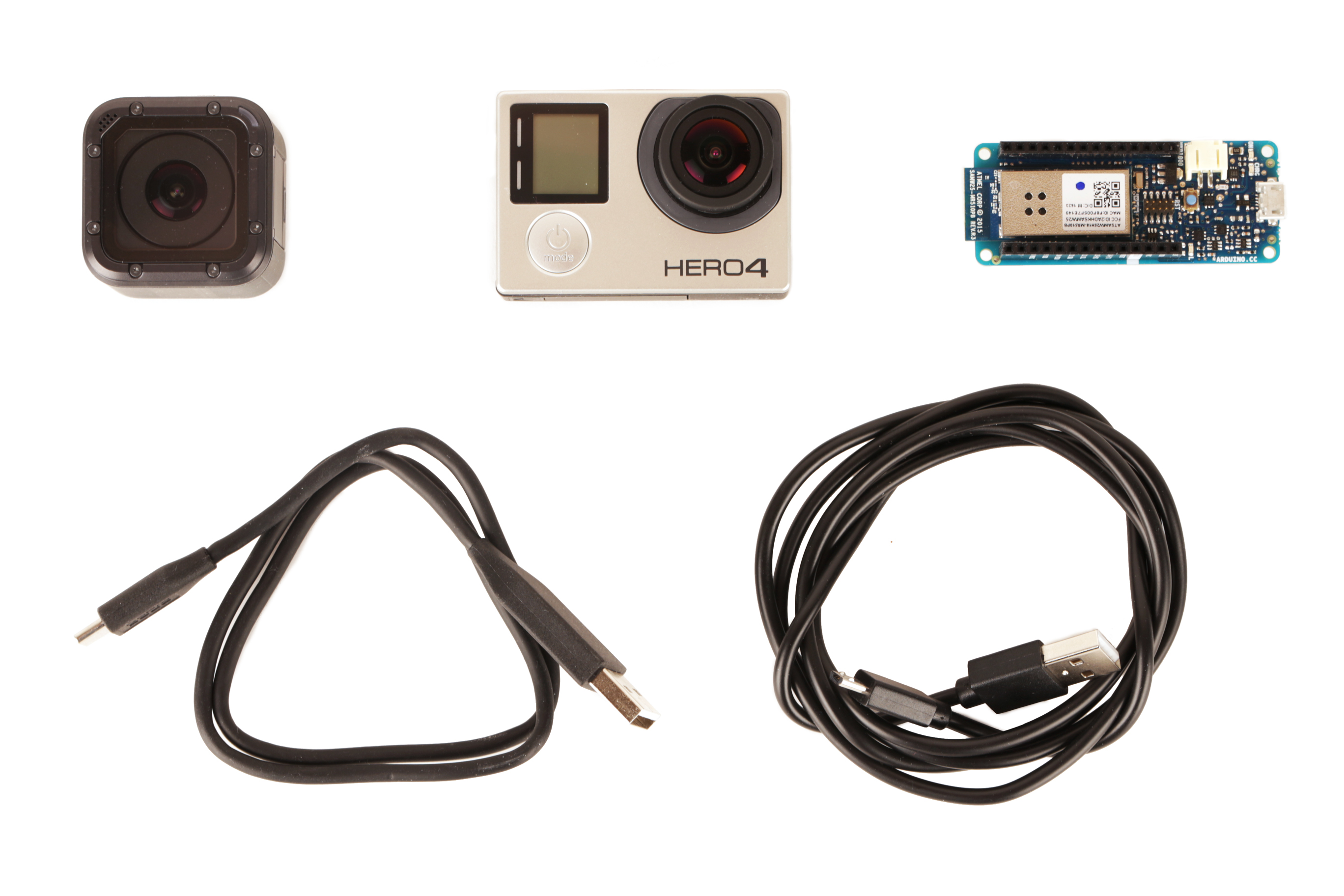

For this project you will need just a couple of things.
To begin, you will obviously need a GoPro camera. These instructions should work for the most current model (GoPro Hero 6). Albeit, I have only personally tested it with a GoPro Hero 4 and a GoPro Hero Session 5. The Hero Session models are slightly different to control than the other models, but we will cover that in a moment.
You will also need a Arduino MKR1000 or Arduino MKR Zero. In these instructions I use a MKR1000. You may be able to get away with another Arduino-compatible wifi-enabled microcontroller board (such as the Feather), but I have not personally tried.
You will also need a USB cable for the Arduino, a computer running the Arduino development software (which I am going to assume you have), and a smartphone with the GoPro app installed.
If you don't have such a thing, or have never used an Arduino before, I highly recommend you first read the Arduino Class before starting this project!
(Note that some of the links on this page are affiliate links. This does not change the cost of the item for you. I reinvest whatever proceeds I receive into making new projects. If you would like any suggestions for alternative suppliers, please let me know.)
Configure Your Camera's Wifi
![wifi1.jpg](/proxy/?url=https://content.instructables.com/FAW/X8LD/JIOU77R2/FAWX8LDJIOU77R2.jpg&filename=wifi1.jpg)
![wifi2.jpg](/proxy/?url=https://content.instructables.com/FRJ/IS1E/JIOU77RF/FRJIS1EJIOU77RF.jpg&filename=wifi2.jpg)
The first thing you need to do is to turn on and configure your camera's wifi connection. I'm not going to go into this too deeply because there are already a lot of tutorials out there for doing this.
On the GoPro Hero4, the easiest method for doing this is to connect your camera to your phone by following the directions in the app.
Once the phone is paired with camera, open the settings for the camera using the app and give the wifi network a new name and password of your choosing.
On the GoPro Hero Session 5, the same method also applies. To begin, connect your camera to your phone by following the directions in the app. This will automatically configure the name and password of the wifi network.
To view the wifi network name on your camera, navigate to "Camera Info" which is found under the "Connection Settings" menu.
Find Your GoPro's MAC Address
Once the wifi is enabled, you need to figure out what your camera's MAC (media access control) address. This address is a nice-to-have bit of information when dealing with traditional Hero line of GoPros. However, if you are using a GoPro Hero Session, this address is a must-have.
To get it, first connect your computer to your camera's wifi network using the network name and password from the previous step.
Once you are logged into your camera's wifi network, open any old web browser on your computer, and visit the following URL:
http://10.5.5.9/gp/gpControl/info
This URL should print a string of information into your web browser which looks something like:
{"model_number"21,"model_name":"HERO5Session","firmware_version":"HD5.03.02.51.00","serial_number":"C3212365684485","board_type":"0x05","ap_mac":"0641631510c4","ap_ssid":"GP54688615","ap_has_default_credentials":"0","capabilities":"16"}
If it doesn't, make sure that your camera is turned on, and still connected to wifi.
The bit in the string that is of interest to us is the string of numbers following "ap_mac:". This 12-digit string of numbers and digits is the MAC address. In my case, this is 0641631510c4.
Once you have identified the address, break it apart every two characters, and format it as follows:
0x06, 0x41, 0x63, 0x15, 0x10, 0xC4
Connect an Arduino to the GoPro Hero
![heroWifi.jpg](/proxy/?url=https://content.instructables.com/FZ0/I7ZU/JIOU78KV/FZ0I7ZUJIOU78KV.jpg&filename=heroWifi.jpg)

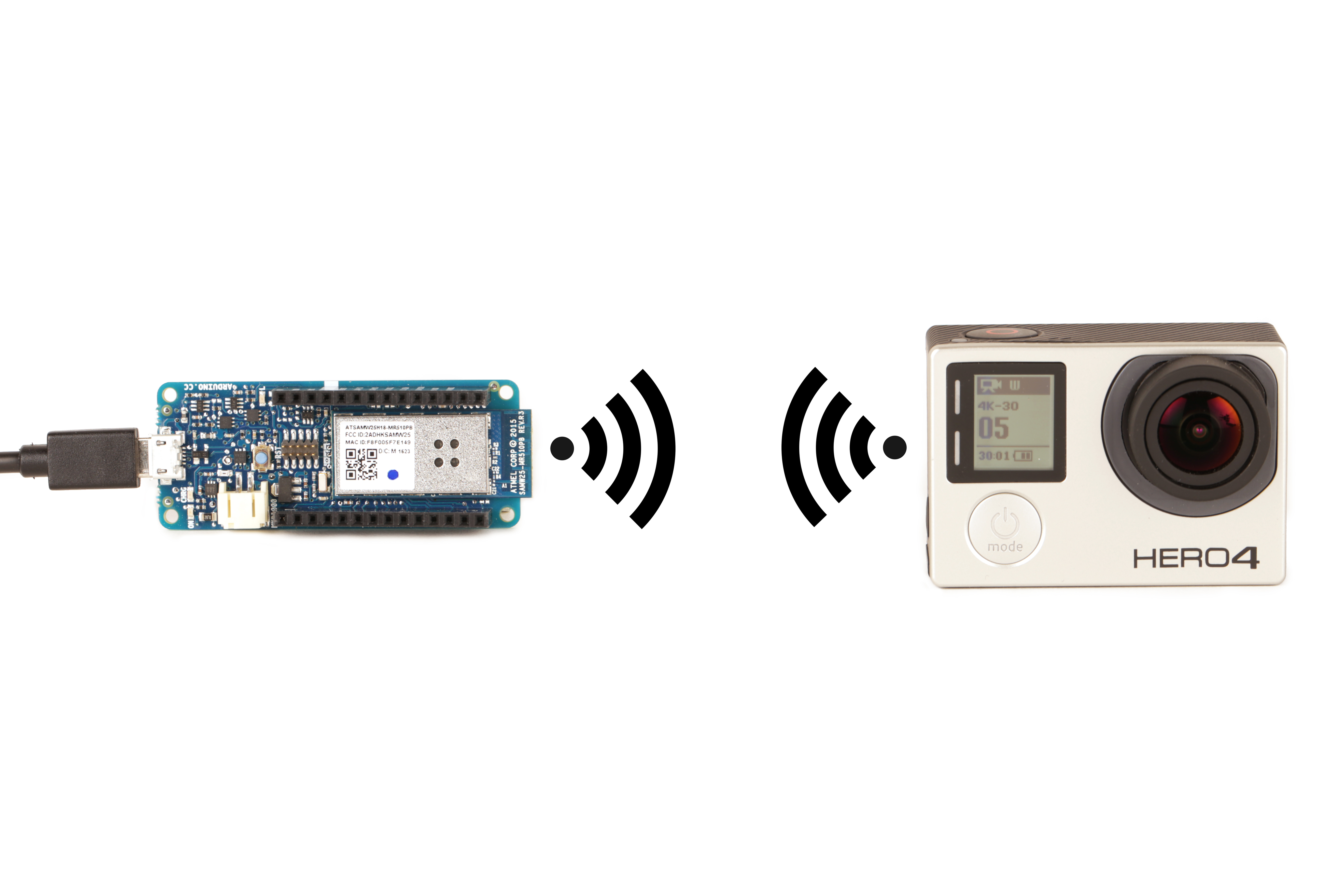

In order for the Arduino to communicate with a GoPro Hero series camera, it needs to be paired using a PIN. To get the pin, navigate in the phone menu to pair the camera with an app. This should generate a 4-digit PIN on all later-model cameras (the Hero 3 and earlier have a 6-digit PIN).
The pin only last for 3-minutes, so time is of the essence.
You need to manually insert the PIN two times into the code below in both places where it says:
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
//ENTER YOUR PIN HERE WHERE IT SAYS XXXX
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Once the pin is entered, you have less than three minutes to upload it to the Arduino and make the connection with the camera.
Speaking of which, don't forget to enter the GoPro's wifi credentials where it says:
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
//ENTER YOUR WIFI NAME AND PASSWORD HERE
//!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
For all intents and purposes, once you have successfully uploaded the code, nothing will appear to happen. Nevertheless, if you navigate out of the GoPro's setup menu back to the video screen, you should now be able to send it commands (which we will cover shortly).
If in the coming steps you can't seem to send commands to the camera, go back and repeat this step.
Code for pairing the GoPro with the Arduino using its PIN number:
#include <SPI.h> #include <WiFi101.h> #include <WiFiUdp.h> int status = WL_IDLE_STATUS; //!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! //ENTER YOUR WIFI NAME AND PASSWORD HERE //!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! char ssid[] = "XXXXXXXXXXXX"; // your network SSID (name) char pass[] = "XXXXXXXXXXXX"; // your network password (use for WPA, or use as key for WEP) WiFiClient client; const char* host = "10.5.5.9"; const int httpPort = 80; void setup(){ //Initialize serial and wait for port to open: Serial.begin(115200); // check for the presence of the wifi module: if (WiFi.status() == WL_NO_SHIELD) { Serial.println("WiFi not present"); // don't continue: while (true); } // attempt to connect to Wifi network: while ( status != WL_CONNECTED) { Serial.print("Attempting to connect to SSID: "); Serial.println(ssid); // Connect to WPA/WPA2 network. Change this line if using open or WEP network: status = WiFi.begin(ssid, pass); // wait 8 seconds for connection: delay(8000); } Serial.println("Connected to wifi"); printWifiStatus(); // START PIN StartPin(); delay(10000); // FINISH PIN FinishPin(); } void loop(){ //Nothing to do here! delay(1000); } void StartPin(){ Serial.print("connecting to "); Serial.println(host); if (!client.connect("10.5.5.9", httpPort)) { Serial.println("connection failed"); return; } //!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! //ENTER YOUR PIN HERE WHERE IT SAYS XXXX //!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! String StartUrl = "/gpPair?c=start&pin=XXXX&mode=0"; Serial.print("Requesting URL: "); Serial.println(StartUrl); client.print(String("GET ") + StartUrl + " HTTP/1.1\r\n" + "Host: " + host + "\r\n" + "Connection: close\r\n\r\n"); Serial.println("Started"); } void FinishPin(){ Serial.print("connecting to "); Serial.println(host); if (!client.connect("10.5.5.9", httpPort)) { Serial.println("connection failed"); return; } //!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! //ENTER YOUR PIN HERE WHERE IT SAYS XXXX //!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! String StopUrl = "10.5.5.9/gpPair?c=finish&pin=XXXX&mode=0"; Serial.print("Requesting URL: "); Serial.println(StopUrl); client.print(String("GET ") + StopUrl + " HTTP/1.1\r\n" + "Host: " + host + "\r\n" + "Connection: close\r\n\r\n"); Serial.println("Finished"); } void printWifiStatus() { // print the SSID of the network you're attached to: Serial.print("SSID: "); Serial.println(WiFi.SSID()); // print your WiFi shield's IP address: IPAddress ip = WiFi.localIP(); Serial.print("IP Address: "); Serial.println(ip); // print the received signal strength: long rssi = WiFi.RSSI(); Serial.print("signal strength (RSSI):"); Serial.print(rssi); Serial.println(" dBm"); }
Connect an Arduino to the GoPro Hero Session
![heroSession.jpg](/proxy/?url=https://content.instructables.com/FD6/CSG8/JIOU7940/FD6CSG8JIOU7940.jpg&filename=heroSession.jpg)
The GoPro Session does not have a PIN to contend with. However, it has its own peculiarities that make connecting to it really annoying. As you may have noticed, as soon as you finish recording, or, for that matter, as soon as you finish doing most anything with the camera, it turns off and goes into sleep mode.
Before you can send the GoPro Hero any sort of command, you need to wake it up. The easiest way to do this is to manually press the menu button on the back of the camera and send it commands within the few second window in which it is awake. However, that is annoying and not particularly practical in any way.
The better way to wake up the GoPro is by using a WOL packet or "magic packet." This acronym stands for Wake-on-Lan and is a protocol for waking a computer from sleep mode remotely. It requires sending bytes using a UDP protocol from the Arduino to the GoPro to wake it up. This is a little annoying because it is a different protocol than you send all of the other control commands. The code also is less pretty, and a bit more complicated to deal with if you are new to programming.
Nevertheless, when it works, it really works like magic. It never ceases to amaze me to see my camera wake up by sending it a command from the Arduino.
The WOL command (the CameraInitiate() function in the code) needs to be sent before most other commands, and should typically be followed by a 1-2 second delay. Essentially, you need to send it any time you might need to wake your camera up (which is most times). And after you send the command, you need to pause for a moment to allow the camera to actually wake up.
In the example below, the WOL function is called in the setup, so it will only wake your camera the first time you run it.
Do not forget to enter the GoPro's wifi credentials and MAC address into the code where prompted!
Here is the code for waking your camera:
#include <SPI.h> #include <WiFi101.h> #include <WiFiUdp.h> int status = WL_IDLE_STATUS; //!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! //ENTER YOUR WIFI NAME AND PASSWORD HERE //!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! char ssid[] = "XXXXXXXXXXXX"; // your network SSID (name) char pass[] = "XXXXXXXXXXXX"; // your network password (use for WPA, or use as key for WEP) int localPort = 7; byte broadCastIp[] = { 10,5,5,9 }; //!!!!!!!!!!!!!!!!!!!!!!!!!!! //ENTER YOUR MAC ADDRESS HERE //!!!!!!!!!!!!!!!!!!!!!!!!!!! byte remote_MAC_ADD[] = { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }; int wolPort = 9; WiFiUDP Udp; WiFiClient client; const char* host = "10.5.5.9"; const int httpPort = 80; void setup(){ //Initialize serial and wait for port to open: Serial.begin(115200); // check for the presence of the wifi module: if (WiFi.status() == WL_NO_SHIELD) { Serial.println("WiFi not present"); // don't continue: while (true); } // attempt to connect to Wifi network: while ( status != WL_CONNECTED) { Serial.print("Attempting to connect to SSID: "); Serial.println(ssid); // Connect to WPA/WPA2 network. Change this line if using open or WEP network: status = WiFi.begin(ssid, pass); // wait 8 seconds for connection: delay(8000); } Serial.println("Connected to wifi"); printWifiStatus(); delay(1000); // WAKE UP YOUR SLEEPY CAMERA! CameraInitiate(){ // NOTE: If this does not seem to be working, // turn your camera on and off and try again. } void loop(){ //Nothing to do here! delay(1000); } // FUNCTION TO WAKE UP THE CAMERA void CameraInitiate(){ //Begin UDP communication Udp.begin(localPort); //Send the magic packet to wake up the GoPro out of sleep delay(2000); SendMagicPacket(); delay(5000); // Absolutely necessary to flush port of UDP junk for Wifi client communication Udp.flush(); delay(1000); //Stop UDP communication Udp.stop(); delay(1000); } // Function to create and send magic packet // Taken and translated from here: // https://www.logicaprogrammabile.it/wol-accendere-computer-arduino-wake-on-lan/ void SendMagicPacket(){ //Create a 102 byte array byte magicPacket[102]; // Variables for cycling through the array int Cycle = 0, CycleMacAdd = 0, IndexArray = 0; // This for loop cycles through the array for( Cycle = 0; Cycle < 6; Cycle++){ // The first 6 bytes of the array are set to the value 0xFF magicPacket[IndexArray] = 0xFF; // Increment the array index IndexArray++; } // Now we cycle through the array to add the GoPro address for( Cycle = 0; Cycle < 16; Cycle++ ){ //eseguo un Cycle per memorizzare i 6 byte del //mac address for( CycleMacAdd = 0; CycleMacAdd < 6; CycleMacAdd++){ magicPacket[IndexArray] = remote_MAC_ADD[CycleMacAdd]; // Increment the array index IndexArray++; } } //The magic packet is now broadcast to the GoPro IP address and port Udp.beginPacket(broadCastIp, wolPort); Udp.write(magicPacket, sizeof magicPacket); Udp.endPacket(); } void printWifiStatus() { // print the SSID of the network you're attached to: Serial.print("SSID: "); Serial.println(WiFi.SSID()); // print your WiFi shield's IP address: IPAddress ip = WiFi.localIP(); Serial.print("IP Address: "); Serial.println(ip); // print the received signal strength: long rssi = WiFi.RSSI(); Serial.print("signal strength (RSSI):"); Serial.print(rssi); Serial.println(" dBm"); }
Send GoPro Commands
![goproWifi.gif](/proxy/?url=https://content.instructables.com/FYH/BC7Y/JIOU764S/FYHBC7YJIOU764S.gif&filename=goproWifi.gif)
In this example I am going to show how to send commands to start and stop video recording.
That said, using the same method demonstrated here, you can send commands for just about every functionality within the camera. The GoPro Hero 4 commands seems to be standard set for all subsequent models. However, some of the more recent cameras have new features and camera-specific commands that are worth investigating. You can find the camera specific commands on the Unofficial GoPro WiFi API github page by clicking on the link for you specific camera model.
The example below engages recording for 5 seconds, stops recording, waits for 5 more seconds, and begins again. If you are using a Hero Session, be sure to uncomment the line of code that wakes up the GoPro.
Once again, don't forget to enter your GoPro's wifi credentials and MAC address!
Code to send Start and Stop recording commands:
#include <SPI.h> #include <WiFi101.h> #include <WiFiUdp.h> int status = WL_IDLE_STATUS; //!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! //ENTER YOUR WIFI NAME AND PASSWORD HERE //!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! char ssid[] = "XXXXXXXXXXXX"; // your network SSID (name) char pass[] = "XXXXXXXXXXXX"; // your network password (use for WPA, or use as key for WEP) int localPort = 7; byte broadCastIp[] = { 10,5,5,9 }; //!!!!!!!!!!!!!!!!!!!!!!!!!!! //ENTER YOUR MAC ADDRESS HERE //!!!!!!!!!!!!!!!!!!!!!!!!!!! byte remote_MAC_ADD[] = { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }; int wolPort = 9; WiFiUDP Udp; WiFiClient client; const char* host = "10.5.5.9"; const int httpPort = 80; void setup(){ //Initialize serial and wait for port to open: Serial.begin(115200); // check for the presence of the wifi module: if (WiFi.status() == WL_NO_SHIELD) { Serial.println("WiFi not present"); // don't continue: while (true); } // ADD THIS TO LOOP?????????????? // MAKE ITS OWN FUNCTION??????? // attempt to connect to Wifi network: while ( status != WL_CONNECTED) { Serial.print("Attempting to connect to SSID: "); Serial.println(ssid); // Connect to WPA/WPA2 network. Change this line if using open or WEP network: status = WiFi.begin(ssid, pass); // wait 8 seconds for connection: delay(8000); } Serial.println("Connected to wifi"); printWifiStatus(); } void loop(){ // Add code to check to see if wifi is still on. If not, stop and keep trying to connect // WAKE UP CAMERA FROM SLEEP AND CONNECT CameraInitiate(); // Add code to make sure that camera recognized (status 31) // START RECORDING StartRecording(); delay(5000); // STOP RECORDING StopRecording(); delay(5000); } void StartRecording(){ Serial.print("connecting to "); Serial.println(host); if (!client.connect("10.5.5.9", httpPort)) { Serial.println("connection failed"); return; } //Command for starting recording String StartUrl = "/gp/gpControl/command/shutter?p=1"; Serial.print("Requesting URL: "); Serial.println(StartUrl); client.print(String("GET ") + StartUrl + " HTTP/1.1\r\n" + "Host: " + host + "\r\n" + "Connection: close\r\n\r\n"); Serial.println("Recording"); } void StopRecording(){ Serial.print("connecting to "); Serial.println(host); if (!client.connect("10.5.5.9", httpPort)) { Serial.println("connection failed"); return; } //Command for stopping recording String StopUrl = "/gp/gpControl/command/shutter?p=0"; Serial.print("Requesting URL: "); Serial.println(StopUrl); client.print(String("GET ") + StopUrl + " HTTP/1.1\r\n" + "Host: " + host + "\r\n" + "Connection: close\r\n\r\n"); Serial.println("Stopped"); } // FUNCTION TO WAKE UP THE CAMERA void CameraInitiate(){ //Begin UDP communication Udp.begin(localPort); //Send the magic packet to wake up the GoPro out of sleep delay(2000); SendMagicPacket(); delay(5000); // Absolutely necessary to flush port of UDP junk for Wifi client communication Udp.flush(); delay(1000); //Stop UDP communication Udp.stop(); delay(1000); } // Function to create and send magic packet // Taken and translated from here: // https://www.logicaprogrammabile.it/wol-accendere-computer-arduino-wake-on-lan/ void SendMagicPacket(){ //Create a 102 byte array byte magicPacket[102]; // Variables for cycling through the array int Cycle = 0, CycleMacAdd = 0, IndexArray = 0; // This for loop cycles through the array for( Cycle = 0; Cycle < 6; Cycle++){ // The first 6 bytes of the array are set to the value 0xFF magicPacket[IndexArray] = 0xFF; // Increment the array index IndexArray++; } // Now we cycle through the array to add the GoPro address for( Cycle = 0; Cycle < 16; Cycle++ ){ //eseguo un Cycle per memorizzare i 6 byte del //mac address for( CycleMacAdd = 0; CycleMacAdd < 6; CycleMacAdd++){ magicPacket[IndexArray] = remote_MAC_ADD[CycleMacAdd]; // Increment the array index IndexArray++; } } //The magic packet is now broadcast to the GoPro IP address and port Udp.beginPacket(broadCastIp, wolPort); Udp.write(magicPacket, sizeof magicPacket); Udp.endPacket(); } void printWifiStatus() { // print the SSID of the network you're attached to: Serial.print("SSID: "); Serial.println(WiFi.SSID()); // print your WiFi shield's IP address: IPAddress ip = WiFi.localIP(); Serial.print("IP Address: "); Serial.println(ip); // print the received signal strength: long rssi = WiFi.RSSI(); Serial.print("signal strength (RSSI):"); Serial.print(rssi); Serial.println(" dBm"); }
Receive GoPro Status Updates
It is possible to receive status updates from the GoPro using this link:
http://10.5.5.9/gp/gpControl/status
When this link is called, it provides a JSON object which can be parsed using this Camera Status guide.
The easiest way to see it is to connect to your GoPro's wifi network with your computer, and load the above link using a web browser.
It will return something which looks like:
{"status"{"1":1,"2":2,"3":0,"4":0,"6":0,"8":0,"9":0,"10":0,"13":0,"14":0,"15":0,"16":0,"17":1,"19":0,"20":0,"21":0,"22":0,"23":0,"24":0,"26":0,"27":0,"28":82,"29":"","30":"","31":0,"32":0,"33":0,"34":2796,"35":1917,"36":0,"37":1,"38":0,"39":1,"40":"%12%05%13%0C%04%0E","41":0,"42":0,"43":0,"44":0,"45":0,"46":1,"47":1,"48":1,"49":0,"54":15476384,"55":1,"56":0,"57":3927,"58":0,"59":0,"60":500,"61":2,"62":0,"63":0,"64":0,"69":1,"71":12,"72":19,"73":20,"74":0},
"settings":{"1":0,"2":1,"3":8,"4":0,"5":0,"6":1,"7":1,"8":1,"9":0,"10":0,"11":0,"12":0,"13":1,"14":0,"15":4,"16":0,"17":4,"18":1,"19":0,"20":0,"21":1,"22":0,"23":0,"24":0,"25":0,"26":4,"27":0,"28":4,"29":5,"30":0,"31":0,"32":3601,"33":0,"34":0,"35":0,"36":0,"37":0,"38":0,"39":4,"40":0,"41":13,"42":8,"43":0,"44":8,"45":8,"46":0,"47":0,"48":0,"52":1,"54":1,"57":0,"58":1,"59":6,"60":8,"61":1,"62":2500000,"63":7,"64":4,"65":0,"66":0,"67":0,"68":0,"69":1,"70":0,"71":0,"73":0,"74":0,"75":3,"76":3,"78":1,"84":0,"85":0,"86":1,"87":40,"89":12,"91":0,"92":12,"95":1,"96":0}}
To be entirely honest, every single time I tried to make this work with my Arduino it would somehow crash my GoPro. Since I didn't really need this functionality for the larger project that I was working on, I stopped spinning my wheels on this part.
However, thanks to nes3dprinting, here is some code that works with the ESP8266 board:
<p>// Code by <a href="https://www.instructables.com/member/nes3dprinting/</p"> <a href="https://www.instructables.com/member/nes3dprintin...</a"> https://www.instructables.com/member/nes3dprintin...</a>>><p>// This is for an ESP8266, not the MKR1000 // Made this for a GoPro Hero+. Should work for Hero4- Latest(Hero7) //https://github.com/KonradIT/goprowifihack/blob/master/HERO/CameraStatus.md</p><p>#include ESP8266WiFi.h // ArduinoJson Version 5.13 #include ArduinoJson.h #include ESP8266HTTPClient.h</p><p>//########################## Enter GoPro WiFi Details Here ############################# const char* ssid = "GoProHero+"; const char* pass = "GoProHero+"; //######################################################################################</p><p>const char* host = "10.5.5.9"; const int httpPort = 80;</p><p>void setup() { Serial.begin(115200); WiFi.mode(WIFI_STA); WiFi.begin(ssid,pass); } void loop() { if (WiFi.status() == WL_CONNECTED) { // Prints the Current Mode of the Camera: Video-0, Photo-1, MultiShot-2 // <a href="https://github.com/KonradIT/goprowifihack/blob/master/HERO/CameraStatus.md"> <a href="https://www.instructables.com/member/nes3dprintin...</a"> https://www.instructables.com/member/nes3dprintin...</a>> // Pick desired status from function below GetStatus(); } }</p><p>void GetStatus() { //Serial.println("Getting Status Updates"); HTTPClient http; //Object of class HTTPClient http.begin("http://10.5.5.9/gp/gpControl/status"); int httpCode = http.GET(); //Serial.print("httpCode: "); //Serial.println(httpCode); //Check the returning code if (httpCode > 0) { // Parsing - Created Using ArduinoJson Assistant // <a href="https://arduinojson.org/v5/assistant/"> <a href="https://www.instructables.com/member/nes3dprintin...</a"> https://www.instructables.com/member/nes3dprintin...</a>> const size_t bufferSize = JSON_OBJECT_SIZE(2) + JSON_OBJECT_SIZE(55) + JSON_OBJECT_SIZE(64) + 730; DynamicJsonBuffer jsonBuffer(bufferSize); String str = http.getString(); //Serial.println(str); JsonObject& root = jsonBuffer.parseObject(str); JsonObject& status = root["status"]; int status_1 = status["1"]; // 1 int status_2 = status["2"]; // 4 int status_3 = status["3"]; // 0 int status_4 = status["4"]; // 0 int status_6 = status["6"]; // 0 int status_8 = status["8"]; // 0 int status_9 = status["9"]; // 0 int status_10 = status["10"]; // 0 int status_11 = status["11"]; // 0 int status_13 = status["13"]; // 0 int status_14 = status["14"]; // 0 int status_15 = status["15"]; // 0 int status_16 = status["16"]; // 0 int status_17 = status["17"]; // 1 int status_19 = status["19"]; // 0 int status_20 = status["20"]; // 0 int status_21 = status["21"]; // 0 int status_22 = status["22"]; // 0 int status_23 = status["23"]; // 0 int status_24 = status["24"]; // 0 int status_26 = status["26"]; // 0 int status_27 = status["27"]; // 0 int status_28 = status["28"]; // 0 const char* status_29 = status["29"]; // "" const char* status_30 = status["30"]; // "GoProHero+" int status_31 = status["31"]; // 0 int status_32 = status["32"]; // 0 int status_33 = status["33"]; // 0 int status_34 = status["34"]; // 4431 int status_35 = status["35"]; // 4860 int status_36 = status["36"]; // 0 int status_37 = status["37"]; // 0 int status_38 = status["38"]; // 0 int status_39 = status["39"]; // 1 const char* status_40 = status["40"]; // "%12%0B%0C%17%1E%08" int status_41 = status["41"]; // 0 int status_42 = status["42"]; // 0 int status_43 = status["43"]; // 1 int status_44 = status["44"]; // 0 int status_45 = status["45"]; // 0 int status_46 = status["46"]; // 0 int status_47 = status["47"]; // 0 int status_48 = status["48"]; // 0 int status_49 = status["49"]; // 0 long status_54 = status["54"]; // 15899787264 int status_55 = status["55"]; // 1 int status_56 = status["56"]; // 4 int status_57 = status["57"]; // 0 int status_58 = status["58"]; // 0 int status_59 = status["59"]; // 0 int status_60 = status["60"]; // 500 int status_61 = status["61"]; // 2 int status_62 = status["62"]; // 0 int status_63 = status["63"]; // 0 int status_64 = status["64"]; // 2215 JsonObject& settings = root["settings"]; int settings_1 = settings["1"]; // 0 int settings_2 = settings["2"]; // 11 int settings_3 = settings["3"]; // 5 int settings_4 = settings["4"]; // 0 int settings_5 = settings["5"]; // 0 int settings_6 = settings["6"]; // 1 int settings_7 = settings["7"]; // 0 int settings_8 = settings["8"]; // 0 int settings_9 = settings["9"]; // 0 int settings_10 = settings["10"]; // 0 int settings_11 = settings["11"]; // 0 int settings_12 = settings["12"]; // 0 int settings_13 = settings["13"]; // 0 int settings_14 = settings["14"]; // 4 int settings_15 = settings["15"]; // 0 int settings_16 = settings["16"]; // 0 int settings_17 = settings["17"]; // 0 int settings_18 = settings["18"]; // 0 int settings_19 = settings["19"]; // 0 int settings_20 = settings["20"]; // 0 int settings_21 = settings["21"]; // 0 int settings_22 = settings["22"]; // 0 int settings_23 = settings["23"]; // 0 int settings_24 = settings["24"]; // 0 int settings_25 = settings["25"]; // 0 int settings_26 = settings["26"]; // 0 int settings_27 = settings["27"]; // 0 int settings_28 = settings["28"]; // 0 int settings_29 = settings["29"]; // 3 int settings_30 = settings["30"]; // 0 int settings_31 = settings["31"]; // 0 int settings_32 = settings["32"]; // 10 int settings_33 = settings["33"]; // 0 int settings_34 = settings["34"]; // 0 int settings_35 = settings["35"]; // 0 int settings_36 = settings["36"]; // 0 int settings_37 = settings["37"]; // 0 int settings_38 = settings["38"]; // 0 int settings_39 = settings["39"]; // 0 int settings_49 = settings["49"]; // 100 int settings_50 = settings["50"]; // 0 int settings_51 = settings["51"]; // 2 int settings_52 = settings["52"]; // 1 int settings_53 = settings["53"]; // 1 int settings_54 = settings["54"]; // 0 int settings_55 = settings["55"]; // 3 int settings_56 = settings["56"]; // 0 int settings_57 = settings["57"]; // 0 int settings_58 = settings["58"]; // 0 int settings_59 = settings["59"]; // 0 int settings_60 = settings["60"]; // 8 int settings_61 = settings["61"]; // 1 long settings_62 = settings["62"]; // 700000 int settings_63 = settings["63"]; // 1 int settings_64 = settings["64"]; // 2 int settings_68 = settings["68"]; // 0 int settings_69 = settings["69"]; // 0 int settings_70 = settings["70"]; // 0 int settings_72 = settings["72"]; // 0 int settings_73 = settings["73"]; // 0 int settings_74 = settings["74"]; // 0 int settings_75 = settings["75"]; // 0 int settings_76 = settings["76"]; // 0 int settings_77 = settings["77"]; // 0</p><p>//########################### Set Desired State to Update Here ########################################## Serial.print("The Current State is: "); Serial.println(status_43); //###################################################################################################### } else { Serial.println("No Response From Camera"); } }</p>
![](/proxy/?url=https://content.instructables.com/FP8/ABPR/K9R2LUOD/FP8ABPRK9R2LUOD.jpg?auto=webp&crop=1:1&frame=1&width=320)
