Arduino Flashing LEDS

This will get you a very nice set of flashing LEDs just connect the LEDs (I used a breadboard) and turn it on.

Program the Arduino.

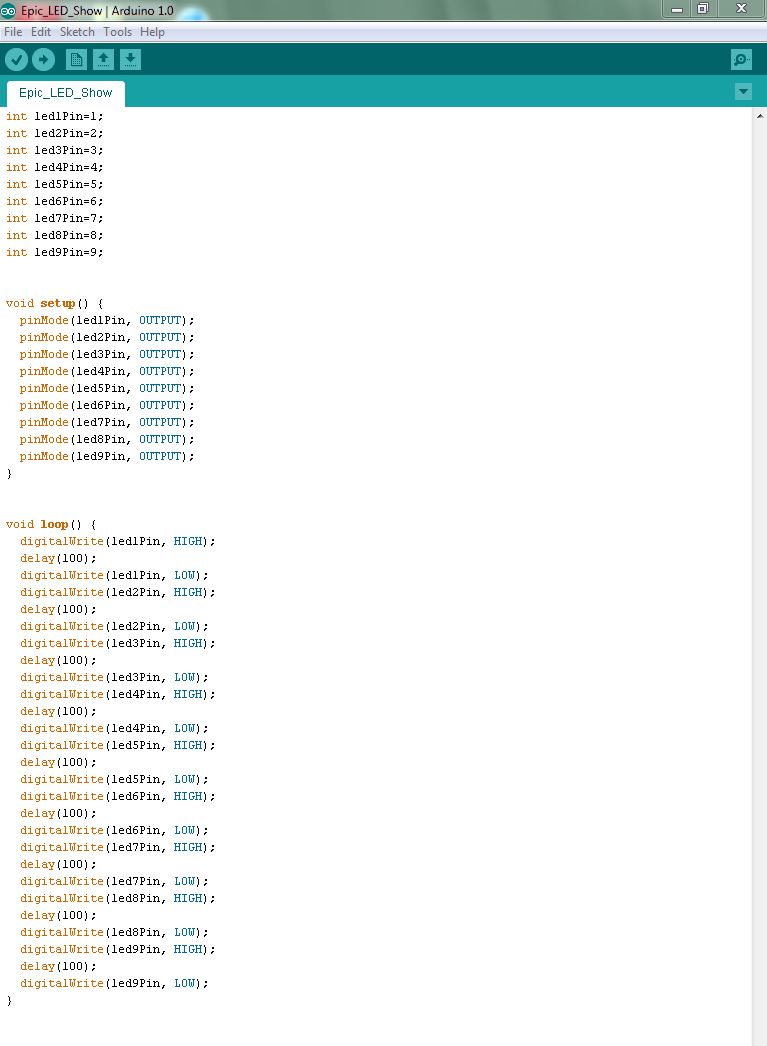

Insert the following Code:

int led1Pin=1;
int led2Pin=2;
int led3Pin=3;
int led4Pin=4;
int led5Pin=5;
int led6Pin=6;
int led7Pin=7;
int led8Pin=8;
int led9Pin=9;


void setup() {
  pinMode(led1Pin, OUTPUT);
  pinMode(led2Pin, OUTPUT);
  pinMode(led3Pin, OUTPUT);
  pinMode(led4Pin, OUTPUT);
  pinMode(led5Pin, OUTPUT);
  pinMode(led6Pin, OUTPUT);
  pinMode(led7Pin, OUTPUT);
  pinMode(led8Pin, OUTPUT);
  pinMode(led9Pin, OUTPUT);
}


void loop() {
  digitalWrite(led1Pin, HIGH);
  delay(100);
  digitalWrite(led1Pin, LOW);
  digitalWrite(led2Pin, HIGH);
  delay(100);
  digitalWrite(led2Pin, LOW);
  digitalWrite(led3Pin, HIGH);
  delay(100);
  digitalWrite(led3Pin, LOW);
  digitalWrite(led4Pin, HIGH);
  delay(100);
  digitalWrite(led4Pin, LOW);
  digitalWrite(led5Pin, HIGH);
  delay(100);
  digitalWrite(led5Pin, LOW);
  digitalWrite(led6Pin, HIGH);
  delay(100);
  digitalWrite(led6Pin, LOW);
  digitalWrite(led7Pin, HIGH);
  delay(100);
  digitalWrite(led7Pin, LOW);
  digitalWrite(led8Pin, HIGH);
  delay(100);
  digitalWrite(led8Pin, LOW);
  digitalWrite(led9Pin, HIGH);
  delay(100);
  digitalWrite(led9Pin, LOW);
}

You can edit the delays for different speeds.

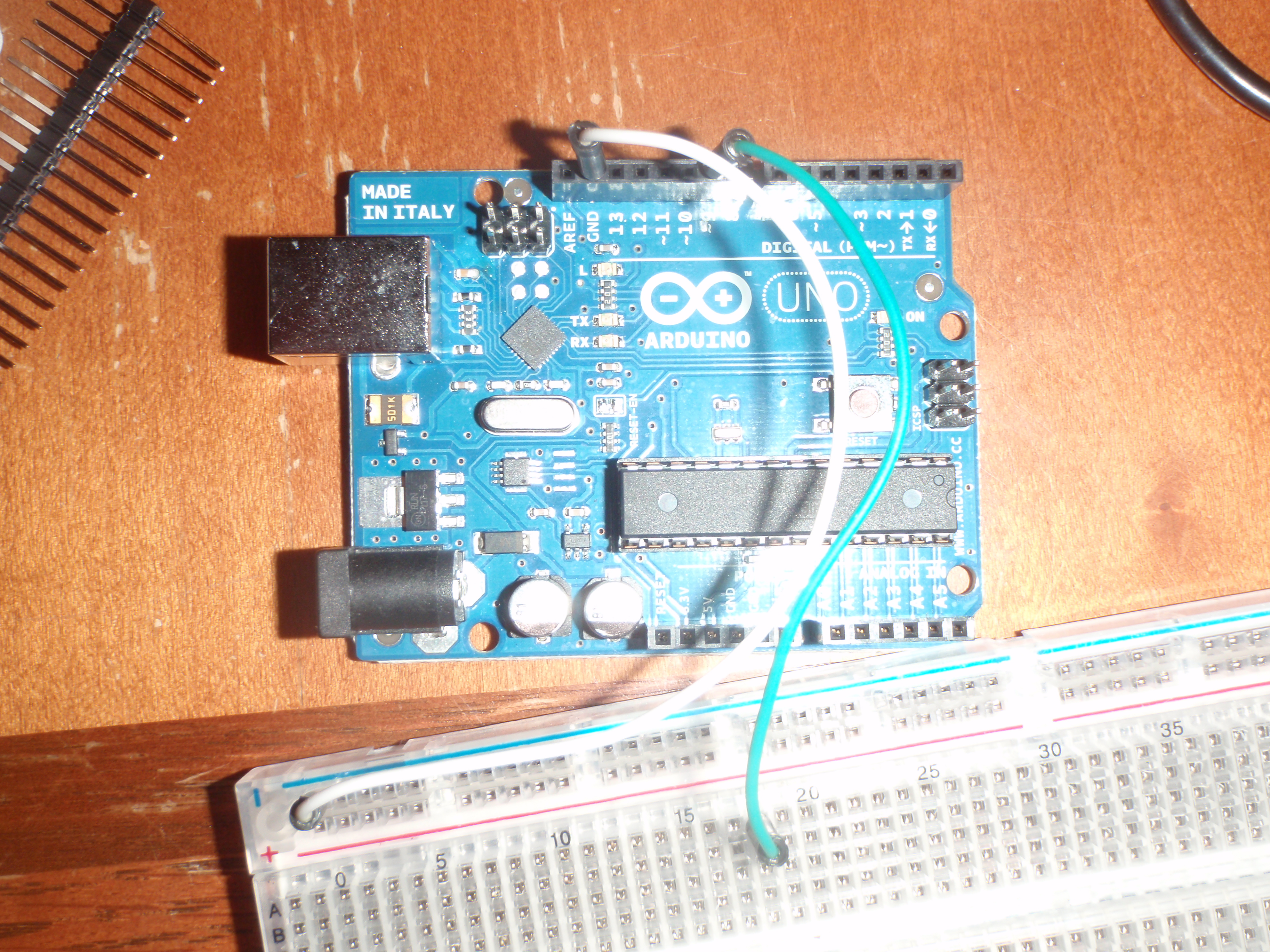

Connect the LEDs

Connect all the LEDs to digital I/0 pins 1-9. You can make them any color you want.

MAKE SURE YOU INCLUDE A 220 Ohm RESISTOR OR YOU MAY BLOW THE CIRCUT!!!!!

More!

Try editing the delay(100) for more fun!
