Arduino Fingerprint Attendance System W/ Cloud Data Storage

You can read this and other amazing tutorials on

ElectroPeak's official website

Overview

Nowadays, learning about IoT devices operation and implementation is so essential due to the increasing use of IoT systems. In this tutorial, we are going to make a fingerprint attendance device with Arduino, which in addition to storing the logging information and working hours on the memory card, uploads this information on the Thingspeak platform as soon as it is connected to the Internet and You can download this information from the panel in various formats, such as CSV.

What You Will Learn

• Introduction to the Thingspeak
• Uploading data on Thingspeak using Nodemcu
• Make an attendance device with the fingerprint sensor and Arduino

Iot (Internet of things) is a platform in which there are a number of things connected to the Internet, interacting with individuals and other devices, and usually, upload data on cloud computing for analysis.

Thingspeak is an IoT platform that lets you display and collect live data in cloud computing.

Follow the steps below to start the Thingspeak connection:

Step 1) Enter the Thingspeak.com website and create an account.

Step 2) Login after activating your account and click on New Channel in the My Channel section.

Step 3) In the new window opened for you, write a name for your panel and any description if it is necessary. Determine the number of fields that you need by assigning their names. The remaining parts are optional. Save the panel after completing the information.

Step 4) Now go to API Keys in your panel.

Step 5) You need the Channel ID and Write API Key to transmit data, so write them down.

Step 6) Download the Thingspeak library and add it to your Arduino IDE.

The Thingspeak library

Step 7) Go to the Arduino IDE. Open the WriteMultipleFiels from examples part and enter the SSID, Password, Channel ID, and Write API Key values.

After uploading the code, you will see some random numbers uploaded in fields 1 to 4 of your panel. The same structured code is used in the attendance system for uploading data.

Note

Wait at least 15 seconds between each time you upload the data on the Thingspeak panel.

Hardware Components

Arduino Mega 2560 R3 *1

R301T Fingerprint sensor *1

Micro SD TF Card Adapter Module *1

DS3231 I2C RTC Module *1

3.5" TFT Color Display Screen Module *1

NodeMCU ESP8266 ESP-12E Board *1

male to Female Jumper Wire *1

Software Apps

Arduino IDE

In this system, after registering the entry and exit of a person by his fingerprint, the information including date, name, time of arrival, time of departure and working hours for the employee are stored on the SD card. Then this information will be sent to Thingspeak at the time you have specified. In the absence of the Internet connection, unpublished data is stored and will be forwarded to Thingspeak as soon as it is connected to the Internet. Since the information is stored in the EEPROM of the microcontroller, they will not be lost in case of a power outage.

After connecting all modules, put the LCD shield on the Arduino.

Tip
Since the LCD Shield covers some of the Arduino pins, you can border wire to a specific pin from the bottom of the board, if you need these pin.

You need the following libraries for this code:

Adafruit-Fingerprint-Sensor-Library

Adafruit-GFX-Library

MCUFRIEND_kbv

RTClib

Now download the following code and upload it to your Arduino. This code is written for 11 people with default names, but you can change them and remove it from the default mode. To register a new name, simply connect the device to your computer and press the key to enter the register mode, then open the Serial Monitor and follow the registration process as is shown on the Serial Monitor.

Download the code from above:

You can learn more about using an SD card, the clock module, and the LCD in the following links:

SD Card Module w/ Arduino: How to Read/Write Data

How to Use DS1307 RTC Module with Arduino & Make a Reminder

Absolute Beginner’s Guide to TFT LCD Displays by Arduino.

Nodemcu executes the task of uploading the information in this system. It takes the uploading information from Arduino through the serial port and returns the status of uploading to Arduino. Upload the following code on your Nodemcu.

First, change the Channel ID and Write API Key according to your Thingspeak Panel.

The String_Analuze (); function in this code divides the Nodemcu input strings into the date, name, arrival and departure time, and working hours, and sends this information to Thingspeak. Then if the uploading process is successful, it sends the character “1”, and otherwise it sends the character “0” to the Arduino.

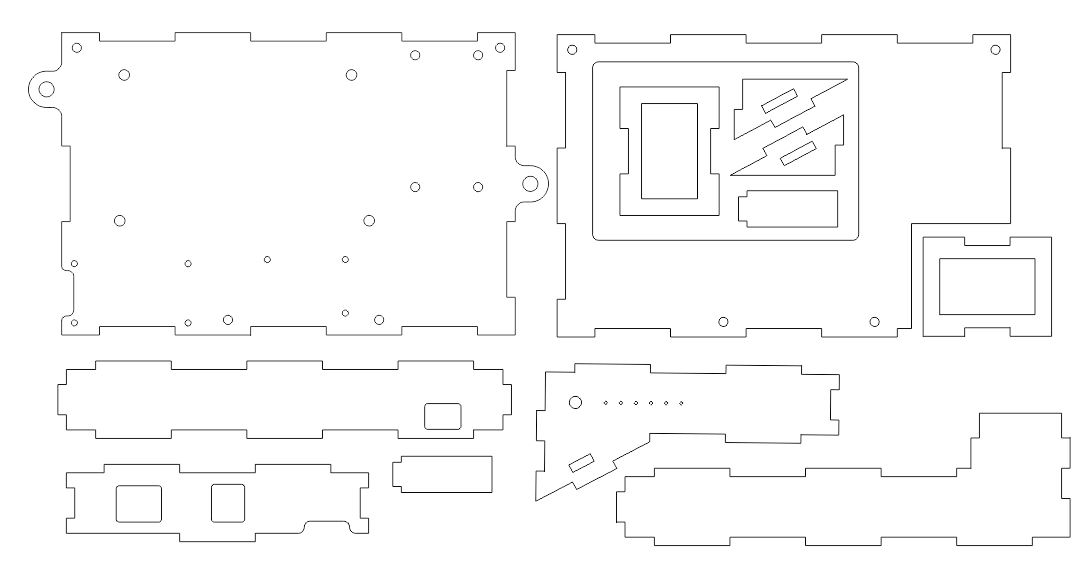

You can use the following maps and Plexiglass with different colors or any other material to build the body of the attendance device.

Download the device body laser cut map from above:

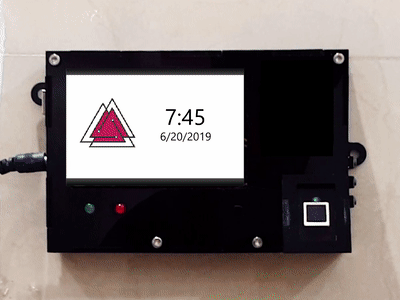

After placing electronic components and assembling the entire body, install it in the desired location. Now, just plug a 12V adapter to the device and it starts working.

• Try to use more icons on the LCD.
• Try to add an RFID option to the system.
• Try to upload the data on the google spreadsheets instead of Thingspeak.
