Arduino Fart-o-matic Toilet Humor Prank

http://youtu.be/16c64j-qkog This is a fun and relatively simple prank that is ideal to use in a busy restroom. It is fairly simple to create with minimal Arduino skills. I didn't include a step by step because of the simplicity and that every situation can require a different design. Most of my design consists of items I had on hand.  The restroom I installed this in is VERY BUSY, so speed and ease of setup was important to my design.

This list is the exact list of pieces that I used in my design but is easily alter-able for use in your own situation.

Parts:

• Arduino - this one is an Uno
• Adafruit's Wave shield and SD card
• Parallax PIR sensor
• 3 pin lead -  female to male
• a power source (more on that later)
• goose neck laptop light
• a container (this is from a Johnson & Johnson brand mini first aid kit)
• a strong magnet or other mounting device
• a small speaker
• a compartment to help amplify the speaker (I used a lid to a spray paint can)
• cable mounts
• a pin from a breakaway pin header
• heat shrink tubing
• various screws & nuts

 Assemble the wave shield as directed in the manufacturers tutorial and run some of the sample sketches to confirm that everything is working properly, also test the PIR sensor using some of the example sketches available (there are many here on Instructables). Solder the wires for the speaker to the provided spots in the circuit board of the wave shield.
 Once you've made sure all the pieces work find some audio files that are appropriate for your prank and convert them to the necessary format for the Wave shield (there are instructions on how to do this at the Adafruit website).
 I originally chose to power my project with a 9 volt battery because of it's compactness but this isn't a very good option to power an Arduino, I found out that I'd get optimum battery life using 4 AA batteries instead.

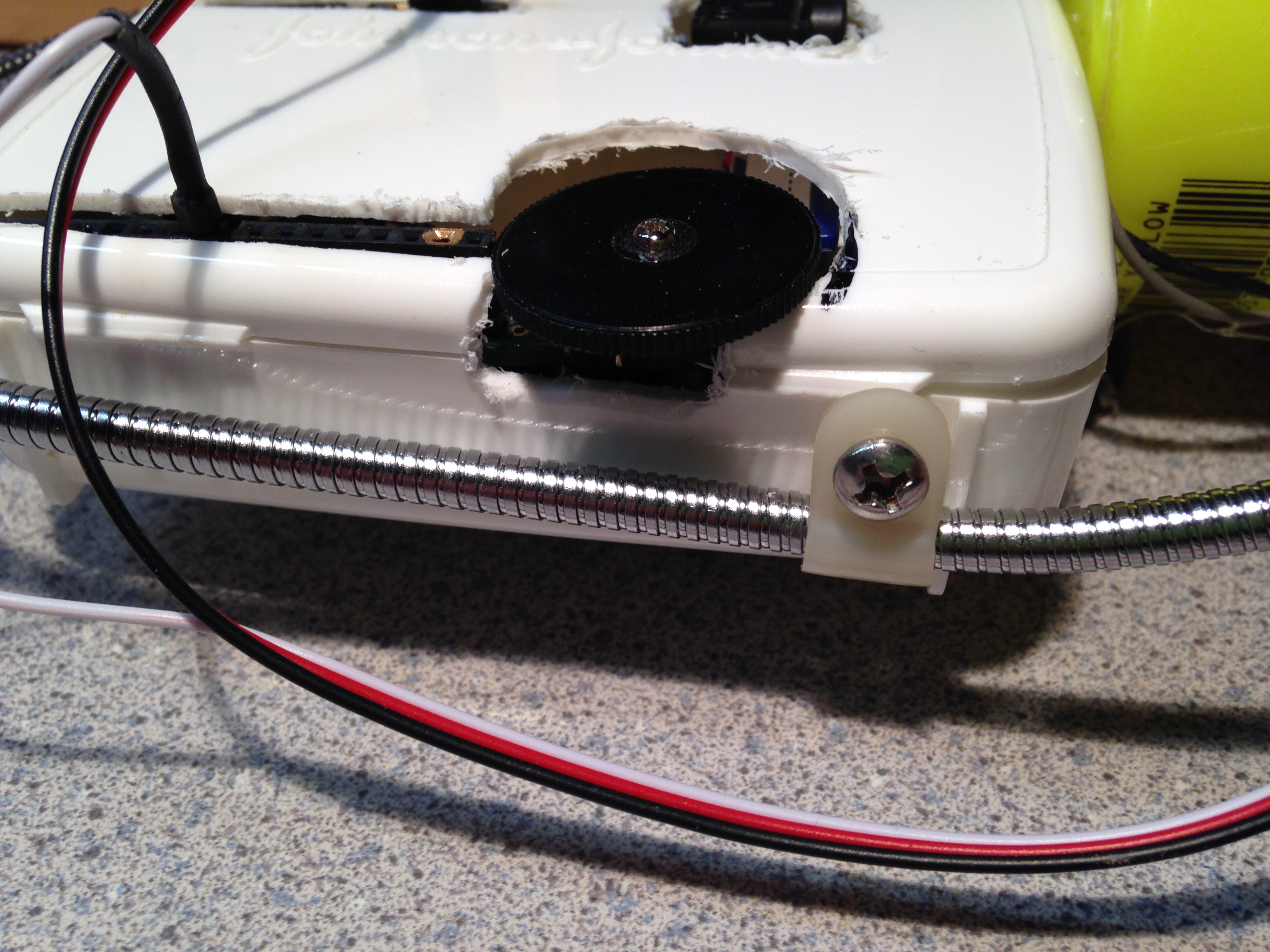

 I put all my parts into a Johnson & Johnson Brand mini first aid kit box and cut out the spots for the pins, speaker wires, and battery wires. I drilled a hole and mounted the magnet to the back. The stalls in the intended restroom are metal so a magnet is ideal, this might require a change in design to fit your situation (although, I don't recommend using suction cups since it's a restroom and people tend to lick suction cups, yuck!).
 I used the goose neck laptop light just for the goose neck portion because I wanted something that would be quickly adjustable. I mounted the PIR sensor to the "light" end of this and mounted the other end to my box using cable mounts.  The 3 pin female to male lead is plugged into the sensor and on the male end of the lead I left the pins for ground and power intact and clipped the wire for the signal pin from the plug. I soldered a breakaway pin to the end of the signal wire and covered the connection with heat shrink. It would be a good idea to leave two or more pins attached so that it would make a more stable "plug" when attached to the wave shield but I only did one pin. The speaker is hot glued to the spray paint cap and the cap is then hot glued to the box.
 When connecting you sensor to the wave shield you can use any pin you want provided it isn't one of the pins needed for the wave shield, pins 2 3 4 and 5 and 10 11 12 13 are all needed for either the wave shield or the SD card, leaving pins 6 through 9 and all the analog pins available. I chose pin seven, but you can use any of the available ones just remember to alter the sketch to that pin.

I'd love to claim to have written the sketch from scratch but I found one already written that I could alter to serve my purposes. I've included the altered sketch but the original sketch is from the Instructable "How to have a talking dog" by Schmidtn, and is worth checking out in it's unaltered form, and anyway, who doesn't want a talking dog?

The sketch can be changed so that more audio clips can be added, just continue with the same pattern -case: 35 playcomplete (filename) break. You will also need to change the number of files listed in the randNum line, here it says random(1, 22); , so for example if you had 35 files it should say random(1,35);. The audio files on the SD card can be named anything you want, I just numbered them, just be sure to replace the numbered file names with your own file names, an example of this is in this sketch it says - playcomplete ("49.WAV") and say your file is named "bob",  you'd need to change the 49.WAV in the sketch to say  ("bob.WAV").

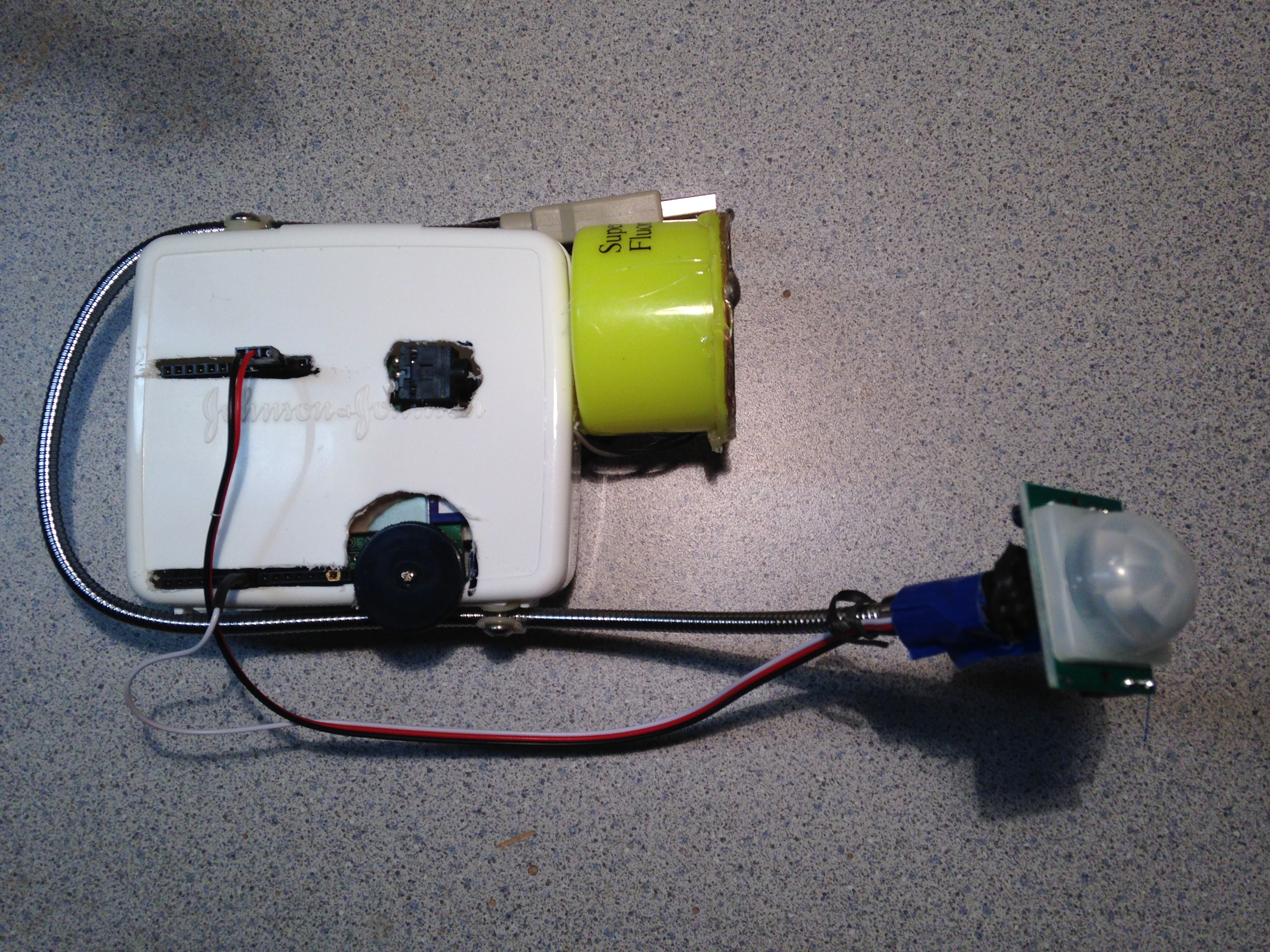

 The finished prank is programmed so that any time there is motion sensed, it plays a random audio file (mine were all gross sounds, it is a restroom after all). As you can see in the photo the device is positioned so that it can't be seen but the motion detector can sense motion anytime someone approaches the urinal. I placed some boots with a pair of pants over them to make the stall look occupied. The restroom I used it in has a pretty steady flow of people, using the magnet mount and goose neck it was possible to put this in place in a matter of seconds. It wasn't until mid-afternoon that my co-workers finally got suspicious and investigated, they loved it so much that they didn't reveal the prank and enjoyed their newly found secret for the rest of the day.
