Arduino Fake Thunder Light

by asiachen in Circuits > Arduino

150 Views, 0 Favorites, 0 Comments

Arduino Fake Thunder Light

截圖 2021-05-23 下午6.33.41.png

My product is the Arduino fake thunder light. About my project, I used fur to make LED look nicer.

Materials

截圖 2021-05-23 下午6.38.07.png

-LED- x1

-Jumper Wire- x7

-Resistor- x2

-USB cable- x1

-Arduino Leonardo- x1

-Breadboard- x1

-Dog fur- x1

Circuit Connection

截圖 2021-05-23 下午6.42.55.png
截圖 2021-05-23 下午6.43.05.png
截圖 2021-05-23 下午6.43.20.png

1. Put the LED on the breadboard.

2. Connect the Jumper Wire from the same line as long leg to your output

3. Connect the resistor from the same line as the short leg

4. Connect another jumper wire from the same line as the resistor to the negative of the breadboard

5. Connect the final jumper wire from the negative of the breadboard to the GND

Programming

截圖 2021-05-23 下午6.46.50.png

To upload the code into Arduino, you'll need to attach your Arduino broad with pc using the USB cable

This link is for the code that I used: https://create.arduino.cc/editor/asiachenhello/1ba9d0d9-c8d0-4b13-b5bb-ab1538dd2511/preview

Making Exterior

截圖 2021-05-23 下午8.34.29.png

1. Collect some fur from your dog

2. Put them on blinking LED

!Done!

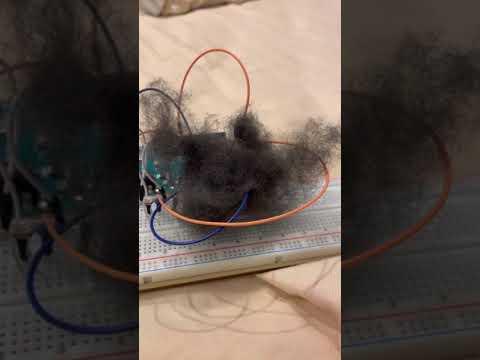

arduino fake thunder led night light

After you upload the code into Arduino, you can connect the USB cable to the power bank for the look.
